Victron Energy PIN482201000 Phoenix Inverter 48/2000 230V Smart

Victron Energy Phoenix Inverter Smart 48/2000 2000VA Proven Reliability. Bluetooth Smart. Toroidal Transformer.

---

Product Overview

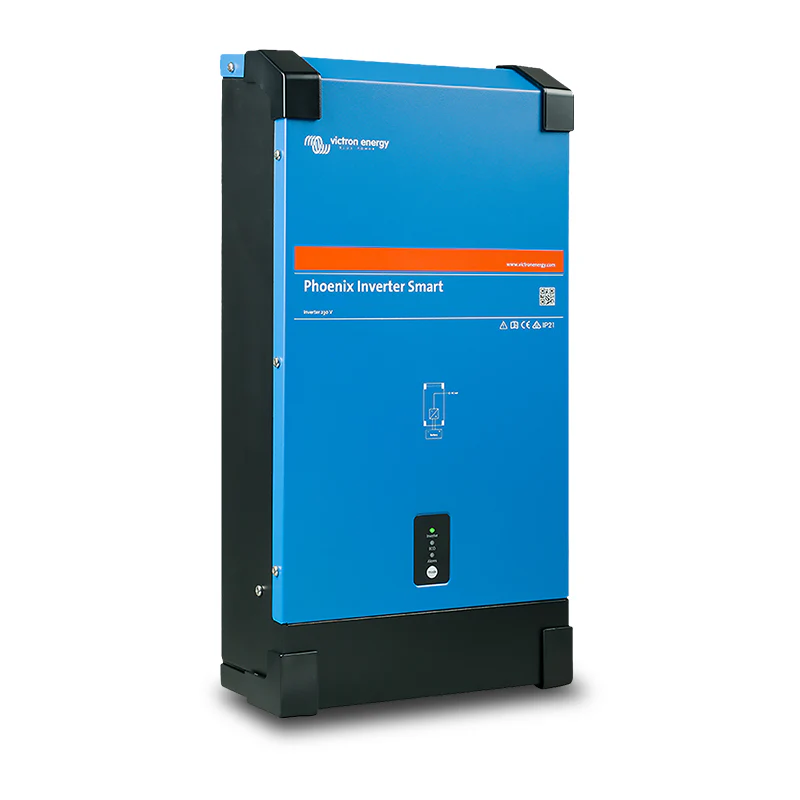

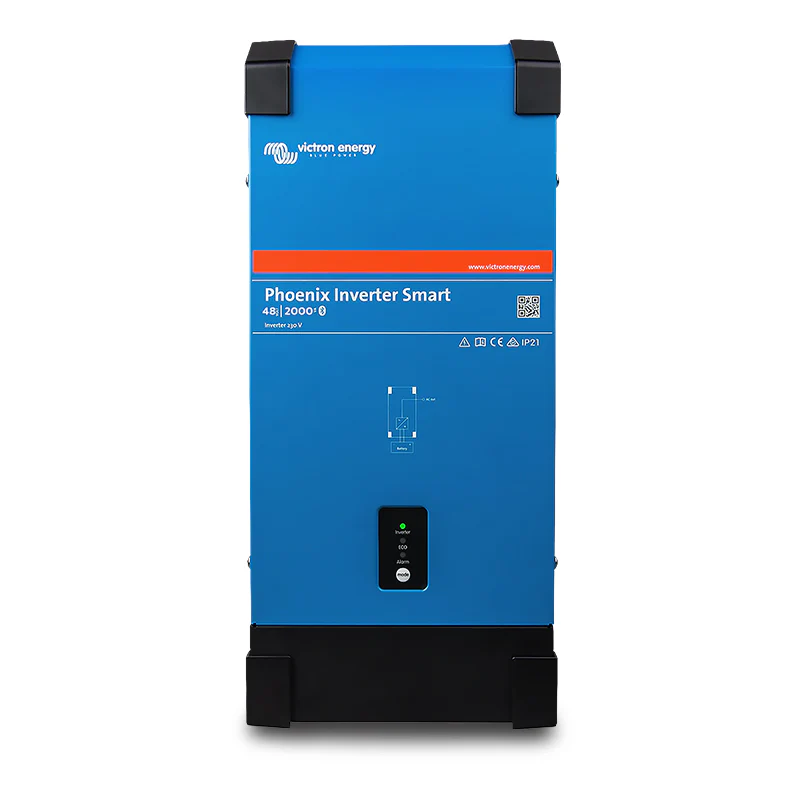

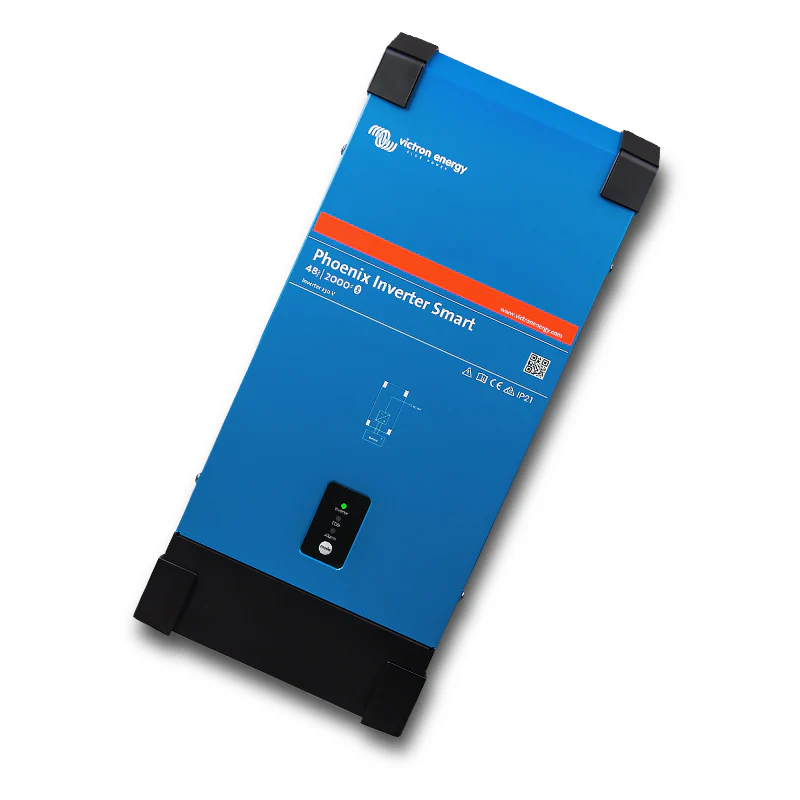

The Victron Energy Phoenix Inverter Smart 48/2000 (PIN482201000) is a 48V pure sine wave inverter delivering 2,000VA of continuous 230V AC output from the proven Phoenix inverter platform now updated with a slimmer full metal design, built-in Bluetooth, and improved terminal accessibility. Based on a full bridge plus toroidal transformer topology with a long track record of reliability in field installations, it delivers high peak power surge capacity, stable voltage and frequency, and a clean sine wave output suitable for all common appliances.

Unlike high-frequency RS-platform inverters, the Phoenix Smart uses a toroidal transformer adding weight but delivering robust surge capability, strong tolerance for non-linear loads, and decades of proven field reliability in marine, vehicle, caravan, and off-grid applications. At 48V and 2,000VA, it is a pure inverter only no integrated battery charger, no solar charger. All configuration is handled wirelessly via the VictronConnect app over built-in Bluetooth, covering alarm thresholds, cut-off levels, output voltage, ECO mode, and the alarm relay. A VE.Direct port connects to a computer for monitoring and configuration via cable (VE.Direct to USB interface required sold separately). The Phoenix Smart does not include a built-in transfer switch for installations requiring switchover to an external AC source, the Victron Filax Automatic Transfer Switch is recommended.

---

Key Specifications

• Part Number: PIN482201000
• Product: Phoenix Inverter Smart 48/2000 230V
• Battery Voltage: 48V
• Inverter Output: 2,000VA — 230V pure sine wave
• Battery Charger: None — pure inverter only
• Solar Charger: None
• Topology: Full bridge + toroidal transformer
• Output Voltage: 210–245V (configurable)
• Output Frequency: 50Hz or 60Hz (configurable)
• ECO Mode: Yes — standby below pre-set load; checks every 2.5 seconds (adjustable)
• Dynamic Cut-Off: Yes — load-dependent battery cut-off
• High Start-Up Power: Yes — toroidal transformer surge capacity
• Bluetooth: Built-in — VictronConnect app (iOS and Android)
• VE.Direct Port: Yes — computer connection (VE.Direct to USB interface required — sold separately)
• GX Device Compatibility: Not confirmed in brief — confirm from datasheet
• Remote On/Off: Yes — H (left) / L (right) two-pole connector; switch, relay, or battery plus/minus
• Alarm Relay: Yes — configurable via Bluetooth
• LED Diagnosis: Yes
• Short Circuit Protection: Yes
• Overheating Protection: Yes — overload and high ambient temperature
• Built-In Transfer Switch: No — external Filax ATS or MultiPlus required
• Design: Slimmer profile, full metal casing, improved terminal accessibility
• Peak/Surge Power: Not specified — confirm with supplier
• Efficiency: Not specified — confirm with supplier
• Standby Power (ECO Mode): Not specified — confirm with supplier
• IP Rating: Not specified — confirm with supplier
• Dimensions: Not specified — confirm with supplier
• Weight: Not specified — confirm with supplier

---

Features & Benefits

• Phoenix Platform — Proven Field Reliability — The Phoenix Inverter Smart is built on Victron's Phoenix inverter platform — one of the most widely deployed inverter designs in marine, caravan, vehicle, and off-grid installations globally. The full bridge plus toroidal transformer topology has accumulated years of field-proven reliability across demanding environments. The current Smart variant adds Bluetooth and a refreshed design without changing the underlying proven architecture.
• Full Bridge + Toroidal Transformer — High Surge, Stable Sine Wave — The toroidal transformer delivers high peak power surge capacity for starting motor loads, power tool inverters, halogen and LED lamp drivers, and other high-inrush equipment. It also provides inherently stable output voltage and frequency, and a high-quality pure sine wave compatible with all common 230V appliances and sensitive electronics.
• 2,000VA at 48V — Right-Sized for Common Off-Grid and Marine Loads — At 2,000VA continuous, the Phoenix Smart 48/2000 handles a practical range of household and marine loads — refrigeration, lighting, entertainment systems, small power tools, phone and device charging, and kitchen appliances within its output rating. The 48V battery voltage provides efficient operation at higher power levels with lower DC current draw compared to equivalent 12V or 24V designs.
• Built-In Bluetooth — Full Configuration via VictronConnect — All key inverter parameters are configurable wirelessly from any iOS or Android device using the free VictronConnect app. Bluetooth configuration covers:
  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off — load-dependent cut-off threshold
  • Output voltage (210–245V)
  • Output frequency (50Hz or 60Hz)
  • ECO mode on/off and sense level
  • Alarm relay configuration
  No physical interface, laptop, or wired connection is required for commissioning or adjustment.
• Dynamic Cut-Off — Load-Dependent Battery Protection — Rather than a fixed low-battery voltage cut-off, dynamic cut-off adjusts the threshold based on current load. Under heavy load, battery voltage naturally sags — a fixed cut-off would either disconnect prematurely under load or allow over-discharge at lighter loads. Dynamic cut-off sets a higher threshold under heavy load and a lower threshold under light load, protecting the 48V battery bank more accurately across real-world varying load conditions.
• ECO Mode — Standby Power Reduction — In ECO mode the inverter shuts down when no load is detected and briefly powers up every 2.5 seconds (adjustable) to check for demand. If load exceeds the configured threshold, the inverter remains running. Reduces no-load standby consumption — directly relevant in 48V off-grid and battery-backed systems where standby draw affects battery autonomy.
• High Start-Up Power — The toroidal transformer's high surge capability handles the inrush current required to start LED lamp power converters, halogen transformers, electric tools, compressors, and other loads that draw significantly more current at start-up than during normal operation.
• Remote On/Off — Flexible External Control — The two-pole H/L connector accepts a remote switch, relay contact, battery positive signal (H terminal), or battery negative signal (L terminal) for flexible external control of the inverter on/off state. Compatible with panel switches, timer relays, and BMS control signals.
• VE.Direct Port — Computer Monitoring and Configuration — The VE.Direct port connects to a computer for monitoring and configuration via VictronConnect software using a VE.Direct to USB interface cable (sold separately). Provides a wired alternative to Bluetooth for parameter access.
• Alarm Relay — Configurable Event Output — The programmable alarm relay can be configured via Bluetooth to activate on defined events — low battery, overtemperature, or other alarm conditions — for integration with external alert systems, generator auto-start, or load management equipment.

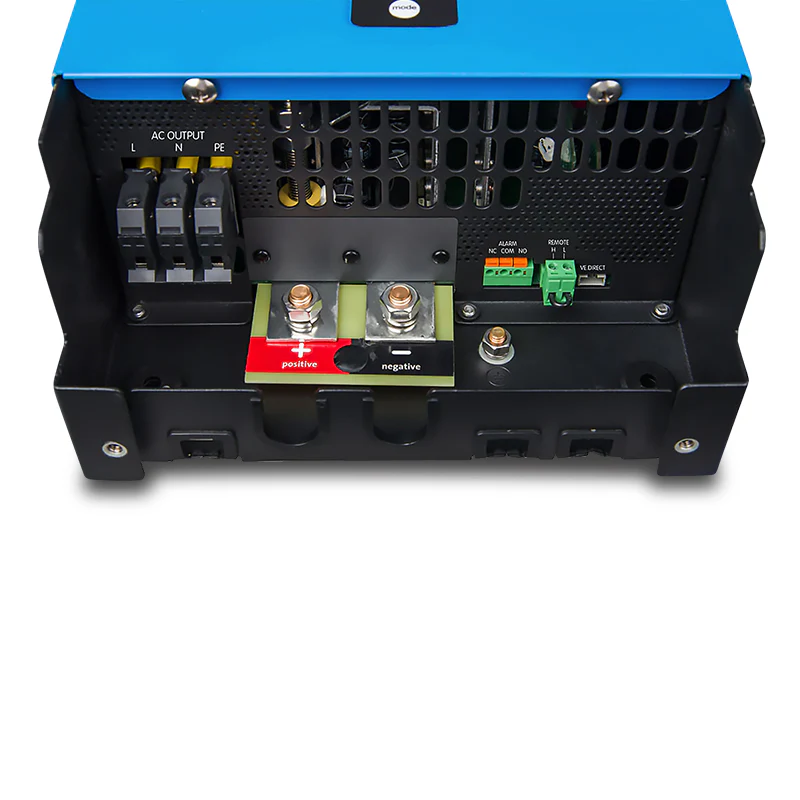

• Slimmer Design, Full Metal Casing, Improved Terminal Access — The Smart update brings a slimmer profile and full metal casing for durability in demanding environments, with terminal positioning redesigned for easier installer access — enabling a cleaner, more professional wiring finish.
• Short Circuit and Overheating Protection — The inverter is short circuit proof and protected against overheating — whether caused by sustained overload or high ambient temperature — without requiring manual reset in most cases.
• No Built-In Transfer Switch — The Phoenix Inverter Smart does not include an automatic transfer switch. For installations requiring seamless switchover to a generator or shore power source, the Victron Filax Automatic Transfer Switch (less than 20ms switchover) is recommended. Alternatively, a Victron MultiPlus with built-in transfer switch may be the more appropriate solution if AC input charging is also required.

---

Technical Specs

---

Compatible With / Goes Well With

Battery Systems:

• 48V battery banks — lead acid (AGM, flooded, gel) and lithium
• Note: lithium compatibility — confirm BMS integration method from datasheet

Transfer Switch (sold separately — required for AC source switchover):

• Victron Filax Automatic Transfer Switch (less than 20ms switchover — recommended for computer and electronics protection)
• Victron MultiPlus (alternative if AC input charging is also needed)

VE.Direct Accessories (sold separately):

• VE.Direct to USB Interface Cable — required for computer monitoring and configuration via cable

Monitoring (confirm from datasheet):

• VictronConnect app via Bluetooth (confirmed)
• Victron GX device via VE.Direct (confirm compatibility from datasheet)

Phoenix Smart Range — Other Models:

• Available in 1600VA, 2000VA, 3000VA, and 5000VA; in 12V, 24V, and 48V variants — confirm other SKUs with your retailer

Also Consider:

• PMP242200000 — MultiPlus 24/2000/50-32 (adds 50A charger and built-in transfer switch for AC input charging)

---

Frequently Asked Questions

What is the difference between the Phoenix Inverter Smart and the RS Inverter Smart?

The Phoenix Smart uses a full bridge plus toroidal transformer topology — proven over many years with high surge capacity and robust performance in demanding environments, at the cost of greater weight. The RS Inverter Smart uses high-frequency technology, weighing just 11kg for equivalent or higher output. The Phoenix platform is the field-proven choice for installations where the transformer architecture's surge tolerance and reliability record are priorities; the RS platform suits installations where weight and compact size are critical.

Does this inverter include a battery charger or transfer switch?

No to both. The Phoenix Inverter Smart is a pure inverter only — no battery charger and no AC input transfer switch. For battery charging from AC input, a separate charger or a Victron MultiPlus inverter/charger is required. For transfer to an external AC source, the Victron Filax Automatic Transfer Switch provides a less than 20ms switchover suitable for computers and sensitive equipment.

What can I configure via Bluetooth on the VictronConnect app?

All key inverter parameters — low battery alarm and cut-off levels, dynamic cut-off, output voltage (210–245V), frequency (50/60Hz), ECO mode settings, and the alarm relay. Monitoring via Bluetooth covers input/output voltage, load percentage, and active alarms.

What is dynamic cut-off and how does it protect my batteries?

Dynamic cut-off adjusts the low battery voltage disconnect threshold based on the current load. Under heavy load, battery voltage naturally sags — setting the cut-off too high would disconnect prematurely, and too low risks over-discharge. Dynamic cut-off sets the threshold proportionally to load, protecting battery health accurately across light and heavy load conditions.

Does the Phoenix Inverter Smart connect to a Victron GX device?

The VE.Direct port is confirmed for computer connection via VE.Direct to USB cable. GX device compatibility via VE.Direct is not explicitly confirmed in the available product data — confirm from the PIN482201000 datasheet before specifying for a GX-integrated system.
