Victron Energy PIN242201000 Phoenix Inverter 24/2000 230V Smart

2000VA Pure Sine Wave at 24V Built-In Bluetooth. Toroidal. Proven Platform.

---

Product Overview

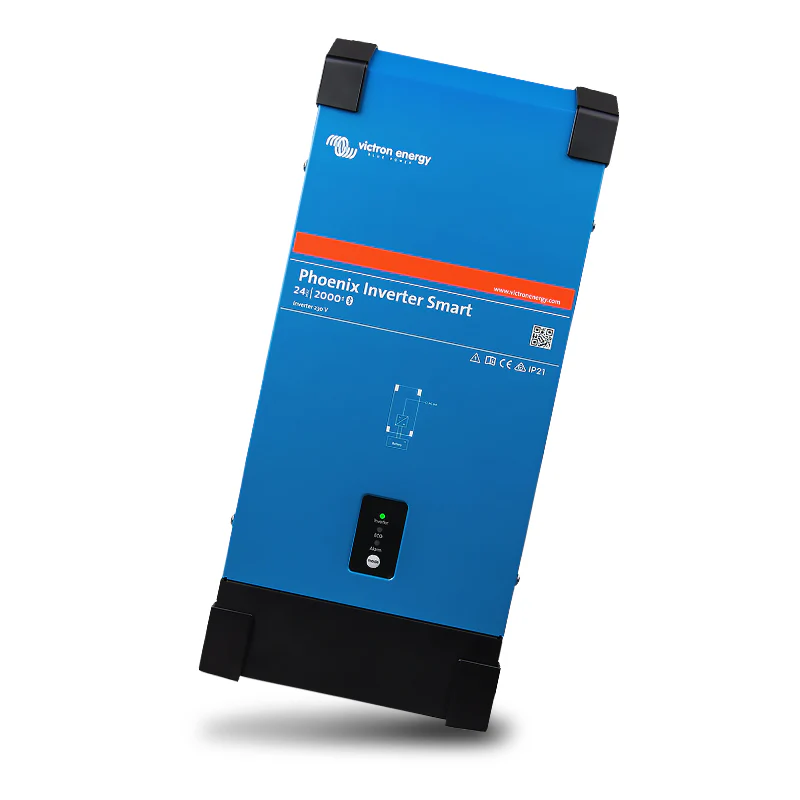

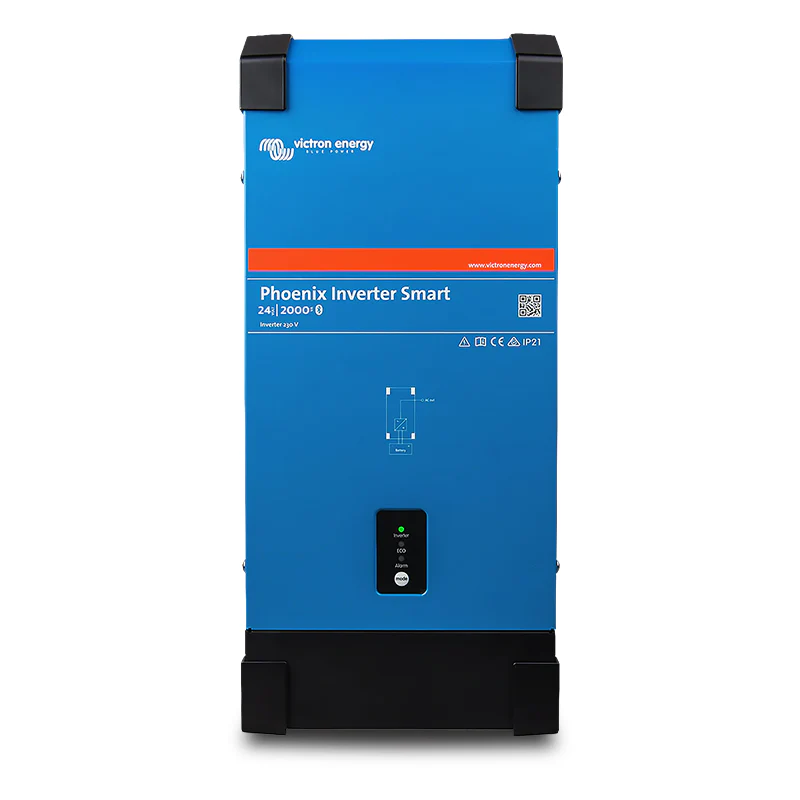

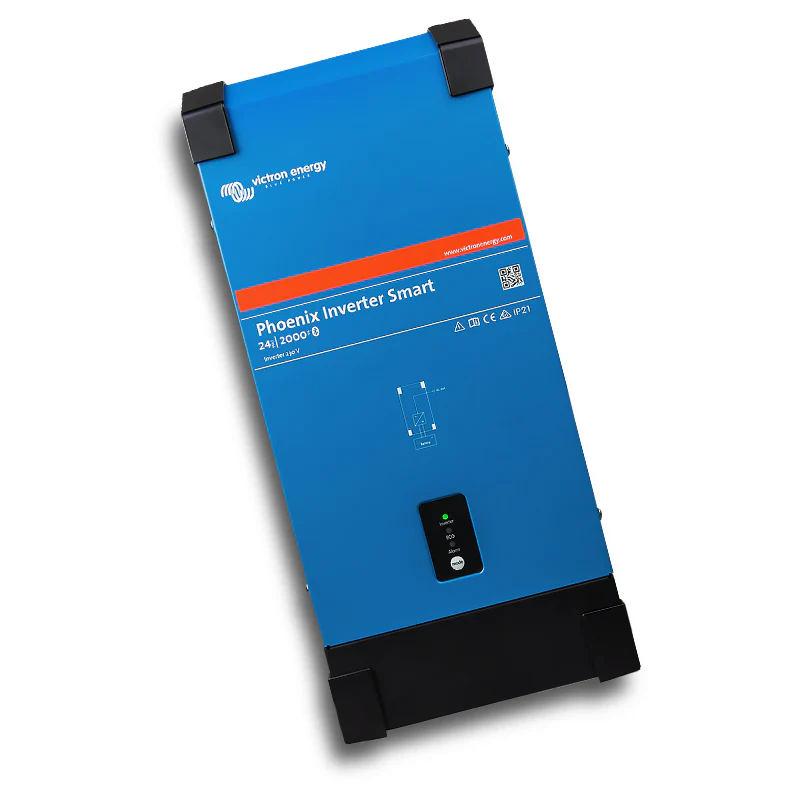

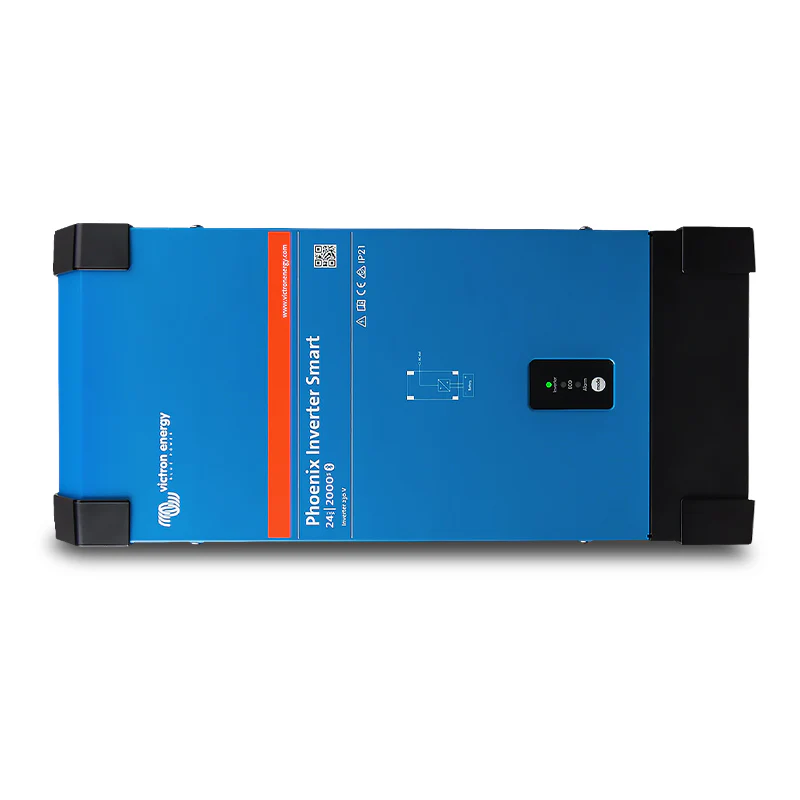

The Victron Energy Phoenix Inverter Smart 24/2000 (PIN242201000) is a 24V pure sine wave inverter delivering 2,000VA of continuous 230V AC output from the proven Phoenix inverter platform with a slimmer full metal design, improved terminal accessibility, and built-in Bluetooth for wireless configuration and monitoring via the VictronConnect app. At 2,000VA and 24V, it sits in the mid-range of the Phoenix Smart 24V lineup powerful enough for most common household and marine loads, from kitchen appliances and power tools to entertainment systems and air conditioning, while remaining practical in size and weight.

The full bridge plus toroidal transformer topology provides high peak power surge capacity for starting motor loads and high-inrush equipment, stable sine wave output, and the field-proven reliability of the Phoenix platform deployed across boats, caravans, motorhomes, and off-grid installations worldwide. Built-in Bluetooth means the inverter is fully configurable and monitorable from any iOS or Android device without an additional dongle or cable. A VE.Direct port connects to a computer via cable for the same access. No battery charger and no solar charger are included pure inverter only.

---

Key Specifications

• Part Number: PIN242201000
• Product: Phoenix Inverter Smart 24/2000 230V
• Battery Voltage: 24V
• Inverter Output: 2,000VA — 230V pure sine wave
• Battery Charger: None — pure inverter only
• Solar Charger: None
• Topology: Full bridge + toroidal transformer
• Output Voltage: 210–245V (configurable)
• Output Frequency: 50Hz or 60Hz (configurable)
• Bluetooth: Built-in — VictronConnect app (iOS and Android)
• VE.Direct Port: Yes — computer connection (VE.Direct to USB interface cable required — sold separately)
• ECO Mode: Yes — standby below pre-set load; checks every 2.5 seconds (adjustable)
• Dynamic Cut-Off: Yes — load-dependent battery cut-off
• High Start-Up Power: Yes — toroidal transformer surge capacity
• Remote On/Off: Yes — H/L two-pole connector
• Alarm Relay: Yes — configurable via Bluetooth
• LED Diagnosis: Yes
• Short Circuit Protection: Yes
• Overheating Protection: Yes
• Built-In Transfer Switch: No — external Filax ATS or MultiPlus required
• Design: Slimmer profile, full metal casing, improved terminal accessibility
• Peak/Surge Power: Not specified — confirm with supplier
• Efficiency: Not specified — confirm with supplier
• Standby Power (ECO Mode): Not specified — confirm with supplier
• IP Rating: Not specified — confirm with supplier
• Dimensions: Not specified — confirm with supplier
• Weight: Not specified — confirm with supplier

---

Features & Benefits

• 2,000VA at 24V — mid-range Phoenix Smart output — Delivers 2,000VA of continuous AC output from a 24V battery bank — the right size for most common boat, caravan, motorhome, and off-grid loads including kitchen appliances, entertainment systems, power tools, lighting, and air conditioning units within its continuous rating. Step up to the Phoenix Smart 24/5000 (PIN242501000) for installations requiring the full 5,000VA output.
• Built-in Bluetooth — VictronConnect app — All configuration and real-time monitoring available wirelessly from any iOS or Android device without a dongle or cable. Configure low battery voltage alarm and cut-off levels, dynamic cut-off, output voltage (210–245V), frequency (50/60Hz), ECO mode, and the alarm relay directly from your phone. No extra accessories required for wireless setup.
• Full Bridge + Toroidal Transformer — Proven Surge and Reliability — High peak power surge capacity handles motor starts, compressor loads, and high-inrush equipment. Stable pure sine wave output is compatible with all load types — sensitive electronics, variable-frequency appliances, and power tools. Short circuit proof and protected against overheating from overload or high ambient temperature.
• Dynamic Cut-Off — Load-Dependent Battery Protection — Adjusts the low battery voltage disconnect threshold based on current load. A higher threshold protects against over-discharge under heavy loads; a lower threshold is acceptable under light loads. Protects the 24V battery bank accurately across the full operating range of a 2,000VA inverter.
• ECO Mode — Standby Power Reduction — Shuts the inverter down when load drops below the preset level and checks every 2.5 seconds for demand. Reduces standby consumption during idle periods — relevant in marine and off-grid installations where the inverter may be unloaded for extended periods between use.
• Remote On/Off — H/L Terminal — External inverter control via the two-pole H/L connector — accepts a switch, relay contact, battery positive (H), or battery negative (L). Compatible with panel switches, timer relays, and automation system inputs.
• Alarm Relay — External Alert Integration — Configurable via Bluetooth to activate on alarm events — low battery, overtemperature, or other user-defined conditions. Integrates with external alarm systems, generator auto-start circuits, or load management equipment.
• VE.Direct Port — Wired Computer Access — Connects to a computer via VE.Direct to USB interface cable (sold separately) for the same configuration and monitoring available via Bluetooth — useful for installer commissioning documentation and cable-based system setup.
• Slimmer Design, Full Metal Casing, Improved Terminal Access — Updated design for durability in demanding environments with cleaner, more accessible terminal wiring for a professional installation finish.
• No Built-In Transfer Switch — Pair with the Victron Filax ATS (less than 20ms switchover) for seamless AC source transfer, or a Victron MultiPlus for AC input battery charging alongside inversion.

---

Technical Specs

---

Compatible With / Goes Well With

Battery Systems:

• 24V battery banks — lead acid (AGM, flooded, gel) and lithium

Transfer Switch (sold separately):

• Victron Filax Automatic Transfer Switch (less than 20ms)
• Victron MultiPlus (if AC input battery charging is also required)

VE.Direct Accessories (sold separately):

• VE.Direct to USB Interface Cable — computer monitoring and configuration

Phoenix Smart 24V Range:

• PIN242501000 — Phoenix Smart 24/5000 (5,000VA — for highest-output 24V requirements)

Also Consider:

• PMP242305010 — MultiPlus-II 24/3000 (adds 70A charger and built-in transfer switch)

---

Frequently Asked Questions

Does the Phoenix Smart 24/2000 include built-in Bluetooth?

Yes — Bluetooth is built-in. Open VictronConnect on any iOS or Android device and connect directly for full configuration and monitoring without a dongle or cable. This is the key practical difference from the standard Phoenix VE.Direct models, which require a separate dongle for wireless access.

What loads can a 2,000VA inverter power?

At 2,000VA, this inverter handles most common household loads — a microwave (700–1,200W), small air conditioner, power tools, entertainment systems, lighting, and phone or device charging. High-draw appliances including large electric kettles (2,400W+) may exceed the continuous rating. Always verify the total simultaneous wattage of your connected loads before commissioning.

Is this inverter suitable for a boat or caravan installation?

Yes — the Phoenix Smart 24/2000 is well suited to marine and caravan 24V installations where 2,000VA of AC output covers the vessel or van's typical load requirement. The toroidal transformer handles the vibration, surge loads, and variable operating temperatures common in these environments.

Can I use this inverter with a generator for battery charging?

No — this is a pure inverter. It does not accept AC input for battery charging. For generator or shore power battery charging alongside the inverter, a separate Victron battery charger or a Victron MultiPlus inverter/charger with built-in transfer switch is required.

How does the 24/2000 compare to the 24/5000 in the Phoenix Smart range?

Both models share the same Phoenix Smart platform, features, and Bluetooth configuration. The 24/2000 delivers 2,000VA for typical household and marine loads; the 24/5000 delivers 5,000VA for larger installations with higher simultaneous load requirements. Choose based on your maximum expected continuous load.
