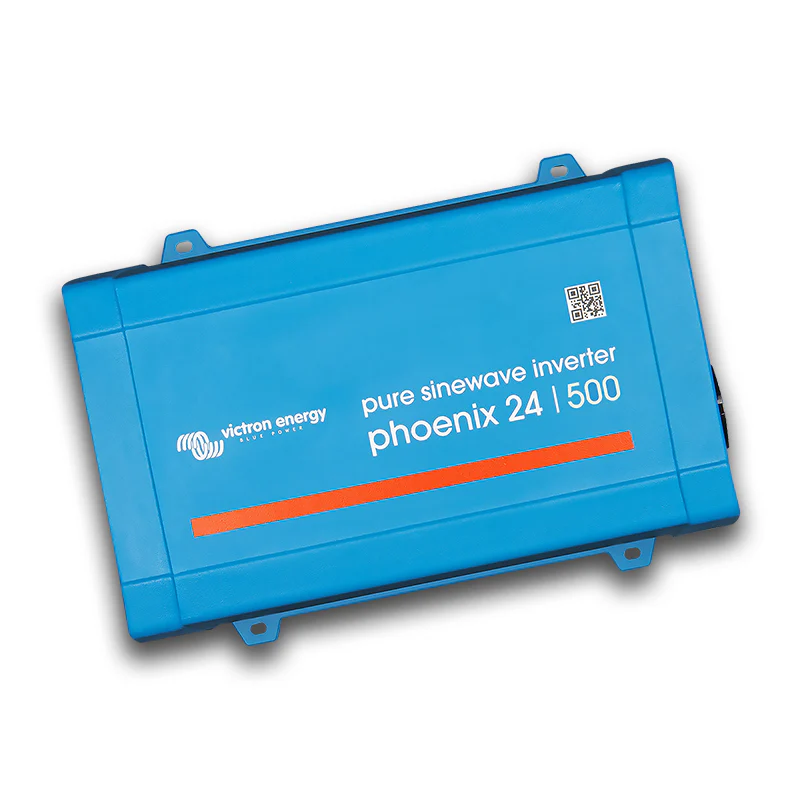

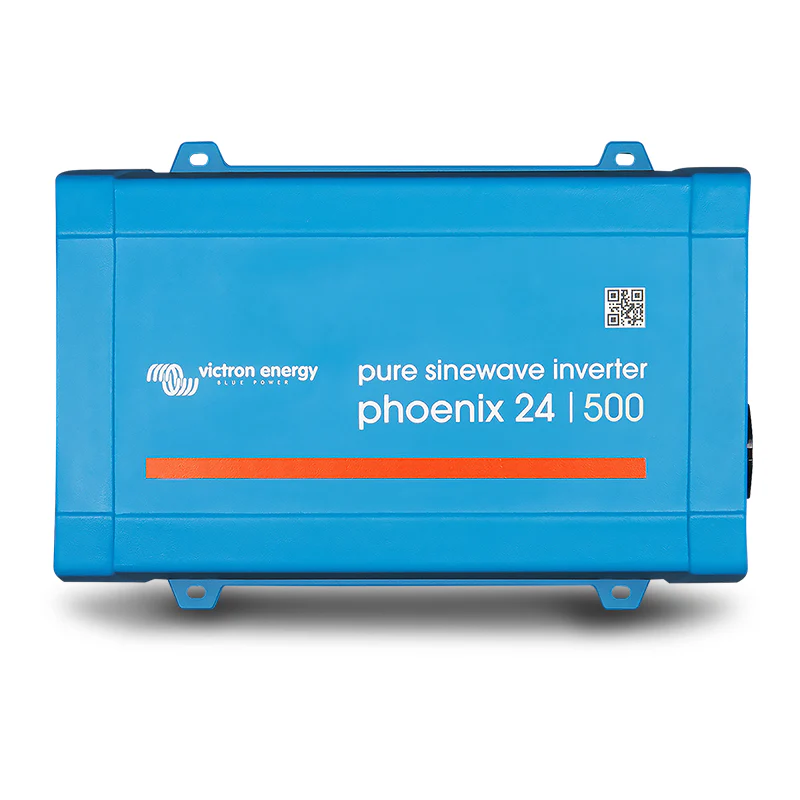

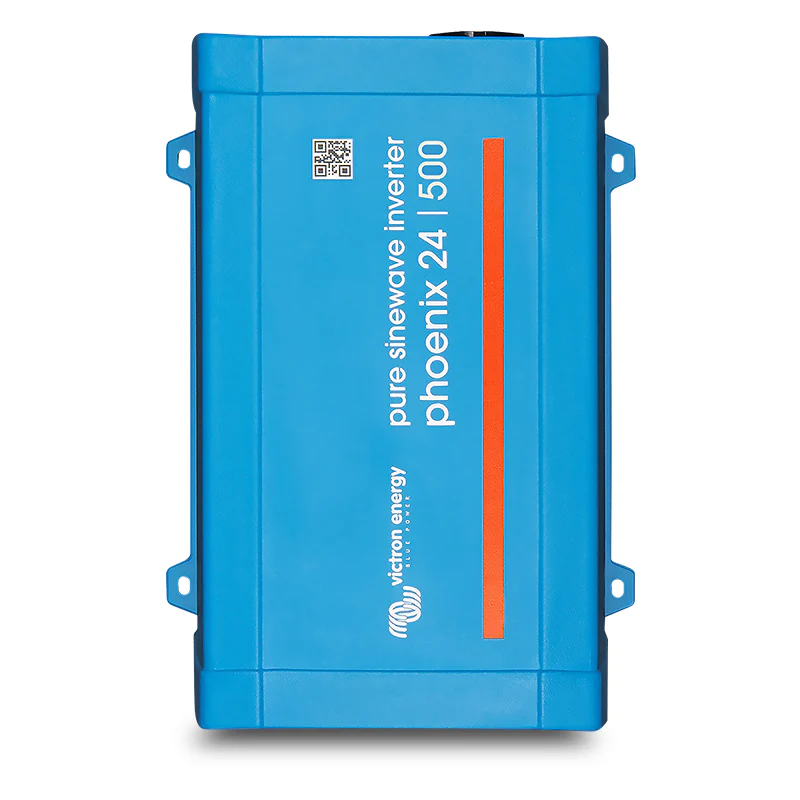

Victron Energy PIN241501300 Phoenix Inverter 24/500 230V VE.Direct AU/NZ

500VA Pure Sine Wave at 24V VE.Direct, Dynamic Cut-Off, AU/NZ Ready.

---

Product Overview

The Victron Energy Phoenix Inverter 24/500 230V VE.Direct AU/NZ (PIN241501300) is a compact 24V pure sine wave inverter delivering 500VA of continuous 230V AC output, fitted with an Australian and New Zealand standard plug. It powers domestic 230V equipment laptops, device chargers, LED and halogen lighting, and other low-to-mid draw electronics from a 24V leisure or automotive battery bank, with the proven field reliability of the Phoenix full bridge plus toroidal transformer platform.

There is no built-in Bluetooth. Monitoring and configuration are handled via the VE.Direct port connect to a computer using the VE.Direct to USB interface cable, or to any iOS or Android smartphone, tablet, or MacBook using the optional VE.Direct Bluetooth Smart dongle. Both accessories are sold separately. The inverter is fully configurable for battery alarm and cut-off levels, dynamic cut-off, output voltage, frequency, and ECO mode. No automatic transfer switch is included the Victron Filax ATS is recommended for seamless AC source switchover. Pure inverter only no battery charger, no solar charger.

---

Key Specifications

• Part Number: PIN241501300
• Product: Phoenix Inverter 24/500 230V VE.Direct AU/NZ
• Battery Voltage: 24V
• Inverter Output: 500VA — 230V pure sine wave
• Battery Charger: None — pure inverter only
• Solar Charger: None
• Topology: Full bridge + toroidal transformer
• Output Voltage: 210–245V (configurable)
• Output Frequency: 50Hz or 60Hz (configurable)
• Plug Type: AU/NZ standard
• Built-In Bluetooth: No
• VE.Direct Port: Yes
• VE.Direct to USB Cable: Not included — sold separately
• VE.Direct Bluetooth Smart Dongle: Not included — sold separately
• ECO Mode: Yes — min load 15W; checks every 2.5 seconds (adjustable)
• Dynamic Cut-Off: Yes — load-dependent battery cut-off
• High Start-Up Power: Yes

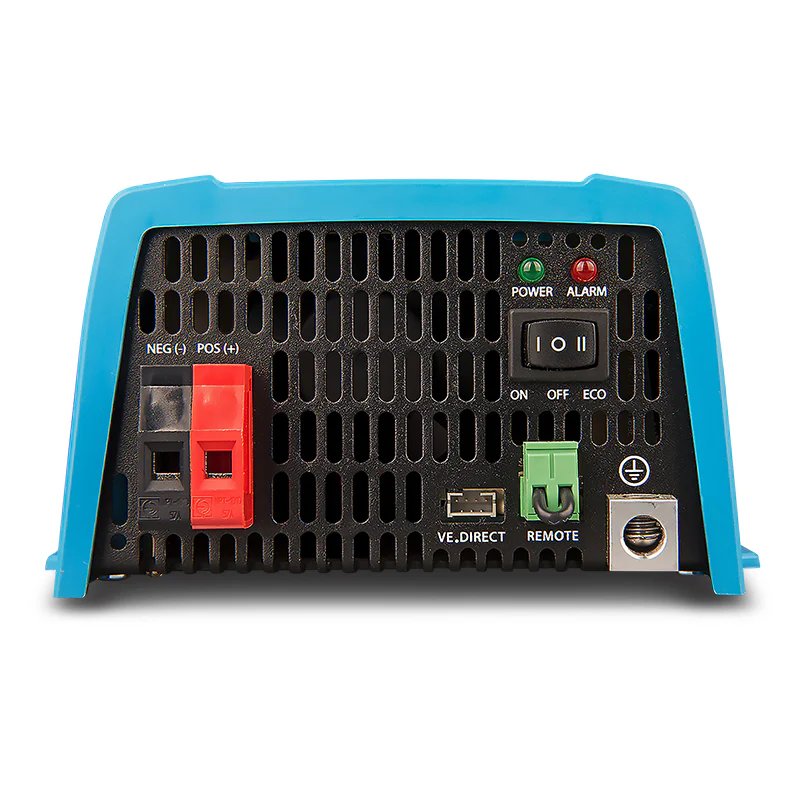

• Remote On/Off: Yes — two-pole connector; switch or battery plus to left-hand contact
• LED Diagnosis: Yes (confirm from datasheet)
• Short Circuit Protection: Yes
• Overheating Protection: Yes
• Built-In Transfer Switch: No — external Filax ATS or MultiPlus required
• Peak/Surge Power: Not specified — confirm with supplier
• Efficiency: Not specified — confirm with supplier
• Standby Power (ECO Mode): Not specified — confirm with supplier
• IP Rating: Not specified — confirm with supplier
• Dimensions: Not specified — confirm with supplier
• Weight: Not specified — confirm with supplier

---

Features & Benefits

• 500VA at 24V — compact power for targeted loads — At 500VA, the Phoenix 24/500 is suited to powering a single primary load or several low-draw devices simultaneously from a 24V battery bank — a laptop, phone chargers, LED lighting, a small television, or audio equipment within its rating. More capable than the 250VA entry model while remaining compact and cost-appropriate for installations that don't require 800VA or above.
• Fully Configurable via VE.Direct — All key inverter parameters are adjustable once connected via cable or dongle:
  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off — load-dependent threshold
  • Output voltage (210–245V)
  • Output frequency (50Hz or 60Hz)
  • ECO mode on/off and sense level
• Dynamic Cut-Off — Load-Dependent Battery Protection — The low battery voltage disconnect threshold adjusts based on current load — a higher threshold under heavy load prevents over-discharge from voltage sag; a lower threshold is appropriate under light load. Protects the 24V battery bank accurately across all load conditions.
• VE.Direct Port — Cable or Optional Dongle — The VE.Direct port provides monitoring and configuration access via two accessory options, both sold separately:
  • VE.Direct to USB Interface Cable — connects to a computer for VictronConnect access.
  • VE.Direct Bluetooth Smart Dongle — adds wireless access from iOS or Android smartphones, tablets, and MacBook devices.
• ECO Mode — Standby Power Reduction — Switches to standby when load drops below 15W and checks for demand every 2.5 seconds (adjustable). Resumes full operation immediately when load exceeds the threshold. Reduces no-load standby consumption in 24V off-grid and battery-backed systems.
• High Start-Up Power — The toroidal transformer surge capability starts LED lamp converters, halogen transformers, power tools, and other high-inrush loads.
• Full Bridge + Toroidal Transformer — Proven Reliability — Short circuit proof and protected against overheating from overload and high ambient temperature. Pure sine wave output compatible with all electronics and motor-driven loads.
• Remote On/Off — A remote switch or battery positive connected to the two-pole connector enables external inverter on/off control.
• AU/NZ Standard Plug — Direct connection to any standard Australian or New Zealand 10A GPO — no adapter required.
• No Built-In Transfer Switch — Pair with the Victron Filax ATS (less than 20ms) for seamless AC source switchover, or a Victron MultiPlus for combined inversion and AC input battery charging.

---

Technical Specs

---

Compatible With / Goes Well With

Battery Systems:

• 24V battery banks — lead acid (AGM, flooded, gel) and lithium

Required Accessories — Not Included (choose one):

• VE.Direct to USB Interface Cable — computer monitoring and configuration
• VE.Direct Bluetooth Smart Dongle — wireless iOS/Android/MacBook access

Transfer Switch (sold separately):

• Victron Filax Automatic Transfer Switch (less than 20ms)
• Victron MultiPlus (if AC input battery charging is also required)

Phoenix Inverter VE.Direct AU/NZ Range — Other 24V Models:

• PIN241801300 — Phoenix Inverter 24/800 (800VA)
• PIN242121300 — Phoenix Inverter 24/1200 (1,200VA)
• PIN242161000 — Phoenix Smart 24/1600 (1,600VA, built-in Bluetooth)

---

Frequently Asked Questions

Does this inverter have built-in Bluetooth?

No — wireless access requires the optional VE.Direct Bluetooth Smart dongle (sold separately). Computer access uses the VE.Direct to USB interface cable (also sold separately). For built-in Bluetooth, consider the Phoenix Smart 24/1600 (PIN242161000).

What devices can I monitor and configure via the VE.Direct port?

Via the VE.Direct port and VictronConnect (cable or dongle), you can monitor input and output voltage, load percentage, and alarms, and configure battery alarm and cut-off levels, dynamic cut-off, output voltage (210–245V), frequency (50/60Hz), and ECO mode settings.

What loads can a 500VA inverter realistically power?

At 500VA, this inverter suits low-to-mid draw loads — a laptop (45–90W), LED lighting, device chargers, a small television, or audio equipment within the 500VA rating. High-draw appliances including electric kettles (1,800W+) and microwave ovens exceed this limit. Always verify appliance wattage before connecting.

Does this inverter include a transfer switch?

No. The Victron Filax ATS (less than 20ms) is recommended for installations requiring AC source transfer. For combined inversion and battery charging from AC input, a Victron MultiPlus is the more comprehensive solution.

How does the 24/500 compare to the 24/800 in the range?

Both use the same Phoenix VE.Direct platform with identical features. The 24/500 delivers 500VA for lighter single-load applications; the 24/800 (PIN241801300) delivers 800VA for higher or simultaneous load requirements. Choose slightly above your expected continuous load to avoid running at the rated limit.
