Victron Energy PIN122510200 12/250 Phoenix Direct Schuko Inverter
Victron Energy Phoenix 12/250 Direct Schuko Inverter
Compact, reliable 12V inverter clean 230VAC power from your battery wherever you need it
Product Overview

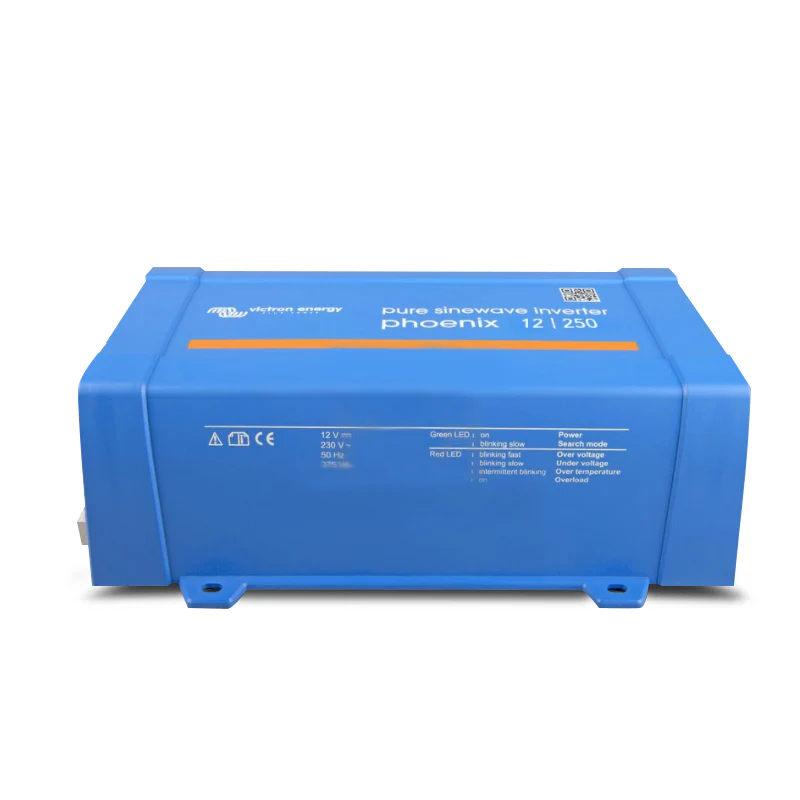

The Victron Energy Phoenix 12/250 Direct Schuko (PIN122510200) is a compact, standalone pure sine wave inverter that converts 12V DC battery power to 230VAC for powering small AC loads in vehicles, caravans, boats, and off-grid installations. At 250VA output, it is designed for low-to-mid draw appliances and electronics laptops, phone chargers, LED lighting, small power tools, and sensitive electronics that require a clean sine wave rather than a modified waveform.
Built on Victron's proven full bridge plus toroidal transformer topology the same core design used across their professional inverter range the Phoenix 12/250 brings genuine reliability and field-proven performance to the compact inverter segment. The integrated Schuko socket provides a direct AC outlet without additional wiring, making it one of the most straightforward inverters to install and use in mobile and light off-grid applications. ECO mode reduces standby draw to a minimum when loads are light or absent, and a remote on/off connector allows the unit to be switched from a separate location without routing high-current cables through a switch. Fully configurable low voltage trip, cutoff, and dynamic cutoff settings protect your battery bank from over-discharge.
Note: This product is a standalone inverter only it does not include a battery charger. It is not suitable for connection to mains AC supply.
Key Specifications
- Input voltage: 12V DC nominal
- Output voltage: 210–245VAC (adjustable)
- Output frequency: 50Hz or 60Hz (configurable)
- Continuous output power: 250VA
- ECO mode minimum load threshold: 15W
- ECO mode sense interval: adjustable (default: every 2.5 seconds)
- Low voltage alarm: configurable trip and reset levels
- Low voltage cutoff: configurable cutoff and restart levels
- Dynamic cutoff: load-dependent cutoff level
- Short circuit protection: Yes
- Overtemperature protection: Yes
- Remote on/off: Yes (two-pole connector)
- AC outlet: Schuko (direct integrated socket)
- Monitoring: Input and output voltage, alarms
Features & Benefits
- Full bridge plus toroidal transformer topology: The same core inverter architecture used in Victron's professional-grade range. This topology delivers a clean pure sine wave output, high efficiency, and proven long-term reliability not the cut-corner designs found in budget inverters. The result is stable, clean AC power that sensitive electronics, LED drivers, and modern power supplies can operate from without issue.
- Short circuit proof and overtemperature protected: Whether caused by a faulty load or excessive ambient heat, the Phoenix 12/250 protects itself automatically. It shuts down cleanly under overload or overtemperature conditions and recovers without damage reducing the risk of failure in unattended or remote installations.
- High start-up power: Handles the inrush current demands of loads that draw significantly more on startup than during steady-state operation LED lamp converters, halogen lamps, and small power tools among them. Where cheaper inverters trip or clip on start-up, the Phoenix maintains clean output.
- ECO mode minimal standby draw: In ECO mode, the Phoenix 12/250 drops to standby when load falls below 15W, switching on briefly every 2.5 seconds (adjustable) to check whether a load has reconnected. This dramatically reduces battery drain in installations where the inverter is left on but loads are intermittent caravans, boats at anchor, and off-grid cabins overnight.
- Fully configurable voltage protection: Low voltage alarm, low voltage cutoff, and low voltage restart levels are all user-adjustable allowing the protection thresholds to be tuned to the specific battery chemistry, bank size, and application rather than relying on fixed factory presets. Dynamic cutoff adds a further layer: the cutoff voltage adjusts based on load, preventing nuisance cutoffs under light loads while still protecting the battery under heavy discharge.
- Remote on/off: A two-pole remote on/off connector allows the Phoenix 12/250 to be switched from a panel, switch board, or control system without routing high-current battery cables through the switch. Suitable for integrating into vehicle electrical systems, caravan control panels, and BMS-controlled installations.
- Integrated Schuko socket: The direct Schuko outlet means a standard European/Australian-compatible appliance plug connects straight to the inverter no additional socket wiring or outlet box required. Ideal for straightforward mobile and light off-grid applications where simplicity of installation matters.
- Configurable output voltage and frequency: Output voltage is adjustable between 210–245VAC and frequency between 50Hz and 60Hz allowing the Phoenix to be configured for local grid standards and specific load requirements without modification.
- Input and output monitoring: Onboard monitoring of input DC voltage and output AC voltage with alarm outputs keeps you informed of system status and alerts you to low battery or fault conditions before they cause a problem.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | PIN122510200 |
| Brand | Victron Energy |
| Model | Phoenix 12/250 Direct Schuko |
| Input Voltage | 12V DC nominal |
| Output Voltage | 210–245VAC (adjustable) |
| Output Frequency | 50Hz or 60Hz (configurable) |
| Continuous Output Power | 250VA |
| Topology | Full bridge + toroidal transformer |
| Output Waveform | Pure sine wave |
| ECO Mode | Yes (min load threshold: 15W) |
| ECO Mode Sense Interval | Adjustable (default: 2.5 seconds) |
| Low Voltage Alarm | Configurable trip and reset levels |
| Low Voltage Cutoff | Configurable cutoff and restart levels |
| Dynamic Cutoff | Yes (load-dependent) |
| Short Circuit Protection | Yes |
| Overtemperature Protection | Yes |
| Remote On/Off | Yes (two-pole connector) |
| AC Outlet | Schuko (direct integrated) |
| Battery Charger Included | No |
| Monitoring | Input/output voltage and alarms |
Compatible With
- 12V AGM, gel, and LiFePO4 battery banks (configure low voltage settings to suit chemistry)
- Caravan and motorhome 12V DC systems requiring a compact 230VAC outlet
- Marine 12V installations for AC appliance supply
- 4WD and vehicle-based auxiliary power systems
- Victron BMV battery monitors (input voltage monitoring and system integration)
- Victron Color Control GX and Cerbo GX (for installations requiring system-level monitoring check compatibility)
- Small off-grid cabin installations with low AC load requirements
Frequently Asked Questions
What types of loads can the Phoenix 12/250 power?
At 250VA continuous, it suits low-to-mid draw AC loads including laptops, phone and tablet chargers, LED lighting, small power tools, and other sensitive electronics requiring a clean pure sine wave. It is not suited to high-draw appliances such as kettles, toasters, or air conditioners.
Does ECO mode damage connected electronics when the inverter cycles on and off?
ECO mode is designed for loads that tolerate brief power interruptions phone chargers, battery-powered devices, and non-critical electronics. For loads that must remain continuously powered (such as computers or medical devices), ECO mode should be disabled so the inverter remains on continuously.
Can I control the Phoenix 12/250 remotely without running heavy battery cables to a switch?
Yes. The remote on/off connector accepts a low-power signal, allowing the inverter to be switched from a cabin panel, BMS output, or control system without routing high-current cabling through the switch keeping the installation clean and the switch gear simple.
Does this inverter include a battery charger?
No. The Phoenix 12/250 is a standalone inverter only and does not include a battery charger or AC input connection. If combined inverter and charger functionality is required, refer to the Victron MultiPlus or MultiPlus-II range.
How do I set the low voltage cutoff to protect my battery from over-discharge?
The low voltage alarm, cutoff, and restart levels are fully user-configurable to match your battery chemistry and bank size. Consult the Victron Phoenix inverter manual for configuration instructions and recommended voltage thresholds for your specific battery type correct setup is essential to prevent battery damage from over-discharge.
