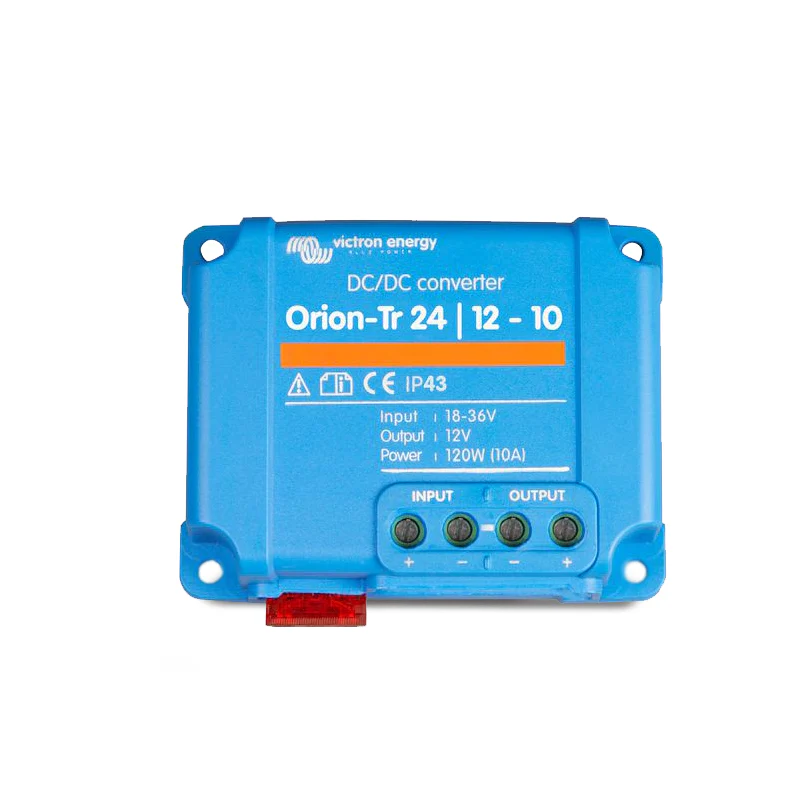

Victron Energy ORI241210200R Orion-Tr DC-DC Converter 24/12-10 120W

Victron Energy Orion-Tr DC-DC Converter 24/12-10 120W: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product

High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Victron Energy ORI241210200R Specifications:

• Input voltage range: 18-35V
• Output voltage: 12.5V
• Efficiency: 97%
• Continuous output current: 10A
• Max. Output current: 12A
• Galvanic isolation: no
• Off load current: < 45mA
• Operating temperature range (derate 3% per °C above 40°C): -20 to +55°C
• DC connection: Screw terminals
• Maximum cable cross-section: 6 mm² AWG12
