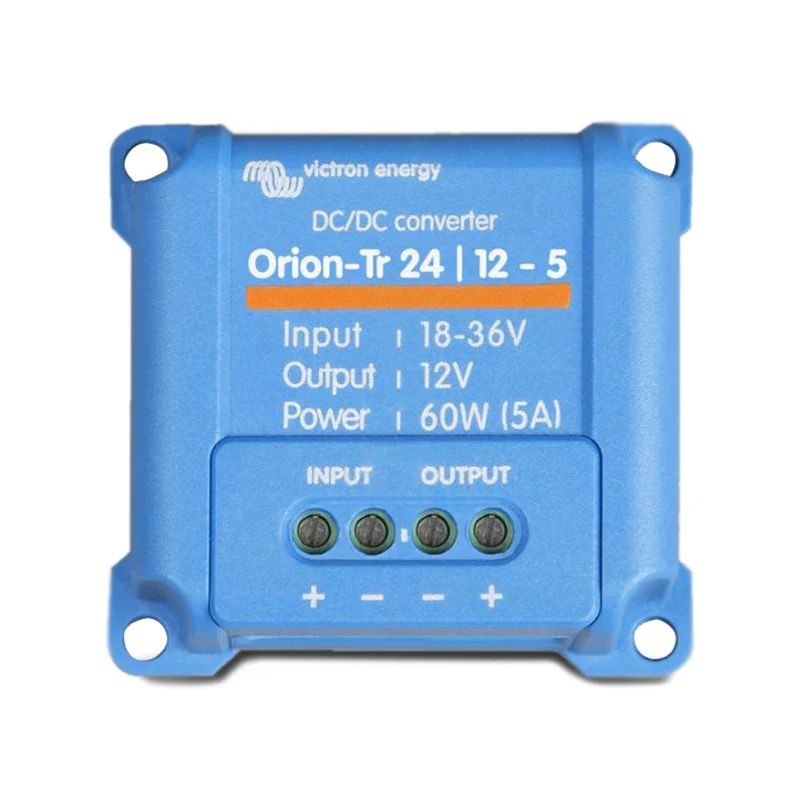

Victron Energy ORI241205200R 60W 24/12-5 Orion-Tr DC-DC Converter

Victron Energy ORI241205200R 60W 24/12-5 Orion-Tr DC-DC Converter: The DC-DC Converter From Victron Energy Have Been Designed to Be a True World-wide Product

High efficiency

Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Victron Energy ORI241205200R Specifications:

• Input voltage range: 18-35V
• Output voltage: 12.7V
• Efficiency: 95%
• Continuous output current: 5A
• Max. Output current: 7A
• Galvanic isolation: no
• Off load current: < 20mA
• Operating temperature range (derate 3% per °C above 40°C): -20 to +55°C
• DC connection: Screw terminals
• Maximum cable cross-section: 3,3 mm² AWG12
