Victron Energy LYN060404010 Lynx Class-T Power In (M10)

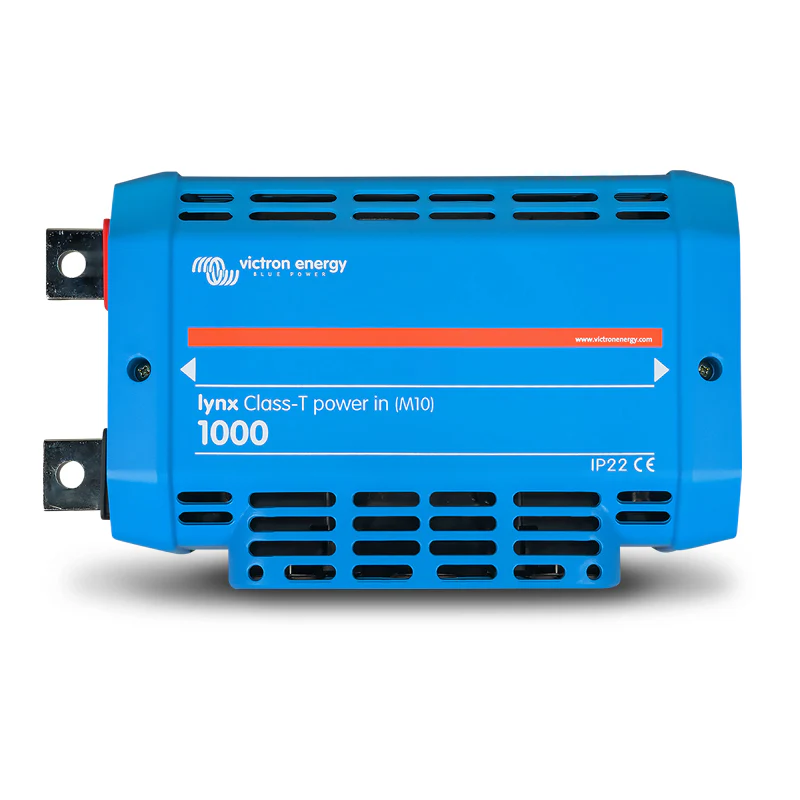

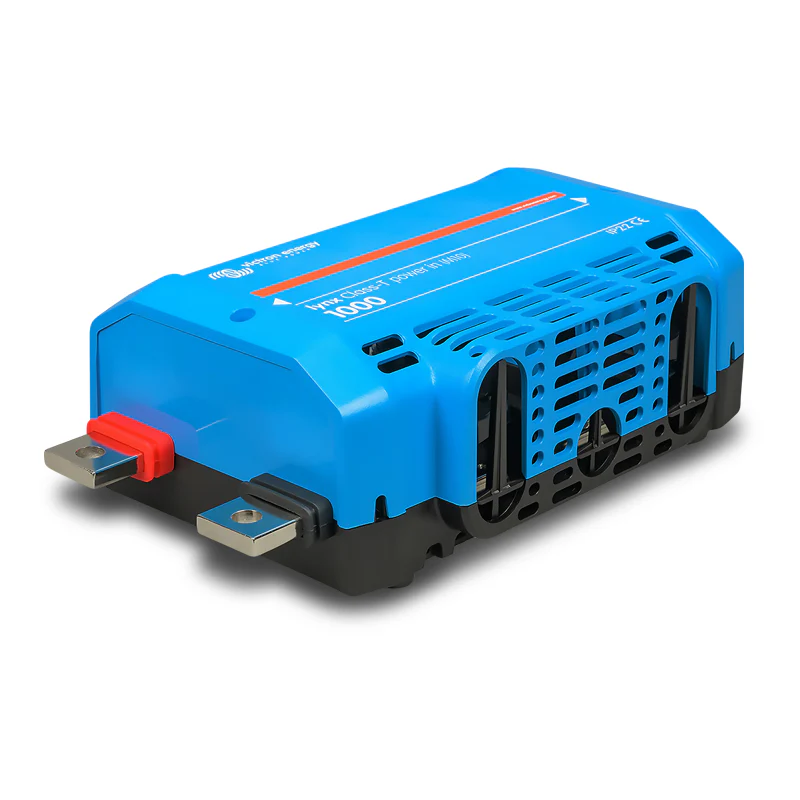

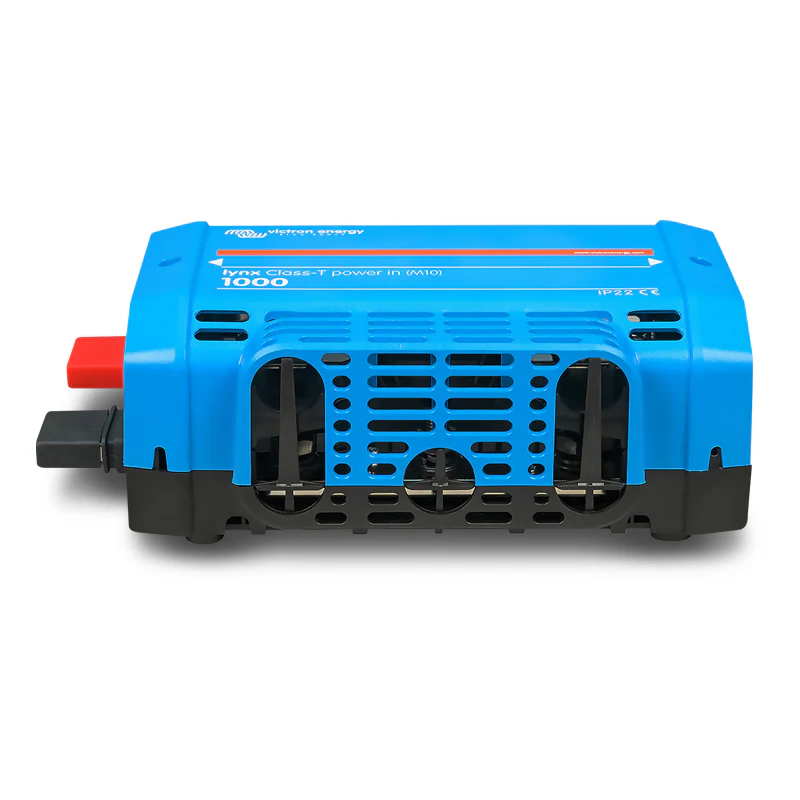

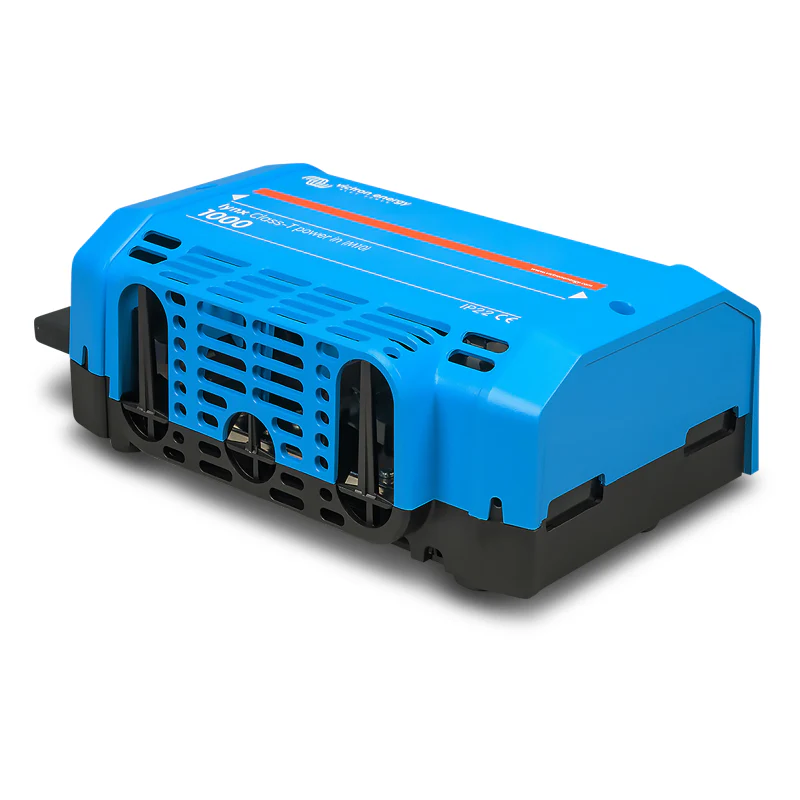

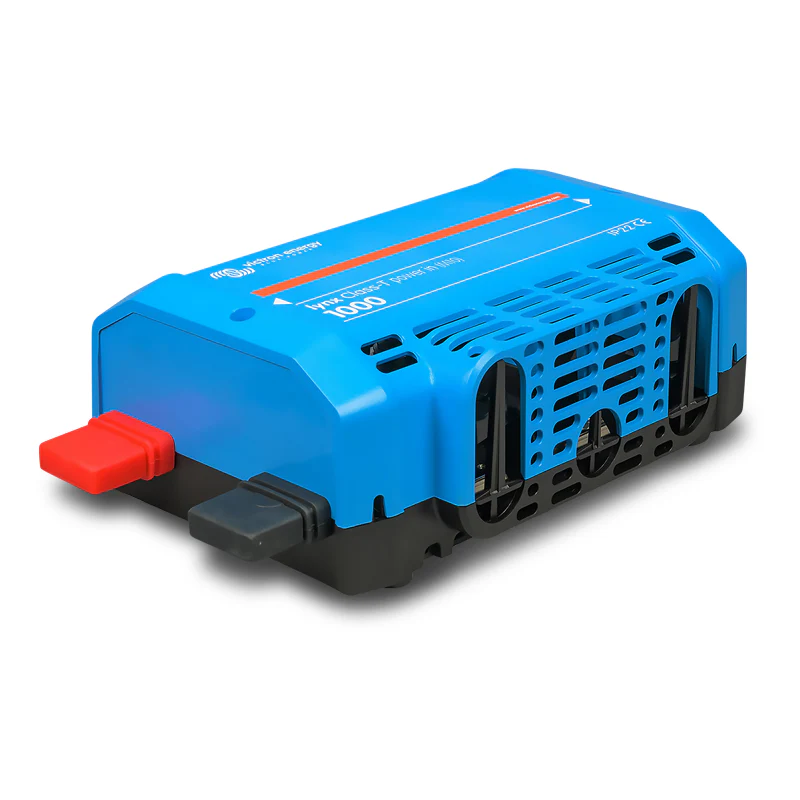

Victron Energy Lynx Class-T Power In (M10)

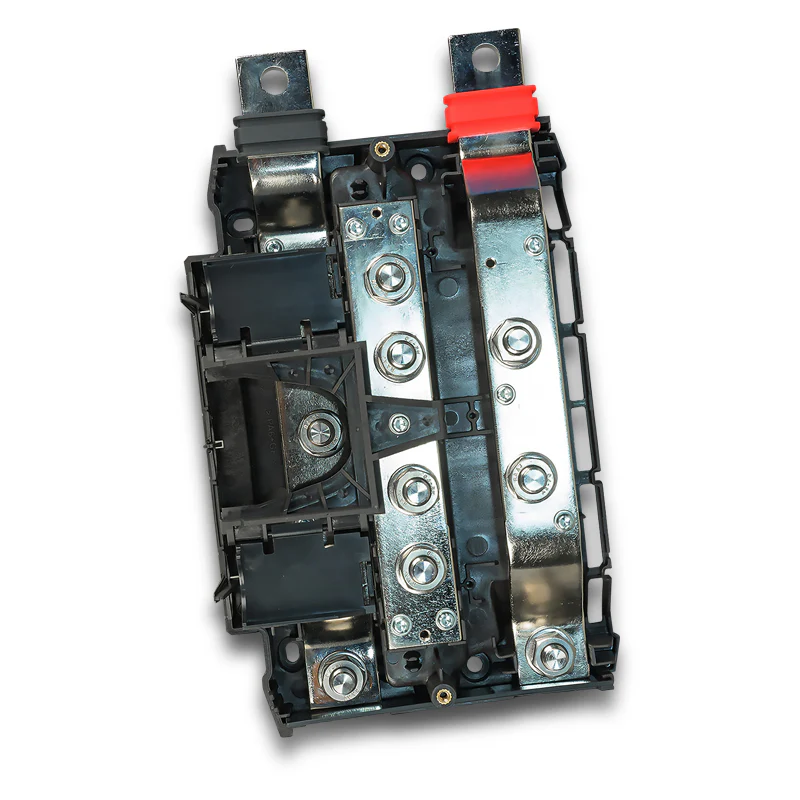

The Lynx Class-T Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. It is a modular DC busbar, used to connect batteries to the Lynx DC distribution system.

For installations using three or more strings of Lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

Victron Energy LYN060404010 Features:

• Voltage range 9 - 60Vdc
• Current rating 1000A
• Busbar M10 size
• Enclosure material ABS
• Enclosure dimensions (hxwxd) 290 x 170 x 80mm
• Unit weight 2.1 kg
• Busbar material Tinned copper
• Busbar dimensions (hxw) 8 x 30mm
• Operating temperature range -40°C to +60°
• Storage temperature range -40°C to +60°
• Protection class IP22
