Victron Energy EVC300400300 EV Charging Station

Victron Energy EV Charging Station 22kW Three-Phase with 4.3" LCD Touch Screen and Solar Integration.

---

Product Overview

The Victron Energy EV Charging Station (EVC300400300) is a professional-grade AC electric vehicle charger delivering up to 22kW in three-phase mode or 7.3kW in single-phase mode, built around a 4.3-inch LCD touch screen for on-unit monitoring and control. This is the original EV Charging Station model distinguished from the newer EV Charging Station NS (EVC200300200) by the inclusion of the built-in LCD touch screen and its established design, while sharing the same core charging capability, GX device integration, VRM connectivity, and solar excess charging functionality.

Output current is manually configurable between 6 and 32 amps directly from the touch screen or the unit's web interface, with an automatic mode that detects available excess solar power and uses only that surplus to charge the vehicle without requiring manual adjustment. WiFi connectivity (802.11 b/g/n) supports both Access Point mode for direct device connection and Station mode for integration into an existing network. Full integration with Victron GX devices and the VRM portal provides remote monitoring, custom reporting, and remote firmware update capability from anywhere with internet access.

Note : Installation must be carried out by a licensed electrician. This is a mandatory legal requirement not a recommendation.

---

Key Specifications

• Part Number: EVC300400300
• Product: EV Charging Station (original model with LCD)
• Maximum Output (3-Phase): 22kW AC
• Maximum Output (Single-Phase): 7.3kW AC
• Phase Configuration: Three-phase and single-phase capable
• Output Current Range (Manual Mode): 6–32A configurable
• Display: 4.3-inch LCD touch screen
• WiFi Standard: 802.11 b/g/n
• WiFi Modes: Access Point (AP) and Station (LAN) mode
• Bluetooth: Not confirmed — confirm with supplier
• Charge Modes: Manual (configurable output current), Automatic (solar excess)
• Status Indicator: Fully programmable RGB light ring
• GX Device Integration: Yes — configurable and monitored from GX screen and Remote Console
• VRM Integration: Yes — real-time reports, custom reports, remote firmware updates
• Solar Excess Charging: Yes — automatic mode detects and uses excess PV power
• Colour/Cover Options: Not specified — confirm with supplier
• Installation Requirement: Licensed electrician mandatory
• Connector Type: Not specified — confirm with supplier
• IP Rating: Not specified — confirm with supplier
• Cable Length: Not specified — confirm with supplier
• Dimensions: Not specified — confirm with supplier
• Weight: 4.0 kg

---

Features & Benefits

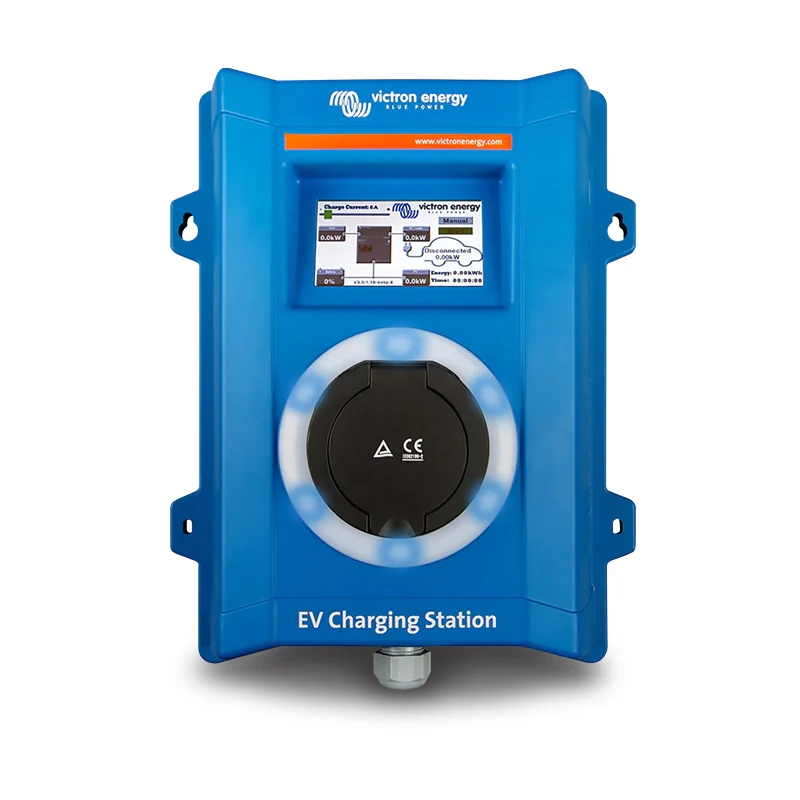

• 4.3-Inch LCD Touch Screen — On-Unit Control — The built-in 4.3-inch touch screen provides direct monitoring and control at the unit without requiring a phone, app, or network connection. Output current adjustment, manual charge start/stop, and status monitoring are all accessible from the touch screen face — the key practical differentiator between this model and the screen-free EV Charging Station NS.
• 22kW Three-Phase Output — Delivers up to 22kW AC in three-phase mode — the maximum AC charge rate for most current-generation electric vehicles. In single-phase mode, output is up to 7.3kW. The maximum charge rate accepted by the vehicle is determined by its onboard AC charger — confirm your vehicle's maximum AC charge acceptance rate before specifying.
• Configurable 6–32A Manual Output — In manual mode, output current is adjustable between 6 and 32 amps — either via the touch screen slider or the web interface. This allows the charge rate to be deliberately limited for circuit load management, off-peak scheduling, or to match available supply capacity at the installation point. Start and stop charging manually when a vehicle is connected, without waiting for automatic triggers.
• Automatic Mode — Solar Excess Charging — Automatic mode monitors the system for available excess PV power — solar generation that exceeds the current household or system load — and uses only that surplus to charge the vehicle. This turns solar energy that would otherwise be exported at low feed-in tariff rates into usable transport energy. Requires a compatible Victron solar installation and GX device integration.
• WiFi 802.11 b/g/n — AP and Station Mode — The confirmed 802.11 b/g/n WiFi module supports both Access Point mode (the charger creates its own network for direct device connection during initial setup or standalone use) and Station mode (the charger connects to an existing WiFi LAN for ongoing network integration). Network integration enables web interface access and VRM connectivity without physical proximity.
• Full GX Device Integration — The EV Charging Station integrates with any Victron GX device — Cerbo GX, Color Control GX, Ekrano GX — enabling configuration and monitoring from the GX touch screen and Remote Console. This places the EV charger within the broader Victron energy management system alongside solar, battery, and inverter data.
• VRM Portal Integration — Through a connected GX device, the EV Charging Station is accessible via the Victron VRM portal from any internet-connected device. VRM provides real-time charge reports, configurable custom reporting for defined time periods, and remote firmware update capability — keeping the unit current without requiring a site visit.
• Programmable RGB Light Ring — The RGB light ring surrounding the charging port is fully programmable via the web interface to display distinct colours and effects per operating state — disconnected, charging, charged, fault, and others. Designed for at-a-glance status identification from a distance, particularly in carpark and commercial environments where the unit may be located away from regular view.
• Web Interface — Full configuration and monitoring are available via the unit's web interface — accessible over WiFi in both AP and Station modes. Output current adjustment, charge mode selection, light ring programming, and status monitoring are all available through the web interface without requiring the GX device or VRM portal.

---

Technical Specs

---

Compatible With / Goes Well With

Victron Ecosystem Integration:

• Any Victron GX Device — Cerbo GX, Color Control GX, Ekrano GX (for full system integration, GX screen monitoring, and VRM remote access)
• Victron VRM Portal (remote monitoring, reporting, and remote firmware updates)
• Victron solar systems with MPPT charge controllers (for automatic solar excess charging mode)
• Victron MultiPlus / Quattro inverter-chargers (system integration)

Installation:

• Licensed electrician required for three-phase and single-phase AC wiring

---

Weight

4.0 kg

---

Frequently Asked Questions

What is the difference between this EV Charging Station and the EV Charging Station NS?

The core charging capability — 22kW three-phase, solar excess charging, GX and VRM integration — is identical. The key differences are: this model has a built-in 4.3-inch LCD touch screen; the NS does not. The NS features a new, modern industrial design available in interchangeable colour covers (blue, black, white) and uses VictronConnect via Bluetooth for setup; this model uses WiFi and the web interface. Choose this model if on-unit touch screen control is a priority; choose the NS for a cleaner design with Bluetooth app setup.

Can I set a specific charge rate rather than charging at maximum power?

Yes. In manual mode, output current is adjustable between 6 and 32 amps via the touch screen slider or the web interface — equating to approximately 1.4kW to 7.4kW in single-phase, or up to 22kW in three-phase. This allows deliberate current limiting for circuit load management, tariff-based scheduling, or to match available supply capacity.

How does the automatic solar excess charging mode work?

Automatic mode monitors the system for surplus solar generation — power produced beyond the current household load — and uses that excess to charge the vehicle rather than exporting it. The charge rate adjusts dynamically as solar production and household consumption change. This requires integration with a Victron GX device and a compatible Victron solar installation.

Can I monitor and update this charger remotely?

Yes. Through a connected Victron GX device and the VRM portal, the EV Charging Station provides real-time charge monitoring, configurable custom reports, and remote firmware update capability from any internet-connected device.

Do I need three-phase power for this charger to work?

No — the EV Charging Station operates on both single-phase and three-phase supply. On single-phase it delivers up to 7.3kW; on three-phase up to 22kW. A licensed electrician will assess your available supply and design the installation accordingly.
