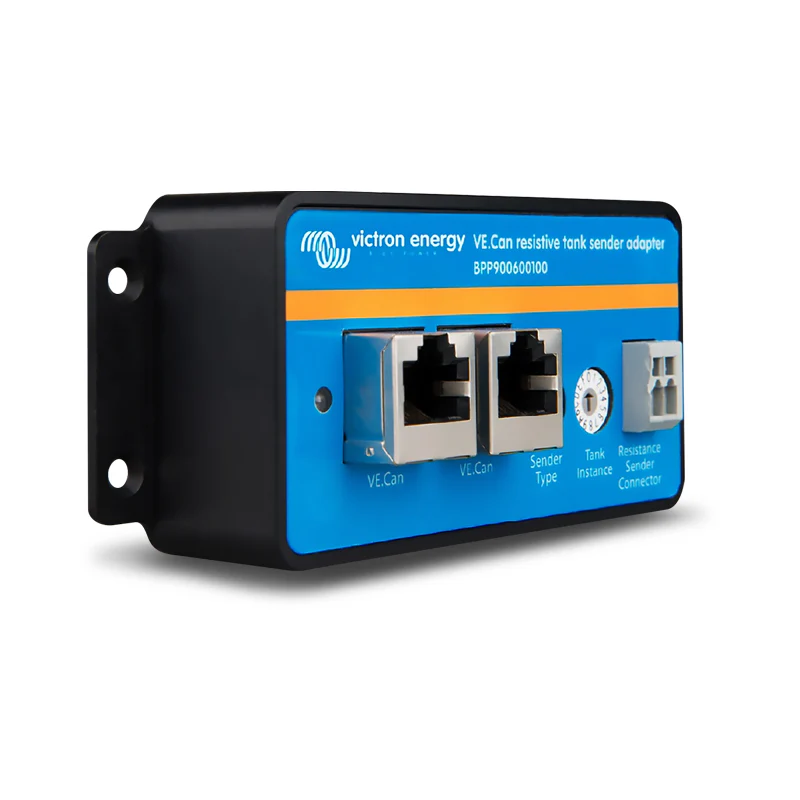

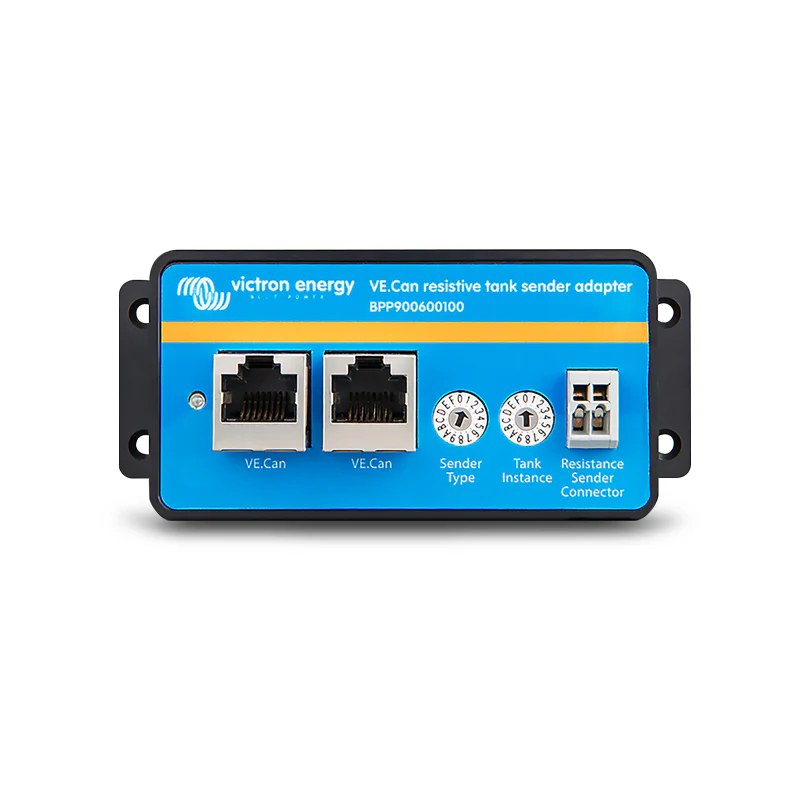

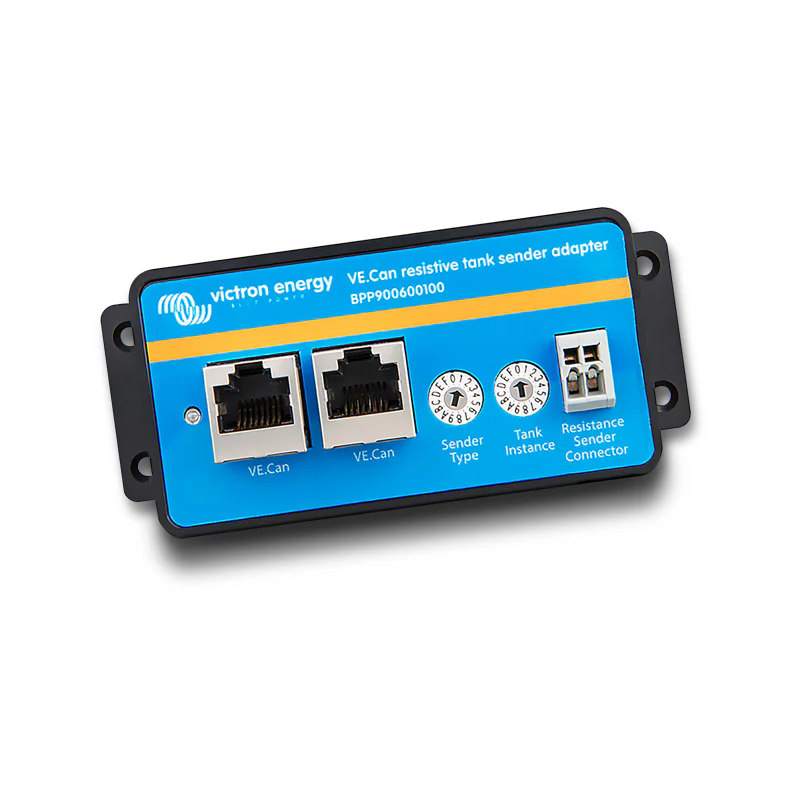

Victron Energy BPP900600100 VE.Can Resistive Tank Sender Adapter

Victron Energy VE.Can Resistive Tank Sender Adapter: The Ve.can Resistive Tank Sender Adapter Allows A Standard Resistive Tank Level Sender To Connect To The Color Control GX

It is compatible with both European standard 0-180 Ohm and United States standard 240-30 Ohm tank level senders and is accurate to ±1%. It is easily configurable to resistive senders from fuel, fresh water, wastewater, well water, oil, and black water (sewage) tanks. It supports up to 16 tanks of each type. The unit is a simple setup with two small rotary switches and it gets its power from the VE.Can network.

​When you use a Skylla-i or an MPPT with a CAN bus in the system, the power to the CAN bus will be supplied by either one of them. When the CAN bus is not powered by a Skylla-I or an MPPT, you will need the new VE.Can Power Cable supply the power?

Victron Energy BPP900600100 Features:

• High ±1% Accuracy
• Suits European standard 0-180 and US standard 240-30 Ohm Senders
• Fuel, Freshwater, Wastewater, Oil, Live Well, or Blackwater: tank type easily selectable with a rotary switch
• For multiple tanks, use multiple tank sender adapters in one network: up to 16 tanks of the same tank type
• Robust ABS Construction sealed to IP67
• Easy to install
• Simple switch setup with no extra display required
• Under 50mA Power Usage
• Input voltage 9 to 70 VDC
