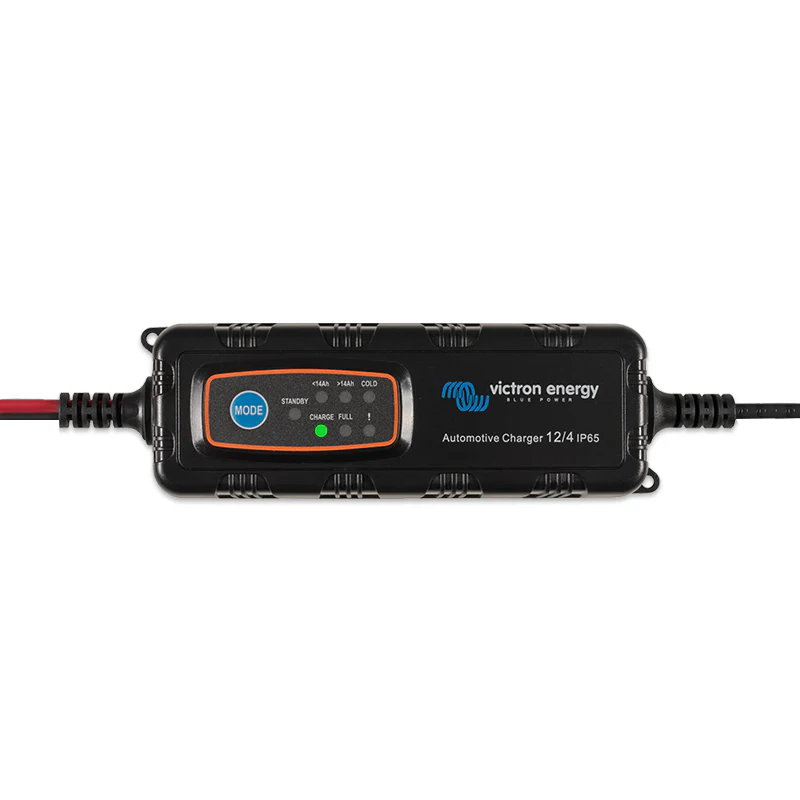

Victron Energy BPC120480034R Automotive IP65 Charger 12V/4A-12V/0, 8A

Victron Energy Automotive IP65 Charger 12V/4A-12V/0, 8A: The Automotive IP65 Battery Charger From Victron Energy Have Been Designed to Be a True World-wide Product

DC connector

Depending on the application, clamps, eyelets or a cigarette plug (all included) can be connected to the charger.

Charges 6V and 12V batteries

The charger will automatically adapt its charge algorithm to 6V or 12V batteries

Protected against overheating and reverse polarity connection

The output current will reduce as temperature increases up to 40°C, but the charger will not fail.
Output relay protects against reverse polarity connection.

Victron Energy BPC120480034R Specifications:

Automotive IP65 Charger

• Input voltage range: 200-265 V
• Frequency: 50/60Hz
• Charge voltage 'float': 13,6 V
• Charge voltage 'storage': 13,2 V
• Charge current: 4 A or 0,8 A
• Can be used as power supply: No (output relay)
• Back current drain: 0,25 Ah/month (0,3 mA)
• Protection: Reverse polarity, temperature
• Operating temp. range: -20 to +40°C (full rated output up to 25°C)
• Humidity (non condensing): Max 95 %

Enclosure

• Material & Colour: PC Black
• Battery-connection: Black and red cable of 1,2 meter. Connects to battery clamps, M6 eyelets or 12 V plug (included)
• 230 V AC-connection: Cable of 1,5 meter with CEE 7/7 plug
• Protection category: IP65
• Weight: 0,56 kg
• Dimensions (h x w x d): 42 x 61 x 185 mm
