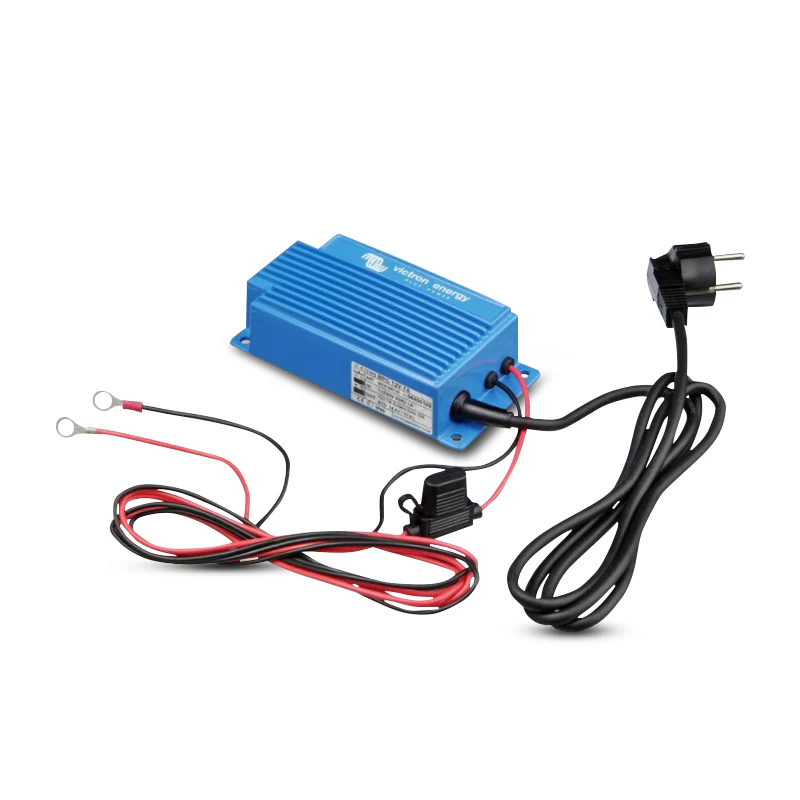

Victron Energy BPC012007110 12/7 IP65 Blue Power Waterproof Battery Charger

Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Blue Power charger. The casing is made of cast aluminium and the
electronics are molded in resin.

Protected against overheating
Can be used in a hot environment such as a machine room. Output current will reduce as temperature increases
up to 140°F, but the Blue Power charger will not fail.

Automatic three stage charging
Once the absorption voltage has been reached, the Blue Power charger will switch to float charge after the
charge current has reduced to a low break point current (see specifications), or after a 20 hour absorption period.
The battery is therefore effectively protected against overcharging and can remain permanentely connected to
the charger. The charger will automatically reset and start a new charge cycle after interruption of the AC supply.

Two LED’s for status indication
Yellow LED: battery being charged
Green LED: float charge, the battery is charged

Victron Energy BPC012007110 Specifications:

• Input voltage range: (V AC): 90-135
• Frequency (Hz): 45-65
• Charge voltage 'absorption' (V DC): 14,4
• Charge voltage 'float' (V DC): 13,6
• Charge current (A): 7
• Charge characteristic: 3 stage with max. 20 hours absorption time
• Minimum battery capacity (Ah): 12
• Breakpoint current (A): 0,6
• Operating temp. range: 0 - 140°F (full rated output up to 100°F)
• Humidity: Up to 100 %
