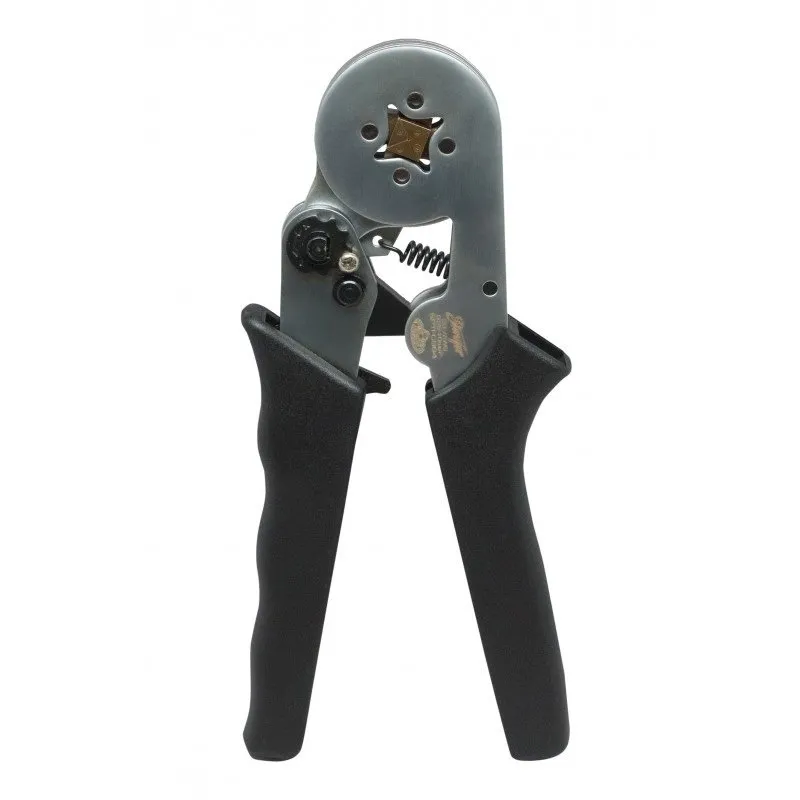

Stinger SPTFC864 Self-Adjusting Ferrule Crimping Tool 7-23 AWG
Stinger SPTFC864 Self-Adjusting Ferrule Crimping Tool 7-23 AWG
A professional-grade ferrule crimping tool for clean, precise, and secure end-sleeve connections across a wide range of wire gauges, the SPTFC864 eliminates manual size selection with automatic adjustment and delivers a consistent square crimp every time.
Product Overview
The SPTFC864 is Stinger's self-adjusting ratchet ferrule crimping tool, designed for crimping end-sleeve ferrules onto wire terminations in automotive, marine, and electrical installation applications. Compatible with AWG 7-23 (0.25-6.0mm²) ferrules, the automatic size adjustment mechanism selects the correct crimp size for the inserted ferrule without manual die selection, streamlining the crimping process across multiple wire gauges in a single job. The integral ratcheting mechanism requires the crimp to be completed before the tool releases, ensuring a fully formed square crimp on every termination and preventing partial crimps that cause poor current transfer or connection failure. The oil-hardened special metal construction provides high durability, precision, and long service life suited to professional daily use. An ergonomically shaped nylon handle provides comfortable operation during extended crimping sessions. The self-releasing mechanism automatically opens the jaws once the crimp is complete, allowing efficient single-handed operation.
Features & Benefits
Self-Adjusting for 7-23 AWG Ferrules: The automatic size adjustment mechanism detects the ferrule size inserted into the jaws and selects the correct crimp die position without manual intervention, allowing the tool to be used across AWG 7-23 (0.25-6.0mm²) without changing dies or adjusting settings between crimps.
Ratcheting Mechanism with Integral Lock: The ratcheting mechanism requires the crimp cycle to be completed fully before the jaws release, preventing partial crimps that can cause loose connections, high resistance, or termination failure. The self-releasing mechanism automatically opens the jaws once the crimp is complete for efficient, single-handed operation.
Square Crimp Result for Best Current Transfer: The square crimp profile produced by the SPTFC864 provides maximum contact area between the ferrule and the conductor strands, minimising resistance at the termination point and ensuring the best possible current transfer for reliable electrical connections.
Oil-Hardened Special Metal Construction: The crimping jaws and mechanism are manufactured from special metal with oil hardening treatment, providing high hardness, dimensional precision, and long service life under the repeated mechanical stress of professional daily use.
Ergonomic Comfort Grip Handle: The nylon handle is shaped ergonomically to distribute grip pressure comfortably across the hand during operation, reducing fatigue during extended crimping sessions.
Wide AWG Range in a Single Tool: Coverage from AWG 7 (6.0mm²) down to AWG 23 (0.25mm²) in a single tool eliminates the need for multiple crimpers for different wire gauges, making the SPTFC864 suitable for the full range of ferrule termination sizes encountered in automotive and marine electrical installations.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | SPTFC864 |
| Brand | Stinger |
| Tool Type | Ferrule Crimping Tool |
| Crimp Type | Square |
| Wire Gauge Range | AWG 7-23 |
| Cross-Section Range | 0.25-6.0mm² |
| Ferrule Type | End-sleeve ferrules |
| Size Adjustment | Automatic self-adjusting |
| Mechanism | Ratcheting with integral lock and self-release |
| Handle Material | Nylon |
| Construction Material | Oil-hardened special metal |
Goes Well With
The SPTFC864 is designed for use with end-sleeve ferrules across the full AWG 7-23 range, making it a practical tool for terminating amplifier wiring, DSP processor connections, distribution block wiring, and general automotive electrical installation work. It pairs naturally with Stinger's amplifier wiring kits, power and ground cable spools, and compression terminal block amplifiers including the Rockford Fosgate R2-300X4, R2-200X2, and R2-250X1, where ferrule-terminated wire provides a clean, professional finish at the compression terminal connections.
Frequently Asked Questions
What is a ferrule and why is it used for wire terminations?
A ferrule (also called an end-sleeve) is a small metal tube crimped onto the stripped end of a stranded wire conductor. It holds all individual strands together in a clean, uniform bundle that inserts cleanly into screw terminals, compression blocks, and push connectors without stray strands causing shorts or poor contact. Ferrule-terminated connections provide more consistent contact resistance than bare stranded wire, which can fray and lose individual strands over time under vibration.
What does the self-adjusting mechanism do, and why is it better than a manual die-selection crimper?
A manual die-selection crimper requires the user to rotate a die selector to the correct position for each ferrule size before crimping. If the wrong size is selected, the crimp will be too tight (damaging the ferrule) or too loose (producing a weak connection). The SPTFC864's automatic size adjustment detects the inserted ferrule size and positions the jaws correctly without any manual selection, reducing the risk of incorrect crimp size and speeding up workflow when crimping multiple different wire gauges in a single installation.
What does the ratcheting mechanism prevent?
The ratcheting mechanism prevents the tool from releasing before the crimp cycle is complete. Without a ratchet, it is possible to partially squeeze the jaws and release before the ferrule is fully crimped, producing a weak connection that may pass visual inspection but fail under load or vibration. The SPTFC864's ratchet locks the jaws in place until the full crimp force has been applied, ensuring every termination is fully formed before the tool releases.
What is the difference between a square crimp and a round or hexagonal crimp?
A square crimp applies uniform pressure to all four sides of the ferrule simultaneously, deforming it evenly and maximising the contact area between the ferrule wall and the conductor strands. Round and hexagonal crimps concentrate pressure differently and may leave voids between the ferrule and conductor that increase resistance. The square crimp profile of the SPTFC864 is optimised for end-sleeve ferrules to produce the best possible electrical contact and mechanical retention at the termination.
Can the SPTFC864 be used for other crimp connectors beyond end-sleeve ferrules?
The SPTFC864 is specifically designed and calibrated for end-sleeve ferrule crimping in the AWG 7-23 range. While the square jaw profile may physically fit other connector types, using the tool outside its intended application may produce incorrect crimp geometry and is not recommended. For crimping automotive terminals, ring terminals, or other connector types, a dedicated tool designed for those connector profiles should be used.
