Stinger SI8212 8000 Series 2-Channel Triple Shielded RCA 12ft
Stinger SI8212 8000 Series 2-Channel Triple Shielded RCA 12ft
Built to audiophile standards for the demanding car audio environment, the SI8212 delivers triple-shielded, silver-plated signal transfer across a 12-foot 2-channel run with locking connectors and C3 Tech construction.
Product Overview
The SI8212 is Stinger's 8000 Series 12-foot 2-channel RCA interconnect cable, engineered for installations where signal quality between the source unit and the amplifier is the priority. At 12 feet, it covers the full run from a head unit to a boot-mounted amplifier in most compact and mid-size vehicles. The oversized silver-plated copper conductors combine the high-frequency precision of silver with the current-carrying capacity of copper, delivering tight, controlled bass response and crystal-clear high-frequency detail across the full audio spectrum. Triple-braided shielding combined with Mylar shielding provides multi-directional noise rejection from both radiated and conducted interference sources, and a directional high-rate double twisted-pair construction adds a further layer of noise cancellation through architecture rather than shielding alone. Precision machined locking metal ends with pewter finish and channel identification, locking split-tip connectors, no solder joints, three conductors per channel, and C3 Tech (Continuous Connection Construction) ensure connection integrity and true channel separation throughout the full cable length. A black mesh protective jacket and moulded strain reliefs complete the build.
Features & Benefits
Oversized Silver-Plated Copper Conductors: The conductor uses oversized silver-plated copper strands combining the high-frequency performance of silver with the current-carrying capacity of copper, delivering tight bass response and crystal-clear high-frequency detail across the full audio spectrum.

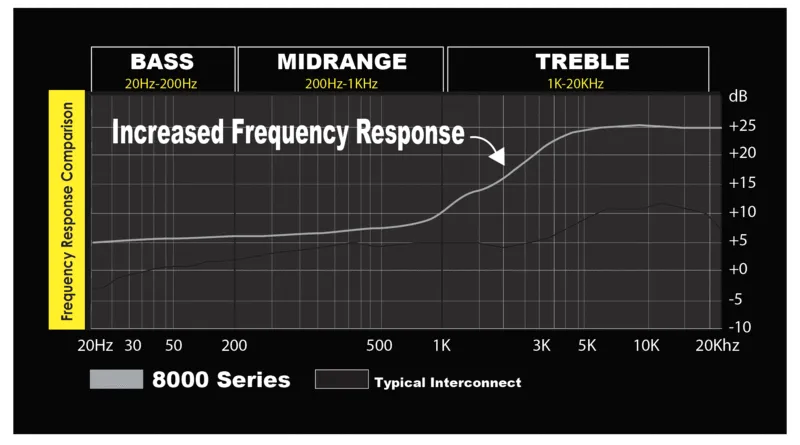

Extended Frequency Response through Copper and Silver Combination: The combination of copper and silver in the conductor construction optimises signal vs. frequency interaction across the full 20Hz-20kHz audio range and beyond, providing a more complete and dynamic frequency response than a single-material conductor.

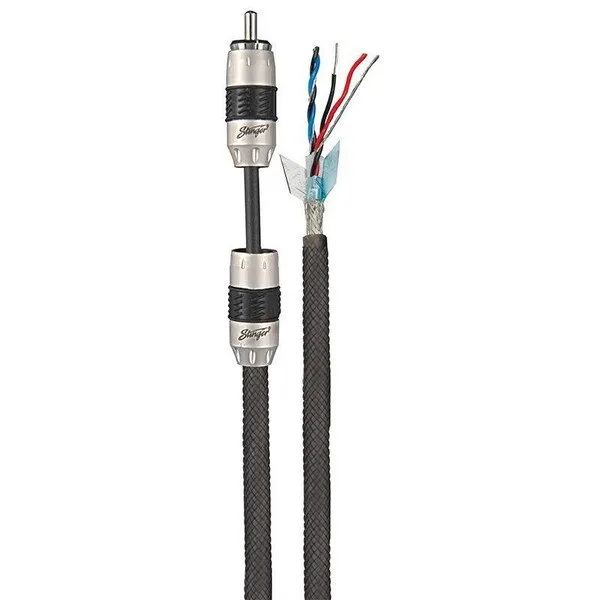

Triple-Braided Shielding and Mylar Shielding: Three layers of braided shielding work in combination with an inner Mylar foil layer to provide multi-directional noise rejection, suppressing both radiated electromagnetic interference from external sources and conducted noise within the cable itself.
Directional High-Rate Double Twisted-Pair Construction: The directional double twisted-pair winding pattern provides protection against interference and ensures consistent signal timing between conductors, improving clarity and phase accuracy across both channels throughout the full 12-foot length.
3 Conductors per Channel for 6 Total Conductors: Each channel uses three dedicated conductors providing positive, negative, and signal drain paths, ensuring true channel separation and low-impedance signal return paths for both channels across the full cable length.
C3 Tech (Continuous Connection Construction): Stinger's proprietary C3 construction method ensures no breaks or discontinuities in the signal chain throughout the full 12-foot cable length, providing unmatched signal transfer consistency from source unit to amplifier.

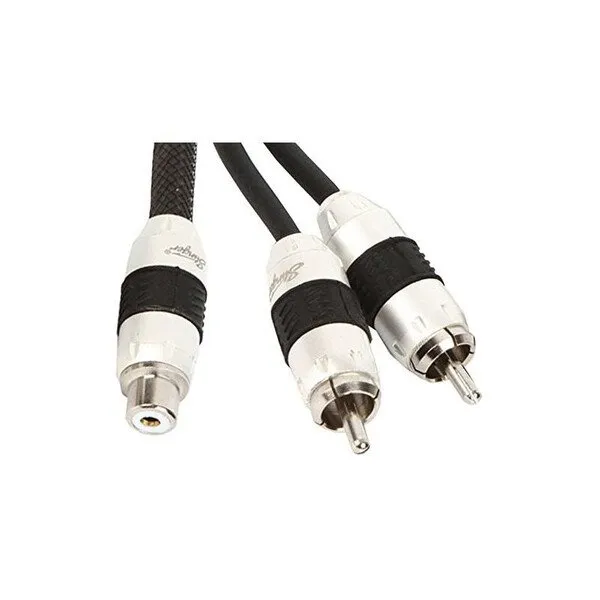

Locking Split-Tip Connectors: The split-tip connector design on each RCA end provides a mechanical grip on the socket that resists vibration-induced loosening, maintaining consistent contact force and signal integrity in the automotive environment across both channels.
Precision Machined Locking Metal Ends with Channel Identification: All connectors are precision machined from metal with a locking design and channel identification markings, providing a secure, correctly identified connection at both the source and amplifier ends.
Pewter Finished Ends: The pewter finish on all connector ends provides a premium aesthetic suited to high-end installations alongside a corrosion-resistant surface that maintains low-resistance contact over time.
No Solder Joints: The absence of solder joints at critical connection points within the cable assembly eliminates the resistance discontinuities and long-term reliability issues associated with solder-based connections, ensuring true channel separation and consistent connection reliability.
Mono Cable Design with Undersized Stopper: The mono cable design with undersized stopper provides a compact, manageable physical form suited to the confined routing paths of a car audio installation, keeping each channel's cable separate for easier routing and identification.
Molded Strain Reliefs: Moulded strain reliefs at both connector ends protect the cable-to-connector junction from flex fatigue under vibration, extending the long-term reliability of the connection point.
Black Mesh Protective Jacket: The black mesh outer jacket provides a clean, high-end appearance suitable for visible installations while minimising friction during installation through tight cable routing paths.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | SI8212 |
| Series | 8000 Series |
| Channels | 2 |
| Length | 12ft (3.7 metres) |
| Conductor Material | Oversized silver-plated copper |
| Conductors per Channel | 3 (positive, negative, signal drain) |
| Total Conductors | 6 |
| Construction | Directional high-rate double twisted-pair |
| Shielding | Triple-braided + Mylar foil |
| Connector Type | Locking split-tip RCA |
| Connector Finish | Pewter |
| Connector End Type | Precision machined locking metal with channel ID |
| Solder Joints | None |
| Strain Relief | Moulded |
| Outer Jacket | Black mesh protective |
| Construction Method | C3 Tech (Continuous Connection Construction) |
Goes Well With
The SI8212 is well suited to 2-channel amplifier installations and subwoofer monoblock systems in compact to mid-size vehicles where a 12-foot run covers the full distance from a dash-mounted head unit to a boot-mounted amplifier. It is well matched to amplifiers across the Rockford Fosgate, Hertz, Morel, and AudioControl ranges where the amplifier's performance can only be realised with a signal cable that does not introduce noise into the chain. For longer vehicle runs requiring 17 feet, the XI3217 is the recommended alternative within the Stinger premium RCA range. For installations also requiring Y-splitters, the SI82YF and SI82YM share the same 8000 Series specification for a consistent build across all RCA connections in the system.
Frequently Asked Questions
What does triple-braided shielding provide that a standard single braid does not?
A standard single-braid shield provides a basic level of protection against radiated electromagnetic interference from external sources such as alternators and ignition systems. The SI8212's triple-braided construction provides three independent layers of braided shielding, each covering any gaps in the braid coverage of the layer beneath it, resulting in dramatically higher total shield coverage and correspondingly better noise rejection. Combined with the inner Mylar foil layer, the SI8212's shielding system addresses both radiated external interference and conducted internal noise from multiple directions simultaneously.
Why does the SI8212 use three conductors per channel rather than two?
Standard RCA cables use two conductors per channel: a positive signal conductor and a combined negative and shield return. The SI8212 uses three conductors per channel, separating the negative signal return and the shield drain into individual dedicated conductors. This provides a lower-impedance signal return path and isolates the shield drain from the signal return, reducing the interaction between shielding current and audio signal that can introduce noise in a standard two-conductor design.
What is the benefit of locking split-tip connectors over standard push-fit RCA connectors?
A standard push-fit RCA connector relies on friction between the plug body and the socket to maintain contact, which can loosen under vibration and cause intermittent noise or signal dropout. The SI8212's locking split-tip connectors use a split-tip design that mechanically grips the socket's inner contact with spring tension, providing a more secure hold that resists vibration-induced loosening and maintains more consistent contact force over time in the demanding automotive environment.
Is 12 feet sufficient for most vehicle installations?
At 12 feet (3.7 metres), the SI8212 covers the full run from a dash-mounted head unit to a boot-mounted amplifier in most compact cars, small hatchbacks, and sedans. For larger vehicles such as SUVs, wagons, or vans where the boot is further from the dash, or for installations where the cable must be routed around obstacles adding significantly to the path length, a longer cable such as the XI3217 at 17 feet may be more appropriate.
What does the directional construction mean, and how should I orient the cable during installation?
The directional construction means the cable's internal twisted-pair architecture is orientated to cancel noise most effectively when signal flows in one specific direction. Directional markings or arrows on the cable indicate which end should connect to the source unit (head unit) and which end should connect to the amplifier. Installing the cable in the correct orientation maximises the noise-cancelling effect of the twisted-pair architecture. Installing it in reverse does not damage the cable but reduces the effectiveness of the directional noise cancellation.
