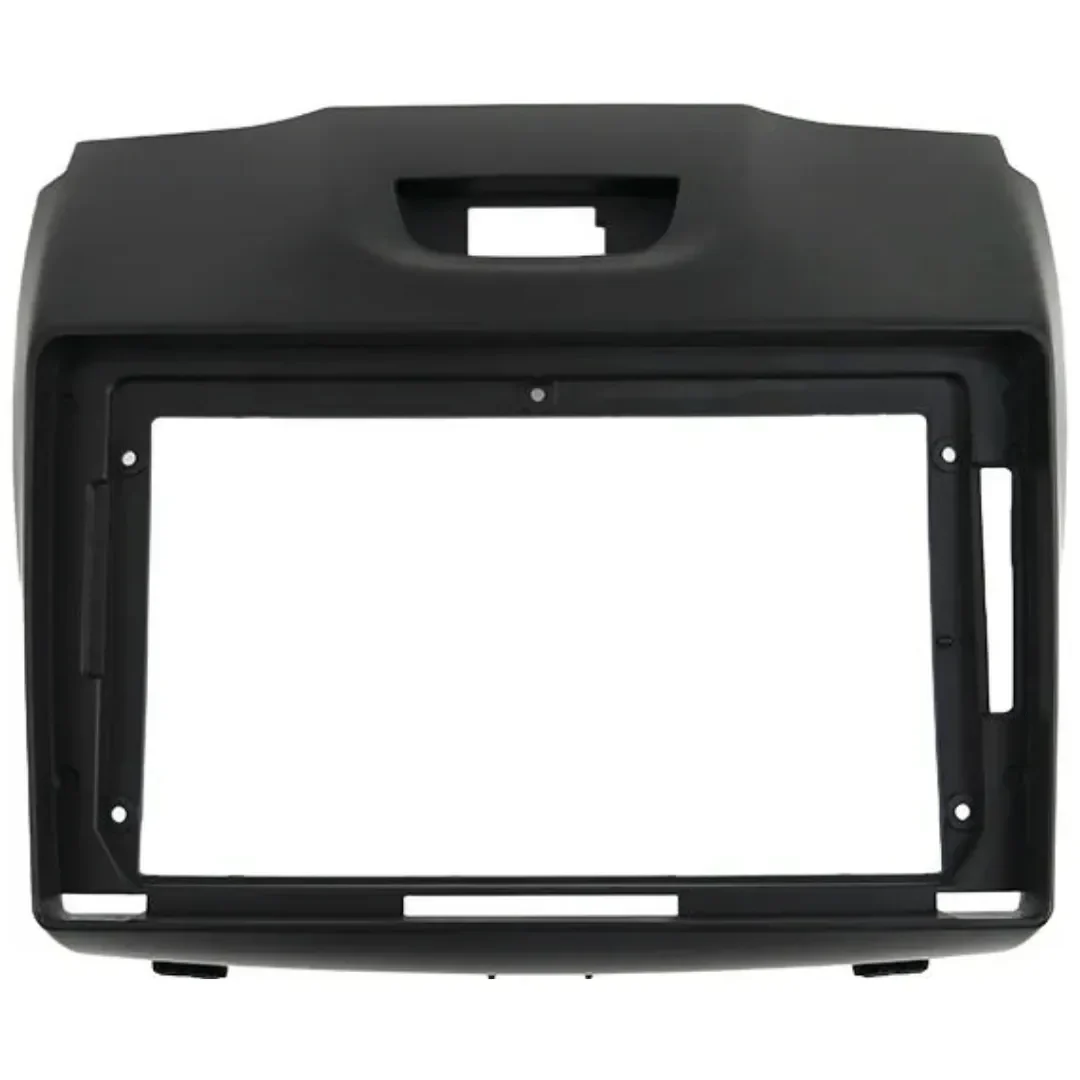

Stinger SF9-IZ01 9" Trapezoid Fascia for Isuzu D-MAX/MU-X (2012-2019)

Vehicle-specific 9" fascia engineered for Isuzu D-MAX and MU-X trapezoid dash architecture

Product Overview

The Stinger SF9-IZ01 is a precision-engineered fascia panel designed for Isuzu D-MAX (2012-2019, RT50-RT85 chassis) and MU-X (2013-2017, RF10/RF20 chassis) models featuring trapezoid-shaped factory dash apertures. This vehicle-specific fascia addresses the unique geometry of the first and second-generation D-MAX/MU-X dashboard, where the factory opening features non-standard trapezoid dimensions that standard double-DIN fascias cannot accommodate. Manufactured to OEM specifications, the SF9-IZ01 provides seamless integration between compatible 9" floating-screen head units and the factory dashboard, maintaining the clean, functional aesthetic that D-MAX and MU-X owners expect while enabling modern Apple CarPlay, Android Auto, and navigation upgrades. Compatible with select Alpine, Kenwood, Pioneer, and Aerpro 9" head units featuring trapezoid mounting patterns, this fascia is essential for professional installations in Australia's popular workhorse utes and family SUVs.

Key Specifications

• Vehicle fitment: Isuzu D-MAX (2012-2019, RT50-RT85 chassis) and MU-X (2013-2017, RF10/RF20 chassis)
• Screen size accommodation: 9" trapezoid-geometry head units
• Compatible head units: Alpine INE-AW4095/INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
• Manufacturer: Stinger Electronics
• Part number: SF9-IZ01
• Material: injection-moulded ABS plastic (colour-matched to factory trim)
• Installation type: fascia panel only (additional harnesses and brackets sold separately)
• D-MAX coverage: 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 (RT50-RT85 chassis codes)
• MU-X coverage: 2013, 2014, 2015, 2016, 2017 (RF10/RF20 chassis codes)

Features & Benefits

Dual-vehicle compatibility covers both D-MAX ute and MU-X SUV variants sharing the same dashboard architecture—enables consistent multimedia upgrades across mixed Isuzu fleets or family vehicle combinations without maintaining separate fascia inventory for each model.

Trapezoid-specific geometry precisely matches the unique non-rectangular aperture shape found in RT50-RT85 D-MAX and RF10/RF20 MU-X dashboards, where standard double-DIN fascias leave visible gaps or simply won't mount—this vehicle-specific design ensures flush, factory-quality panel alignment that maintains the Isuzu's utilitarian aesthetic.

RT50 through RT85 chassis coverage accommodates the complete first and second-generation D-MAX span (2012-2019) including SX, LS-M, LS-U, and LS-T variants, providing upgrade path for aging fleet utes, family work vehicles, and grey nomad tourers still running factory single-DIN head units with limited smartphone connectivity.

RF10 and RF20 MU-X compatibility covers the first-generation MU-X (2013-2017) including LS-M, LS-U, and LS-T trim levels, enabling Apple CarPlay and Android Auto integration in family SUVs purchased before these features became standard in later model years.

Compatible with modern 9" floating-screen head units including Alpine's iLX-AW4095 and iLX-AX809, Kenwood's DMX80AXS, Pioneer's DMH-AP6650BT, and Aerpro's AM9X—providing access to wireless smartphone integration, reversing camera displays, and turn-by-turn navigation on vehicles originally equipped with basic AM/FM radio or outdated navigation systems.

Injection-moulded construction matches factory dashboard material quality and UV resistance, withstanding the temperature extremes and vibration common to ute and SUV applications—critical for vehicles used in mining, construction, rural property work, or remote touring where dashboard components face harsh environmental exposure.

Factory colour-matching maintains the D-MAX and MU-X understated interior appearance valued by commercial operators and fleet managers where visible aftermarket modifications may reduce resale value or violate company vehicle policies—the fascia integrates seamlessly with surrounding trim panels.

Technical Specs

• Part number: SF9-IZ01
• Vehicle application: Isuzu D-MAX (RT50-RT85 chassis) and MU-X (RF10/RF20 chassis)
• D-MAX year compatibility: 2012-2019 inclusive
• MU-X year compatibility: 2013-2017 inclusive
• D-MAX chassis codes: RT50, RT85 (first and second generation)
• MU-X chassis codes: RF10 (2013-2015), RF20 (2016-2017)
• Screen accommodation: 9" trapezoid-geometry floating-screen head units
• Material: injection-moulded ABS plastic
• Finish: factory-matched colour (typically black or dark grey depending on interior trim)
• Installation hardware: fascia panel only (mounting brackets, harnesses, and adapters sold separately)
• Compatible head unit models: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
• Trim variants: D-MAX SX/LS-M/LS-U/LS-T, MU-X LS-M/LS-U/LS-T (all covered 2012-2019)

Frequently Asked Questions

Does this fascia include wiring harnesses or mounting brackets?

No, the SF9-IZ01 is the fascia panel only. Complete installation requires a separate Isuzu-specific primary wiring harness (connects head unit to factory loom), antenna adapter, and potentially a steering wheel control interface depending on your vehicle variant and desired retained features. These components are available separately.

Will this fit 2020 or newer D-MAX/MU-X models?

No, this fascia is specifically engineered for D-MAX (2012-2019) and MU-X (2013-2017) models only. The 2020+ third-generation D-MAX and 2018+ second-generation MU-X feature completely redesigned dashboards requiring different fascia part numbers—verify your vehicle's year and chassis code before purchasing.

Which head units are compatible with this fascia?

Confirmed compatible units include Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X. These feature 9" screens with trapezoid mounting patterns matching the D-MAX/MU-X aperture. Standard double-DIN or universal 9" units will not fit without this vehicle-specific fascia.

Why can't I use a standard double-DIN fascia in my Isuzu?

The D-MAX and MU-X feature trapezoid-shaped dash apertures—wider at the top than bottom—which standard rectangular double-DIN fascias cannot accommodate. The SF9-IZ01's trapezoid geometry is essential for proper fitment, eliminating gaps and ensuring secure head unit mounting in these specific Isuzu chassis.

Does this work for both D-MAX ute and MU-X SUV?

Yes, the SF9-IZ01 is compatible with both D-MAX (2012-2019) and MU-X (2013-2017) as they share identical dashboard architecture during these model years. One fascia covers both vehicles, making this ideal for families or businesses operating mixed Isuzu fleets across ute and SUV platforms.

Compatible With / Goes Well With

• Alpine INE-AW4095 9" multimedia receiver (Apple CarPlay/Android Auto)
• Alpine INE-AX809 9" multimedia receiver (wireless CarPlay/Android Auto)
• Kenwood DMX80AXS 9" multimedia receiver (wireless connectivity)
• Pioneer DMH-AP6650BT 9" multimedia receiver (floating screen design)
• Aerpro AM9X 9" multimedia receiver (Isuzu-specific integration)
• Isuzu-specific primary wiring harnesses (ISO to factory connector)
• Isuzu antenna adapters (aftermarket to factory antenna connection)
• Steering wheel control retention interfaces (maintain factory controls)
• Reverse camera retention harnesses (preserve factory camera if equipped)
• GPS antenna adapters for head units with navigation
