Stinger HR9-TY003 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Toyota RAV4 2014-2018

Premium Installation Kit for Pioneer DMH-AP6650BT in Toyota RAV4 2014–2018

Radio replacement kit to suit Pioneer DMH-AP6650BT 9" Head Unit for Toyota Rav4 2014-2018.

Please Note: Head Unit Not Included.

The HR9-Ty003 is a radio replacement bundle for installation of the Pioneer DMH-AP6650BT aftermarket radio into a 2014-2018 RAV4

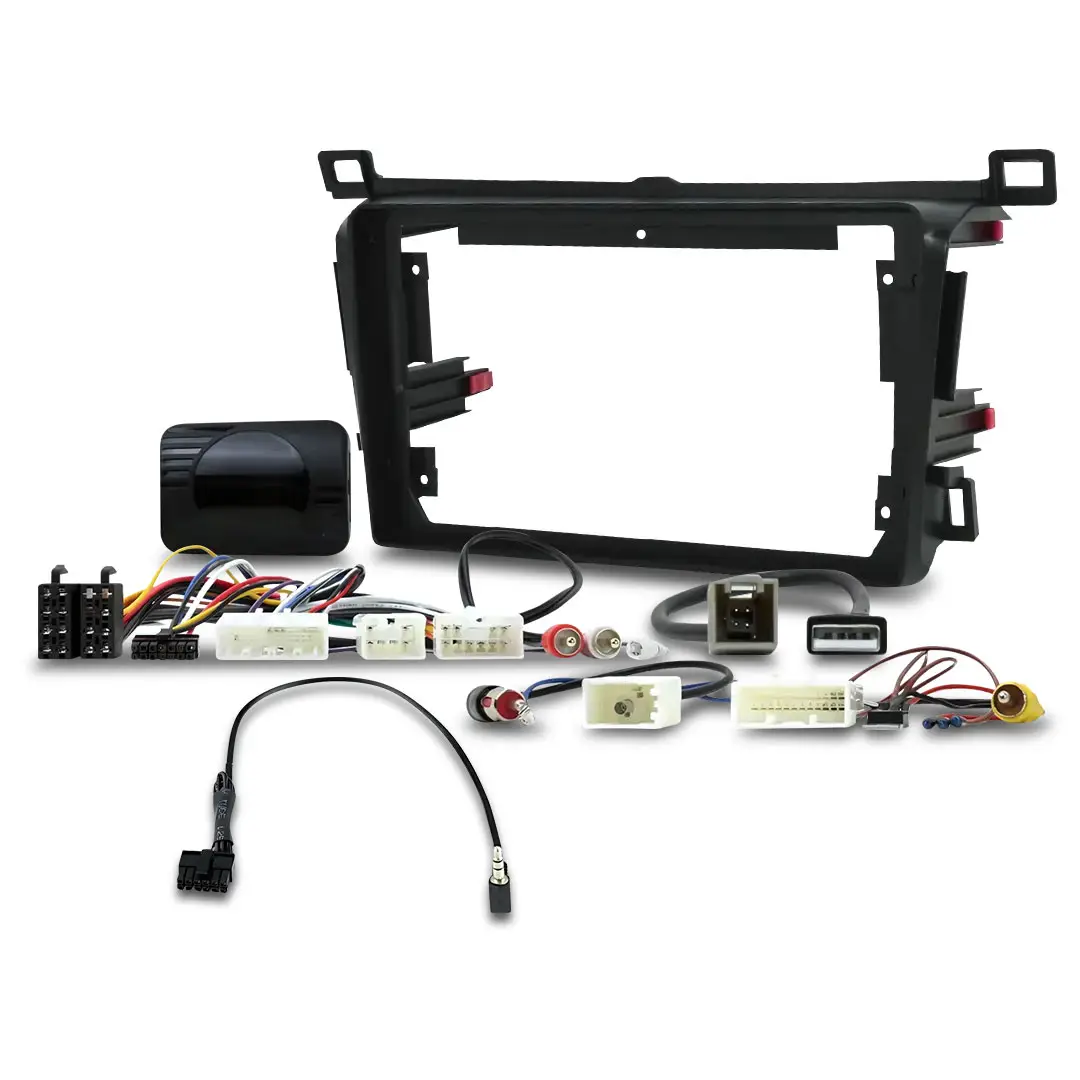

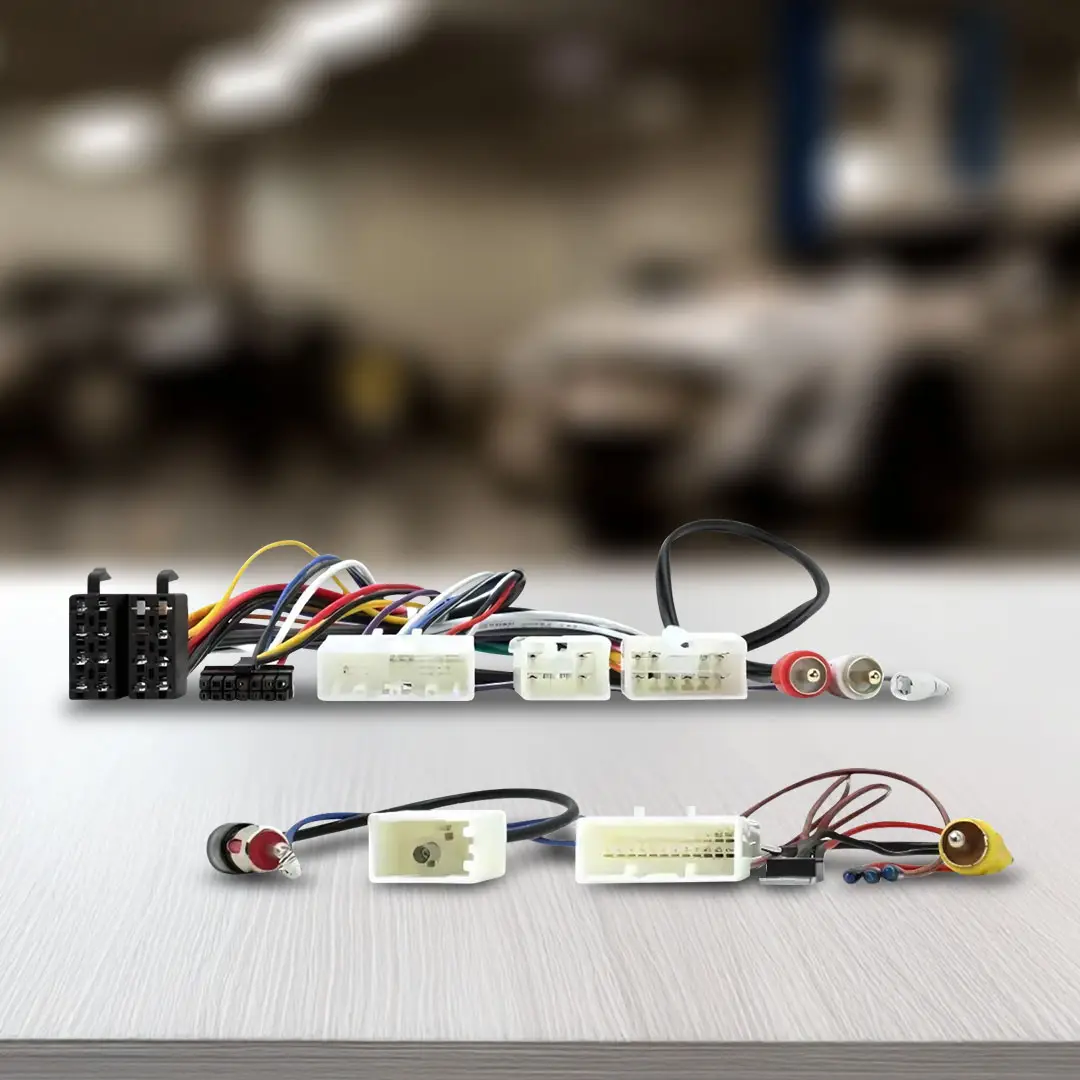

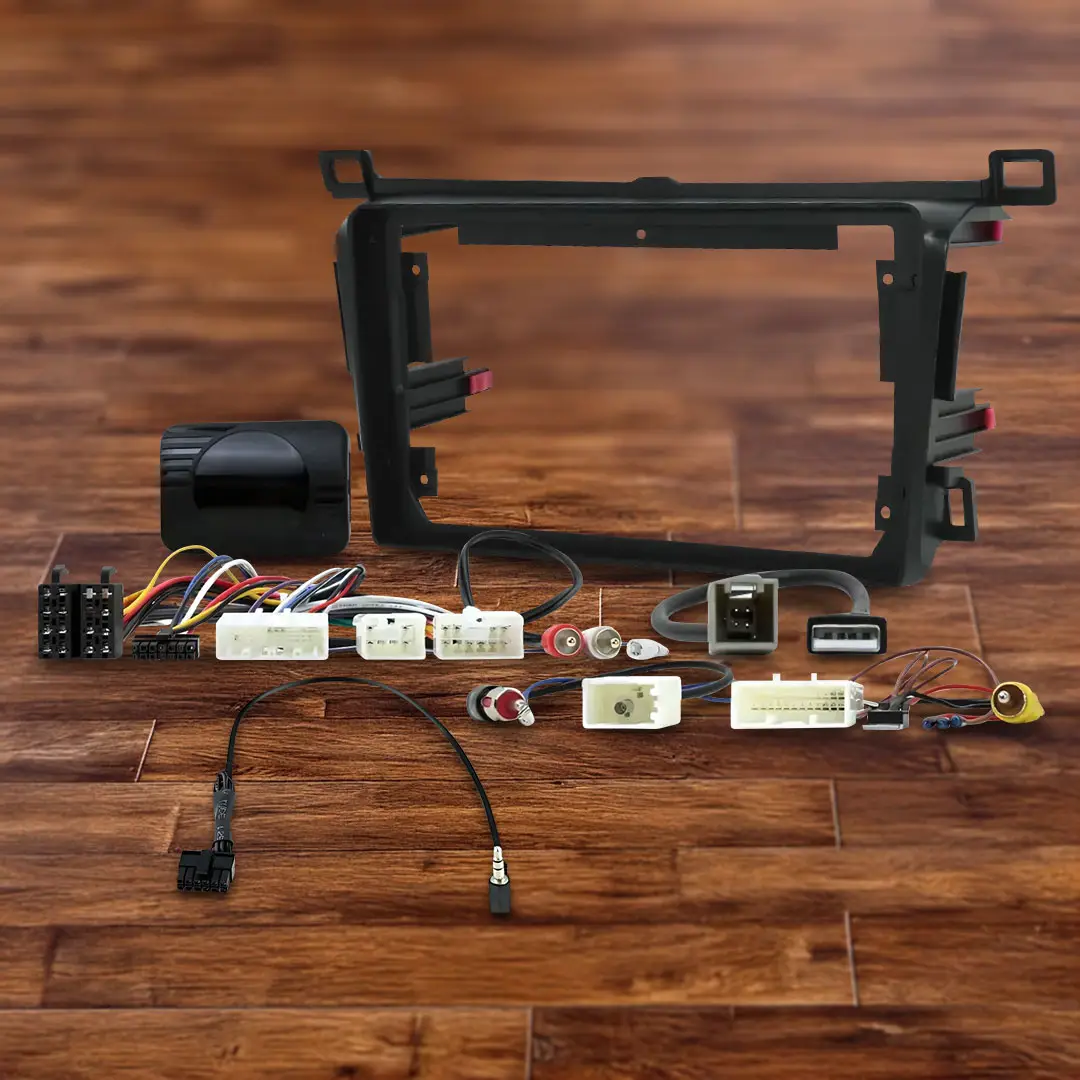

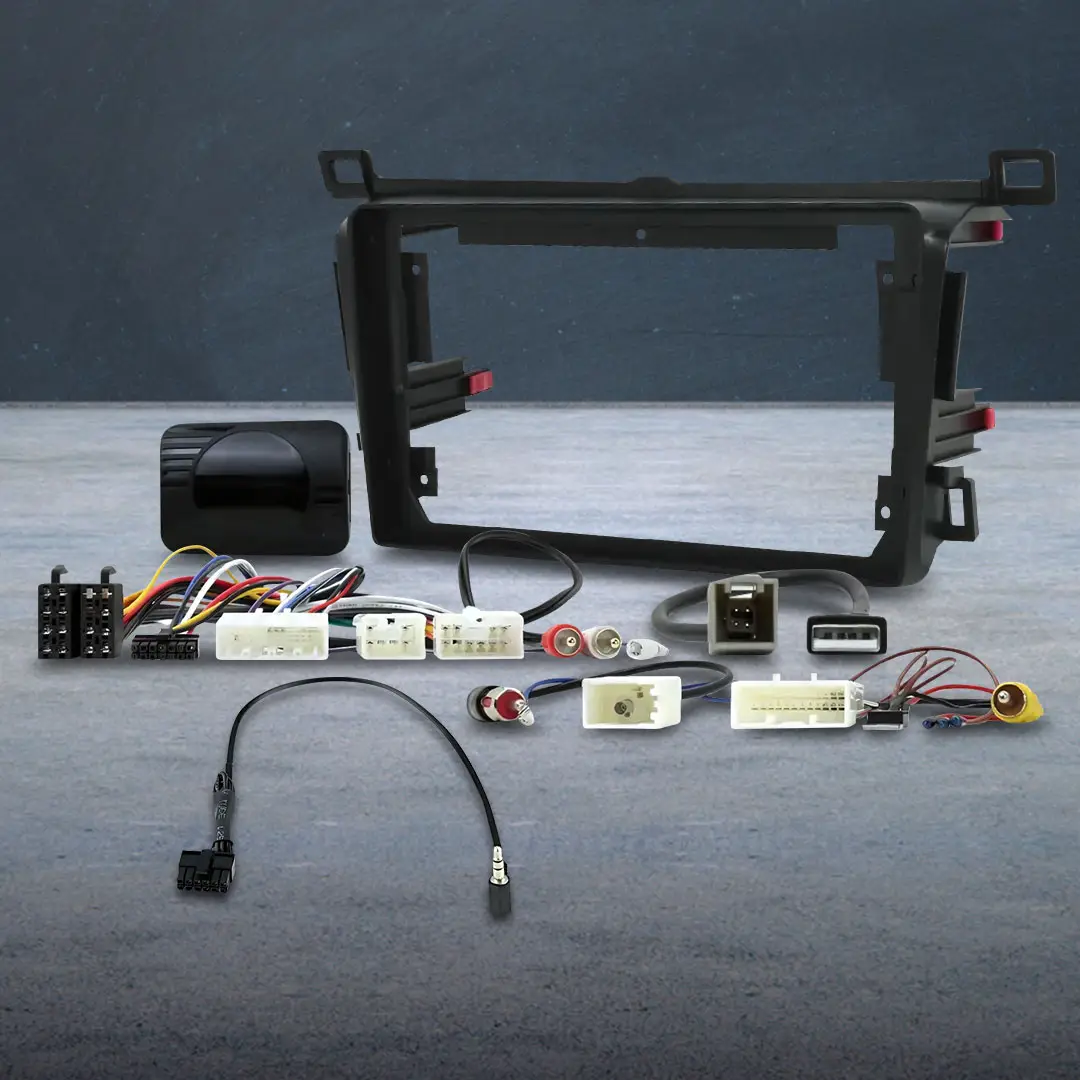

The HR9-TY003 Bundle Includes:

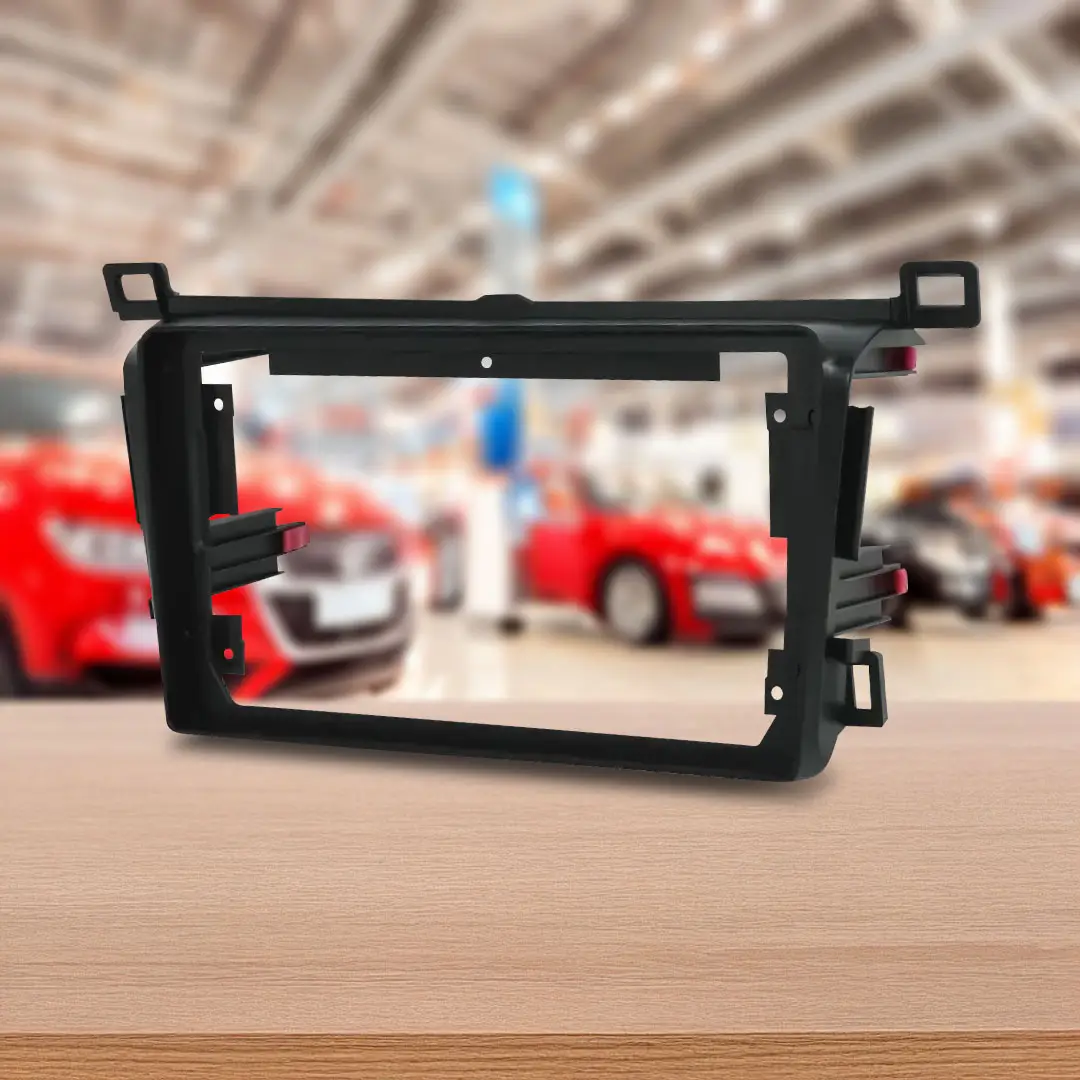

• 9″ Flush Fit Radio Panel

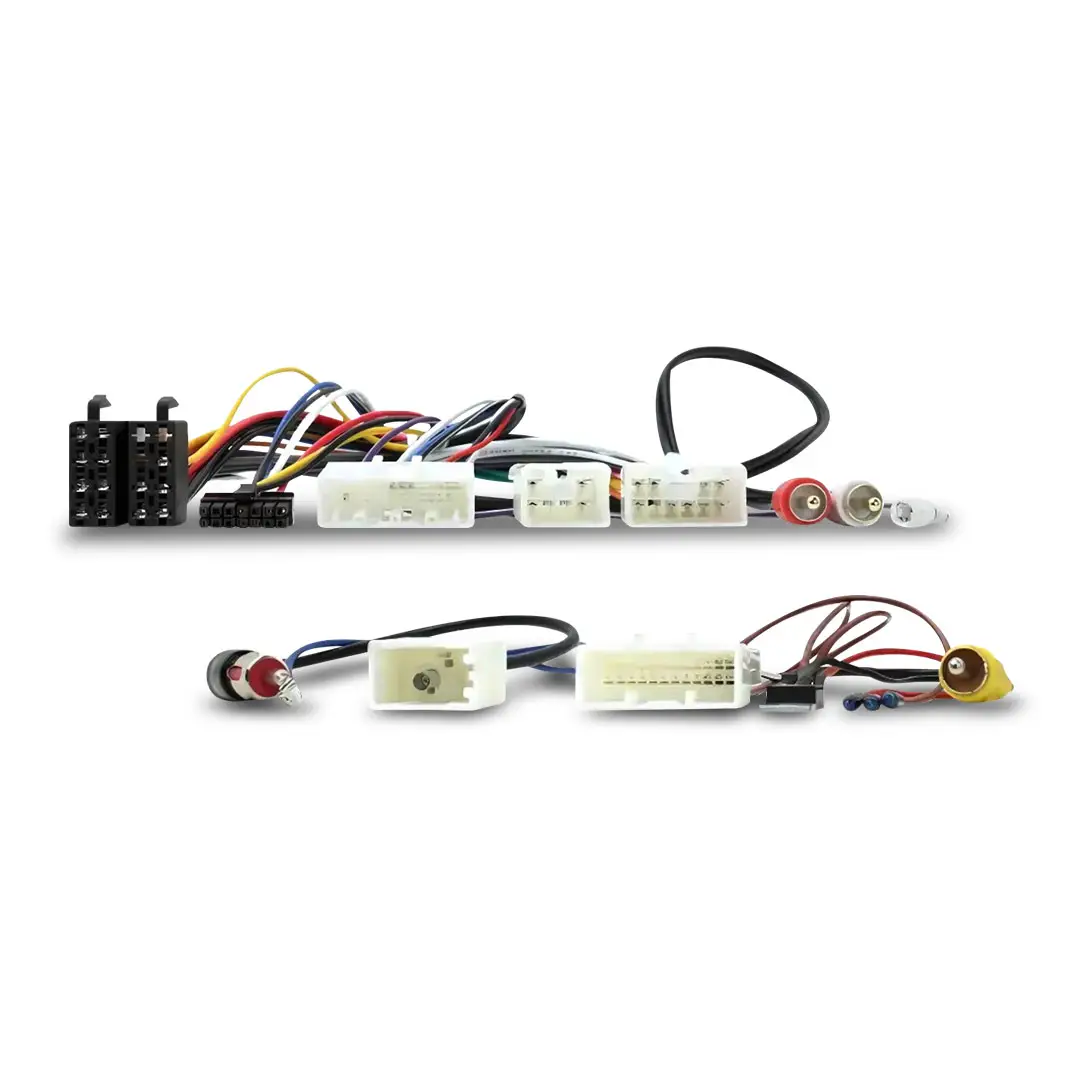

• Steering Wheel Button (Audio) Retention Interface & patch lead
• Antenna Adaptor
• Reverse Camera Retention Interface
• USB retention

Steering Wheel Control Interface Features:

• Plug & Play Harness
• Retains memory even if power is lost
• Provides Reverse Trigger

Compatibility Notes:

• Not compatible if vehicle is equipped the JBL system
• Fascia does not sit flush against the Left hand side air vent (2mm step)

Stinger HR9-TY003 Specifications:

• Manufacturer Part Number HR9-TY003
• Product Color Black Color
• Include Antenna Adaptor? YES
• Include AUX/USB retention? YES – AUX & USB
• Plug & Play YES – FACTORY CONNECTOR TO STANDARD ISO CONNECTOR
• Retain Factory Amplifier? NO
• Vehicle Plug Style 28PIN, 10PIN, and 6PIN TOYOTA Style Connectors
• Retain Factory Steering Wheel Audio Controls? YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios
• Retain Factory Reverse Camera? YES – Included With Interface
