Stinger HR9-TY002 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Select Toyota 2010-2020

Premium Installation Kit for Pioneer DMH-AP6650BT in Select Toyotas 2010–2020

Radio replacement kit to suit Pioneer DMH-AP6650BT 9" Head Unit for Select Toyota 2010-2020.

Please Note: Head Unit Not Included.

The HR9-TY002 is a radio replacement bundle for installation of the Pioneer DMH-AP6650BT aftermarket radio into select Toyota’s with the factory 200mm head unit

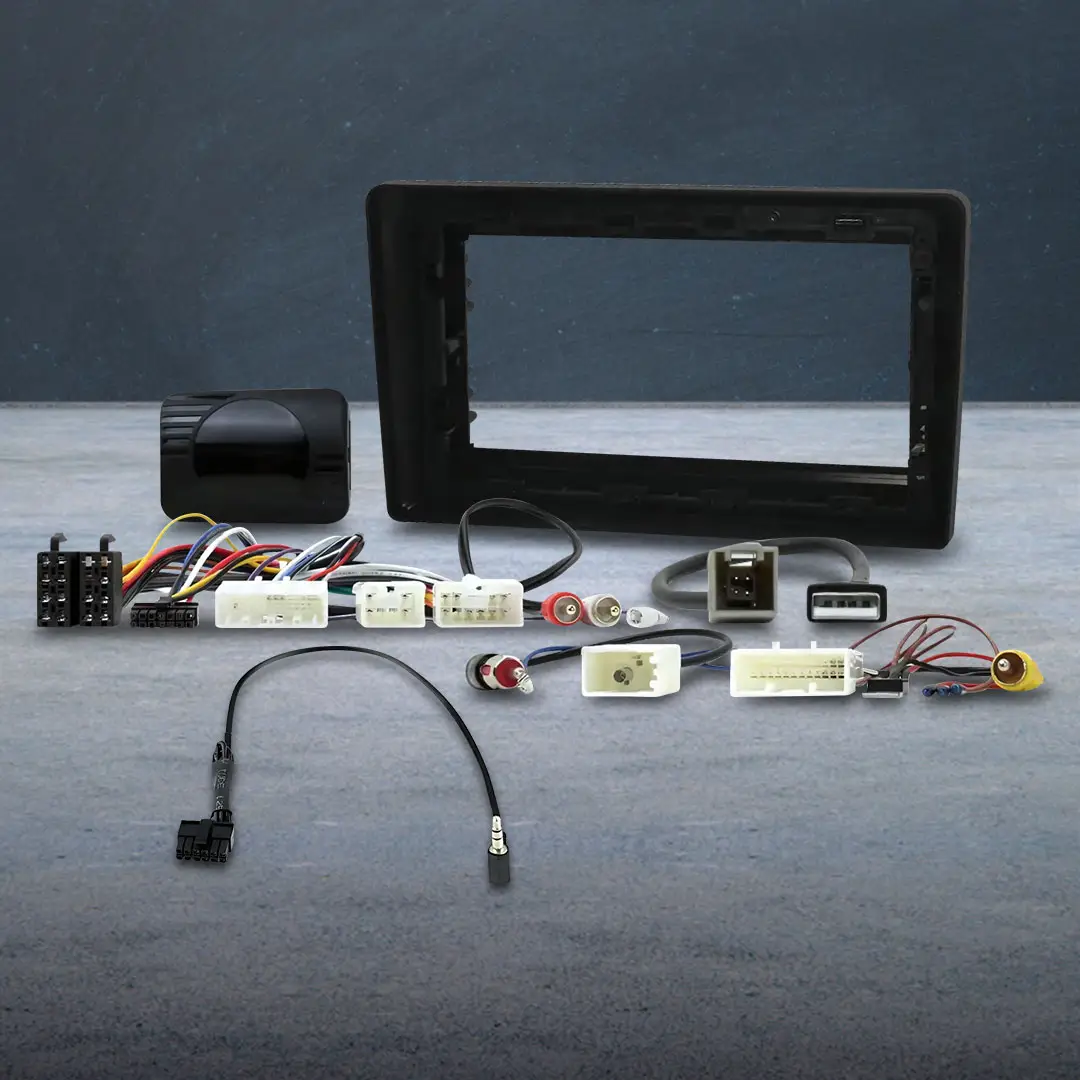

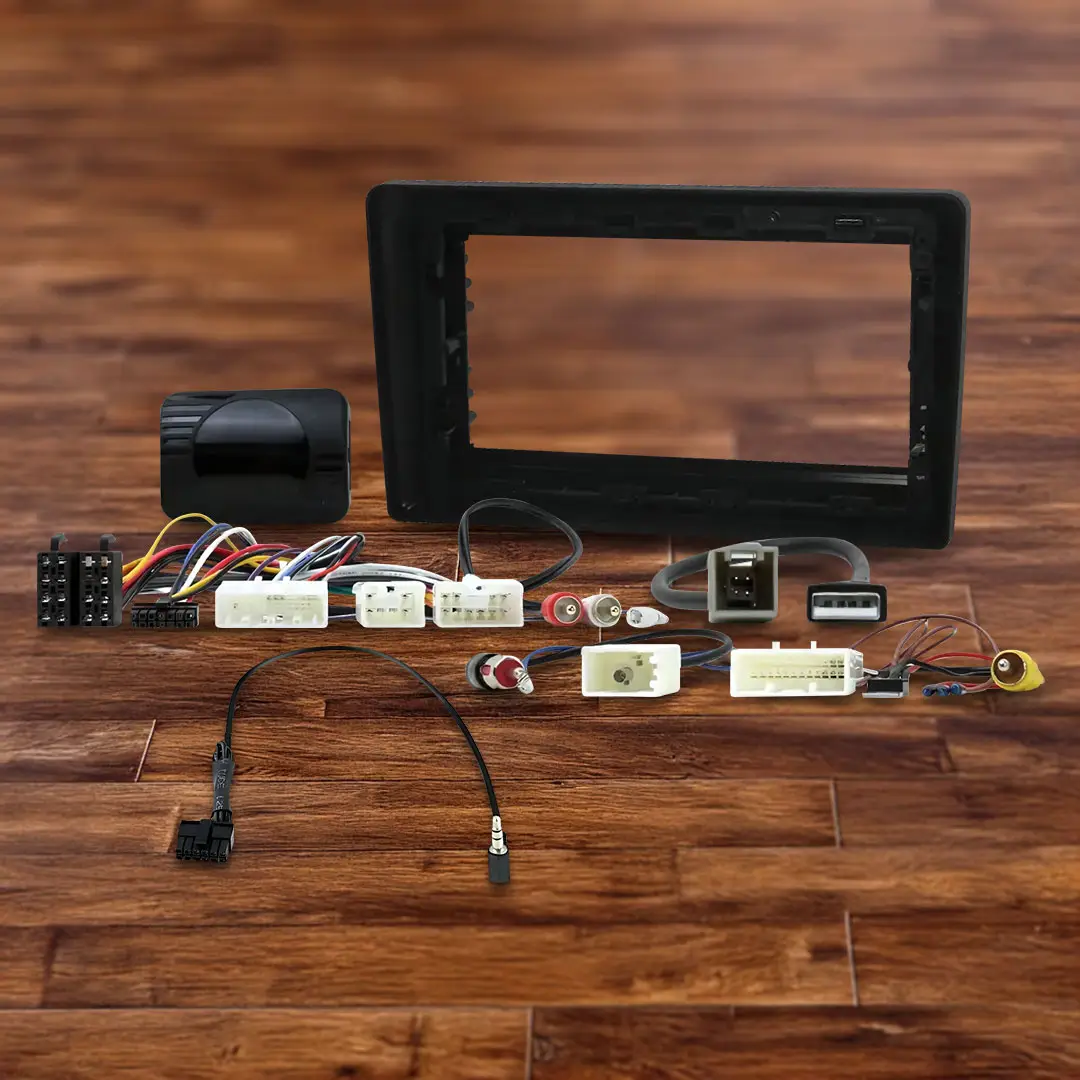

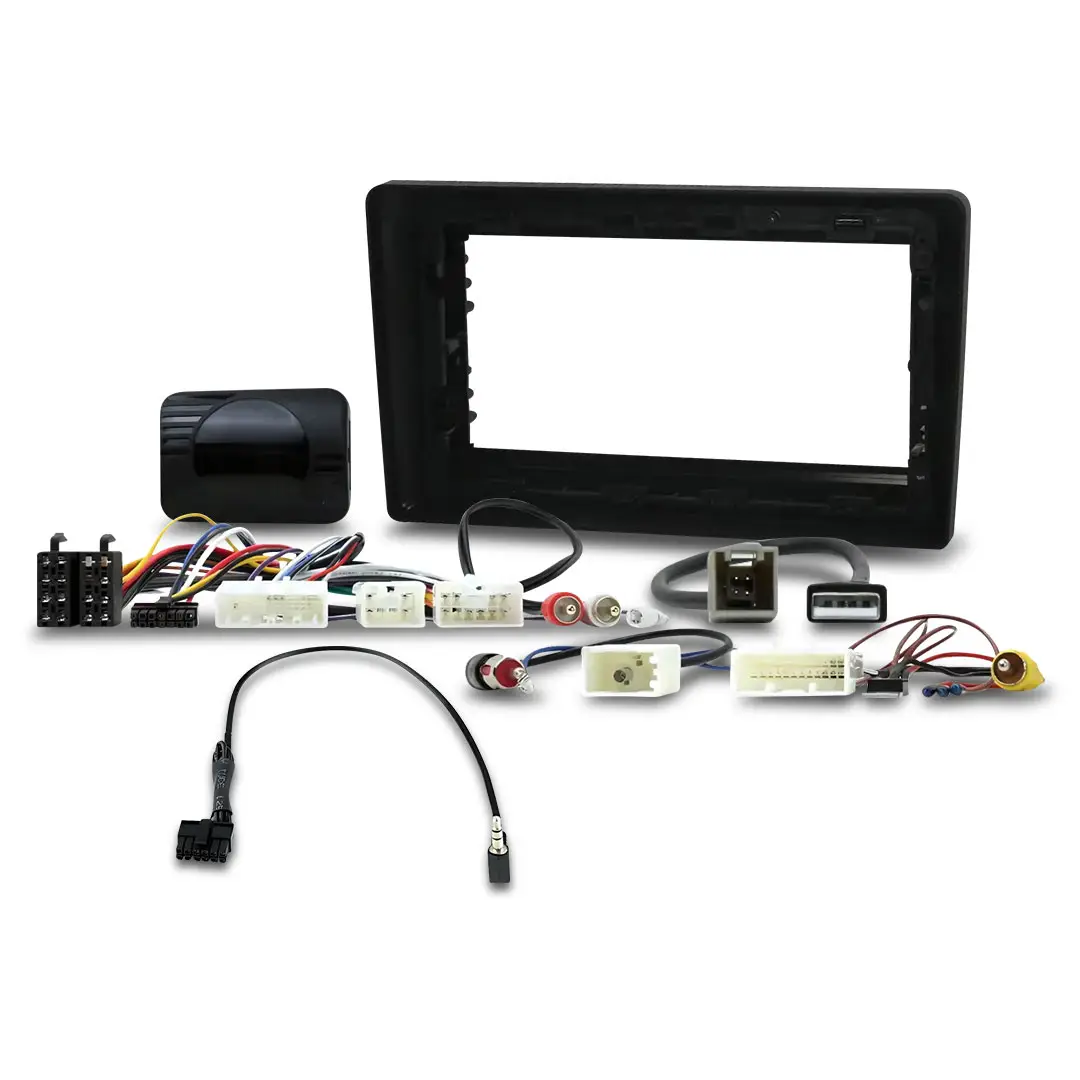

The HR9-TY002 Bundle Includes:

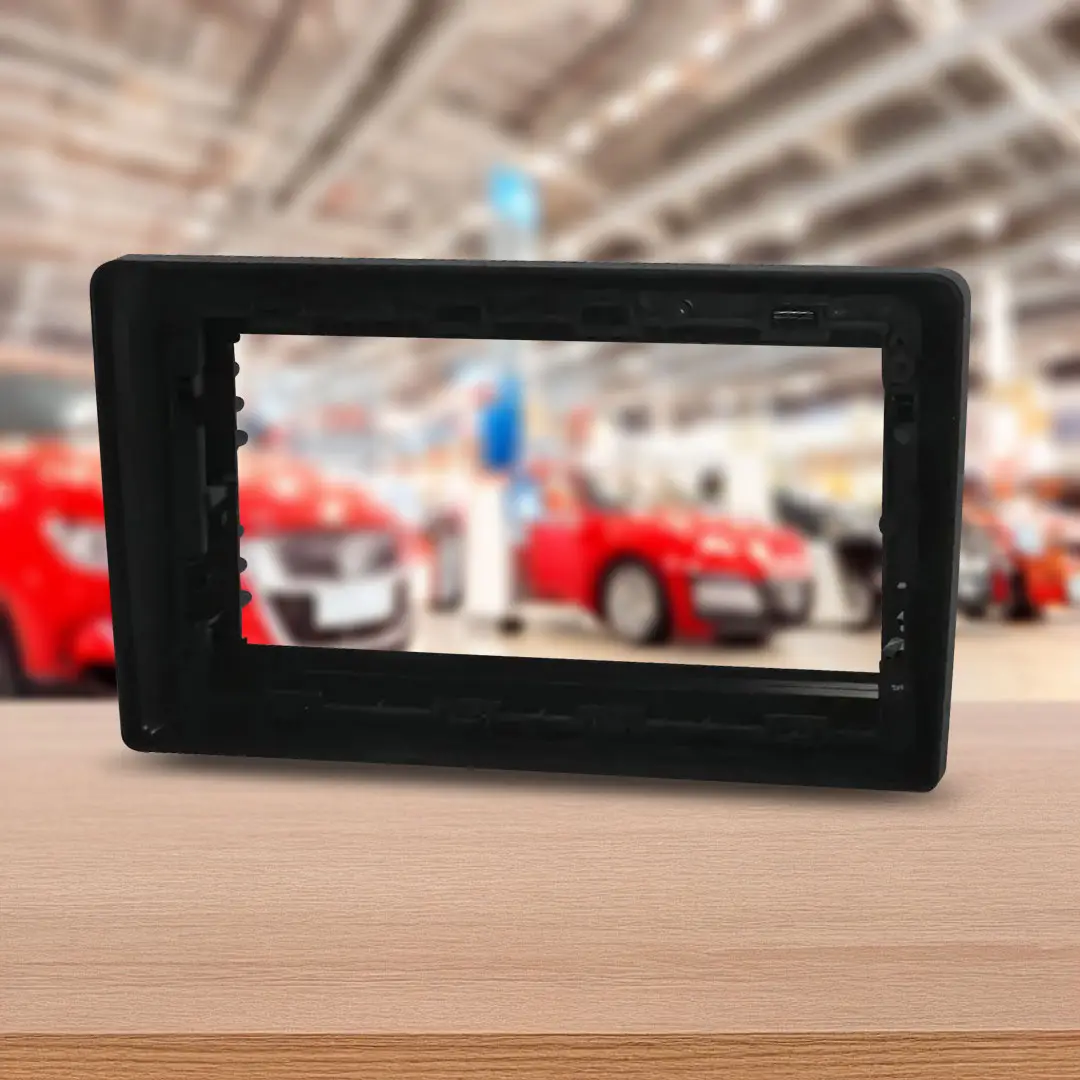

• 9″ Flush Fit Radio Panel
• Steering Wheel Button (Audio) Retention Interface & patch lead
• Antenna Adaptor
• Reverse Camera Retention Interface
• USB retention

Steering Wheel Control Interface Features:

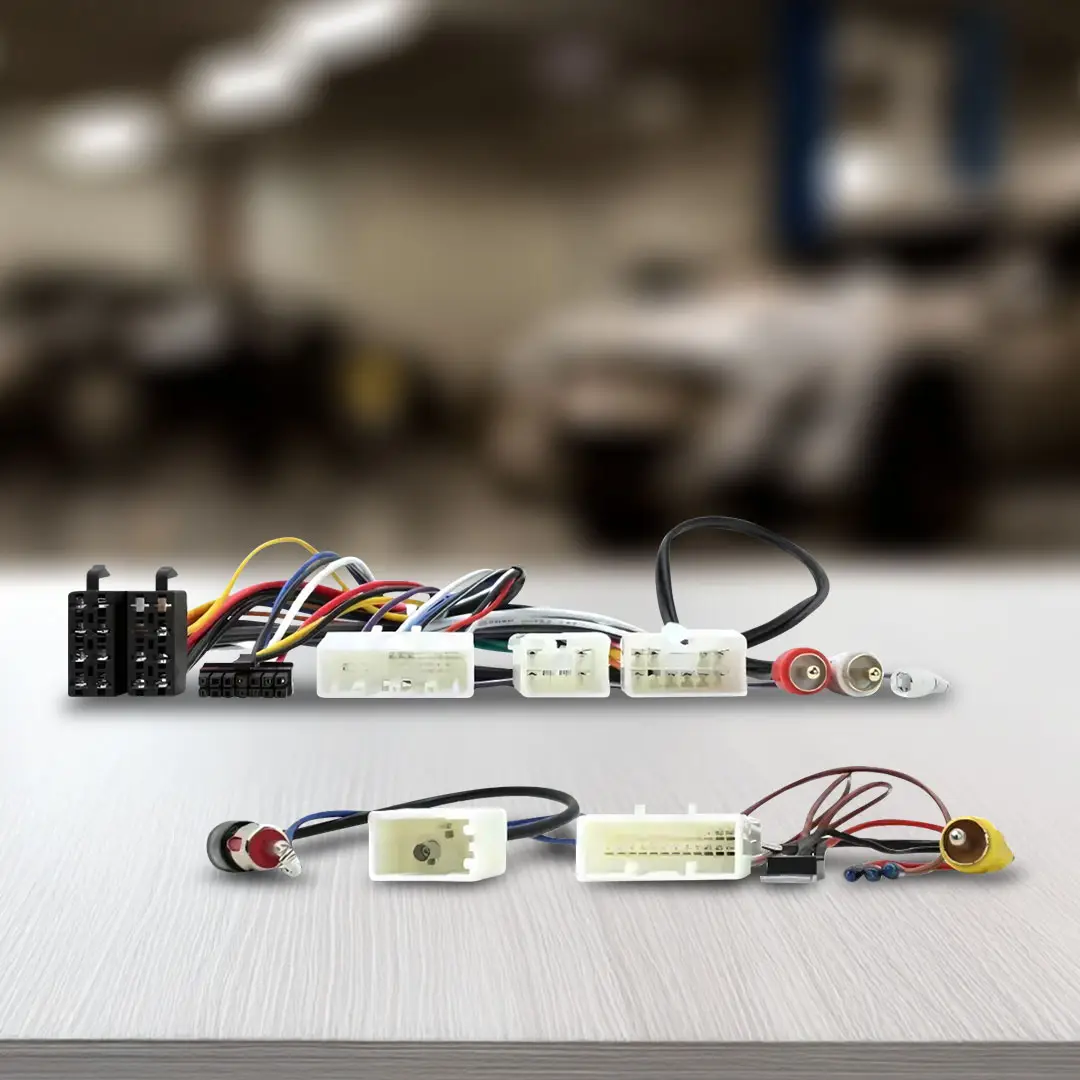

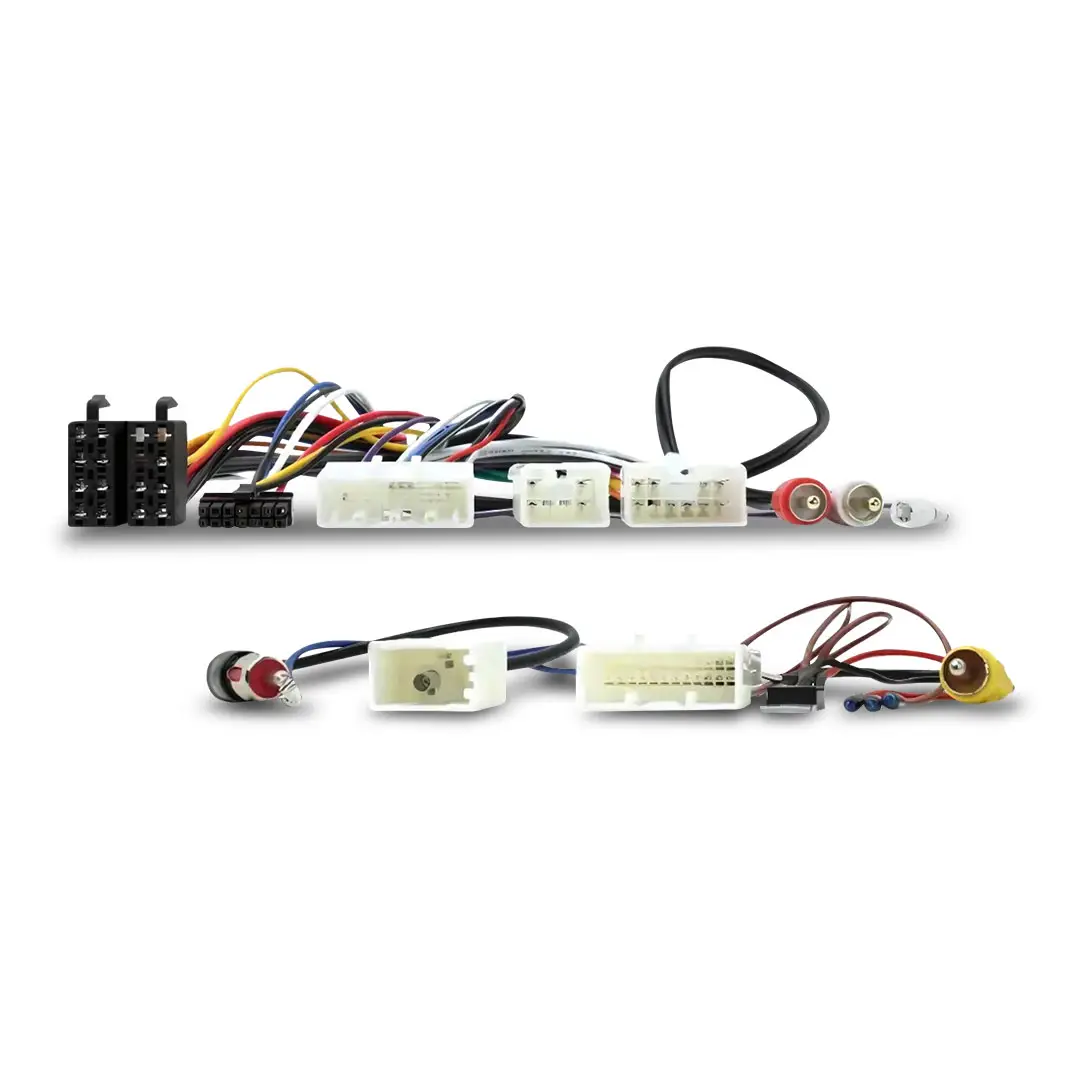

• Plug & Play Harness
• Retains memory even if power is lost
• Provides Reverse Trigger

Compatibility Notes:

• Vehicle’s with factory 200mm opening
• SWC retention for models with 28 Pin Connector
• In some vehicle’s the fascia brackets will need modification
• The aftermarket head unit will sit forward of the factory dash panel

Stinger HR9-TY002 Specifications:

• Manufacturer Part Number: HR9-TY002

• Product Color: Black

• Include Antenna Adaptor?: Yes

• Include AUX/USB Retention?: Yes – AUX & USB

• Plug & Play: Yes – Factory Connector to Standard ISO Connector

• Retain Factory Amplifier?: No

• Vehicle Plug Style: 28 pin + 24 pin + 10 pin + 6 pin Toyota style connectors

• Retain Factory Steering Wheel Audio Controls?: Yes – Will retain steering wheel
• audio controls with select aftermarket radios

• Retain Factory Reverse Camera?: Yes – If vehicle has reverse camera wiring in the 24 pin connector only
