Stinger HR9-TY001 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Select Toyota 2005-2012 Vehicles

Premium Installation Kit for Pioneer DMH-AP6650BT in Select Toyotas 2005–2012

Radio replacement kit to suit Pioneer DMH-AP6650BT 9" Head Unit for Select Toyota 2005-2012 vehicles.

Please Note: Head Unit Not Included.

The HR9-TY001 is a radio replacement bundle for installation of the Pioneer DMH-AP6650BT aftermarket radio into select Toyota’s with the factory 200mm head unit

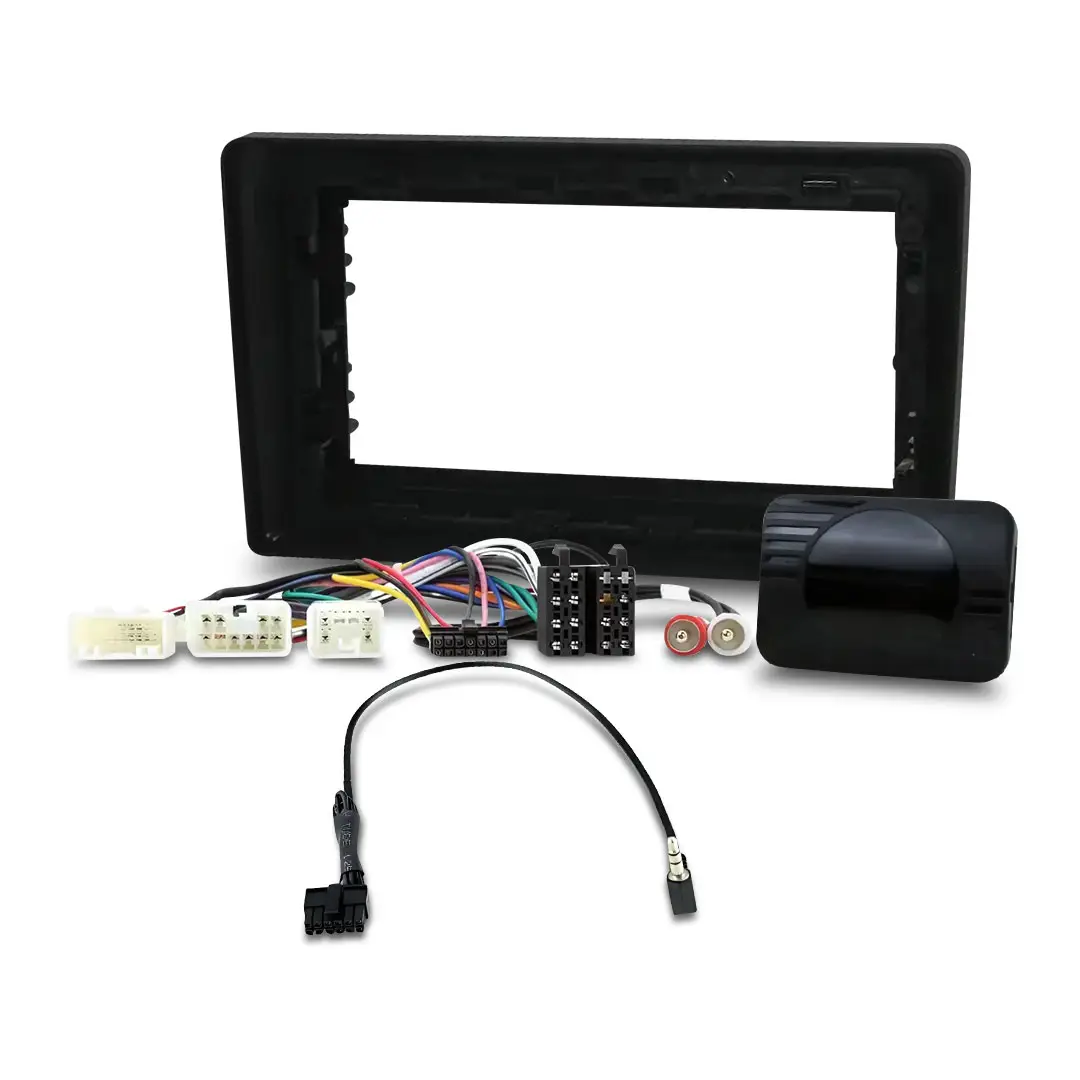

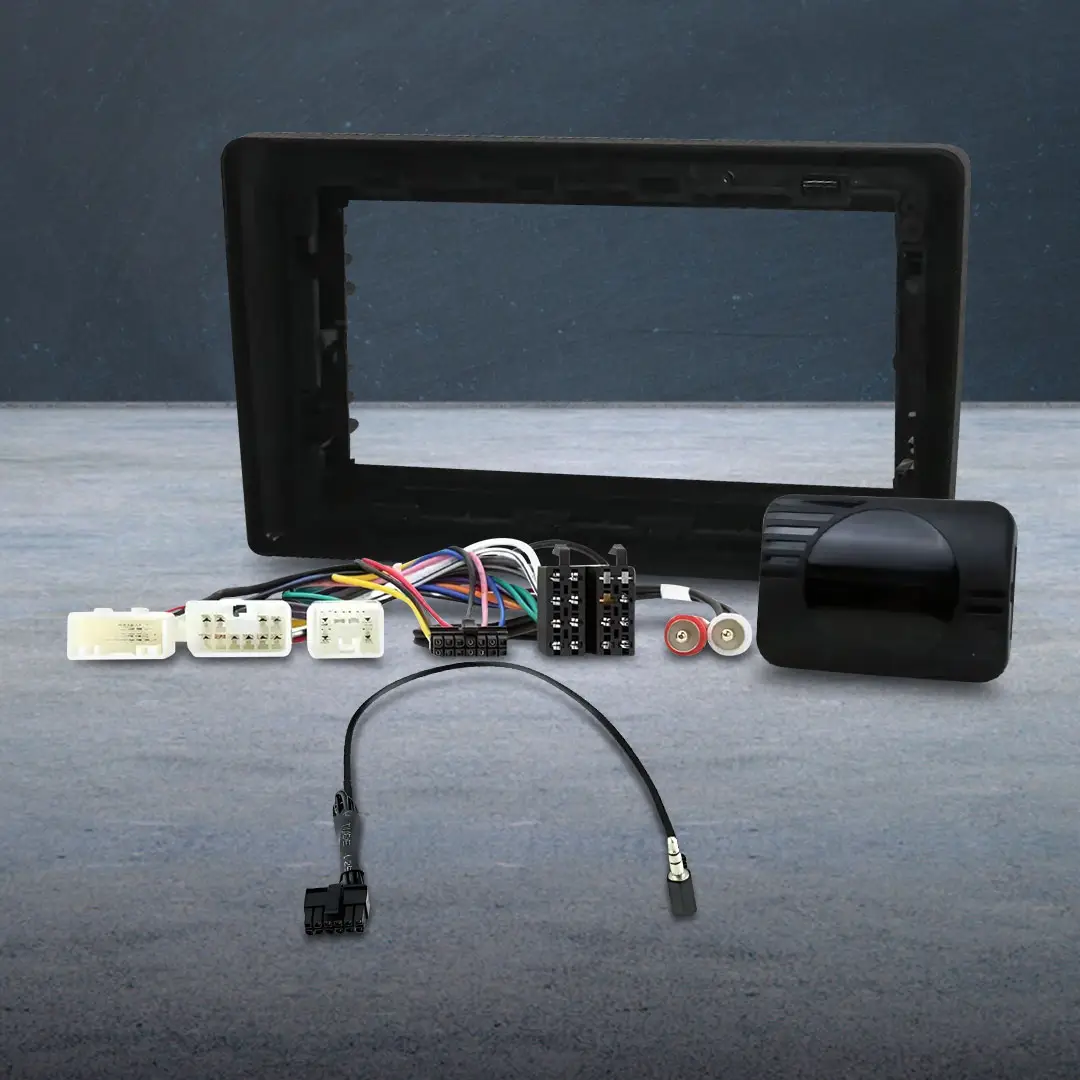

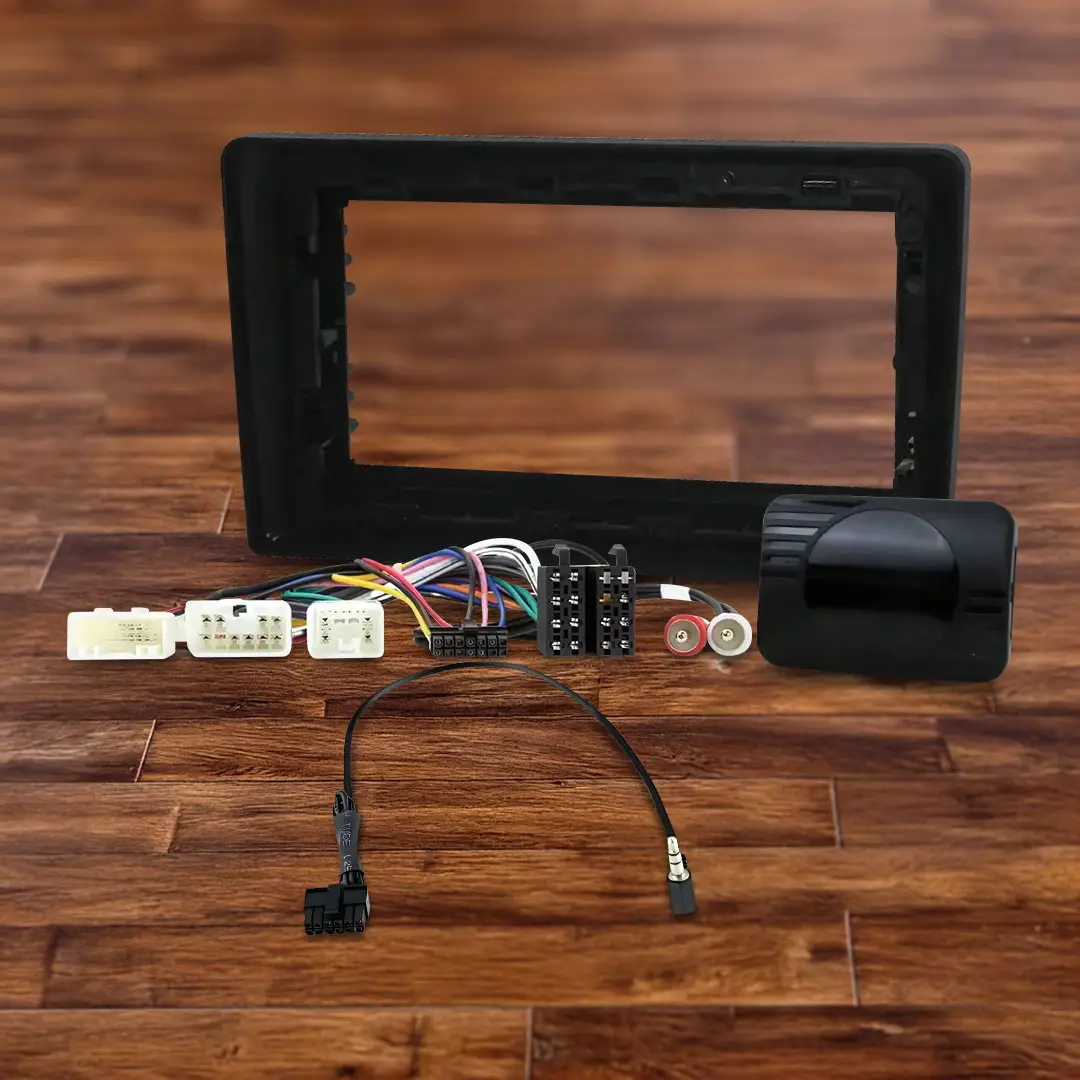

The HR9-TY001 Bundle Includes:

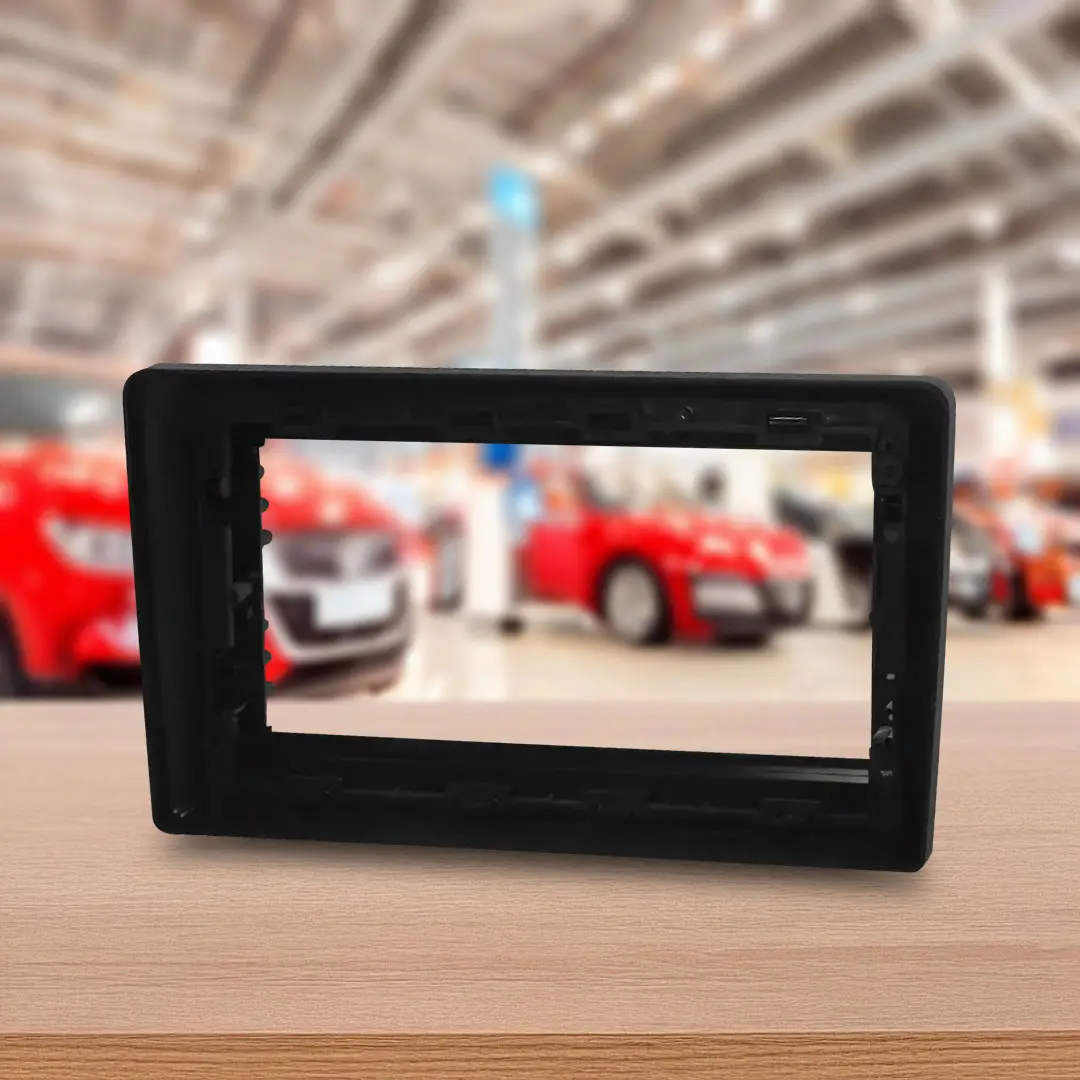

• 9″ Flush Fit Radio Panel

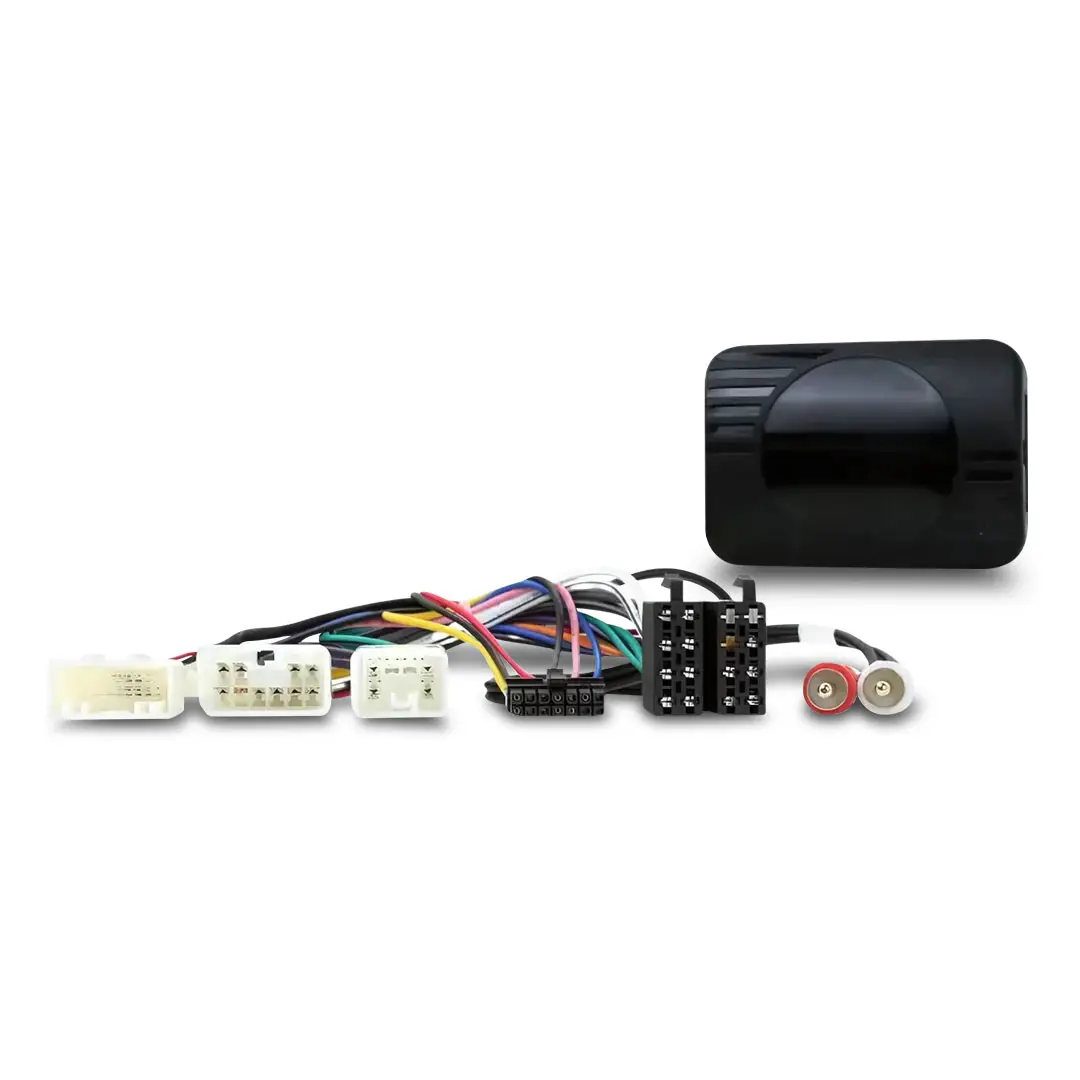

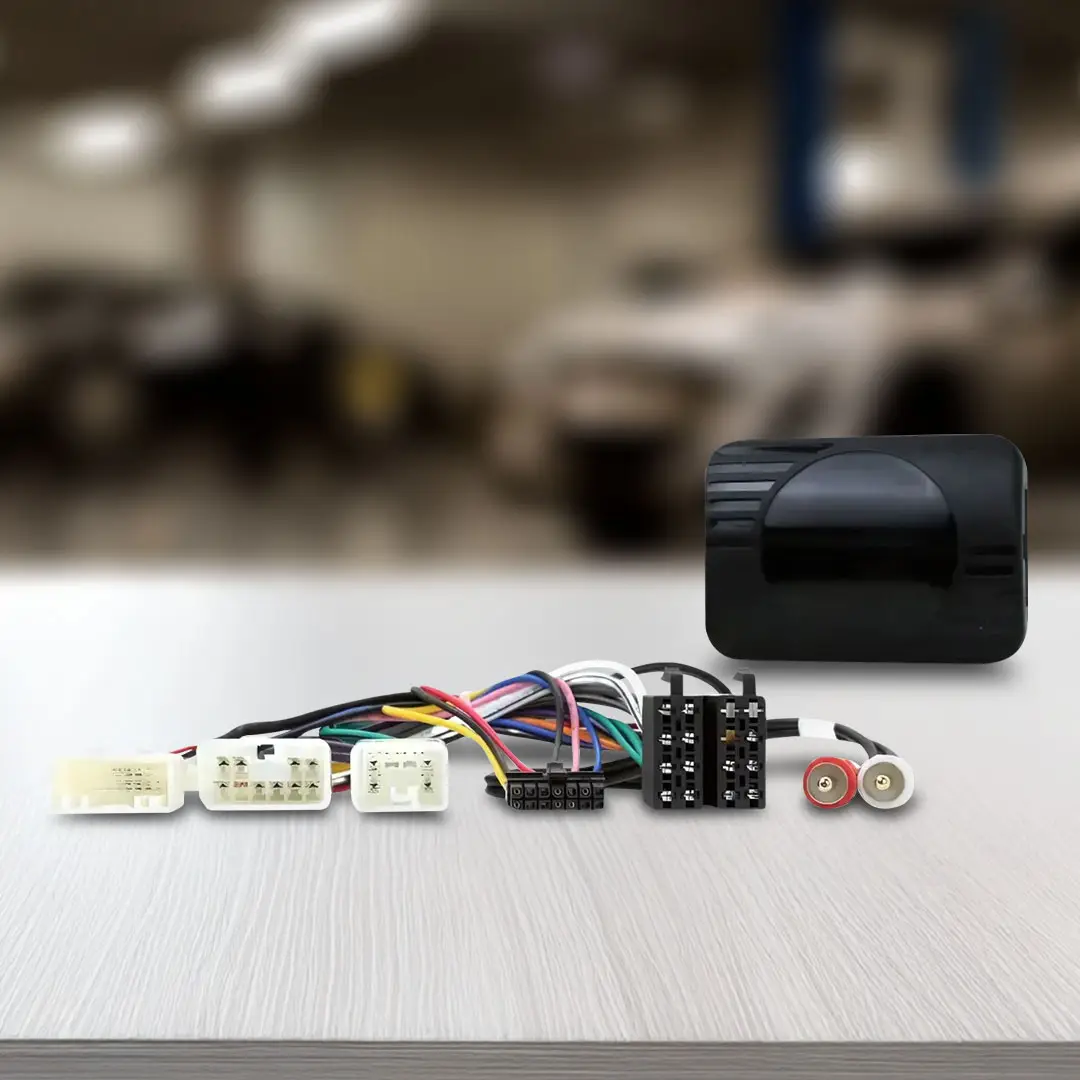

• Steering Wheel Button (Audio) Retention Interface & patch lead

Steering Wheel Control Interface Features:

• Plug & Play Harness
• Retains memory even if power is lost

Compatibility Notes:

• Vehicle’s with factory 200mm opening
• SWC retention for models with 20 Pin Connector
• In some vehicle’s the fascia brackets will need modification
• The aftermarket head unit will sit forward of the factory dash panel

Stinger HR9-TY001 Specifications:

• Manufacturer Part Number: HR9-TY001

• Product Color: Black

• Vehicle Plug Style: 20 pin + 10 pin + 6 pin Toyota style connectors

• Retain Factory Steering Wheel Audio Controls?: Yes – Will retain steering wheel audio controls with select aftermarket radios

• Retain Factory Reverse Camera?: No – Additional product may be required
