Stinger HR9-HY001 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Hyundai iLoad 2018-2020

Premium Installation Kit for Pioneer DMH-AP6650BT in Hyundai iLoad 2018-2020

Radio replacement kit to suit Pioneer DMH-AP6650BT 9" Head Unit for Hyundai iLoad 2018-2020.

Please Note: Head Unit Not Included.

The HR9-HY001 is a radio replacement bundle for installation of the Pioneer DMH-AP6650BT aftermarket radio into your 2018-2020 iLoad/iMax.

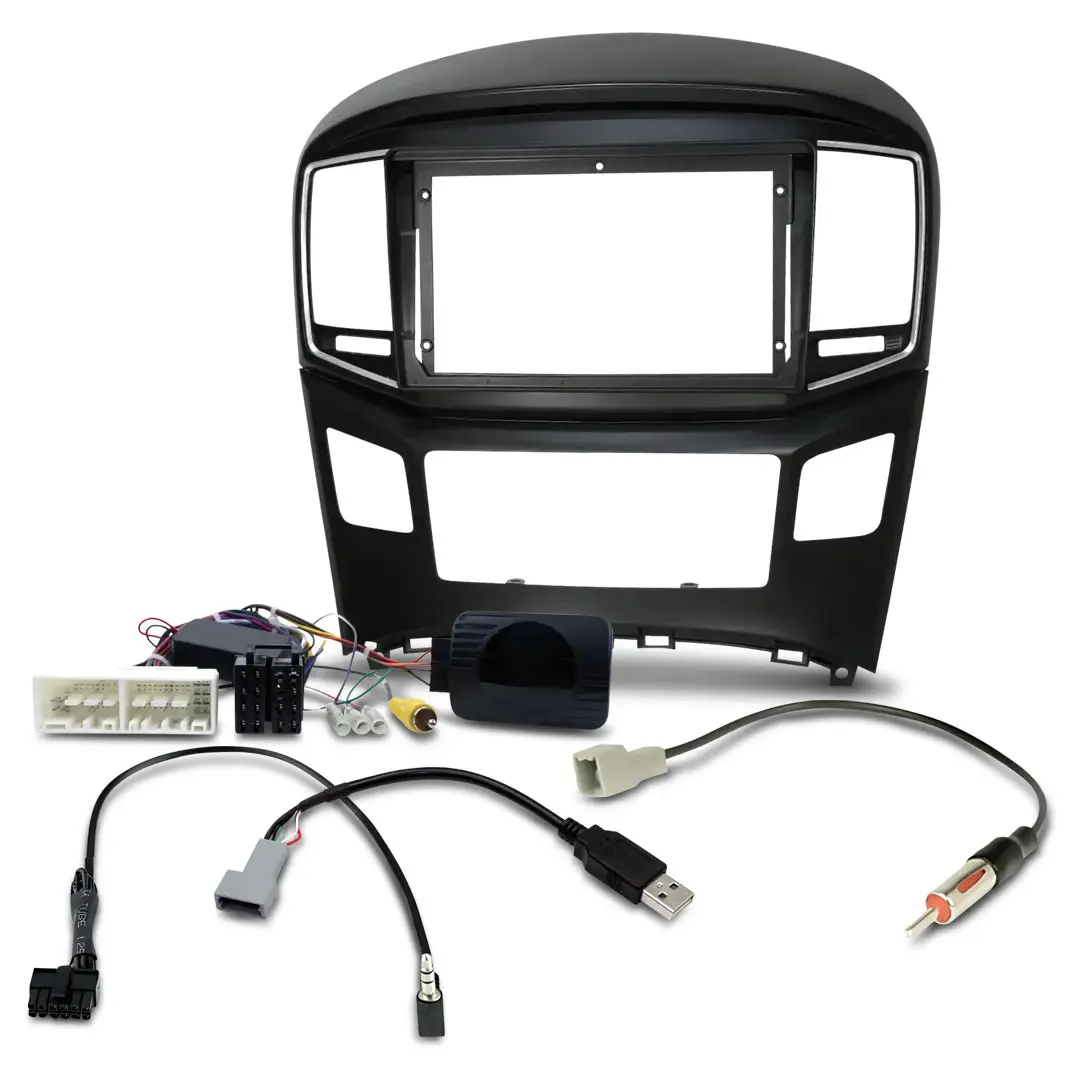

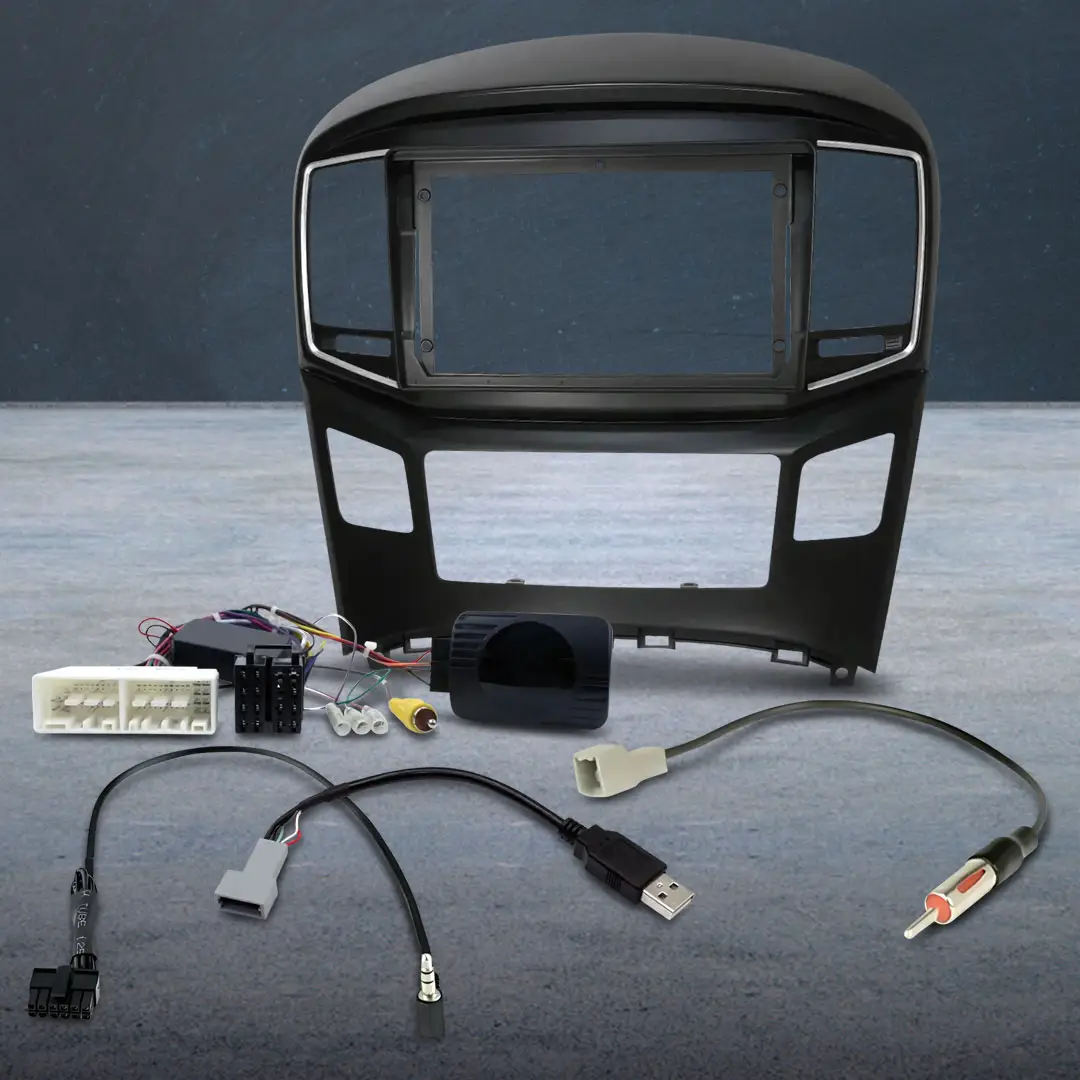

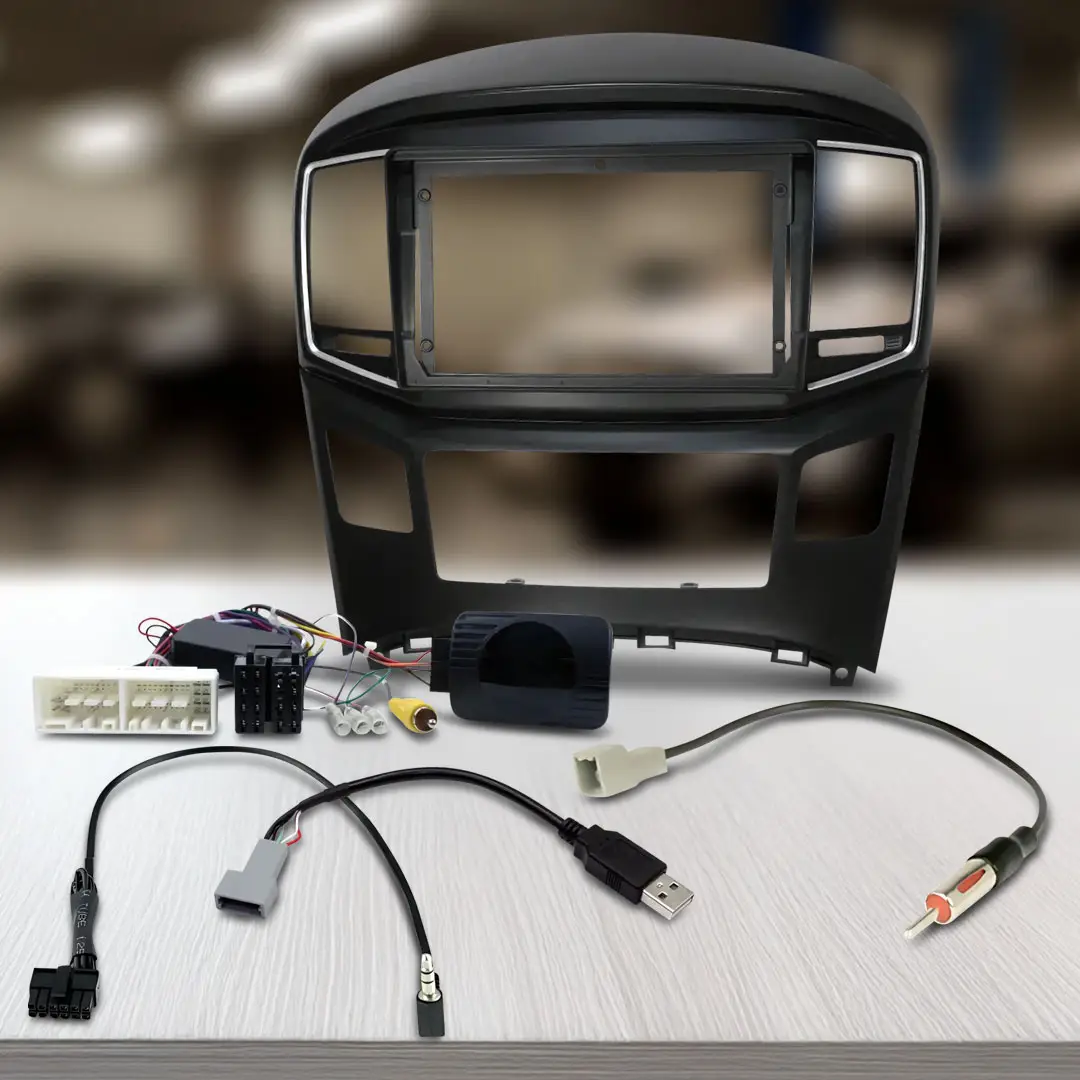

The HR9-HY001 Bundle Includes:

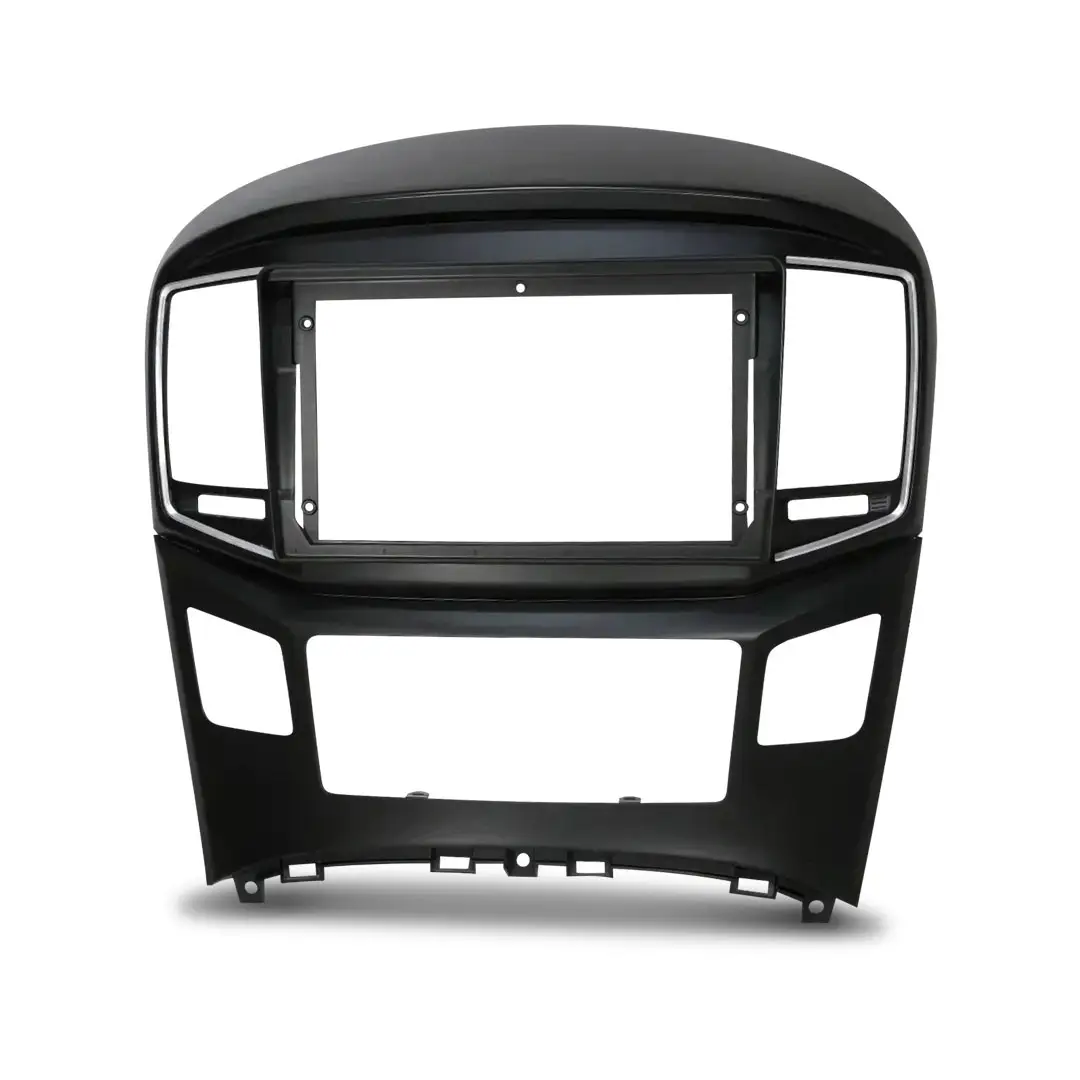

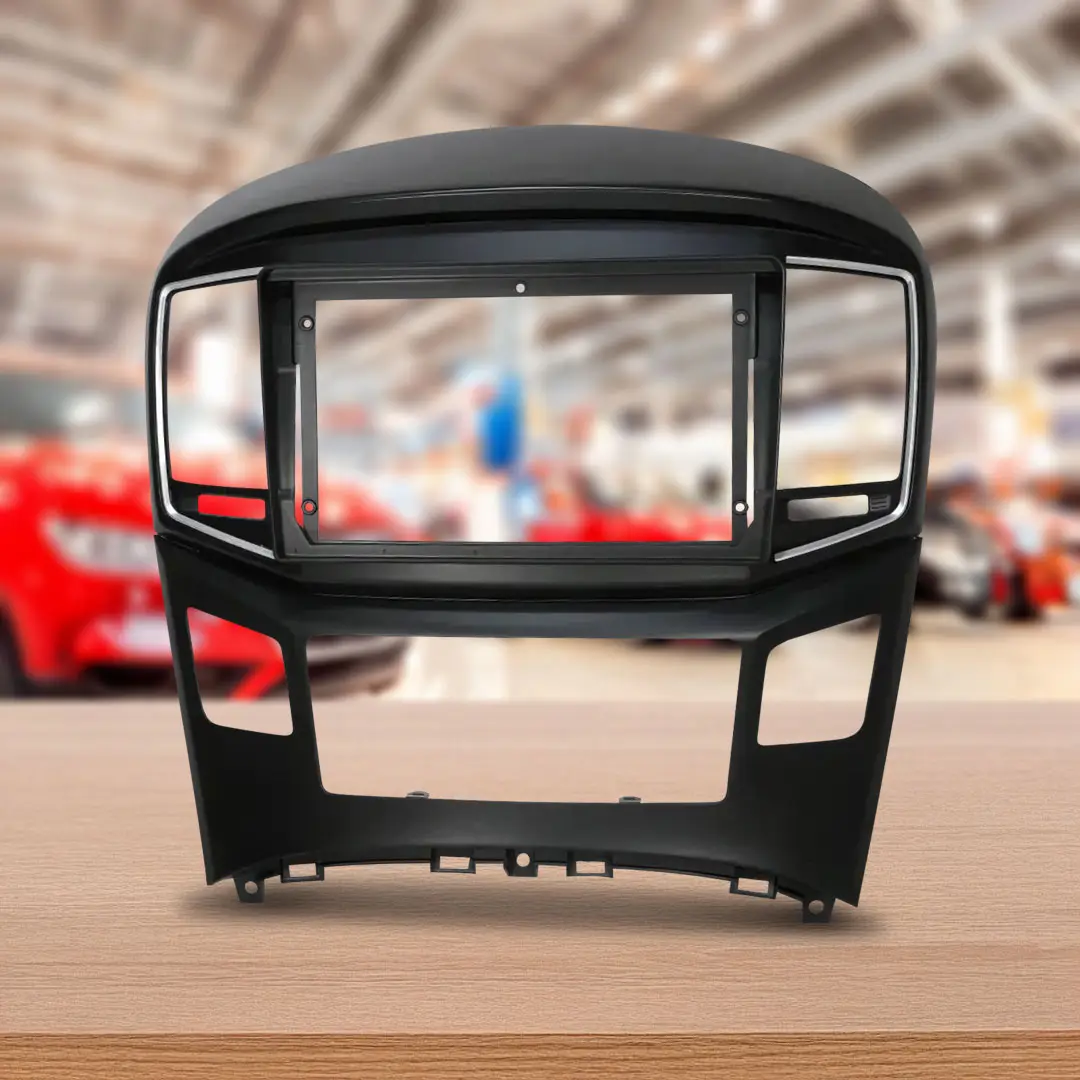

• 9″ Flush Fit Radio Panel

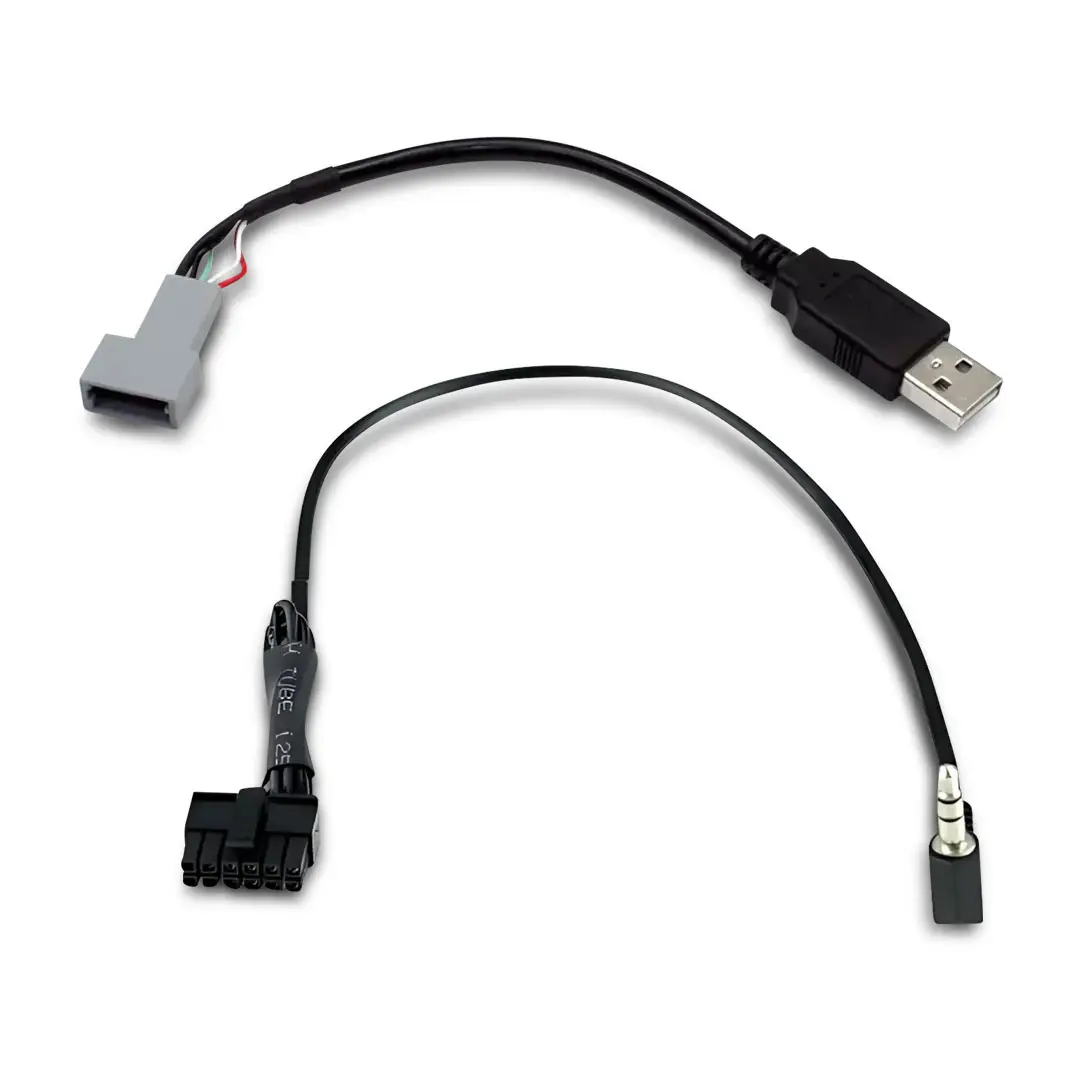

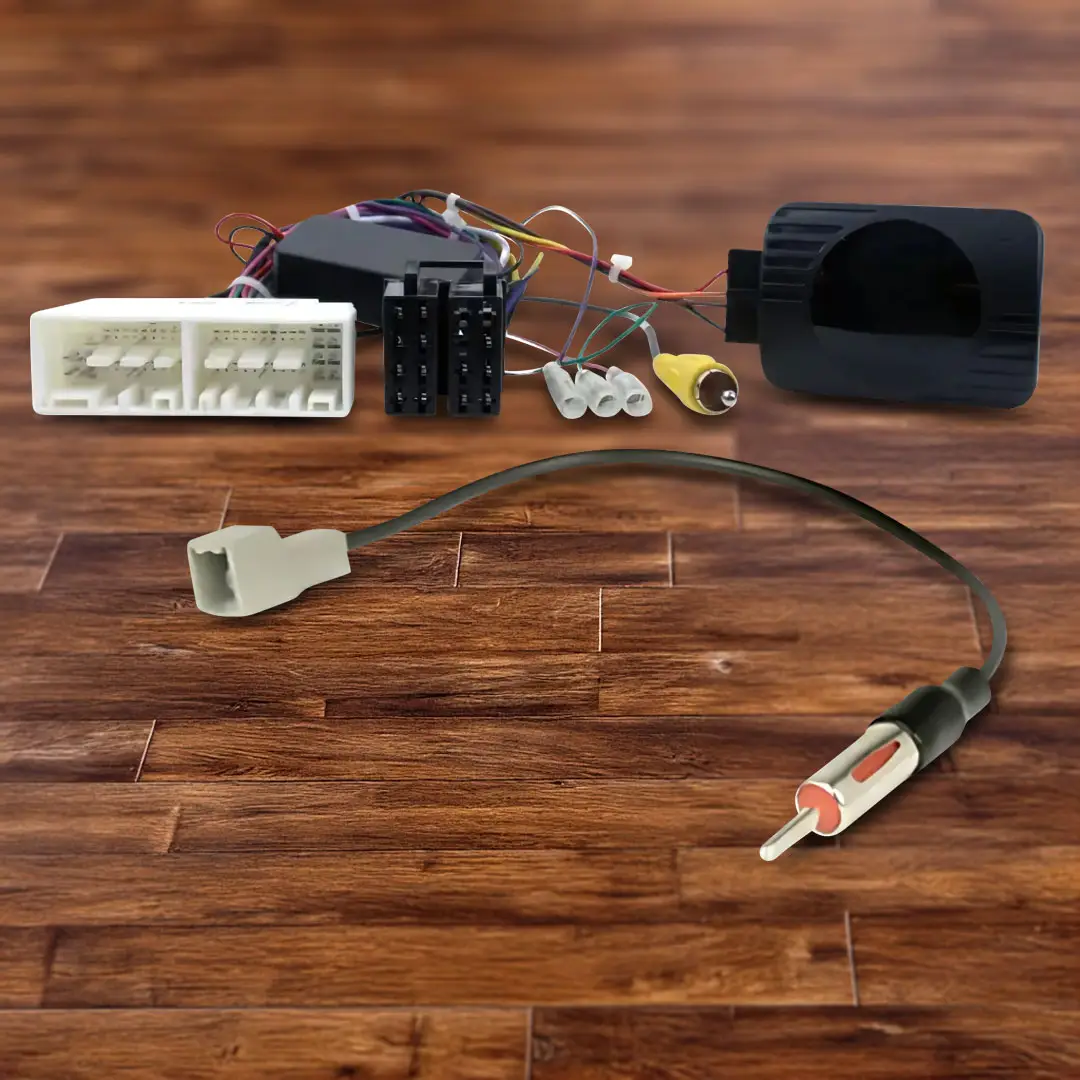

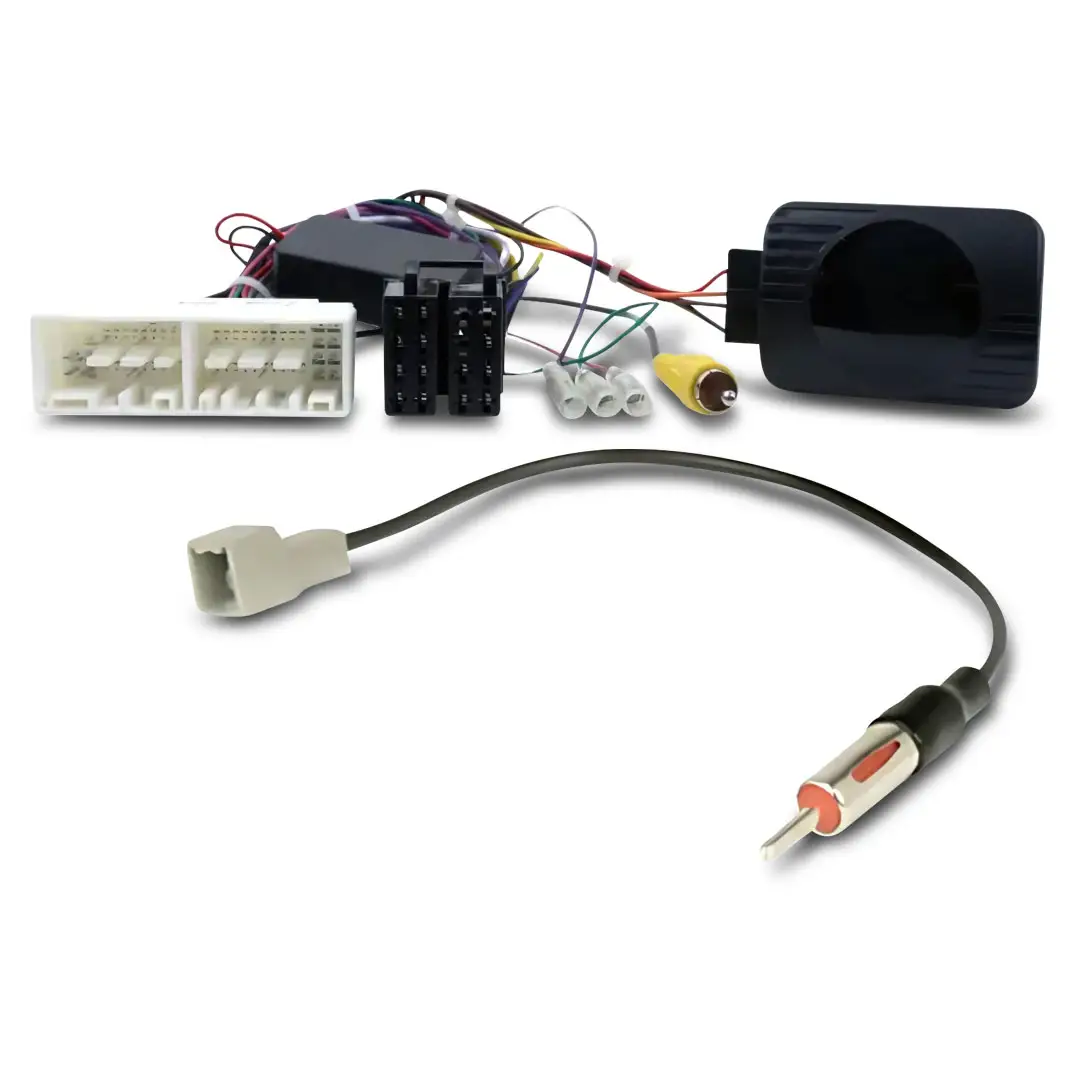

• Steering Wheel Button (Audio) Retention Interface & patch lead
• Antenna Adaptor
• USB Retention
• Reverse Camera Retention

Steering Wheel Control Interface Features:

• Plug & Play Harness
• Retains memory even if power is lost
• Provides Nav Outputs (Reverse, Park, Ignition, Illumination, VSS)

Stinger HR9-HY001 Specifications:

• Manufacturer Part Number: HR9-HY001

• Product Color: Black

• Include Antenna Adaptor?: Yes

• Include AUX/USB Retention?: Yes – USB only

• Plug & Play: Yes – Factory connector to standard ISO connector

• Vehicle Plug Style: 38 pin + 35 pin Hyundai/Kia connectors

• Retain Factory Steering Wheel Audio Controls?: Yes – Will retain steering wheel audio controls with select aftermarket radios

• Retain Factory Reverse Camera?: Yes – Included with interface
