STEDI ST-04-G9-001 G9 Black Flood Work Light 9x CREE XP-L2
STEDI ST-04-G9-001 G9 Black Flood Work Light
The highest-output model in the STEDI G Series, the G9 Black Flood delivers 6900 tested lumens from nine CREE XP-L2 LEDs across a flood zone 90 metres long and 65 metres wide at 1 LUX, built for the most demanding industrial, agricultural, and heavy-duty worksite environments.
Product Overview
The ST-04-G9-001 is STEDI's G9 Black Flood Work Light, the flagship model of the STEDI G Series, powered by nine CREE XP-L2 LEDs producing 9000 raw lumens and 6900 tested lumens through an all-new optic configuration at 5700K white light. The powerful flood beam reaches 90 metres in length and 65 metres in width at the 1 LUX threshold, providing large-scale worksite illumination for industrial facilities, agricultural machinery, mining equipment, and heavy-duty work environments where the broadest possible high-intensity near-field coverage from a single light unit is required. The 5700K colour temperature delivers brilliant white light with reduced glare and eye strain for extended heavy-use sessions. Rated IP68 and IP69K for complete dust and waterproof protection including high-pressure wash-down environments, shock tested at 30Gs and vibration tested at 5Gs for reliable performance under the most demanding conditions. CISPR 25 C3 certification suppresses electromagnetic interference, protecting onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. Compatible with both 12V and 24V systems, drawing 7.2A at 13.5V. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish in black with a polycarbonate lens, stainless steel hardware and bracket, and a STEDI protective cover included. Rated for 50,000 hours LED lifespan.
Features & Benefits
9x CREE XP-L2 LEDs at 90W Total: Nine premium CREE XP-L2 LED emitters with an all-new optic configuration produce 9000 raw lumens and 6900 independently tested lumens, delivering the highest output in the entire STEDI G Series range for the most demanding large-scale illumination applications.

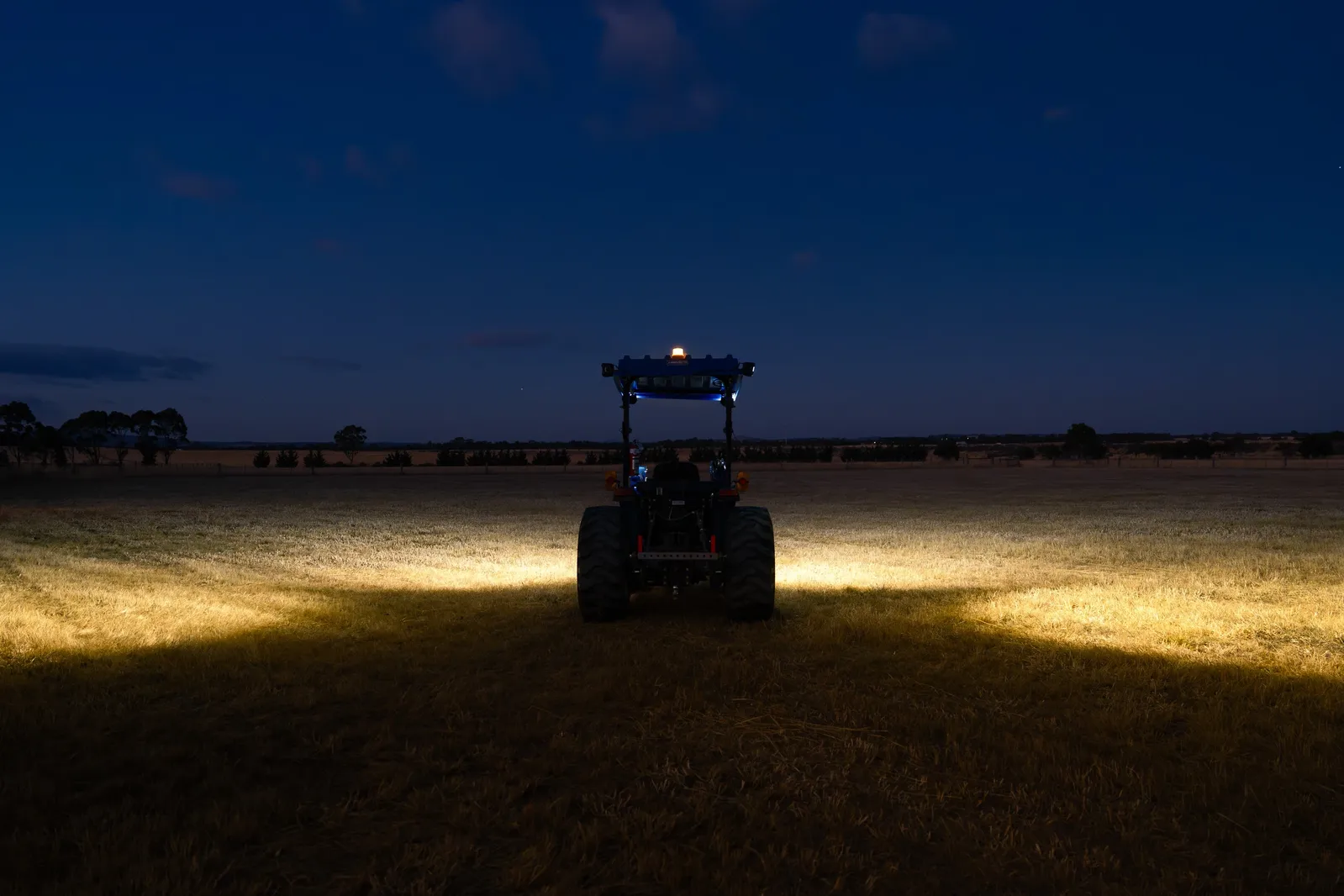

Flood Beam at 1 LUX, 90m x 65m: The all-new optic configuration produces a flood zone of 90 metres in length and 65 metres in width at the 1 LUX threshold, covering the largest ground area of any single-unit G Series light for industrial and agricultural worksite illumination.
5700K White Light: The 5700K colour temperature produces brilliant white light that accurately renders colours, provides high contrast for detail work, and reduces glare and eye strain during extended heavy-use applications.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down, guaranteeing performance in industrial wash-down, agricultural mud, mining dust, and the harshest working environments.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi, protecting the increasingly sophisticated electronic systems fitted to modern agricultural and industrial machinery.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity for heavy machinery, agricultural equipment, mining vehicles, and demanding industrial applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it directly compatible with agricultural tractors, harvesters, mining equipment, trucks, and industrial machinery operating on either system voltage.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat in black, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor and industrial applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management for the nine-LED array, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated 50,000-hour lifespan.
Stainless Steel Hardware, Bracket, and STEDI Cover Included: Stainless steel mounting hardware and bracket are included for a complete, corrosion-resistant installation, and a STEDI protective cover is supplied for storage or transport.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | ST-04-G9-001 |
| Brand | STEDI |
| LED | 9x CREE XP-L2 |
| LED Power Output | 9 x 10W (90W total) |
| Raw Lumens | 9,000 lm |
| Tested Lumens | 6,900 lm |
| Beam Type | Flood |
| 1 LUX Distance (Length) | 90m |
| 1 LUX Distance (Width) | 65m |
| Colour Temperature | 5700K |
| Operating Voltage | 12V and 24V |
| Amp Draw | 7.2A @ 13.5V |
| IP Rating | IP68 and IP69K |
| CISPR Rating | CISPR 25 C3 |
| Shock Tested | 30G |
| Vibration Tested | 5G |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Finish | Premium AkzoNobel powder coat, black |
| Hardware | Stainless steel |
| LED Lifespan | 50,000 hours |
| Weight | 1.91 kg |

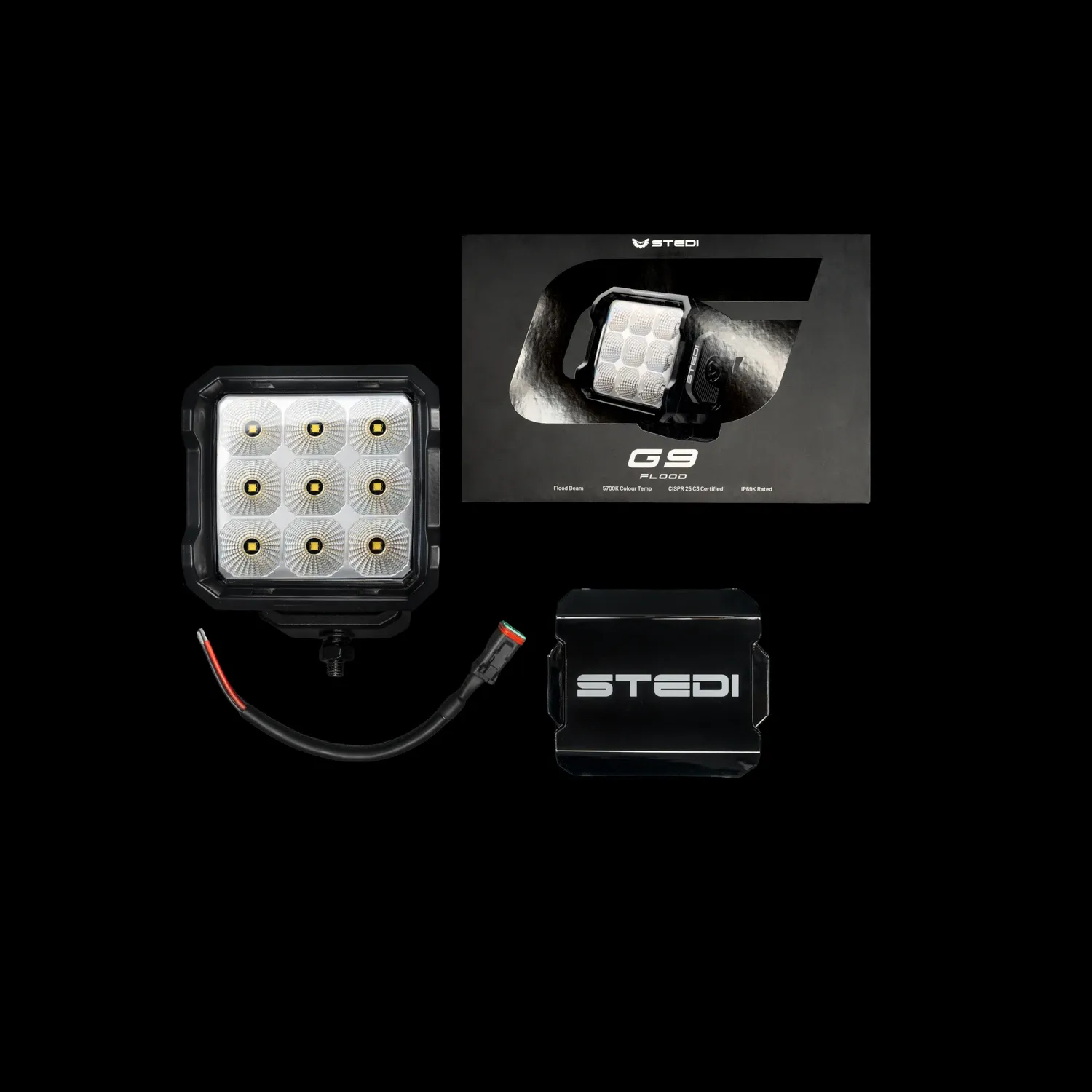

What's in the Box
- 1x STEDI G9 Flood Light
- 1x STEDI Black Cover
- 1x Stainless Steel Hardware
- 1x Stainless Steel Bracket
- 1x 2-Pin Male Connector
Goes Well With
The ST-04-G9-001 is the maximum-output choice in the STEDI G Series for industrial, agricultural, and heavy worksite environments where the largest possible flood coverage from a single light unit is the requirement. It pairs naturally with other STEDI G Series lights and light bars for comprehensive multi-zone lighting setups on large machinery and vehicles. For applications where the G6's 4600 tested lumens is sufficient, the G6 Flood (ST-04-G6-001) provides a lighter and lower-draw alternative at 1.10kg and 4.8A. A dedicated relay rated for at least 8A is recommended to handle the G9's 7.2A draw, and a STEDI or compatible wiring harness is recommended for clean vehicle installation.
Frequently Asked Questions
How does the G9 Flood compare to the G6 Flood in the G Series?
The G9 Flood uses nine CREE XP-L2 LEDs at 90W total, producing 6900 tested lumens, covering a flood zone of 90m x 65m at 1 LUX, drawing 7.2A at 13.5V and weighing 1.91kg. The G6 Flood uses six CREE XP-L2 LEDs at 60W total, producing 4600 tested lumens, covering a flood zone of 74m x 52m at 1 LUX, drawing 4.8A at 13.5V and weighing 1.10kg. The G9 provides approximately 50% more tested output than the G6 and covers a substantially larger flood zone, making it the choice for the largest industrial and agricultural illumination requirements. For most worksite applications where the G6's output is sufficient, the lighter and lower-draw G6 is the practical choice.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down agricultural machinery, mining equipment, and industrial vehicles. The G9 Flood's dual IP68 and IP69K rating confirms it is protected against both scenarios.
What does CISPR 25 C3 mean for agricultural and industrial machinery?
CISPR 25 is an international standard measuring radio frequency emissions produced by vehicle and machinery components. C3 is the highest performance class within CISPR 25, confirming the G9 Flood produces minimal electromagnetic interference that could affect onboard receivers including GPS guidance systems, UHF radio, AM/FM radio, mobile communication, and Wi-Fi, which are standard equipment on modern agricultural and industrial machinery.
Is the G9 Flood suitable for 24V agricultural and industrial machinery?
Yes. The G9 Flood is compatible with both 12V and 24V electrical systems, making it directly compatible with agricultural tractors, harvesters, mining trucks, semi-trailers, and industrial equipment operating on 24V systems without requiring a voltage converter.
What is the rated lifespan of the CREE XP-L2 LEDs?
The nine CREE XP-L2 LEDs in the G9 Flood are rated for 50,000 hours of operating life. At typical heavy-use work light operation of 8 hours per day in agricultural or industrial use, this equates to over 17 years of service before the LEDs reach their rated end-of-life output level under normal use patterns.
