STEDI ST-04-G6-001 G6 Black Flood Work Light 6x CREE XP-L2
STEDI ST-04-G6-001 G6 Black Flood Work Light

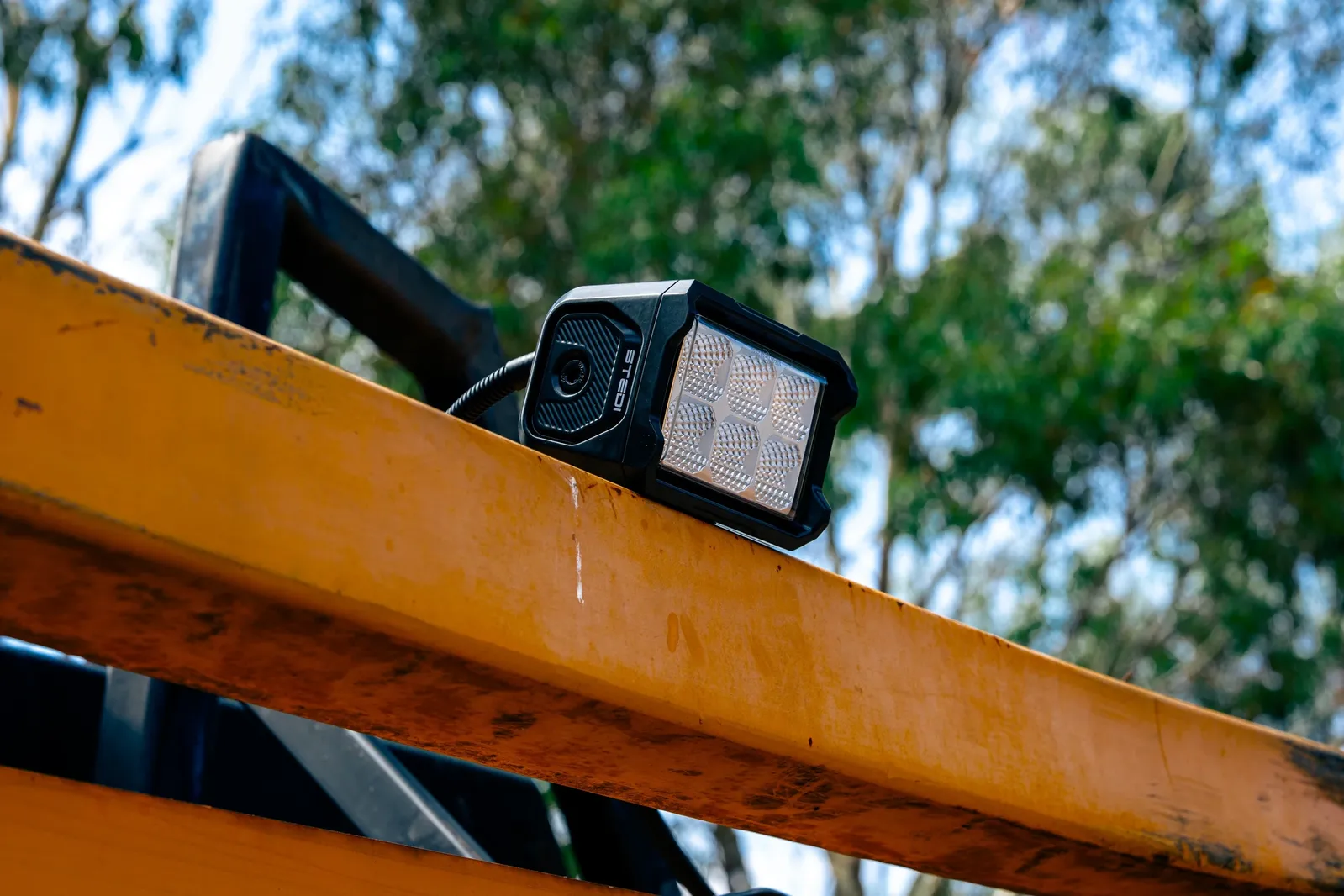

The most powerful single-unit flood light in the STEDI G Series, the G6 Black Flood delivers 4600 tested lumens from six CREE XP-L2 LEDs across a flood zone 74 metres long and 52 metres wide at 1 LUX, built for industrial, agricultural, and heavy-duty worksite environments.
Product Overview
The ST-04-G6-001 is STEDI's G6 Black Flood Work Light, the highest-output model in the STEDI G Series, powered by six CREE XP-L2 LEDs producing 6000 raw lumens and 4600 tested lumens through an all-new optic configuration at 5700K white light. The powerful flood beam reaches 74 metres in length and 52 metres in width at the 1 LUX threshold, providing large-scale worksite illumination suited to industrial facilities, agricultural machinery, and heavy-duty work environments where broad, high-intensity near-field coverage is the priority. The 5700K colour temperature delivers brilliant white light with reduced glare and eye strain for extended heavy-use sessions. Rated IP68 and IP69K for complete dust and waterproof protection including high-pressure wash-down environments, shock tested at 30Gs and vibration tested at 5Gs for reliable performance under the most demanding conditions. CISPR 25 C3 certification suppresses electromagnetic interference, protecting onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. Compatible with both 12V and 24V systems, drawing 4.8A at 13.5V. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish in black with a polycarbonate lens, stainless steel hardware and bracket, and a STEDI protective cover included. Rated for 50,000 hours LED lifespan.
Features & Benefits
6x CREE XP-L2 LEDs at 60W Total: Six premium CREE XP-L2 LED emitters with an all-new optic configuration produce 6000 raw lumens and 4600 independently tested lumens, delivering the highest output of any single-unit G Series work light for large-scale industrial and agricultural illumination.

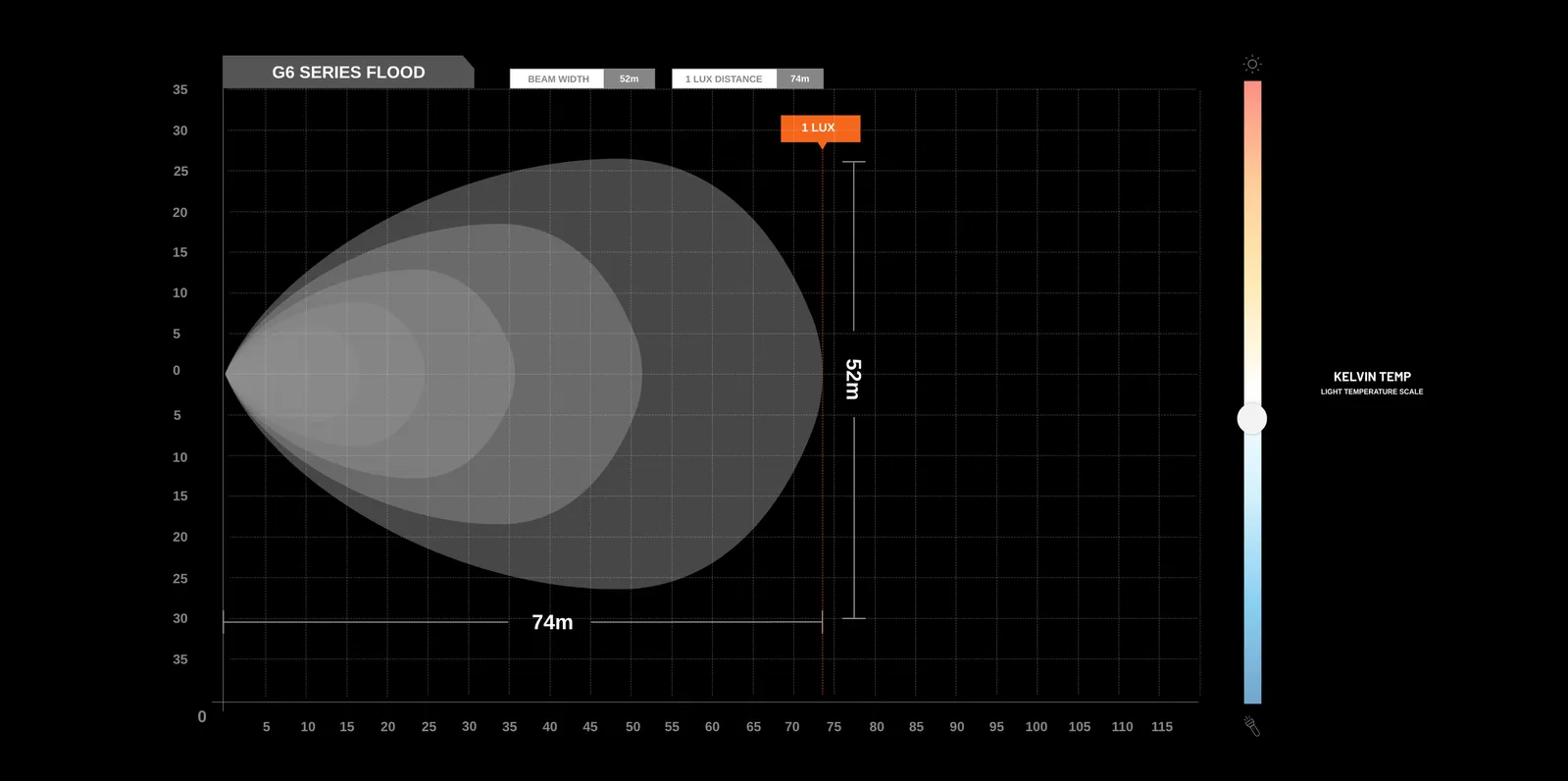

Flood Beam at 1 LUX, 74m x 52m: The all-new optic configuration produces a flood zone of 74 metres in length and 52 metres in width at the 1 LUX threshold, providing worksite-scale illumination that covers large ground areas around machinery, vehicles, and equipment with a single light unit.
5700K White Light: The 5700K colour temperature produces brilliant white light that accurately renders colours, provides high contrast for detail work, and reduces glare and eye strain during extended heavy-use applications.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down, guaranteeing performance in industrial wash-down, agricultural mud, and the harshest working environments.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity for heavy machinery, agricultural equipment, and demanding industrial applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it compatible with agricultural tractors, harvesters, trucks, industrial equipment, and passenger vehicles.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat in black, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor and industrial applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management for the six-LED array, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated 50,000-hour lifespan.
Stainless Steel Hardware, Bracket, and STEDI Cover Included: Stainless steel mounting hardware and bracket are included for a complete, corrosion-resistant installation, and a STEDI protective cover is supplied for storage or transport.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | ST-04-G6-001 |
| Brand | STEDI |
| LED | 6x CREE XP-L2 |
| LED Power Output | 6 x 10W (60W total) |
| Raw Lumens | 6,000 lm |
| Tested Lumens | 4,600 lm |
| Beam Type | Flood |
| 1 LUX Distance (Length) | 74m |
| 1 LUX Distance (Width) | 52m |
| Colour Temperature | 5700K |
| Operating Voltage | 12V and 24V |
| Amp Draw | 4.8A @ 13.5V |
| IP Rating | IP68 and IP69K |
| CISPR Rating | CISPR 25 C3 |
| Shock Tested | 30G |
| Vibration Tested | 5G |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Finish | Premium AkzoNobel powder coat, black |
| Hardware | Stainless steel |
| LED Lifespan | 50,000 hours |
| Weight | 1.10 kg |

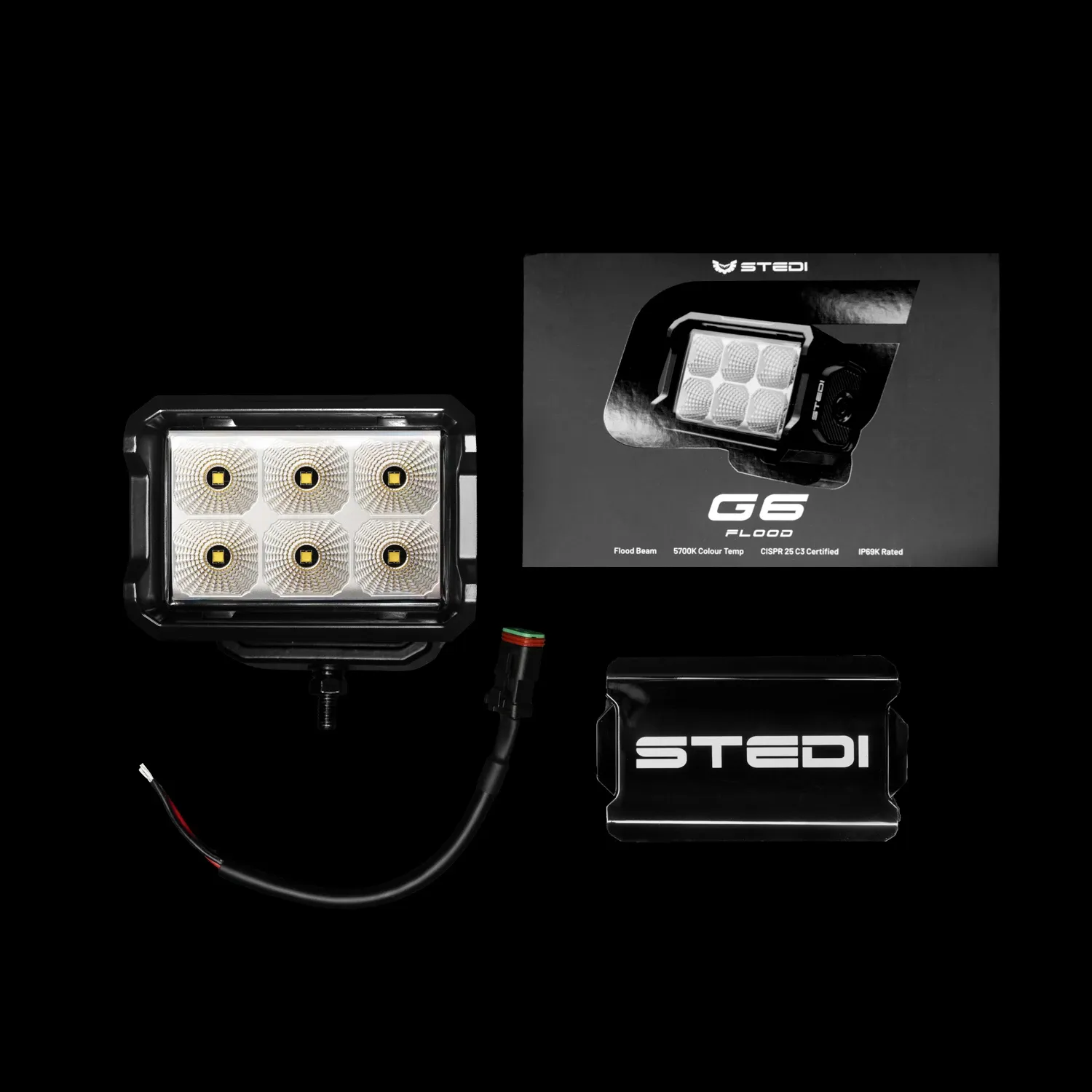

What's in the Box
- 1x STEDI G6 Flood Light
- 1x STEDI Black Cover
- 1x Stainless Steel Hardware
- 1x Stainless Steel Bracket
- 1x 2-Pin Male Connector
Goes Well With
The ST-04-G6-001 is the high-output choice for industrial, agricultural, and heavy worksite lighting where maximum flood coverage from a single light unit is the priority. It pairs naturally with other STEDI G Series lights and light bars for comprehensive multi-zone vehicle and machinery lighting setups. For applications requiring lower output in the same flood pattern, the G4 Flood (ST-04-G4-003) and G4 Ultra Flood (ST-04-G4-004) provide 3000 tested lumens at 40W. A STEDI or compatible wiring harness with switch is recommended, and a relay rated for at least 5A is recommended for the G6's 4.8A draw.
Frequently Asked Questions
How does the G6 Flood compare to the G4 range in output?
The G6 Flood uses six CREE XP-L2 LEDs at 60W total, producing 4600 tested lumens and covering a flood zone of 74m x 52m at 1 LUX, drawing 4.8A at 13.5V and weighing 1.10kg. The G4 range uses four CREE XP-L2 LEDs at 40W total, producing 3000 tested lumens in various beam patterns. The G6 Flood provides approximately 53% more tested output than the G4 variants and covers a substantially larger flood zone, making it the choice for industrial and agricultural environments where maximum near-field output is required. For camping and general 4WD use where the G4's output is sufficient, the lighter and lower-draw G4 range is the practical choice.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down agricultural machinery, industrial equipment, and commercial vehicles. The G6 Flood's dual IP68 and IP69K rating confirms it is protected against both scenarios.
What does CISPR 25 C3 mean for agricultural and industrial machinery?
CISPR 25 is an international standard measuring radio frequency emissions produced by vehicle and machinery components. C3 is the highest performance class within CISPR 25, confirming the G6 Flood produces minimal electromagnetic interference that could affect onboard receivers including GPS guidance systems, UHF radio, AM/FM radio, mobile communication, and Wi-Fi, which are increasingly common on modern agricultural and industrial equipment.
Is the G6 Flood suitable for 24V agricultural and industrial machinery?
Yes. The G6 Flood is compatible with both 12V and 24V electrical systems, making it directly compatible with agricultural tractors, harvesters, semi-trailers, and industrial equipment operating on 24V systems without requiring a voltage converter.
What is the rated lifespan of the CREE XP-L2 LEDs?
The six CREE XP-L2 LEDs in the G6 Flood are rated for 50,000 hours of operating life. At typical work light usage of 8 hours per day in agricultural or industrial use, this equates to over 17 years of service before the LEDs reach their rated end-of-life output level under normal use patterns.
