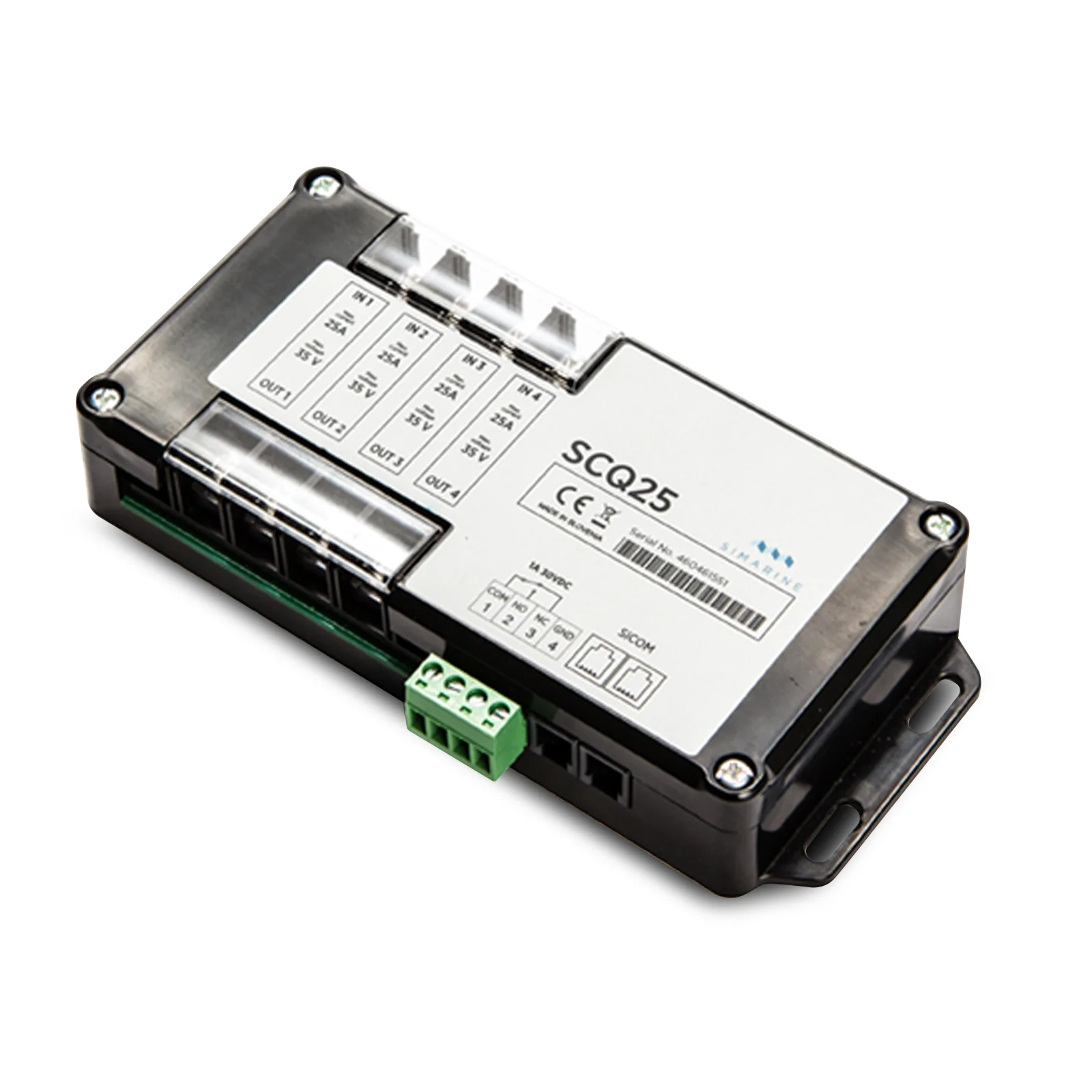

Simarine SI-SCQ25 Active Quad Shunt 4 x 25A Circuits

Designed to Work with Module Monitoring

SCQ25 is an innovative shunt module for monitoring individual consumers and generator with 4x current sensors up to 25A each. For 12V and 24V systems.

Voltage inputs

• Per channel 0,01 – 25 A
• Resolution 0,01 A
• Accuracy ± 0,6 %
• Sampling rate 100 ms

Maximal current

• Continuous 25 A
• Peak current (<1 min) 35 A
• Peak current (<5 sec) 50 A
• Voltage drop at 25 A35 mV
• Maximum voltage on connections 35 V

• Current sensors 4
• Relay Common Input (COM) 1
• Relay Output Normally Open (NO) 1
• Relay Output Normally Closed (NC) 1
• SiCOM RJ 9 Sockets 2

• Dimensions (length x width x depth) 182 x 80 x 32 mm
• Weight 230 g
