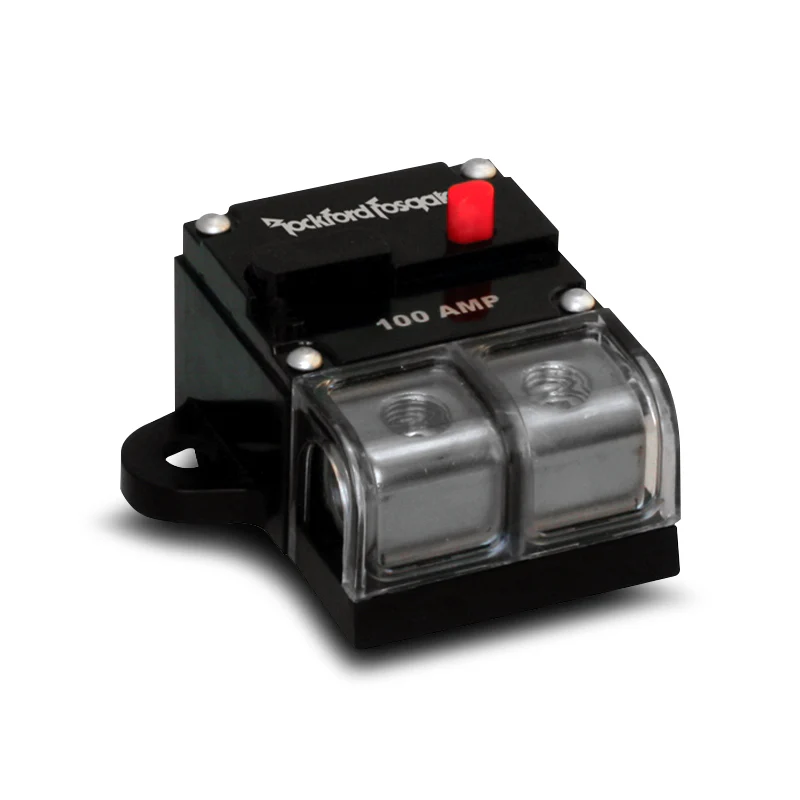

Rockford Fosgate RFCB100 100 Amp Circuit Breaker
Rockford Fosgate RFCB100 100 Amp Circuit Breaker
When a blown fuse at the wrong moment means a full rewire job, the RFCB100 replaces a standard fuse holder with a 100-amp manual-reset circuit breaker that gets your system back online without touching the wiring.
Product Overview
The RFCB100 is Rockford Fosgate's 100 Amp Circuit Breaker, designed to protect mid-power car audio amplifier systems from overcurrent events without the cost and downtime of replacing a blown fuse. Rated at 100 amps, it covers the protection requirements of single and dual-amplifier installations running 1/0 AWG or 4 AWG main power cable. All terminals are platinum plated for superior corrosion resistance and low-resistance electrical contact, and use a set-screw style connection that accepts bare wire directly without requiring ring terminals, simplifying installation and future servicing. When an overcurrent event occurs, the RFCB100 trips rather than blowing, and can be manually reset once the fault has been identified and cleared. The low-resistance, high-current design ensures minimal voltage drop across the breaker during normal operation, preserving maximum available voltage at the amplifiers. 1-year warranty.
Features & Benefits
Manual Reset Circuit Breaker: Unlike a fuse that must be replaced after an overcurrent event, the RFCB100 trips and can be manually reset once the fault condition has been resolved. This eliminates the need to carry spare fuses and allows the system to be restored to operation quickly in the field.
100 Amp Rating: Rated at 100 amps continuous, the RFCB100 provides the overcurrent protection threshold suited to mid-power single and dual-amplifier systems, including builds where combined amplifier fuse requirements fall at or below this rating.
Platinum Plated Terminals: All connection terminals are platinum plated for superior corrosion resistance and low-resistance electrical contact, maintaining a clean, reliable connection over the life of the installation without the oxidation issues common to standard plated terminals.
Set-Screw Style Connection: The set-screw terminal design accepts bare wire directly without requiring ring terminals or crimped lugs, reducing the number of connection points in the power run and simplifying both initial installation and future servicing.
Multiple Wire Gauge Compatibility: Accepts 1/0 AWG and 4 AWG power cable, covering the wiring gauge requirements of mid-power car audio amplifier installations without requiring adaptor fittings.
Low-Resistance, High-Current Design: Internal resistance is minimised to ensure negligible voltage drop across the breaker during normal operation, preserving the full supply voltage available from the battery and alternator for the amplifiers downstream.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | RFCB100 |
| Current Rating | 100A |
| Reset Type | Manual Reset |
| Terminal Plating | Platinum |
| Terminal Type | Set-Screw (no ring terminals required) |
| Wire Gauge Compatibility | 1/0 AWG, 4 AWG |
| Warranty | 1 Year |
Goes Well With
The RFCB100 is a direct replacement for the main power fuse or fuse holder in mid-power car audio installations. It is well matched to systems running a single 4-channel amplifier such as the R2-300X4 (60A) paired with a monoblock such as the R2-200X2 (30A), where the combined fuse requirement reaches 90A, or any single mid-power amplifier build where the specified fuse rating falls comfortably at or below 100A. It sits in the main power cable run between the battery and the amplifier distribution point, installed as close to the battery as possible. For systems requiring 140A or 200A protection, the RFCB140 or RFCB200 are the appropriate step-up options. A 1/0 AWG or 4 AWG amplifier wiring kit is recommended depending on the total system power draw.
Frequently Asked Questions
What is the advantage of a circuit breaker over a standard blade or ANL fuse in a car audio system?
A standard fuse is a one-time protection device that must be physically replaced after an overcurrent event, which can mean carrying spare fuses and a delay in restoring the system if a fault occurs away from home. A manual-reset circuit breaker like the RFCB100 trips when an overcurrent event occurs and can be reset by hand once the fault has been identified and cleared, restoring the system to operation without replacing any components.
Does the RFCB100 require ring terminals for installation?
No. The set-screw terminal design on the RFCB100 accepts bare wire directly, tightened into the terminal with the set screw. This removes the need for ring terminals or crimped lugs at the breaker connection points, reducing the number of potential resistance points in the power run and making installation and future servicing more straightforward.
Where should the RFCB100 be installed in the power cable run?
The RFCB100 should be installed in the positive power cable as close to the battery terminal as possible, within 30-45 cm of the battery in most installations. This placement ensures that the maximum length of power cable between the battery and the amplifiers is protected against overcurrent and short-circuit events. The negative or ground cable does not pass through the circuit breaker.
How do I choose between the RFCB100, RFCB140, and RFCB200?
Select the circuit breaker whose rating meets or modestly exceeds the combined fuse requirements of all amplifiers in the system. Add up the recommended fuse ratings for each amplifier: for example, the R2-300X4 specifies 60A and the R2-200X2 specifies 30A, giving a combined requirement of 90A, making the RFCB100 the correct match. The RFCB140 suits builds where the combined requirement falls between 101A and 140A, and the RFCB200 is matched specifically to the R2-1200X1's 200A fuse requirement or equivalent high-power multi-amplifier builds. Sizing the breaker too low will cause nuisance tripping, while sizing it too high reduces the effectiveness of the overcurrent protection.
Can the RFCB100 be used as a main disconnect switch as well as a circuit breaker?
The RFCB100 is a circuit breaker with manual reset capability, not a purpose-designed disconnect switch. While manually tripping the breaker will interrupt the power supply to the amplifiers, it is not rated or designed as a deliberate on/off switch and repeated manual operation outside of fault conditions may affect the breaker's calibrated trip threshold over time. A dedicated battery disconnect switch is recommended if a regular power isolation point is needed in the installation.
