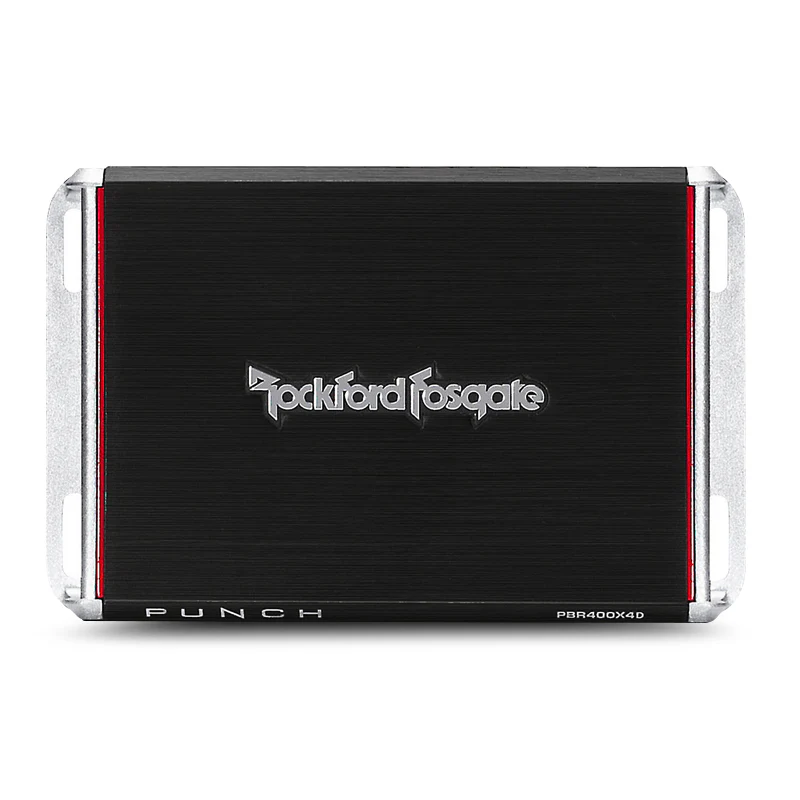

Rockford Fosgate PBR400X4D Punch 400 Watt Full-Range 4-Channel Amplifier

Rockford Fosgate PBR400X4D Punch 400 Watt 4-Channel Class D Amplifier

When space is tight but power cannot be compromised, the PBR400X4D delivers 400 watts of full-range Punch Series performance in one of the most compact 4-channel footprints Rockford Fosgate makes.

Product Overview

The PBR400X4D is a full-range Class D 4-channel amplifier from Rockford Fosgate's Punch Series, engineered specifically for installations where space is at a premium. Powered by Boosted Rail Technology (BRT), an ultra-efficient proprietary power supply design, it generates 400 watts of total RMS output while keeping current draw low enough to suit trucks, sub-compact vehicles, electric vehicles, and hybrids where electrical system demand is a critical consideration. The amplifier operates at 4 ohm or 2 ohm stereo and 4 ohm bridged/mono, with selectable fixed 12 dB/octave Butterworth crossovers covering High-Pass and Low-Pass filter positions. A variable DC offset high-level input circuit with signal-sense turn-on simplifies integration with OEM head units and factory systems. MEHSA3 thermal management handles heat dissipation through an extruded aluminium heatsink, while real-time output and power supply thermal sensing monitors operating conditions continuously. The C.L.E.A.N. clip detection system uses a tri-colour LED indicator that identifies exact THD levels rather than just clipping events, giving a precise read on signal quality. Muted turn-on prevents transient noise through the speakers during power-up. CEA-2006 and CE compliant, with a 1-year warranty, designed and engineered in the USA.

Features & Benefits

Boosted Rail Technology (BRT): Rockford Fosgate's proprietary ultra-efficient power supply design generates 400 watts of output while minimising current consumption from the vehicle's charging system, making the PBR400X4D well suited to electric, hybrid, and sub-compact vehicles where alternator and battery capacity is limited.

C.L.E.A.N. Clip Detection with Tri-Colour LED: The C.L.E.A.N. input and output clip indicator uses a three-colour LED system to provide precise distortion feedback: Blue indicates less than 0.5% THD (clean signal), Violet indicates 1% THD (approaching clip), and Red indicates 10% THD or greater (clipping). This is a more detailed read of signal quality than a standard clip light.

MEHSA3 (Maximum Efficiency Heat Sink Application): Reduces MOSFET operating temperatures, lowers distortion levels, increases overall durability, and extends the lifespan of output devices under sustained use, working in combination with the extruded aluminium heatsink for convection cooling.

Real-Time Thermal Sensing: Continuous monitoring of both the output stage and power supply thermal conditions allows the amplifier to respond to temperature changes proactively, protecting internal components during demanding listening sessions.

DSM Circuit Technology: 1% tight-tolerance surface-mount components improve circuit efficiency, reduce crosstalk between discrete components, and lower operating temperature throughout the signal path.

Variable DC Offset High-Level Turn-On: The hi-level input includes a variable DC offset sensitivity circuit for reliable signal-sense turn-on across a wide range of factory head units and OEM systems, with no remote turn-on wire required when using high-level inputs.

Remote-Out Feature: When using high-level inputs, the PBR400X4D provides a Remote-Out signal that can be used to trigger downstream components, simplifying multi-component installations without a separate remote turn-on distribution.

Selectable Fixed Crossovers: High-Pass crossover is selectable at 60 Hz or 80 Hz at 12 dB/octave Butterworth. Low-Pass crossover is fixed at 80 Hz at 12 dB/octave Butterworth, providing straightforward speaker and subwoofer integration without continuous adjustment.

2/4 Channel Input Switch: A 2-channel to 4-channel input switch allows a single stereo RCA source to feed all four output channels, simplifying installation in vehicles with limited source unit outputs.

Compact Stealth Design: At 1.53" x 4.25" x 6.75", the PBR400X4D is designed for concealed installations in tight spaces, including under seats, behind panels, and in factory amplifier locations.

Muted Turn-On: Output is muted during the power-up sequence to prevent transient noise from passing through the speakers at switch-on.

CEA-2006 and CE Compliant: All power ratings conform to CEA-2006 industry measurement standards at 14.4V with 1% or less THD. No inflated peak figures are used anywhere in the specifications.

Technical Specs

Goes Well With

The PBR400X4D pairs naturally with Rockford Fosgate Punch Series full-range speakers across the front and rear channels, including the P1 and P2 coaxial and component speaker ranges. When bridged to 2-channel operation at 4 ohms, it can also serve as a compact, space-saving subwoofer amplifier in smaller builds. For systems requiring a dedicated subwoofer channel alongside speaker amplification, the onboard 80 Hz Low-Pass crossover option makes it straightforward to cross over rear channels to a subwoofer. Note that this amplifier uses 4-pin harness speaker connectors rather than standard terminal blocks; confirm harness compatibility with the installation vehicle before purchase. An 8-gauge amplifier wiring kit is required for power and ground runs.

Frequently Asked Questions

What does Boosted Rail Technology (BRT) mean, and why does it matter for electric or hybrid vehicles?

Boosted Rail Technology is Rockford Fosgate's proprietary ultra-efficient power supply architecture used in the PBR400X4D. It generates 400 watts of output while keeping current draw significantly lower than a conventional Class AB amplifier of equivalent power. At 13.8V music, average current draw is just 27A, and the suggested alternator rating is 75A. This makes the PBR400X4D well suited to electric vehicles, hybrids, and sub-compact vehicles where the electrical system capacity is more restricted than a conventional petrol-powered vehicle.

Does the PBR400X4D need a remote turn-on wire?

When using high-level speaker inputs, no remote turn-on wire is required. The variable DC offset high-level input circuit detects the incoming speaker signal automatically and powers the amplifier on. When using RCA inputs, a standard remote turn-on wire from the head unit is required. Additionally, the Remote-Out feature provides a trigger output when the amplifier is running from high-level inputs, which can be used to activate downstream components.

What does the tri-colour output clip LED indicate, and how is it different from a standard clip light?

The PBR400X4D's C.L.E.A.N. output clip indicator uses three colour states rather than a simple on/off clip light. Blue indicates the signal is clean at less than 0.5% THD. Violet indicates the signal is approaching the clip threshold at 1% THD. Red indicates the signal is clipping at 10% THD or greater. This tri-colour system allows gain to be set more accurately during installation without an external measurement tool.

Are the crossover points adjustable, or are they fixed?

The crossover points on the PBR400X4D are selectable but fixed, not continuously variable. The High-Pass crossover can be set to either 60 Hz or 80 Hz. The Low-Pass crossover is fixed at 80 Hz. All crossovers operate at 12 dB/octave Butterworth slope. For installations requiring precise variable crossover control, an upstream DSP such as the DSR1 would be needed.

What speaker connector type does the PBR400X4D use, and do I need a special harness?

The PBR400X4D uses 4-pin harness connectors for both front and rear speaker outputs rather than standard screw or compression terminal blocks. This is part of the compact, stealth-install design. Confirm that compatible 4-pin speaker harnesses are available for the installation vehicle or amplifier location before purchase, as standard bare-wire speaker connections are not supported directly on this amplifier.
