Rockford Fosgate P400X4 Punch 400 Watt 4-Channel Amplifier

Rockford Fosgate P400X4 — Four Channels, One Amplifier, Every System Covered

---

Product Overview

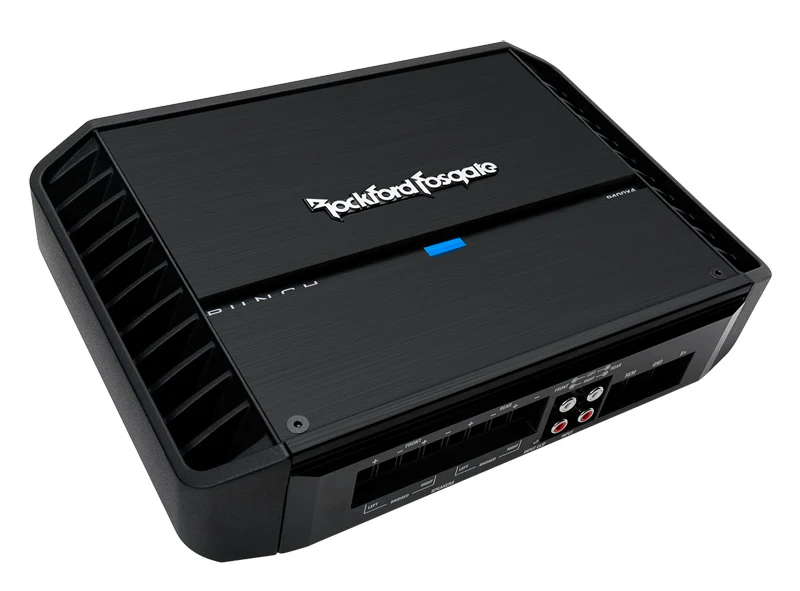

The Rockford Fosgate P400X4 is a Punch Series 4-channel amplifier designed to handle virtually any car audio configuration with a single, compact unit. Rated at 100 watts RMS per channel at 2 ohms 400 watts total it's built for flexibility without compromise. Whether you're running a full 4-way front and rear speaker setup, a 3-way front-stage system, or bridging the rear channels to drive a pair of subwoofers, the P400X4 adapts to your build.

Its real strength lies in versatility. Drop component speakers on the front channels and a pair of subs on the rear bridged and you have a complete front-stage-plus-bass system from a single amp. The onboard Punch EQ with +18dB boost at 45Hz adds low-end weight without a separate processor, while the C.L.E.A.N. gain-setting system makes calibration straightforward regardless of your experience level. For Australian drivers running everything from daily commuters to long-haul tourers, the cast aluminium heatsink keeps the P400X4 stable through the heat.

---

Key Specifications

• Total RMS Output: 400 watts
• Per-Channel Output: 100W x 4 at 2 ohms
• Channels: 4
• Bridgeable: Yes — rear channels bridgeable for subwoofer use
• Crossover: 12dB/octave Butterworth
• Onboard EQ: Punch EQ — +18dB boost at 45Hz
• Inputs: High-level (speaker-level) and RCA
• Auto Turn-On: Yes — via high-level input detection
• Turn-On Behaviour: Muted (no thump on startup)
• Heatsink: Cast aluminium
• Control Panel Position: Stealth top-mounted
• Protection: Short circuit and over-current

---

Features & Benefits

• High-Level Input with Auto Turn-On — Connects directly to factory head unit speaker outputs with no RCA cables required. The Auto Turn-On circuit activates the amp when it detects a signal — no remote turn-on wire needed. Ideal for OEM integration in any vehicle.
• C.L.E.A.N. Setup (Clip Level Elimination Audio Notify) — Rockford Fosgate's built-in gain-calibration system removes the guesswork from setup. Get maximum clean output without distortion — no multimeter or test tones required.
• 12dB/Octave Butterworth Crossover — Smooth, predictable roll-off at the crossover point. Configure each channel pair for high-pass or low-pass duties depending on your system — front speakers on high-pass, rear channels on low-pass for subwoofers.
• Onboard Punch EQ (+18dB @ 45Hz) — Adds physical, felt bass impact directly from the amp. No separate bass processor or equaliser needed for most builds — tune it to taste on the control panel.
• Muted Turn-On — Eliminates startup thump that can stress tweeters and expose a sloppy install. Keeps your system sounding professional from the moment the ignition turns.
• Stealth Top-Mounted Control Panel — All gain, crossover, and EQ controls are on the top face of the amp for easy access during setup, then out of sight once installed.
• Cast Aluminium Heatsink — Efficient thermal dissipation for extended listening sessions. Especially relevant in Australian conditions — summer road trips, hot boot spaces, and long outback runs all test an amp's heat management.
• Short Circuit & Over-Current Protection — Built-in protection circuits safeguard the amplifier and connected speakers against wiring faults and load mismatches.

---

Technical Specs

---

Compatible With / Goes Well With

System Configurations:

• 4-way full-range speaker system (front + rear, 4-channel stereo)
• 3-way front-stage system (component speakers front, bridged rear channels to subwoofers)
• Front-stage only (component speakers, 2 channels active)
• Rear-fill systems paired with a separate subwoofer amplifier

Head Unit Compatibility:

• Factory/OEM head units (via high-level input with Auto Turn-On)
• Aftermarket head units with RCA pre-outs

Accessories:

• Recommended: use manufacturer-specified power and speaker cables to optimise power delivery (cable spec not provided — confirm with supplier)

---

Frequently Asked Questions

Can the P400X4 run both speakers and a subwoofer at the same time?

Yes. Run component or full-range speakers on the front two channels and bridge the rear two channels to drive a subwoofer — giving you a complete front-stage-plus-bass system from one amplifier.

Does the P400X4 work with a factory head unit?

Yes. The high-level input accepts speaker-level signals directly from an OEM head unit, and the Auto Turn-On circuit means no remote turn-on wire is needed.

What is the RMS power output per channel?

The P400X4 produces 100 watts RMS per channel at 2 ohms across all four channels, for a total of 400 watts RMS.

What does C.L.E.A.N. setup mean and do I need extra tools to use it?

C.L.E.A.N. (Clip Level Elimination Audio Notify) is Rockford Fosgate's onboard gain-setting system. No multimeter or test tones are required — it guides you to the correct gain level to maximise output without distortion.

Is the P400X4 suitable for a 4-door vehicle with speakers in every door?

Yes. With four independent channels, the P400X4 is purpose-built for full 4-door speaker setups — front and rear — making it an ideal single-amp solution for sedans, SUVs, utes, and wagons.
