Rockford Fosgate P1V2-4 Punch P1 4" 3-Way Coaxial Speakers
Rockford Fosgate P1V2-4 Punch P1 4" 3-Way Coaxial Speakers
Professional-grade 4 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing 25% increased cone area for maximum output and deeper, more impactful bass in factory speaker locations. The Rockford Fosgate Punch P1V2-4 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and six included OEM twist-lock adaptors ensuring seamless drop-in integration into modern vehicle factory mounting locations without modification. This comprehensive coaxial speaker system combines 4-inch mica-reinforced polypropylene curvilinear cone with 3/4-inch Tetolon inverted dome tweeter featuring Tru-Sight alignment technology and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (75Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene half-roll surround, fatigue-resistant Nomex spider construction, 15% glass-fiber reinforced PA66 composite basket, and high-strength Y35 ferrite motor structure (5mm larger than previous generation) with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete installation kit includes six twist-lock OEM adaptors (4-tab, 3-tab, and 3-tab wide configurations), bass blocker crossovers, mounting hardware, cutout template, and wiring ensuring professional installation results for factory system upgrades requiring enhanced sonic performance without complex modifications.
Product Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1V2-4 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".
Engineered to Fit Philosophy:
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture:
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility:
No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Features & Benefits
Advanced VAST 2.0 Technology for Maximum Output
Powered by advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area compared to previous generation resulting in maximum output and deeper, more impactful bass from compact 4-inch driver diameter. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension (down to 75Hz) ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings.
Precision 3-Way Coaxial Configuration with Tru-Sight Technology
Comprehensive three-way speaker design combines 4-inch mica-reinforced polypropylene curvilinear cone for midrange and bass frequencies, 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment technology ensuring precise high-frequency alignment, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (75Hz-25kHz) with exceptional clarity, detail, and impact ensuring every note comes through with accuracy and relentless output across entire musical spectrum.
Relentless Power Handling and Output
Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining exceptional sensitivity (85dB @ 1W/1M, 88dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while high-strength Y35 ferrite motor structure (5mm larger than previous generation) provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.
Ultra-Durable Construction Built to Last
Every component chosen for strength and built for the long haul. Reinforced 15% glass-fiber PA66 composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene half-roll surround delivers low distortion with unmatched fatigue resistance across temperature extremes, fatigue and tear-resistant linear Nomex spider maintains precise voice coil alignment, ultra-flexible braided tinsel leads securely stitched to spider prevent failure, and co-molded surround/cone body with chemical bonding ensures high durability eliminating separation failures common with adhesive-bonded construction.

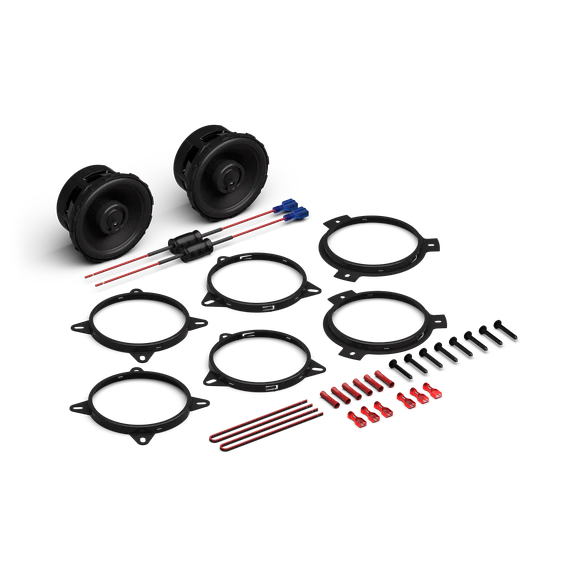

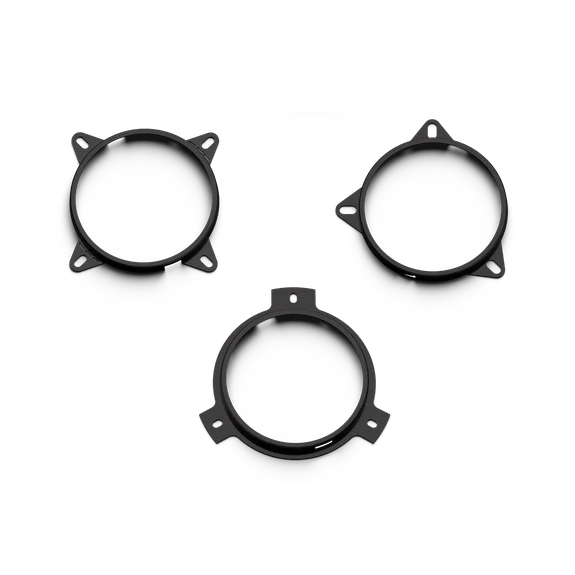

Complete Drop-In Installation System with Six OEM Adaptors
Comprehensive installation kit includes six twist-lock OEM adaptor configurations (4-tab, 3-tab, and 3-tab wide) ensuring secure mounting in diverse factory locations, external bass blocker crossovers (6dB/octave @ 1,200Hz) protecting speakers from damaging low frequencies when used without subwoofer, precision cutout template for custom installations, mounting hardware including eight self-tapping screws, pre-terminated speaker wire with spade connectors, and crimp butt connectors enabling professional installation results across various vehicle applications without requiring specialized tools or fabrication.
Advanced Thermal Management and Protection
Vented Kapton voice coil former provides excellent heat dissipation enabling sustained high-output operation without thermal compression or power handling degradation. Co-molded basket terminals ensure secure connectivity preventing terminal failures while internal concealed ICC+ 6dB/octave crossover network protects tweeter from damaging low frequencies. This comprehensive thermal management and protection system ensures consistent performance during extended listening sessions at high volume levels maintaining sonic quality and reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | P1V2-4 |
| Brand | Rockford Fosgate |
| Series | Punch P1 |
| Speaker Type | 3-Way Coaxial |
| CTA-2031 Compliant | Yes |
| Midrange Size (Nominal Diameter) | 4 inches |
| Tweeter Size | 3/4 inch (19mm) Tetolon inverted dome |
| Piezo Super Tweeter Size | 3/8 inch (9mm) Polypropylene convex |
| Nominal Impedance | 4 ohms |
| Voice Coil Diameter | 1 inch (25.4mm) |
| Frequency Response | 75Hz - 25kHz |
| Fs (Resonant Frequency) | 100 Hz |
| Power Handling (RMS) | 75 Watts RMS |
| Power Handling (Peak) | 150 Watts Peak |
| Sensitivity @ 1W/1M | 85 dB |
| Sensitivity @ 2.83V/1M | 88 dB |
| Cone Material | 20-40% Mica reinforced Polypropylene curvilinear cone |
| Surround Material | Santoprene half-roll surround |
| Spider Material | Nomex linear spider |
| Basket Material | 15% glass-fiber reinforced PA66 composite |
| Voice Coil Former | Vented Kapton |
| Motor Structure | High-strength Y35 ferrite (5mm larger than previous generation) |
| Crossover (Tweeter High-Pass) | 9kHz @ 6dB/octave |
| Crossover (Midrange Bass Blocker) | 1,200Hz @ 6dB/octave (33µF capacitor) |
| Cutout Diameter | 3.41 inches (86.5mm) |
| Rear-Loading Depth (Twist-Lock Adaptor) | 1.72 inches (43.8mm) |
| Front-Loading Depth (Twist-Lock Adaptor) | 1.99 inches (50.5mm) |
| Front Side Clearance | 0.5 inches (12.7mm) |
| Grille/Trim Ring Included | No (sold separately) |
| Removable Motor Cover | No |
| Quantity | Sold in pairs (2 speakers) |
| Warranty | 2-Year Manufacturer Warranty |
| Country of Origin | Designed for Australian market compliance |
Compatible With
Vehicle Applications:
- Factory Speaker Locations Requiring 4" Diameter
- Door Panel Speaker Locations
- Rear Deck Speaker Locations
- Dashboard Speaker Locations
- Kick Panel Speaker Locations
- Factory Systems with Single-Cone Drivers (no tweeters)
- Basic OEM Audio Systems
Ideal Replacement For:
- Factory 4" Full-Range Speakers
- Factory Single-Cone Drivers
- OEM Door Panel Speakers
- Factory Rear Deck Speakers
- Basic OEM Audio Systems
- Single-Speaker Door Locations
- Factory Dashboard Speakers
Head Unit Compatibility:
- Factory Head Units (50W x 4 typical output)
- Aftermarket Head Units (CEA-2006 compliant)
- Amplified Systems (75W RMS maximum per channel)
- OEM Premium Audio Systems
- Any head unit with 4-ohm speaker output capability
System Configurations:
- Front Door Upgrade (with rear speakers and subwoofer)
- Full-Range Replacement (all factory speaker locations)
- Rear Deck Installation (2-speaker or 4-speaker configurations)
- Component System Supplement (fill speakers)
- Basic System Upgrade (significant improvement over factory single-cone)
Frequently Asked Questions
Q: What OEM adaptors are included with the Rockford Fosgate P1V2-4 speakers?
The P1V2-4 package includes six twist-lock OEM adaptors to ensure compatibility with diverse factory mounting locations: (2) 4-tab twist-lock adaptors, (2) 3-tab twist-lock adaptors, and (2) 3-tab wide twist-lock adaptors. This comprehensive adaptor selection accommodates most factory 4-inch speaker mounting configurations across modern vehicles. Additional included components: (2) speakers, (1) cutout template, (2) 33µF bass blocker capacitors, (8) self-tapping mounting screws, (2) pre-terminated speaker wires, spade connectors, and crimp butt connectors. Grilles are sold separately.
Q: Will these speakers fit my factory 4-inch speaker locations without modification?
Yes, the P1V2-4 speakers feature Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and six included twist-lock OEM adaptors ensuring seamless drop-in integration into most factory 4-inch mounting locations. The cutout diameter is 3.41 inches (86.5mm) with rear-loading depth of 1.72 inches and front-loading depth of 1.99 inches. Verify your factory speaker mounting depth before purchase. The multiple adaptor configurations accommodate various factory mounting hole patterns ensuring secure installation without dashboard modifications.
Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?
The P1V2-4 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 85dB @ 1W/1M (88dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The included bass blocker crossovers protect speakers when used without subwoofer, and the 4-ohm impedance ensures compatibility with all factory and aftermarket head units.
Q: What is VAST 2.0 technology and Tru-Sight tweeter alignment?
VAST 2.0 (Vertical Attach Surround Technique) delivers 25% increase in effective cone area compared to traditional speaker designs within the same mounting diameter enabling higher SPL and enhanced bass response down to 75Hz. Tru-Sight tweeter alignment technology ensures precise high-frequency positioning and alignment so every note comes through with clarity and accuracy. Combined with the 3-way coaxial configuration and high-strength Y35 ferrite motor (5mm larger than previous generation), the P1V2-4 delivers dramatic improvements in output, clarity, and bass impact compared to factory single-cone drivers.
Q: Are grilles included and what mounting depth is required for installation?
Grilles are sold separately for the P1V2-4 speakers allowing customization based on installation location and aesthetic preferences. The speakers require 1.72 inches (43.8mm) rear-loading mounting depth when using the included twist-lock adaptors, or 1.99 inches (50.5mm) front-loading depth. Front side clearance requirement is 0.5 inches (12.7mm). The included cutout template ensures accurate mounting hole preparation, and the six twist-lock adaptor configurations simplify installation into diverse factory locations while providing secure speaker retention across various mounting patterns.
