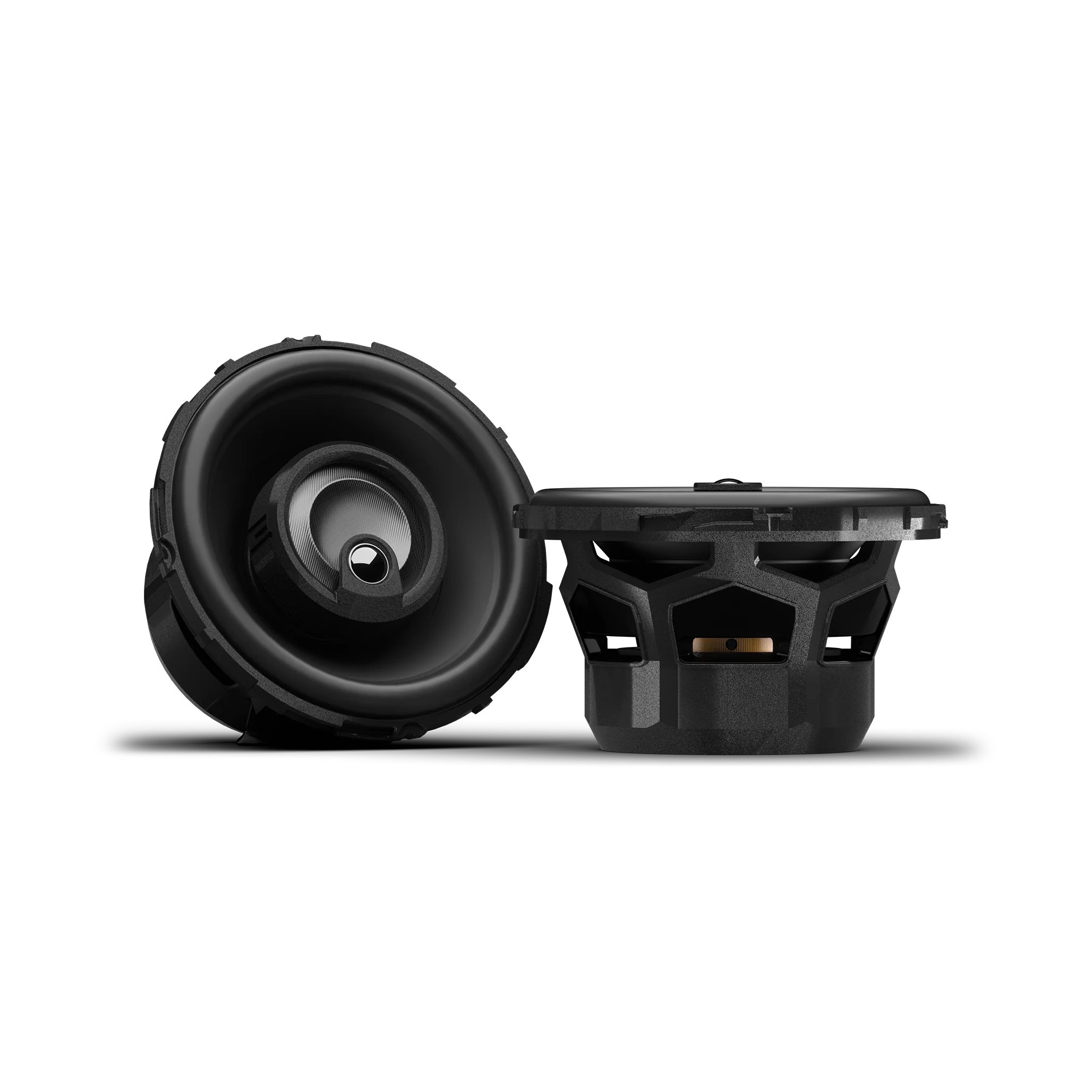

Rockford Fosgate P1V2-25 Punch P1 2.5" 3-Way Coaxial Speakers
Rockford Fosgate P1V2-25 Punch P1 2.5" 3-Way Coaxial Speakers
Professional-grade 2.5 inch 3-way coaxial speaker system delivering 75W RMS power handling with advanced VAST 2.0 technology providing 25% increased cone area for maximum output and enhanced bass response in compact factory speaker locations. The Rockford Fosgate Punch P1V2-25 speakers feature precision-engineered Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology ensuring seamless drop-in integration into modern vehicle factory mounting locations without modification. This comprehensive coaxial speaker system combines 2.5-inch mica-reinforced polypropylene curvilinear cone with 3/4-inch Tetolon inverted dome tweeter and 3/8-inch polypropylene piezo super tweeter delivering full-range frequency response (150Hz-25kHz) with exceptional clarity and impact. Featuring ultra-durable Santoprene half-roll surround, Nomex spider construction, glass-fiber reinforced composite basket, and high-strength Y35 ferrite motor structure with overhung voice coil design, these speakers deliver relentless performance and uncompromising reliability across demanding automotive environments. Complete installation kit includes twist-lock OEM adaptors, bass blocker crossovers, mounting hardware, cutout templates, and wiring ensuring professional installation results for factory system upgrades requiring enhanced sonic performance without complex modifications.
Product Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don't have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and "punch".
Engineered to Fit Philosophy:
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture:
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility:
No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Features & Benefits
Advanced VAST 2.0 Technology for Maximum Output
Powered by advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area compared to previous generation resulting in maximum output and deeper, more impactful bass from compact 2.5-inch driver diameter. This innovative cone geometry maximizes surface area within factory mounting constraints enabling higher SPL output and enhanced low-frequency extension ensuring dramatic performance improvement over factory single-cone drivers without requiring larger mounting openings.
Precision 3-Way Coaxial Configuration
Comprehensive three-way speaker design combines 2.5-inch mica-reinforced polypropylene curvilinear cone for midrange frequencies, 3/4-inch Tetolon inverted dome tweeter with Tru-Sight alignment technology for precise high-frequency reproduction, and 3/8-inch polypropylene piezo super tweeter for enhanced ultra-high frequency response. This tri-axial configuration delivers full-range frequency response (150Hz-25kHz) with exceptional clarity, detail, and impact ensuring factory system replacements achieve dramatic sonic improvements across entire musical spectrum.
Relentless Power Handling and Output
Robust power handling specification of 75W RMS and 150W peak enables high-output performance when paired with aftermarket amplification while maintaining excellent sensitivity (82dB @ 1W/1M, 85dB @ 2.83V/1M) ensuring impressive volume levels even with factory head unit power. The overhung voice coil design ensures consistent magnetic flux across excursion range reducing distortion while high-strength Y35 ferrite motor structure provides reliable magnetic field strength supporting sustained high-output operation without thermal compression.
Ultra-Durable Construction for Long-Term Reliability
Every component chosen for strength and built for the long haul. Reinforced 15% glass-fiber PA66 composite basket provides rigid mounting platform resisting resonance and flexing, Santoprene half-roll surround delivers low distortion with unmatched fatigue resistance across temperature extremes, fatigue and tear-resistant linear Nomex spider maintains precise voice coil alignment, and co-molded surround/cone body with chemical bonding ensures high durability eliminating separation failures common with adhesive-bonded construction.

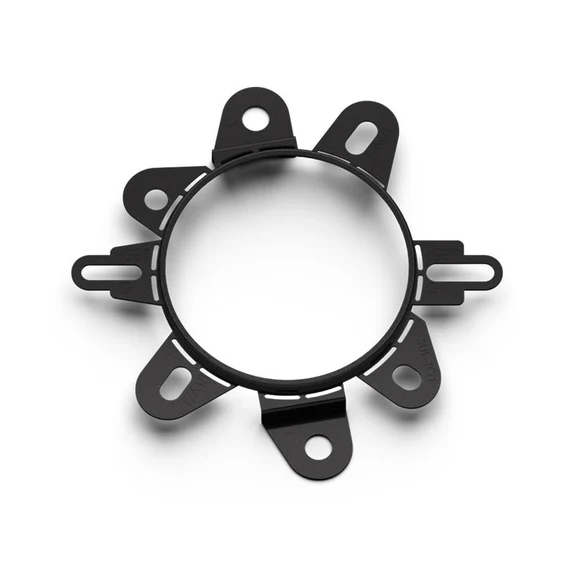

Complete Drop-In Installation System
Comprehensive installation kit includes twist-lock OEM adaptor plates ensuring secure mounting in factory locations, external bass blocker crossovers (6dB/octave @ 1,200Hz) protecting speakers from damaging low frequencies when used without subwoofer, precision cutout templates for custom installations, mounting hardware including self-tapping screws, pre-terminated speaker wire with spade connectors, and crimp butt connectors enabling professional installation results without requiring specialized tools or fabrication.
Factory Location Woofer Ring (F.L.W.R.) Integration
Innovative F.L.W.R. technology with updated mounting flanges provides flexible yet precise alignment for seamless drop-in integration into most factory mounting locations across modern vehicles. The redesigned frame geometry accommodates various factory mounting configurations while maintaining optimal speaker alignment ensuring professional installation appearance and performance without dashboard modifications or custom fabrication requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Model | P1V2-25 |
| Brand | Rockford Fosgate |
| Series | Punch P1 |
| Speaker Type | 3-Way Coaxial |
| CTA-2031 Compliant | Yes |
| Midrange Size (Nominal Diameter) | 2.5 inches |
| Tweeter Size | 3/4 inch (19mm) Tetolon inverted dome |
| Piezo Super Tweeter Size | 3/8 inch (9mm) Polypropylene convex |
| Nominal Impedance | 4 ohms |
| Voice Coil Diameter | 1 inch (25.4mm) |
| Frequency Response | 150Hz - 25kHz |
| Fs (Resonant Frequency) | 200 Hz |
| Power Handling (RMS) | 75 Watts RMS |
| Power Handling (Peak) | 150 Watts Peak |
| Sensitivity @ 1W/1M | 82 dB |
| Sensitivity @ 2.83V/1M | 85 dB |
| Cone Material | 20-40% Mica reinforced Polypropylene curvilinear cone |
| Surround Material | Santoprene half-roll surround |
| Spider Material | Nomex linear spider |
| Basket Material | 15% glass-fiber reinforced PA66 composite |
| Voice Coil Former | Vented Kapton |
| Motor Structure | High-strength Y35 ferrite (5mm larger than previous generation) |
| Crossover (Tweeter High-Pass) | 9kHz @ 6dB/octave |
| Crossover (Midrange Bass Blocker) | 1,200Hz @ 6dB/octave (33µF capacitor) |
| Cutout Diameter | 2.54 inches (64.5mm) |
| Rear-Loading Depth (Twist-Lock Adaptor) | 1.47 inches (37.3mm) |
| Front-Loading Depth (Twist-Lock Adaptor) | 1.6 inches (40.6mm) |
| Front Side Clearance | 0.32 inches (8.2mm) |
| Grille/Trim Ring Included | No (sold separately) |
| Removable Motor Cover | No |
| Quantity | Sold in pairs (2 speakers) |
| Warranty | 2-Year Manufacturer Warranty |
| Country of Origin | Designed for Australian market compliance |
Compatible With
Vehicle Applications:
- Factory Speaker Locations Requiring 2.5" Diameter

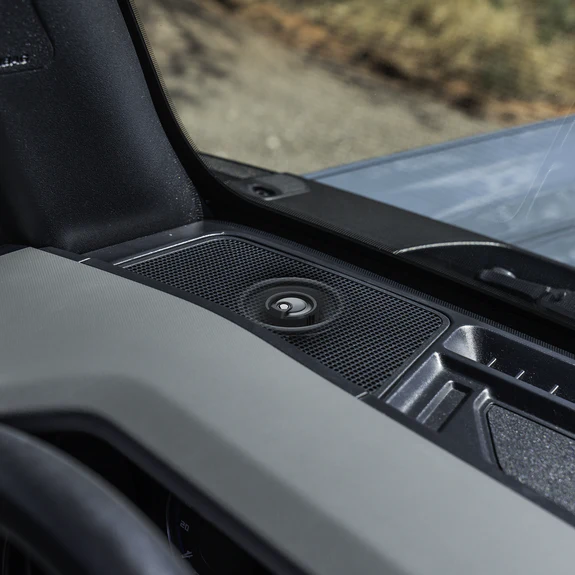

- Dashboard Speaker Locations
- Door Panel Speaker Locations (compact mounting)
- Rear Deck Speaker Locations
- A-Pillar Speaker Locations
- Kick Panel Speaker Locations
- Center Console Speaker Locations
- Factory Systems with Single-Cone Drivers (no tweeters)
Ideal Replacement For:
- Factory 2.5" Full-Range Speakers
- Factory Single-Cone Drivers
- OEM Dashboard Speakers
- Factory Center Channel Speakers
- Basic OEM Audio Systems
- Single-Speaker Door Locations
- Factory Rear Deck Speakers
Head Unit Compatibility:
- Factory Head Units (50W x 4 typical output)
- Aftermarket Head Units (CEA-2006 compliant)
- Amplified Systems (75W RMS maximum per channel)
- OEM Premium Audio Systems
- Any head unit with 4-ohm speaker output capability
System Configurations:
- Front Dashboard Upgrade (with rear speakers and subwoofer)
- Full-Range Replacement (all factory speaker locations)
- Center Channel Application (3-way configuration ideal)
- Component System Supplement (dashboard fill speakers)
- Basic System Upgrade (significant improvement over factory single-cone)
Frequently Asked Questions

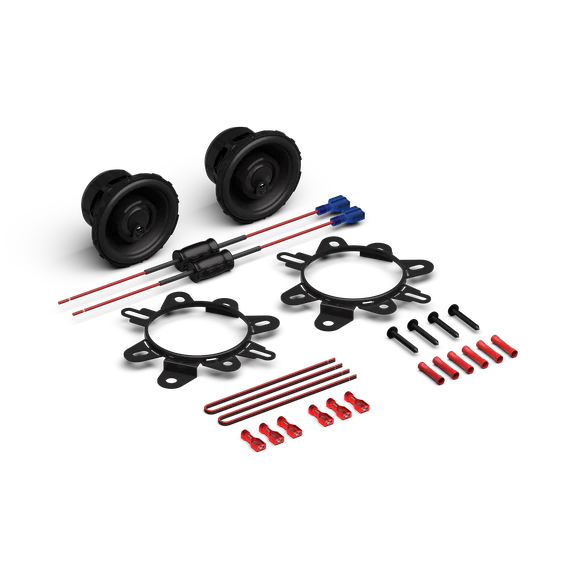

Q: What is included in the Rockford Fosgate P1V2-25 package?
The P1V2-25 package includes (2) 2.5-inch 4-ohm 3-way coaxial speakers, (2) twist-lock OEM speaker adaptors for factory mounting locations, (2) 33µF non-polarized bass blocker capacitors for high-pass filtering, (1) speaker cutout template, (4) self-tapping Phillips mounting screws, (2) 205mm pre-terminated speaker wires with spade connectors, (3) negative female spade connectors, (3) positive female spade connectors, and (4) crimp butt connectors. Grilles are sold separately. This comprehensive kit provides everything needed for professional installation.
Q: Will these speakers fit my factory 2.5-inch speaker locations without modification?
Yes, the P1V2-25 speakers feature Auto Fit Architecture with Factory Location Woofer Ring (F.L.W.R.) technology and included twist-lock OEM adaptors ensuring seamless drop-in integration into most factory 2.5-inch mounting locations. The cutout diameter is 2.54 inches (64.5mm) with rear-loading depth of 1.47 inches and front-loading depth of 1.6 inches. Verify your factory speaker mounting depth before purchase, but the included adaptors accommodate most modern vehicle factory mounting configurations without dashboard modifications.
Q: Do I need an amplifier to power these speakers or will they work with my factory head unit?
The P1V2-25 speakers work excellent with both factory head units and aftermarket amplification. With sensitivity of 82dB @ 1W/1M (85dB @ 2.83V/1M), these speakers deliver impressive volume levels with typical factory head unit power (50W x 4). For maximum performance, pair with aftermarket amplification up to 75W RMS per channel. The included bass blocker crossovers protect speakers when used without subwoofer, and the 4-ohm impedance ensures compatibility with all factory and aftermarket head units.
Q: What is VAST 2.0 technology and how does it improve performance over factory speakers?
VAST 2.0 (Variable Area Speaker Technology) delivers 25% increase in effective cone area compared to traditional speaker designs within the same mounting diameter. This increased surface area enables higher sound pressure levels (SPL) and enhanced bass response from compact 2.5-inch driver diameter. Combined with the 3-way coaxial configuration featuring dedicated tweeter and super tweeter, the P1V2-25 delivers dramatic improvements in clarity, detail, impact, and frequency response compared to factory single-cone drivers that lack dedicated high-frequency reproduction.
Q: Are grilles included with these speakers and what mounting depth is required?
Grilles are sold separately for the P1V2-25 speakers allowing customization based on installation location and aesthetic preferences. The speakers require 1.47 inches (37.3mm) rear-loading mounting depth when using the included twist-lock adaptor, or 1.6 inches (40.6mm) front-loading depth. Front side clearance requirement is 0.32 inches (8.2mm). The included cutout template ensures accurate mounting hole preparation, and the twist-lock adaptors simplify installation into factory locations while providing secure speaker retention.
