Rockford Fosgate M2-TS M2 1" Marine Add-On Tweeter Kit
Rockford Fosgate M2-TS M2 Series 1 Inch Marine Add-On Tweeter Kit for M2 Color Optix Speakers - Pair
A pair of 1 inch marine grade add-on tweeters designed to upgrade existing M2 Color Optix full-range marine speaker systems. 200W RMS, 97dB sensitivity, aluminium diaphragm with neodymium motor, and an external 18dB/octave audiophile grade high-pass crossover using metallised polyester film capacitors. IPX6 rated front and grille with IPX5 frame. Includes both flush mount and horn mount white bezel options. Does not incorporate built-in LEDs. ASTM B117 and G154 tested. Sold as a pair. Backed by a 2 year warranty.
Product Overview

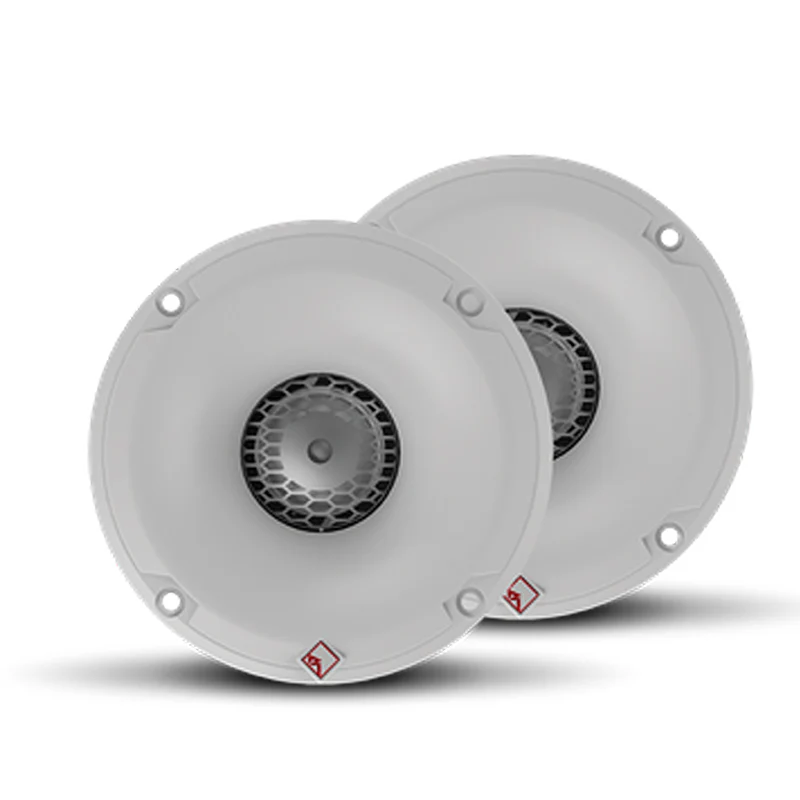

The Rockford Fosgate M2-TS is a pair of 1 inch (25.4mm) marine grade add-on tweeters purpose-built to extend the high-frequency performance of existing M2 series Color Optix full-range marine speaker installations. The M2-TS is designed as a system upgrade for M2 speakers already installed, allowing a component tweeter to be added to any new or existing M2 marine audio system without replacing the full-range drivers.
The tweeter features an aluminium diaphragm with a marine grade PEI rubber surround, neodymium motor structure, and high-temperature Kapton voice coil former, delivering a frequency response from 1,425Hz to 25kHz with 97dB sensitivity at 1W/1m. The external high-pass crossover is an 18dB/octave audiophile grade passive network using metallised polyester film capacitors selected for their dependability, long service life, and preferred electrical characteristics - a steeper and more precisely executed crossover than the 6dB/octave ICC networks used in the M1 series speakers.
The front face and stainless steel mesh grille carry an IPX6 water intrusion rating, while the frame is IPX5 rated. The UV stable ASA plastic frame and grille resist discolouration in marine environments, and the gold-plated marine grade brass connection terminals provide a corrosion-resistant, maintenance-free connection. The kit includes both a back-mount flush kit and a white horn-loaded mount bezel for installation flexibility, plus a dual clamp tweeter mounting system and all required mounting hardware. Tested to ASTM B117 (500-hour salt/fog), ASTM G154 (500-hour accelerated UV), and ISO60068-2-64 vibration standards.
Important: The M2-TS tweeters do not incorporate built-in Color Optix LED lighting. They are designed to complement M2 Color Optix full-range speakers that do include LED illumination.
Features & Benefits
18dB/Octave Audiophile Grade External Crossover: The external passive crossover uses metallised polyester film capacitors at an 18dB/octave slope - significantly steeper than the 6dB/octave ICC crossovers in M1 series speakers - delivering cleaner signal separation and protecting the tweeter diaphragm from low-frequency excursion damage.
Aluminium Diaphragm with Neodymium Motor: The aluminium diaphragm provides a stiff, low-mass radiating surface for precise high-frequency reproduction, and the neodymium motor structure delivers high magnetic flux density in a compact footprint, contributing to the 97dB sensitivity rating.
Dual Mounting Options - Flush or Horn Mount: The kit includes both a back-mount flush kit for panel or grille mounting and a white horn-loaded mount bezel for surface mounting with directional high-frequency projection. Both options use a dual clamp tweeter mounting system for secure installation.
IPX6 Rated Front and Grille with IPX5 Frame: The front face and stainless steel mesh grille are IPX6 rated, confirming protection against powerful water jets from any direction. The frame carries an IPX5 rating for protection against water jets. Gold-plated marine grade brass connection terminals provide a corrosion-resistant, maintenance-free connection throughout the service life of the tweeters.
97dB Sensitivity - High Efficiency High-Frequency Output: At 97dB sensitivity (1W/1m), the M2-TS is among the most sensitive tweeters in the Rockford Fosgate marine range, delivering strong high-frequency output with minimal amplifier power and integrating cleanly with M2 series full-range speakers.
ASTM and ISO Tested for Marine Environments: Tested to ASTM B117 (500-hour salt/fog), ASTM G154 (500-hour accelerated UV), and ISO60068-2-64 vibration standards, confirming long-term durability in both freshwater and saltwater marine and motorsport environments.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | M2-TS |
| Speaker Type | Tweeter Add-On Kit |
| Tweeter Size | 1 inch (25.4mm) |
| Nominal Impedance | 4 Ohm |
| Power Handling | 200W RMS / 800W Peak |
| Sensitivity | 97 dB (1W/1m) / 100 dB (2.83V/1m) |
| Frequency Response | 1,425 Hz - 25 kHz |
| Crossover | External 18dB/Octave Audiophile Grade High-Pass (Passive) |
| Crossover Capacitors | Metallised Polyester Film |
| Diaphragm | Aluminium |
| Surround | Marine Grade PEI Rubber |
| Voice Coil Former | High Temperature Kapton |
| Motor | Neodymium |
| Frame / Grille | 100% UV Stable ASA Plastic + Stainless Steel Mesh Grille |
| Terminals | Gold-Plated Marine Grade Brass |
| Mounting Options | Flush Mount (back-mount kit included) / Horn Mount (white bezel included) |
| Mounting System | Dual Clamp |
| Tweeter Mounting Depth | 1.44 inch (36.7mm) |
| Water Intrusion Rating | IPX6 (front and grille) / IPX5 (frame) |
| Salt/Fog Testing | ASTM B117 (500 hours) |
| UV Testing | ASTM G154 (500 hours) |
| Vibration Testing | ISO60068-2-64 |
| Built-In LED Lighting | None |
| Mounting Hardware | Included |
| Grille / Trim Ring | Included |
| Sold As | Pair (2 each) |
| Certifications | Klippel Verified |
| Shipping Weight | 0.05kg (pair) |
| Warranty | 2 Years |
Compatible With / Goes Well With
The M2-TS is designed specifically to complement M2 series Color Optix full-range marine speakers. It is a system upgrade accessory, not a standalone speaker, and requires an existing M2 speaker installation to function as intended. It is suited to both marine watercraft and motorsport applications.
Compatible M2 Series Full-Range Speakers:
- M2-8H / M2-8HB - M2 series 8 inch horn loaded Color Optix marine speakers
- M2WL-8 / M2WL-8B - M2 series 8 inch wake tower speakers (standard)
- M2WL-8H / M2WL-8HB - M2 series 8 inch horn loaded wake tower speakers
Goes Well With:
- PMX-RGB - Rockford Fosgate Color Optix RGB controller for the M2 full-range speakers that the M2-TS complements
- M5-800X4 - M5 series 800W 4-channel marine amplifier to power the M2-TS alongside the full M2 speaker system
- M2D4-12I / M2D2-10SB - M2 series Color Optix marine subwoofers for completing the M2 ecosystem build
Frequently Asked Questions
Do the M2-TS tweeters include Color Optix LED lighting?
No. The M2-TS tweeters do not incorporate built-in LED lighting. They are designed to complement M2 Color Optix full-range speakers that do include LED illumination, extending the high-frequency performance of those speakers without adding additional lighting to the tweeter itself.
What mounting options does the M2-TS kit include?
The kit includes two mounting options: a back-mount flush kit for panel or grille-flush installation, and a white horn-loaded mount bezel for surface mounting with directional high-frequency projection. Both use the dual clamp tweeter mounting system included in the kit. Choose the flush mount for a clean, low-profile appearance, or the horn mount for improved high-frequency directionality and projection.
Why does the M2-TS use an 18dB/octave crossover instead of 6dB/octave?
The external 18dB/octave audiophile grade passive crossover provides a much steeper high-pass roll-off than the 6dB/octave ICC crossovers used in M1 and M0 series full-range speakers. The steeper slope keeps low-frequency content away from the tweeter diaphragm more effectively, protecting the aluminium diaphragm from excursion damage at high output levels and delivering cleaner, more precise separation between the tweeter and the full-range woofer below it.
Is the M2-TS waterproof enough for saltwater environments?
Yes. The front face and stainless steel mesh grille carry an IPX6 rating for protection against powerful water jets from any direction. The frame carries an IPX5 rating for protection against directed water jets. Combined with ASTM B117 500-hour salt/fog testing and ASTM G154 500-hour UV testing, the M2-TS is purpose-built to withstand both freshwater and saltwater marine environments.
Can the M2-TS be used with M1 or M0 series speakers?
The M2-TS is designed and marketed as a complement to M2 series Color Optix full-range speakers. While the tweeter itself could theoretically be wired to any speaker system using its external crossover, its design intent and system matching are optimised for M2 series installations. Contact us for advice if you are considering pairing it with a different speaker series.
