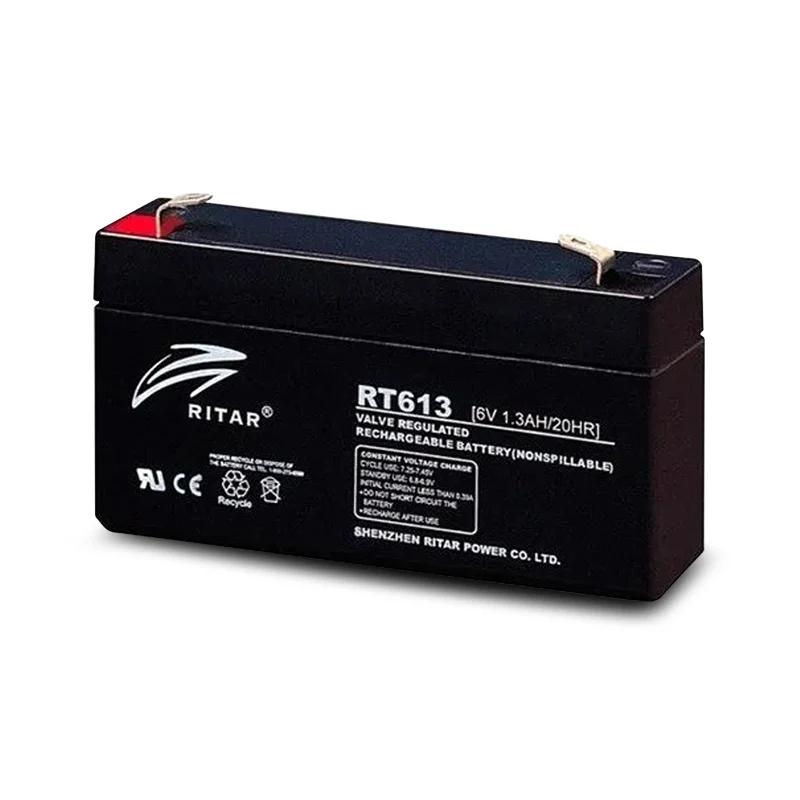

Ritar RT613 6V 1.3Ah RT Series Battery

Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.

6V 1.3Ah RT Series Battery

RT series is a general purpose battery with 6~8 years design life in float service. It meets with IEC, JIS, BS ,GB/T and YD/T standards. With advanced AGM valve regulated technology and high purity raw material, the RT series battery maintains high consistency for better performance and reliable standby service life. It is suitable for UPS/EPS, medical equipment, emergency light and security system applications.

Specifications:

• Cells Per Unit: 3
• Voltage Per Unit: 6
• Nominal Capacity: 1.3Ah@20hour-rate to 1.75V per cell @25℃
• Weight: Approx.0.30 Kg (Tolerance±5.0%)
• Internal Resistance: Approx. 60 mΩ
• Terminal: F1
• Max. Discharge Current: 13A (5 sec)
• Short Circuit Current: 68A
• Design Life: 6~8 years (Float charging)
• Max. Charging Current: 0.39 A
• Reference Capacity:
• C3 1.01AH
• C5 1.14AH
• C10 1.22AH
• C20 1.30AH
• Standby Use Voltage:
• 6.85 V~6.94 V @ 25℃
• Temperature Compensation: -3mV/℃/Cell
• Equalization Voltage:
• 7.30 V~7.40 V @ 25℃
• Temperature Compensation: -4mV/℃/Cell
• Operating Temperature Range:
• Discharge: -20℃~60℃
• Charge: 0℃~50℃
• Storage: -20℃~60℃
• Normal Operating Temperature Range: 25℃±5℃
• Self Discharge: RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charge batteries before using.
• Container Material A.B.S. UL94-HB, UL94-V0 Optional

Dimensions:

Constant Current Discharge Characteristics : A (25℃)

Constant Power Discharge Characteristics : WPC (25℃)
