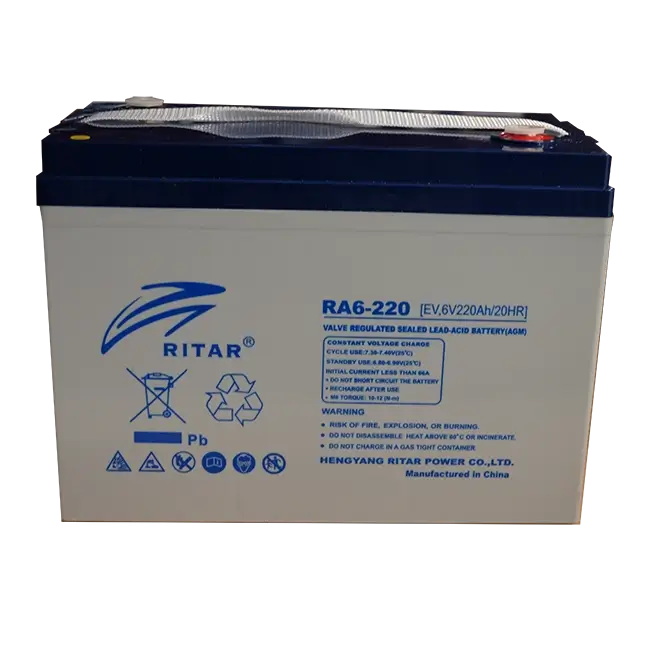

Ritar EV6-220 6V 220Ah AGM Deep Cycle Electric Vehicle Battery
Ritar EV6-220 6V 220Ah AGM Deep Cycle Electric Vehicle Battery
Valve-regulated lead acid (VRLA) AGM deep cycle battery engineered for frequent, high-load discharge applications including electric vehicles, golf carts, forklifts, marine, and mobility equipment, delivering reliable cycle performance with a 220Ah C10 capacity and 2200A maximum discharge current.
Disclaimer: The colour of the battery may vary from the actual product, but with the same specifications.
Product Overview
The Ritar EV6-220 is a 6V AGM deep cycle VRLA battery from Ritar's EV series, purpose-built for the demanding discharge requirements of electric vehicles, golf carts, floor machines, forklifts, aerial lifts, robotics, marine craft, RVs, mobility equipment, and medical equipment applications.
Ritar's EV series is constructed with specially designed active material, strong grids, and thick plate construction to deliver reliable performance under high load conditions and competitive cycle performance over the battery's service life. The sealed VRLA design eliminates maintenance requirements, while the AGM construction prevents acid spillage and allows flexible installation orientation.
With a 220Ah C10 capacity, 234Ah at C20, a 2200A maximum discharge current over 5 seconds, and 1000A cold cranking amperage, the EV6-220 is built for applications that demand sustained power output. Self-discharge is rated at less than 3% per month at 25°C, with a storage life of up to 6 months at 25°C before recharging is required. The battery carries ISO 9001, ISO 14001, and OHSAS 18001 certifications and is UL and CE marked.
Features & Benefits
Deep Cycle AGM VRLA Construction Thick plate design and specially formulated active material deliver reliable capacity and cycle life under the frequent deep discharge conditions typical of electric vehicle and high-load applications.
High Discharge Capability Maximum discharge current of 2200A over 5 seconds and 1000A CCA rating provide strong power output for high-demand start and drive cycles across a broad range of EV and industrial applications.
Sealed Maintenance-Free Design VRLA sealed construction eliminates the need for water top-up, acid management, or venting maintenance, reducing ongoing maintenance requirements and allowing installation in enclosed or tilted positions.
Low Self-Discharge Self-discharge of less than 3% per month at 25°C enables storage of up to 6 months without recharging, reducing capacity loss during periods of inactivity.
Broad Application Suitability Designed for use in electric vehicles, golf carts, floor machines, forklifts, aerial lifts, robotics, marine, RV, mobility, and medical equipment — suitable across a wide range of commercial and recreational applications.
ISO and UL Certified Certified to ISO 9001, ISO 14001, and OHSAS 18001, and carries UL and CE marks for quality, environmental, and safety assurance.
Technical Specs
| Specification | Details |
|---|---|
| Brand | Ritar |
| Part Number | EV6-220 |
| Battery Type | AGM VRLA Deep Cycle |
| Voltage | 6V |
| Cells Per Unit | 3 |
| Capacity (C10) | 220Ah @ 1.80V per cell @ 25°C |
| Capacity (C20) | 234Ah |
| Capacity (C5) | 192Ah |
| Capacity (C3) | 170.4Ah |
| Weight | Approx. 32.0kg (Tolerance ±3.0%) |
| Internal Resistance | Approx. 1.5mΩ |
| Terminal | F12 (M8) |
| Max. Discharge Current | 2200A (5 sec) |
| Cold Cranking Ampere (CCA) | 1000A |
| Max. Charging Current | 66.0A |
| Float Charging Voltage | 6.8V-6.9V @ 25°C (Temp Compensation -3mV/°C/Cell) |
| Cycle Use Voltage | 7.3V-7.4V @ 25°C (Temp Compensation -4mV/°C/Cell) |
| Operating Temp (Discharge) | -20°C to 60°C |
| Operating Temp (Charge) | 0°C to 50°C |
| Operating Temp (Storage) | -20°C to 60°C |
| Normal Operating Temp | 25°C ± 5°C |
| Self Discharge | Less than 3% per month @ 25°C |
| Storage Life | Up to 6 months @ 25°C before recharging |
| Container Material | A.B.S. UL94-HB (UL94-V0 Optional) |
| Length | 306 ± 2mm (12.0 inches) |
| Width | 168 ± 2mm (6.61 inches) |
| Height | 220 ± 2mm (8.66 inches) |
| Total Height | 227 ± 2mm (8.94 inches) |
| Terminal Torque M5 | 6-7 N*m |
| Terminal Torque M6 | 8-10 N*m |
| Terminal Torque M8 | 10-12 N*m |
| Certifications | ISO 9001, ISO 14001, OHSAS 18001, UL, CE |
Compatible With / Goes Well With
The Ritar EV6-220 is a deep cycle AGM battery suitable for 6V applications requiring high-capacity and frequent discharge cycling, including:
- Electric vehicles and golf carts
- Floor machines and forklifts
- Aerial lifts and robotics
- Marine and RV applications
- Mobility and medical equipment
Goes Well With:
- Compatible 6V deep cycle AGM battery charger
- Battery cables and terminals
- Battery boxes and trays
- Battery monitor or shunt
Frequently Asked Questions
What applications is the Ritar EV6-220 designed for?
The EV6-220 is designed for frequent deep discharge applications including electric vehicles, golf carts, floor machines, forklifts, aerial lifts, robotics, marine craft, RVs, mobility scooters, and medical equipment. Its thick plate AGM construction is optimised for the high-load, repetitive discharge cycles typical of these applications.
What is the rated capacity of the EV6-220?
The EV6-220 is rated at 220Ah at the C10 rate (220Ah over 10 hours to 1.80V per cell at 25°C) and 234Ah at the C20 rate. Capacity reduces to 192Ah at C5 and 170.4Ah at C3, reflecting the higher current draw over shorter discharge periods.
Does the EV6-220 require any maintenance?
No. The EV6-220 is a sealed VRLA AGM battery. The sealed construction eliminates the need for water top-up, acid level checks, or venting maintenance. Always charge using a charger compatible with AGM VRLA batteries and do not exceed the maximum charging current of 66.0A.
How long can the EV6-220 be stored without recharging?
The EV6-220 has a self-discharge rate of less than 3% per month at 25°C. It can be stored for up to 6 months at 25°C before recharging is required. Ensure the battery is fully charged before placing it into storage.
What are the correct charging voltages for the EV6-220?
For float charging, the correct voltage is 6.8V-6.9V at 25°C with a temperature compensation of -3mV per degree Celsius per cell. For cycle use charging, the correct voltage is 7.3V-7.4V at 25°C with a temperature compensation of -4mV per degree Celsius per cell. Always use a charger rated and configured for AGM VRLA deep cycle batteries.
