Pioneer 6650-RANGER15 Ford Ranger 9" Wireless AV Receiver
Pioneer 6650-RANGER15 Ford Ranger 9" Wireless AV Receiver
The complete plug-and-play upgrade your Ford Ranger deserves — the Pioneer 6650-RANGER15 delivers the stunning DMH-AP6650BT 9" wireless CarPlay and Android Auto receiver in a perfect-fit kit with everything needed for a clean, professional installation in your 2015-2019 Ford Ranger.
Product Overview
The Pioneer 6650-RANGER15 is a vehicle-specific multimedia receiver kit engineered exclusively for the Ford Ranger (2015-2019 with 4.3" screen and CD mech). Combining the Pioneer DMH-AP6650BT floating screen receiver with a factory-matched dash fascia, vehicle-specific wiring harness, antenna adaptor, and USB adaptor, this limited distribution kit provides the complete solution for a seamless OEM-quality headunit upgrade without cutting, modifying, or guessing at compatibility.

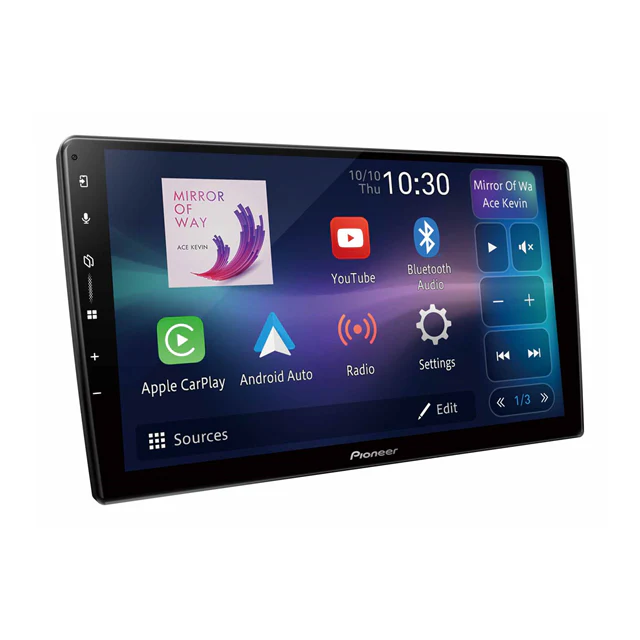

At the heart of the kit is the DMH-AP6650BT's stunning 9" WSVGA (1,024 x 600 pixel) capacitive touchscreen with a sleek flat design and capacitive touch buttons. Wireless Apple CarPlay and Android Auto connectivity means no cables required for smartphone integration, and the dedicated Direct Launch Key provides instant one-touch access to CarPlay or Android Auto from the home screen.
Pioneer's 64-bit AK7604 Digital Sound Processor from Asahi Kasei Microdevices (AKM) ensures premium audio quality beyond the screen experience, while the Light and Dark GUI options and high-proximity panel construction deliver wide viewing angles and exceptional picture clarity in any lighting condition.
The included vehicle-specific wiring harness retains steering wheel control functionality, and WebLink Cast support extends smartphone mirroring to both iOS and Android devices beyond the CarPlay and Android Auto ecosystem.
Note: This is a limited distribution product. Compatibility is specifically for Ford Ranger 2015-2019 models fitted with the 4.3" screen and CD mechanism. Verify your vehicle's trim level and existing screen configuration before purchase.
Features & Benefits

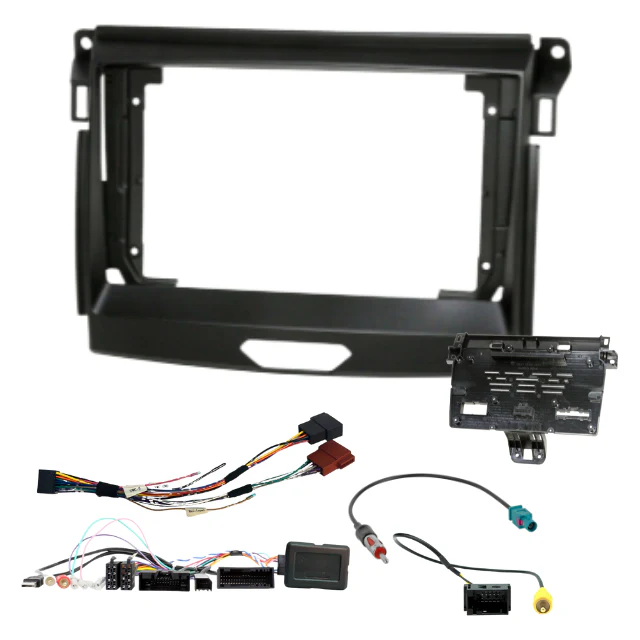

- Complete vehicle-specific kit including DMH-AP6650BT receiver, dash fascia, antenna adaptor, USB adaptor, and vehicle-specific wiring harness — everything needed for a clean installation
- 9" WSVGA capacitive touchscreen (1,024 x 600 pixel) with sleek flat design and capacitive touch buttons for a premium, responsive interface

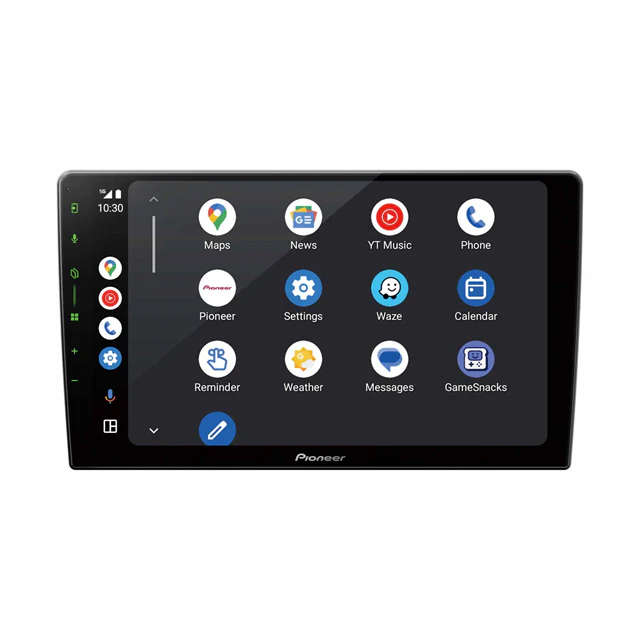

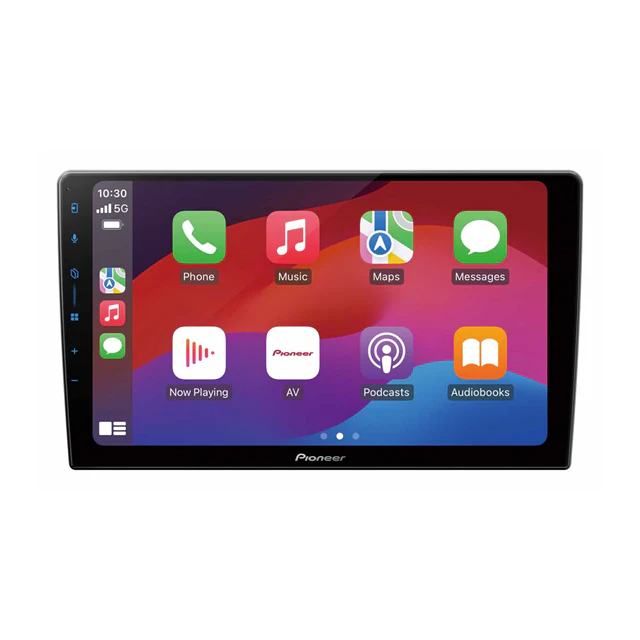

- Wireless Apple CarPlay and Android Auto with wired connection also supported for maximum smartphone compatibility
- Direct Launch Key for instant one-touch access to Apple CarPlay or Android Auto GUI from the home screen
- Steering wheel control retention via the included vehicle-specific wiring harness, maintaining factory SWC functionality after installation
- Bluetooth dual phone connectivity allowing two phones to be connected simultaneously for calls and audio streaming
- WebLink Cast supporting smartphone screen mirroring for both iOS and Android devices
- 64-bit AK7604 DSP from AKM delivering professional-grade digital sound processing for premium audio quality
- Light and Dark GUI options with high-proximity panel construction for wide viewing angles and excellent picture clarity
- AM/FM tuner, Spotify support, and Full HD USB video playback rounding out a comprehensive entertainment feature set
- Ford Ranger specific fascia and harness ensuring OEM-quality fit and finish with no modifications required
Technical Specs
| Specification | Details |
|---|---|
| Part Number | 6650-RANGER15 |
| Brand | Pioneer |
| Receiver Model | DMH-AP6650BT |
| Screen Size | 9 Inch |
| Screen Resolution | 1,024 x 600 (WSVGA) |
| Touchscreen Type | Capacitive |
| Apple CarPlay | Yes (Wireless and Wired) |
| Android Auto | Yes (Wireless and Wired) |
| Direct Launch Key | Yes (CarPlay and Android Auto) |
| Bluetooth | Yes (Dual Phone) |
| WebLink Cast | Yes (iOS and Android) |
| DSP | 64-bit AK7604 (AKM) |
| AM/FM Tuner | Yes |
| Spotify Support | Yes |
| USB Video Playback | Full HD |
| Vehicle Compatibility | Ford Ranger 2015-2019 (4.3" Screen and CD Mech) |
| Kit Includes | Receiver, Dash Fascia, Antenna Adaptor, USB Adaptor, Vehicle-Specific Wiring Harness |
| Steering Wheel Control | Retained via Included Harness |
| Distribution | Limited Distribution |
Compatible With / Goes Well With
The Pioneer 6650-RANGER15 is specifically designed for:
- Ford Ranger 2015-2019 fitted with the factory 4.3" screen and CD mechanism
Important: This kit is not compatible with Ford Ranger models outside the 2015-2019 range, or with Ranger variants fitted with a different factory screen size or without the CD mechanism. Confirm your vehicle's exact build specification before ordering.
Goes well with:
- Pioneer RCAMAVIC Compact Reverse Camera
Frequently Asked Questions
Q: What vehicles is the Pioneer 6650-RANGER15 compatible with?
A: The 6650-RANGER15 is specifically compatible with the Ford Ranger 2015-2019 fitted with the factory 4.3" screen and CD mechanism. It is not suited for Ranger models outside this year range or variants with a different factory display configuration. If you are unsure of your vehicle's exact specification, contact F.A.E. before purchasing.
Q: Does wireless CarPlay and Android Auto require any additional hardware or setup?
A: No additional hardware is required. The DMH-AP6650BT supports wireless CarPlay and Android Auto natively. Simply pair your compatible iPhone or Android device to the receiver via Bluetooth and Wi-Fi on first use, and it will connect automatically on subsequent starts.
Q: Will my Ford Ranger's steering wheel controls still work after installing the 6650-RANGER15?
A: Yes. The included vehicle-specific wiring harness features a steering wheel control retention interface, allowing the factory steering wheel controls to operate the Pioneer receiver after installation without any additional adaptors or programming modules.
Q: Is this kit suitable for a DIY installation or does it require a professional installer?
A: The vehicle-specific fascia, harness, and adaptors are designed to simplify installation and make it more accessible than a universal headunit fitment. However, due to the complexity of modern vehicle electrical systems and steering wheel control integration, professional installation by a qualified auto electrician or car audio installer is recommended for the best result and to avoid warranty issues.
Q: What is included in the 6650-RANGER15 kit?
A: The kit includes the Pioneer DMH-AP6650BT 9" AV receiver, a vehicle-specific dash fascia for Ford Ranger 2015-2019, an antenna adaptor, a USB adaptor, and a vehicle-specific wiring harness with steering wheel control retention interface. No additional fascia kits or harness adaptors are required for a standard installation on the compatible vehicle.
