PAC RP5GM52HAR RadioPRO Harness For 2016 GM Trucks With 7" Radio Display

Quick Connect Harness For Select GM Trucks With 7" Radio Display.

RadioPRO Harness For 2016+ GM

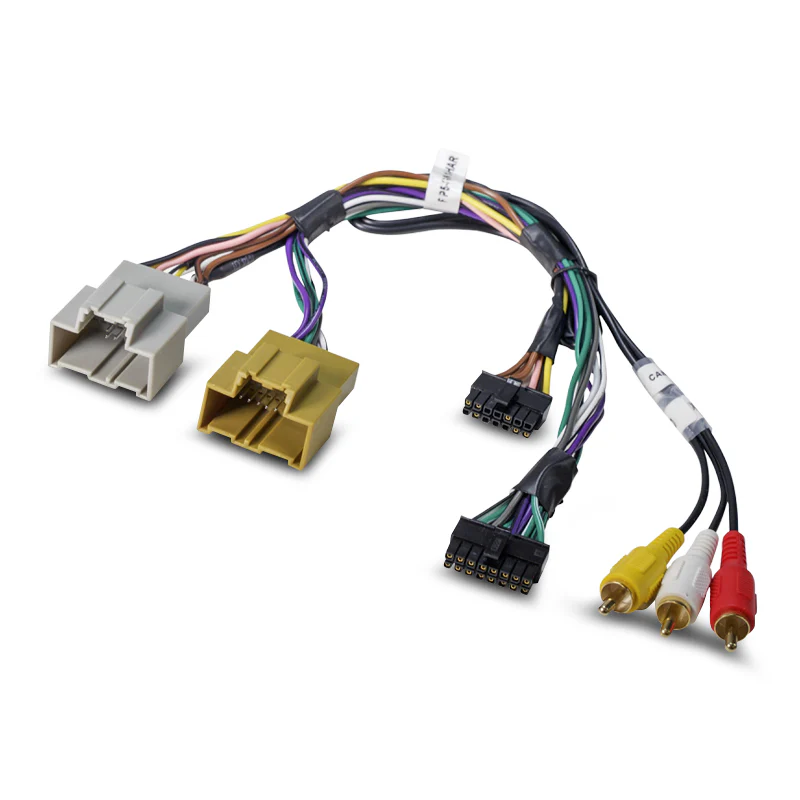

The PAC RP5-GM52-HAR is a special harness meant for use with the RP5-GM51 (sold separately), and replaces the included RP5-GM51 harness. The harness enables the installation of an aftermarket radio on 2016 General Motors trucks with a 7-inch radio display, including the GMC Sierra and the Chevrolet Silverado. The harness combined with RP5-GM51 retains the vehicle’s telematics, steering wheel controls, and more.

Features:

• Compatible With RP5-GM51 (Sold Separately) To Retain:
• OnStar Telematics System
• Factory WiFi System
• Front & Rear Park Assist
• All Warning Chimes (Chime Module Included)
• OEM Auxiliary Input
• Data Controlled Outputs For Connection to Navigation Radio; Speed, Reverse, & E-Brake Status Output Wires.
• Original Steering Wheel Control Functions
• Data Controlled RAP Accessory Output
• Vehicle Data-Bus Intact For Service
• Updatable Using A PAC-UP USB Adapter

Compatibility Notes:

• This Harness Is Only Necessary When The Vehicle Has An "IOA" Or "IOB" Build Code. The Build Codes Can Be Found On A Silver Sticker In The Glove Compartment.
• Must Be Used In Conjunction With The RP5-GM51.

Vehicle Compatibility:

• 2015-2017 Buick Encore — All Trim Levels
• 2016-2018 Chevrolet Camaro — All Trim Levels With 7" Screen (IOB)
• 2016-2017 Chevrolet Cruze — All Trim Levels With 7" Screen (IOA)
• 2018 Chevrolet Cruze — All Trim Levels With 7" Screen (IOB)
• 2016-2017 Chevrolet MALIBU — All Trim Levels With 7" Screen (IOA)
• 2018 Chevrolet Malibu — All Trim Levels With 7" Screen (IOB)
• 2016-2018 Chevrolet Silverado — All Trim Levels With 7" Screen (IOB)
• 2016-2017 Chevrolet Silverado HD — All Trim Levels With 7" Screen (IOB)
• 2017 Chevrolet Sonic — All Trim Levels
• 2017-2018 Chevrolet Spark — All Trim Levels
• 2017 Chevrolet Trax — All Trim Levels With 7" Screen (IOA)
• 2017 GMC Acadia — All Trim Levels With 7" Screen (IOB)
• 2016-2017 GMC Sierra — All Trim Levels With 7" Screen (IOB)
• 2016-2017 GMC Sierra HD — All Trim Levels With 7" Screen (IOB)
