Oricom AIR40KIT Twin Cylinder Air Compressor and Inflation Kit + 4 Tyre Inflator/Deflator Combo
Oricom AIR40KIT Twin Cylinder Air Compressor and Inflation Kit + 4 Tyre Inflator/Deflator Combo
A high-performance twin cylinder air compressor and 4 tyre inflator/deflator combo built for serious 4WD and off-road use, delivering 300PSI max pressure, 130L/min air flow, a 6m inflation hose, automatic pressure cutout, thermal protection, and a wiring loom connection for fast, powerful, and reliable tyre inflation in the toughest conditions.
Product Overview

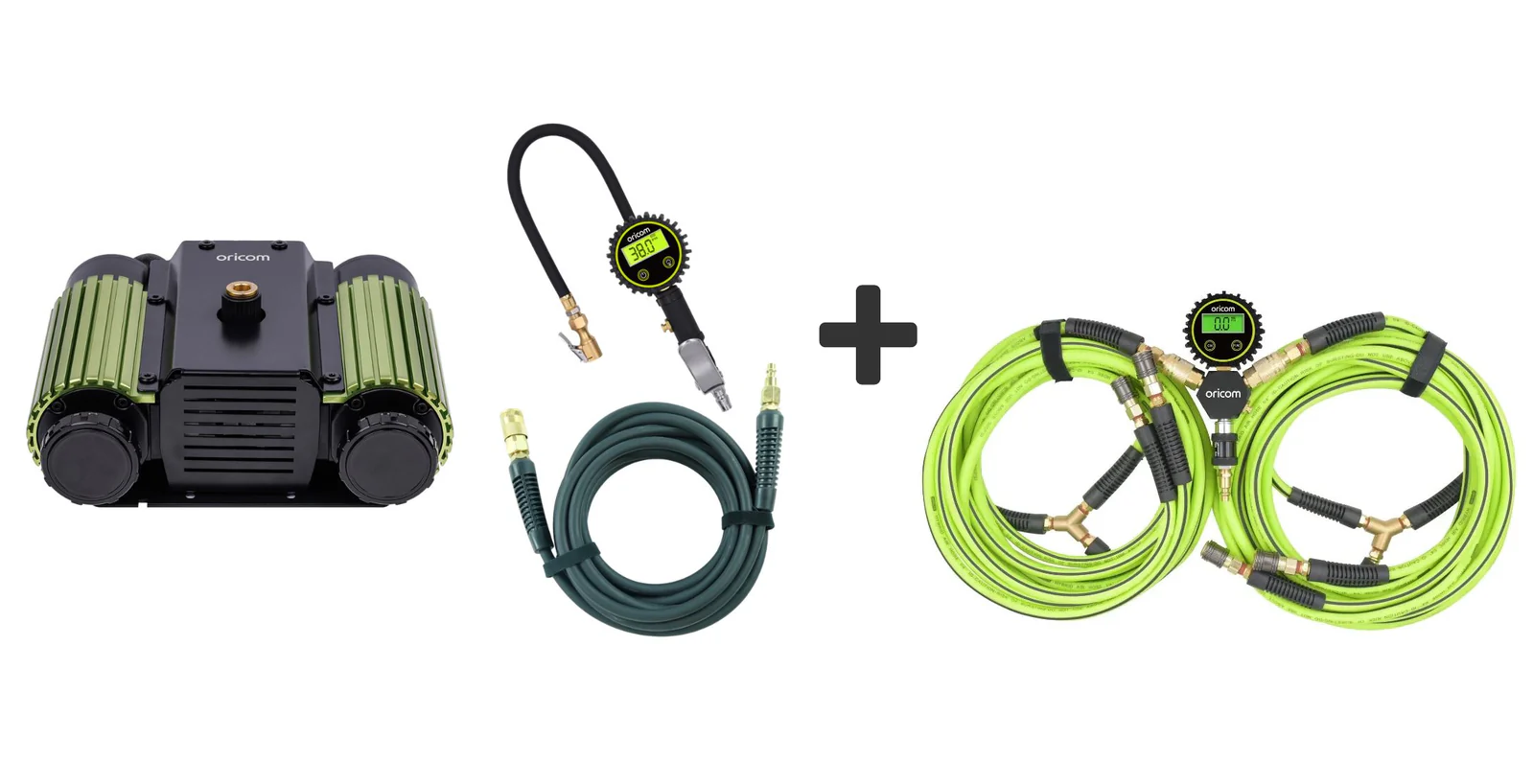

The Oricom AIR40KIT combines the AIR40 Twin Cylinder Air Compressor with a 4 Tyre Inflator/Deflator Kit and a complete inflation accessory pack, providing the most capable inflate and deflate solution in the Oricom portable compressor range. Powered by two 40mm cylinders, the AIR40 delivers a maximum pressure of 300PSI and a max air flow rate of 130L/min from a fully deflated tyre, with 108L/min maintained under load at 40PSI for sustained, high-speed inflation of large format 4WD, truck, and heavy-duty off-road tyres.
The AIR40 features a digital pressure gauge with automatic shut-off and a pressure cutout switch that stops the compressor when the 120 to 150PSI target range is reached, providing precise, hands-free inflation management. A thermally protected motor automatically shuts the unit off at 115 degrees Celsius to safeguard against overheating, with an impressive duty cycle of 45 minutes on and 20 minutes rest for extended field use without extended downtime. The compressor connects directly to the vehicle battery via two included wiring looms, and two washable air filters protect the twin cylinders from dust and debris in harsh off-road environments.
The included 4 Tyre Inflator/Deflator Kit enables controlled simultaneous deflation of all four tyres before heading off-road, completing a full inflate and deflate solution in a single kit.
Features & Benefits
300PSI Maximum Pressure Top-of-range pressure capability for larger tyres, heavy-duty off-road rubber, and demanding inflation jobs that require sustained high-pressure output.
130L/Min Maximum Air Flow Rate Rapid air delivery from completely deflated tyres dramatically reduces reinflation time after airing down, with 108L/min maintained under load at 40PSI for consistent performance across large tyre volumes.

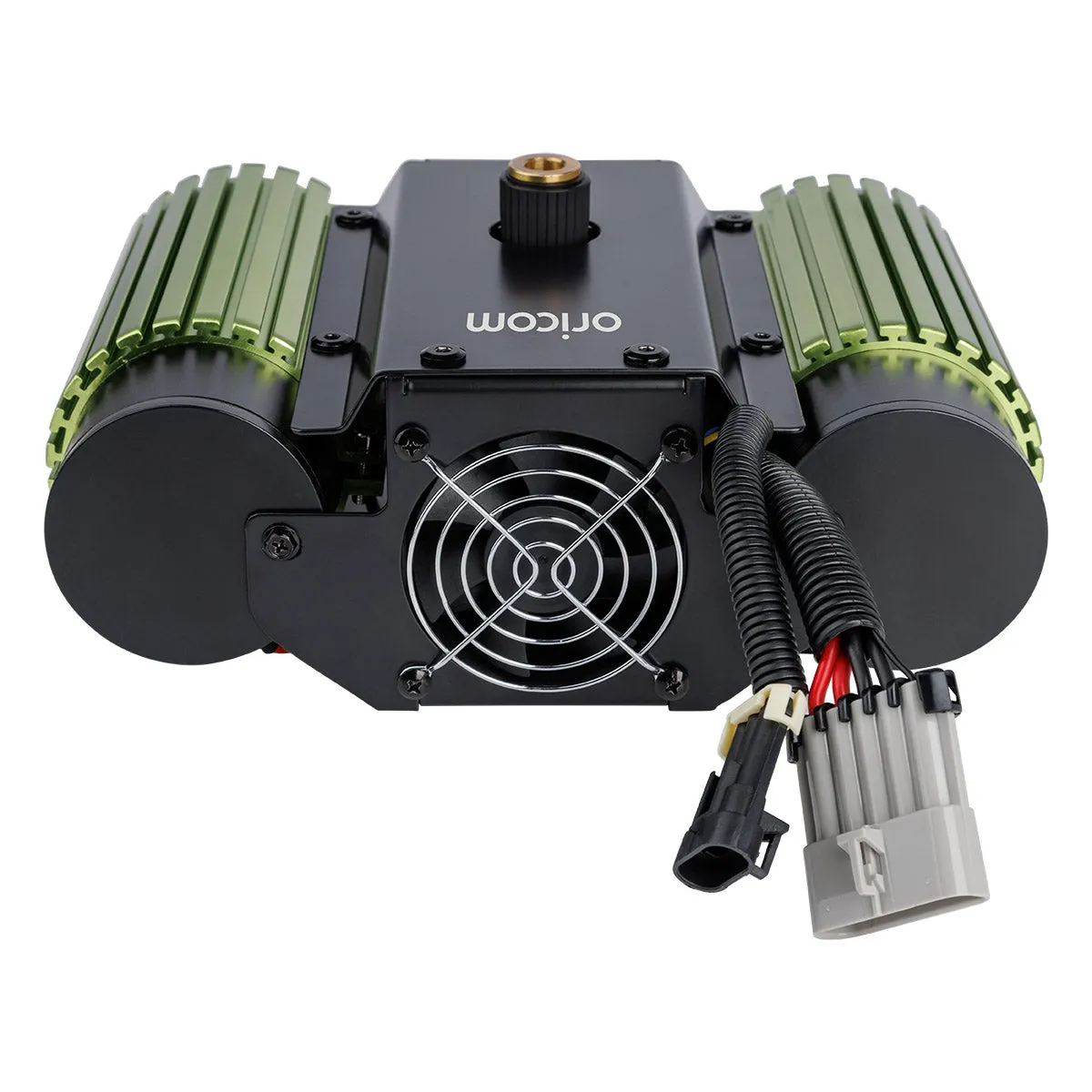

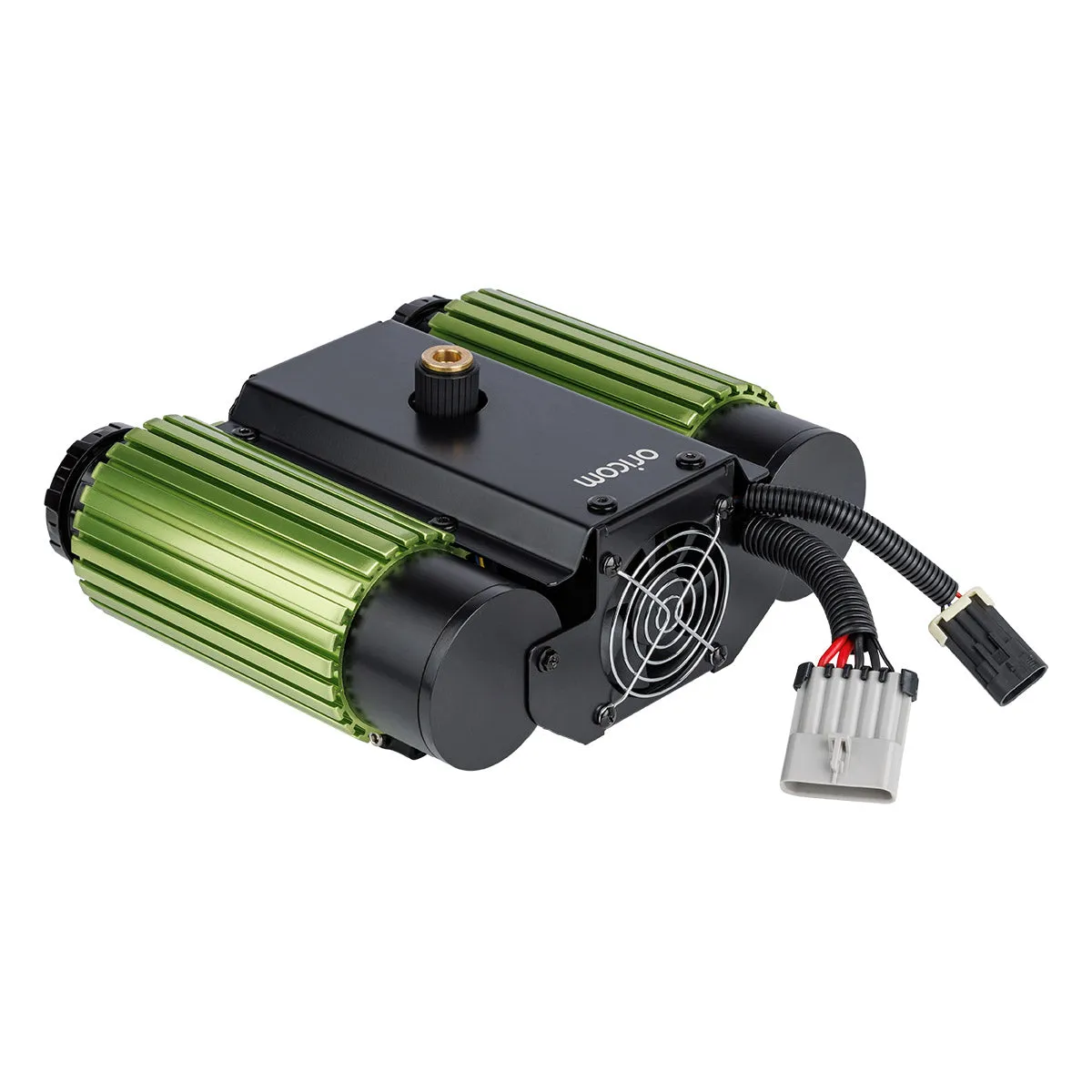

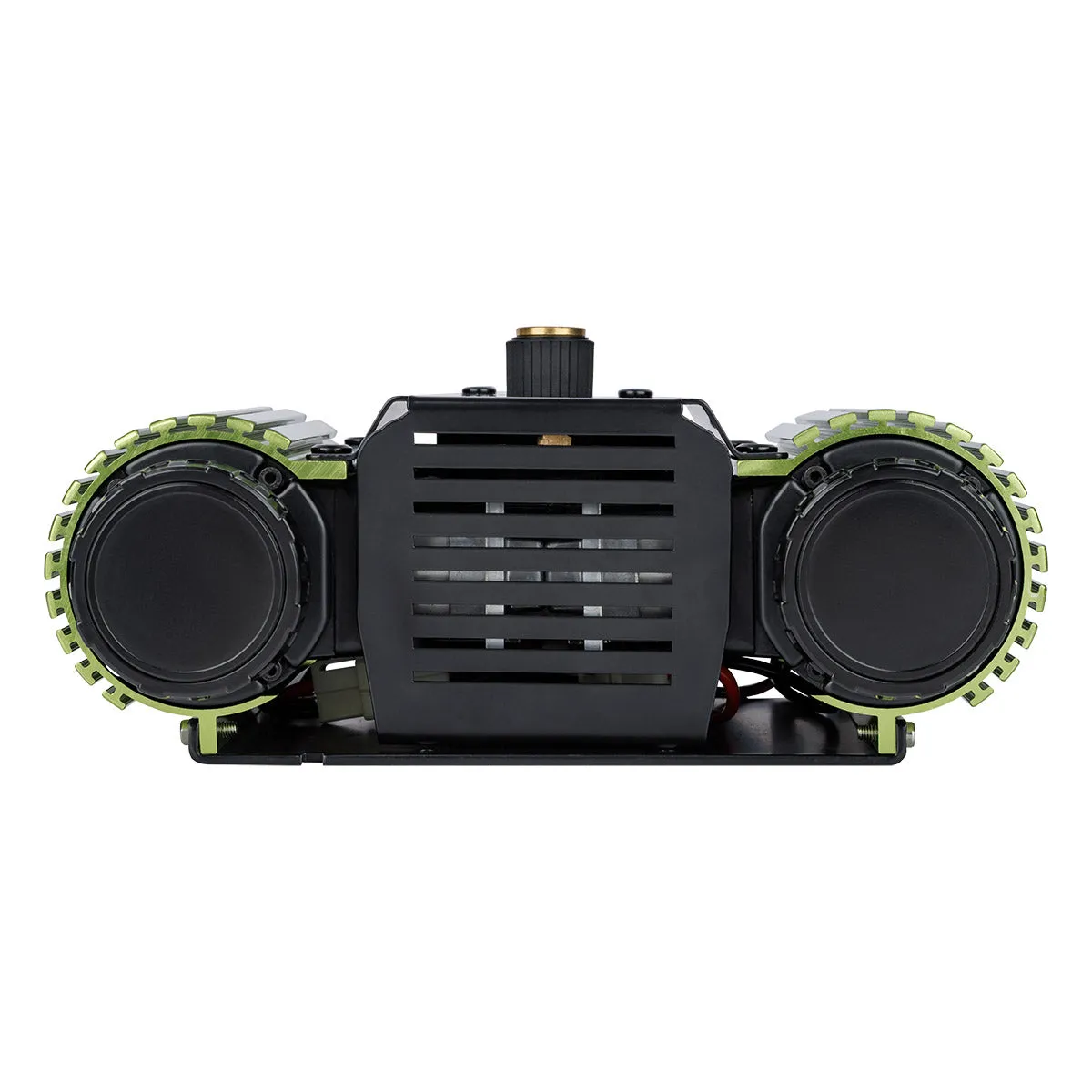

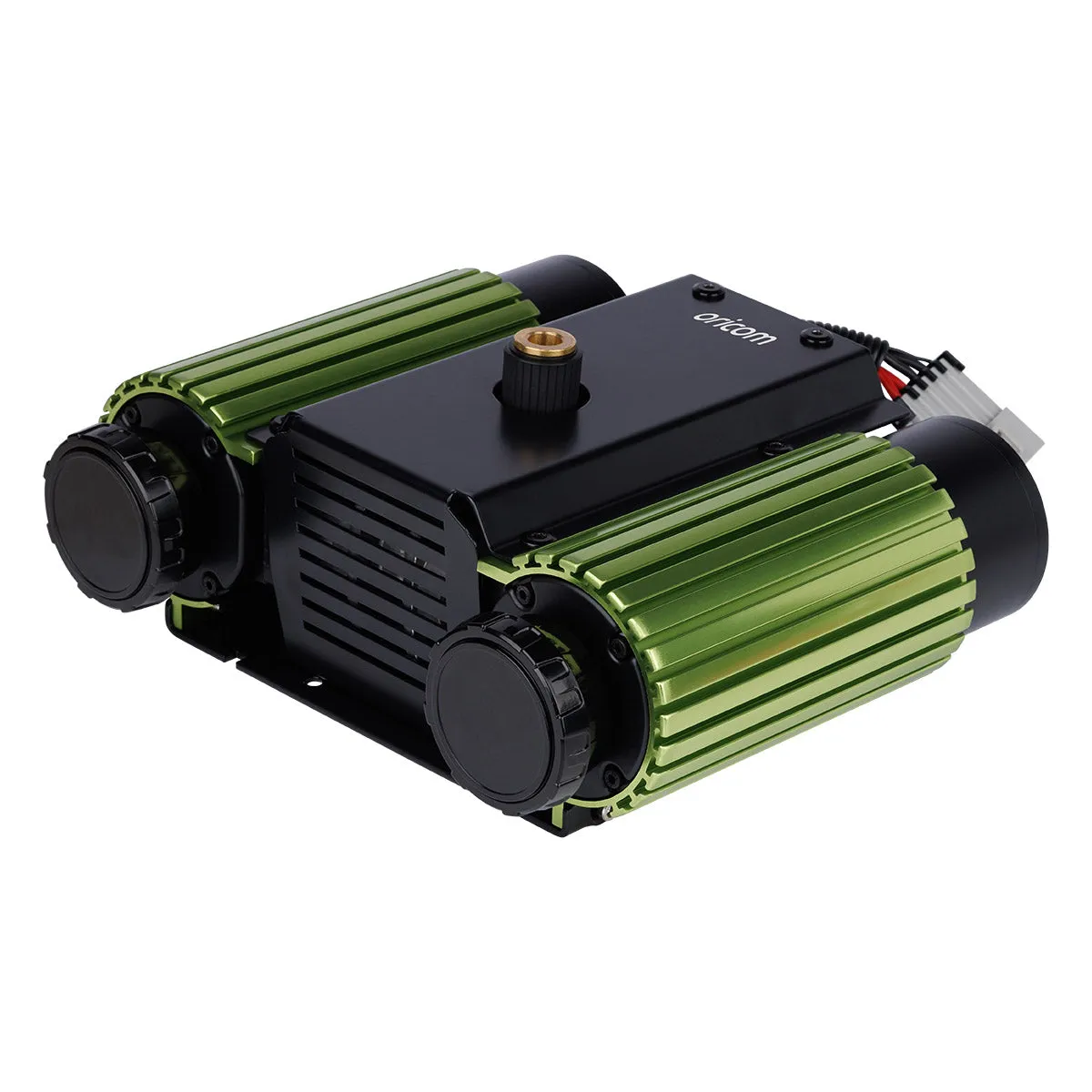

Twin Cylinder Design Dual 40mm cylinders deliver the high flow rates and sustained pressure output needed for larger 4WD, truck, and heavy-duty off-road tyres that single-cylinder compressors struggle with.
Automatic Pressure Cutout Switch The pressure cutout switch stops the compressor automatically when the 120 to 150PSI target range is reached, providing hands-free, precise inflation management and protecting against over-inflation.
Thermally Protected Motor Automatically shuts off at 115 degrees Celsius to prevent overheating during extended use, protecting the twin cylinder motor and extending service life in demanding conditions.
45-Minute Duty Cycle A 45 minutes on and 20 minutes rest duty cycle provides extended continuous operation for large rigs, multiple vehicles, or high-demand field use with minimal downtime.

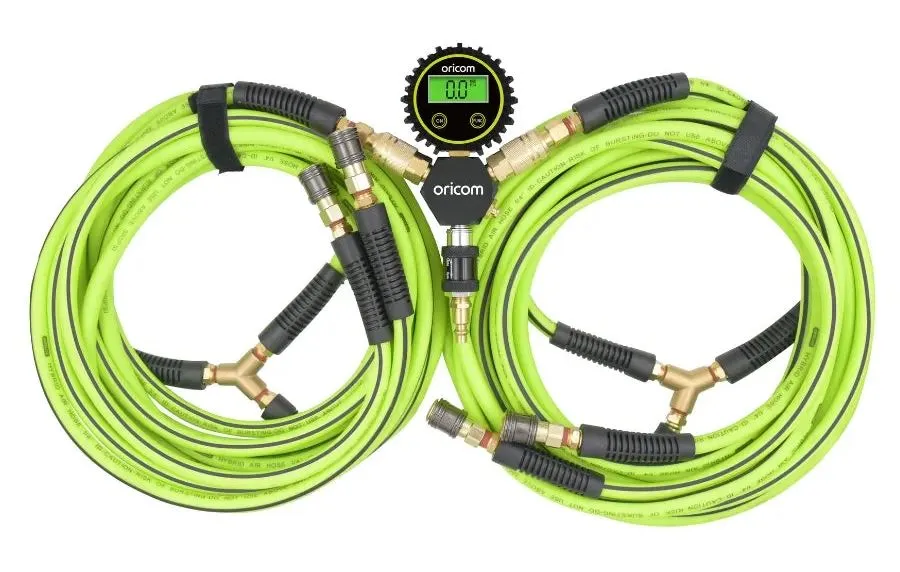

4 Tyre Inflator/Deflator Kit Included The included 4 Tyre Inflator/Deflator Kit enables fast, controlled simultaneous deflation of all four tyres before heading off-road, completing the full inflate and deflate solution in a single combo kit.

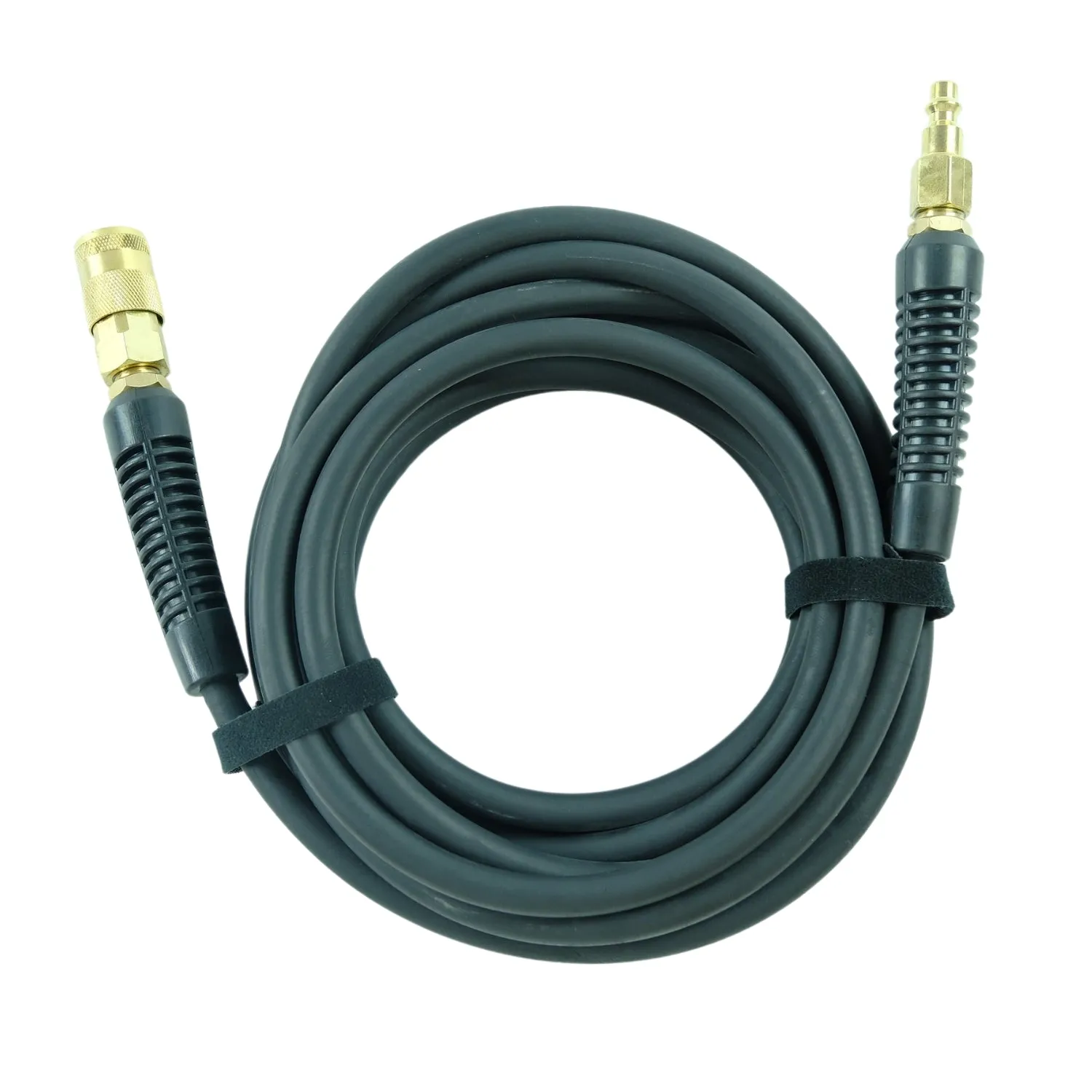

6m Inflation Hose with Quick Connect Fitting The 6m hose with NPT quarter-inch quick connect fitting provides ample reach to all four tyres and accessories without repositioning the compressor.
Two Washable Air Filters Included Dual washable air filters protect both cylinders from dust and debris in harsh off-road environments and are reusable for long-term reliability and reduced maintenance costs.

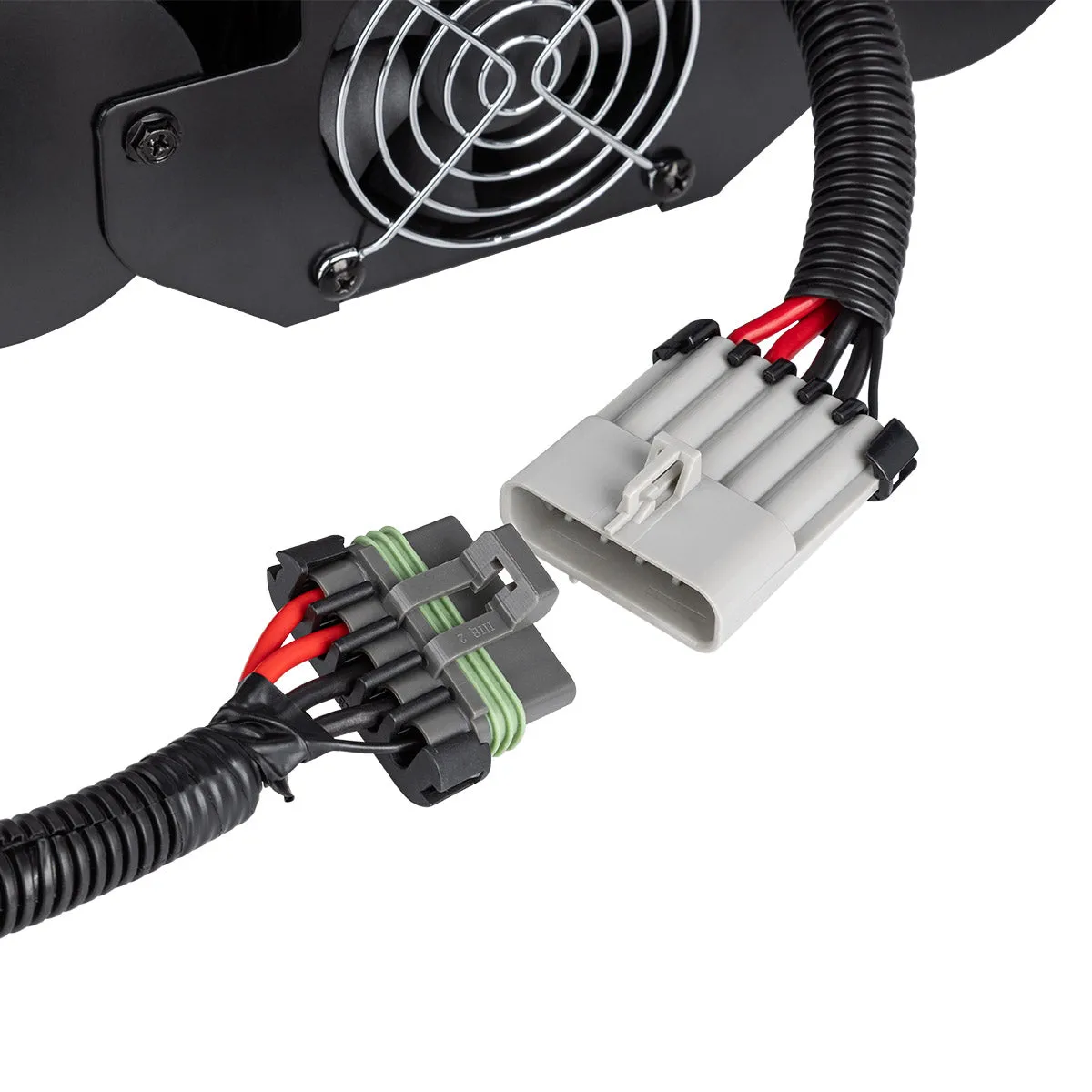

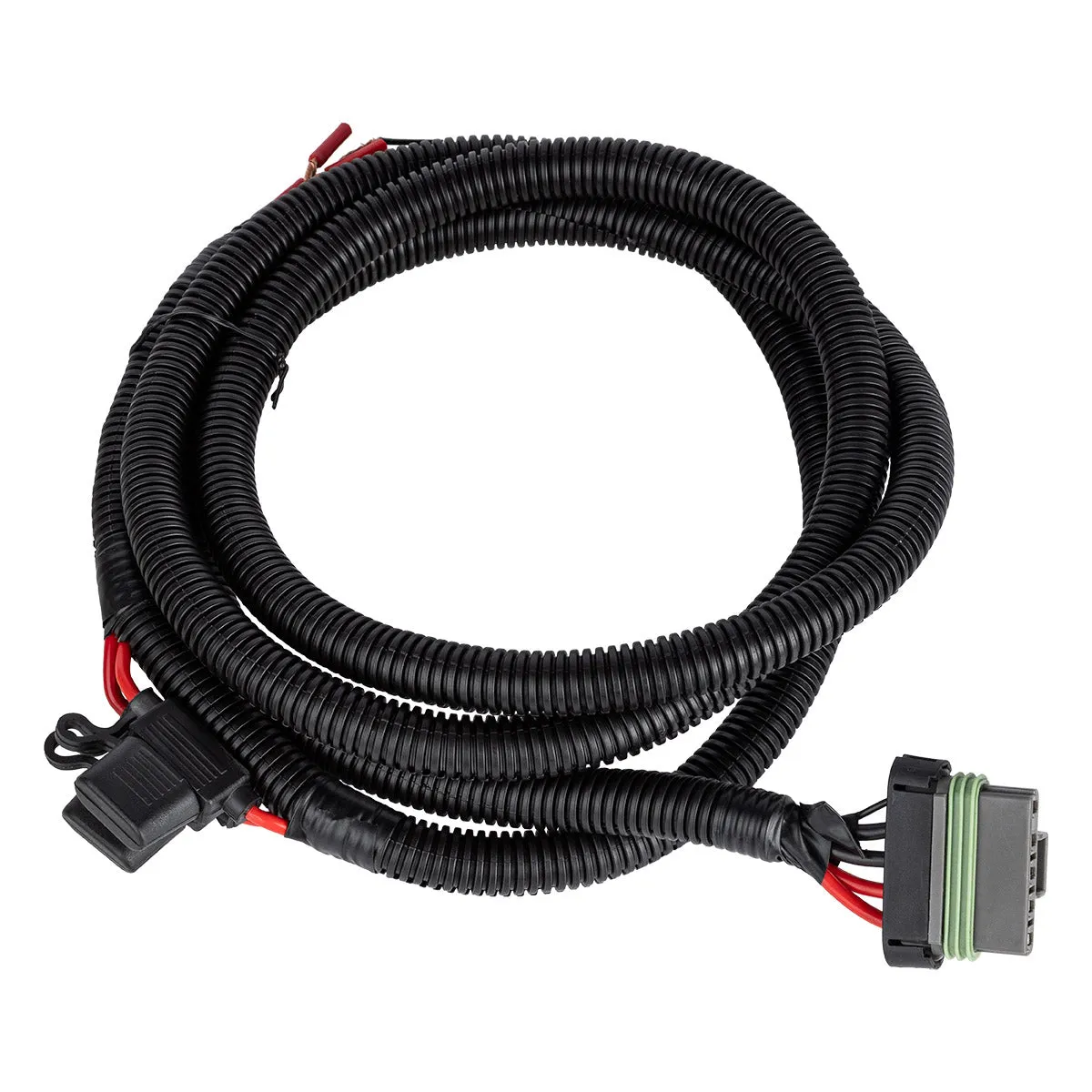

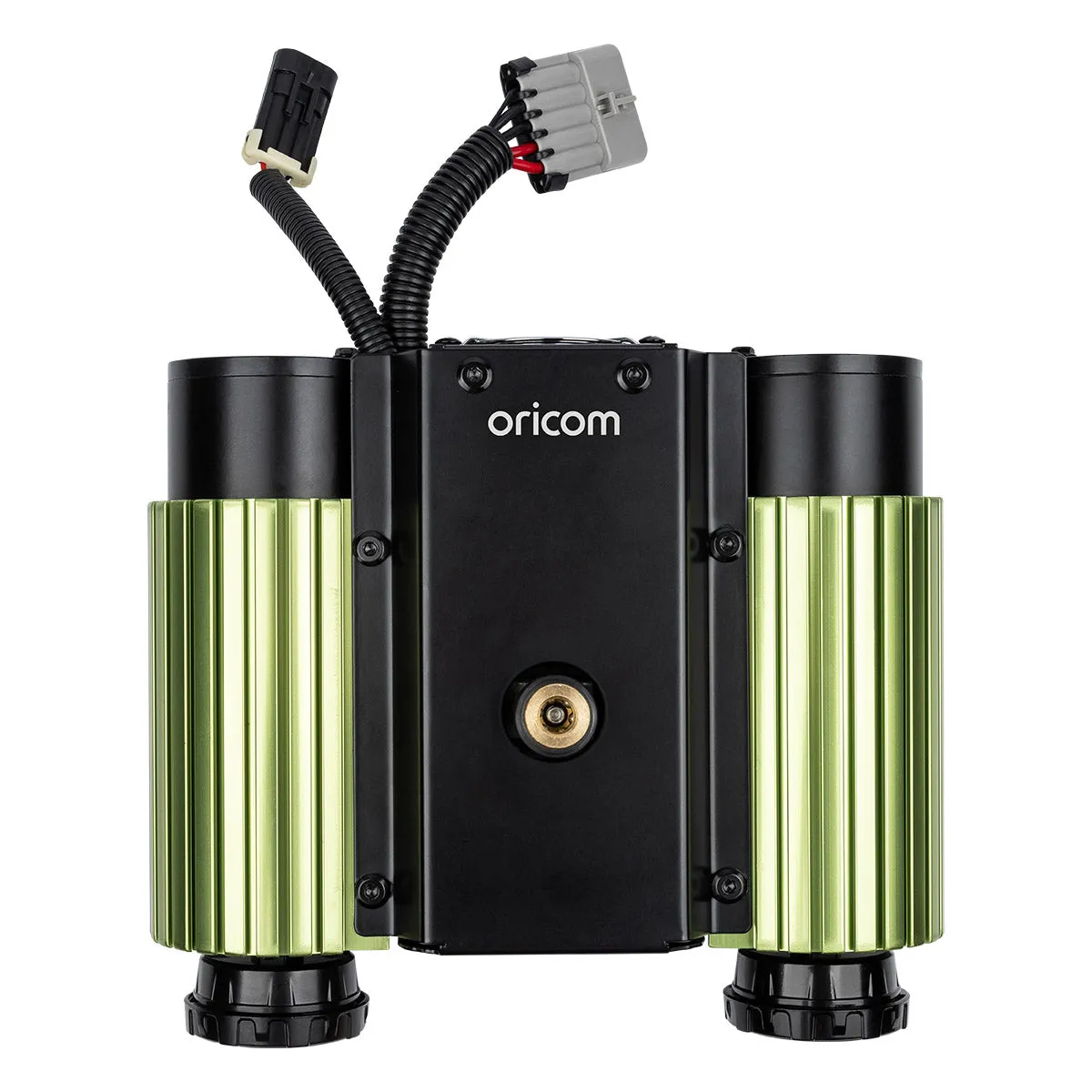

Wiring Loom Connection Connects directly to the vehicle battery via two included wiring looms for a secure, high-current power connection capable of supporting the AIR40's 62A draw under load.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | AIR40KIT |
| Brand | Oricom |
| Number of Cylinders | 2 |
| Cylinder Bore Diameter | 40mm |
| Voltage | 12 to 13.8V DC |
| Current Draw Under Load | 62A |
| Current Draw No Load | 35A |
| Inline Fuse Supplied | 40A |
| Max Pressure | 300 PSI |
| Max Working Pressure | 150 PSI |
| Pressure Cutout Switch | 120 PSI ON / 150 PSI OFF |
| Air Flow Rate (0 PSI) | 130 L/min |
| Air Flow Rate (29 PSI) | 112 L/min |
| Air Flow Under Load (40 PSI) | 108 L/min |
| Duty Cycle | 45 min on / 20 min rest |
| Thermal Protection | Auto shut-off at 115 degrees Celsius |
| Hose Length | 6m |
| Hose Connector Type | NPT 1/4" Quick Connect |
| Power Connection | Wiring Loom (x2 included) |
| Washable Air Filter | Yes (x2) |
| Product Dimensions | 29 x 24.5 x 12 cm |
| Weight | 10.2 kg |
| Warranty | 3 Years |

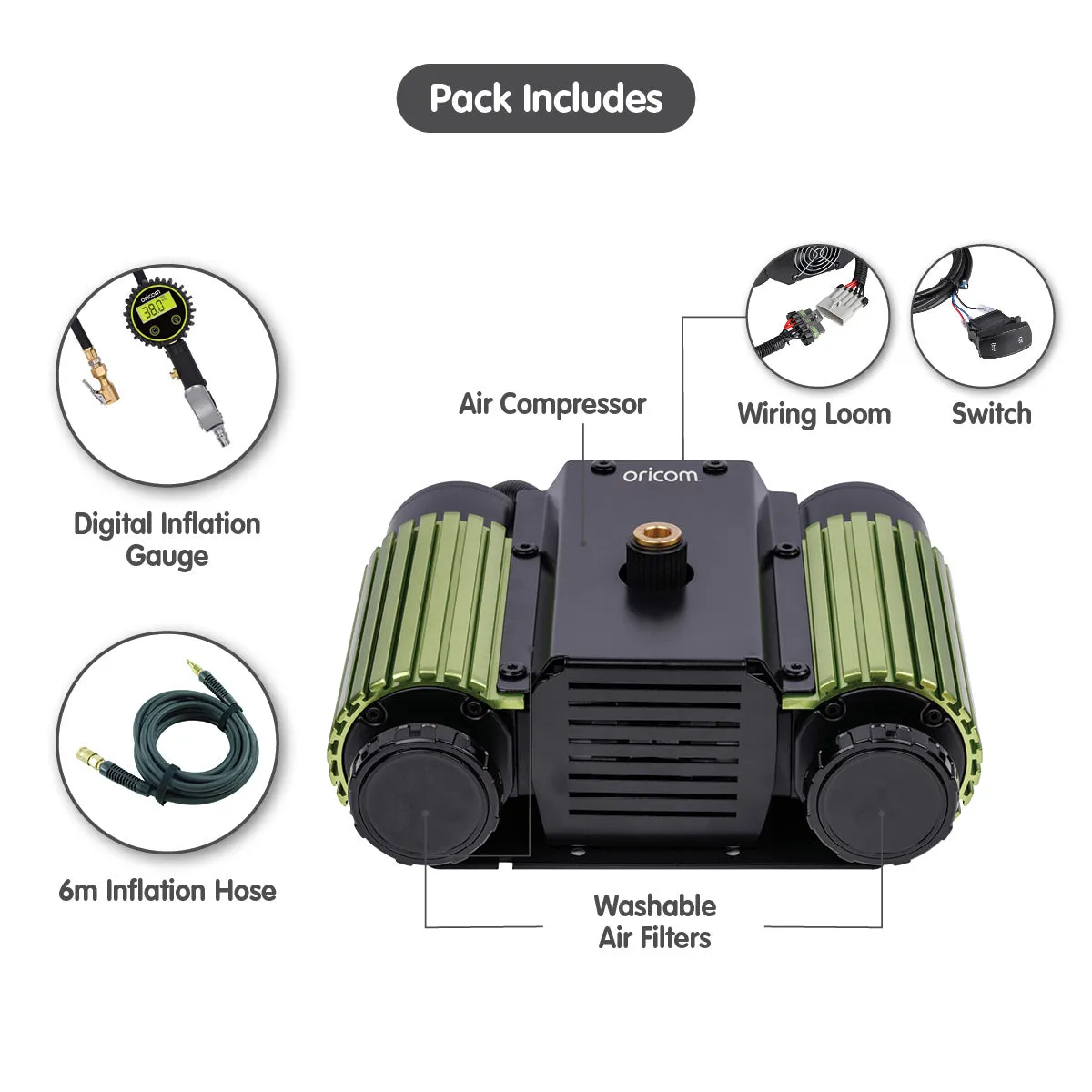

What's Included:
- 1 x 4 Tyre Inflator/Deflator Kit
- 1 x Twin Cylinder Air Compressor
- 2 x Washable Filters

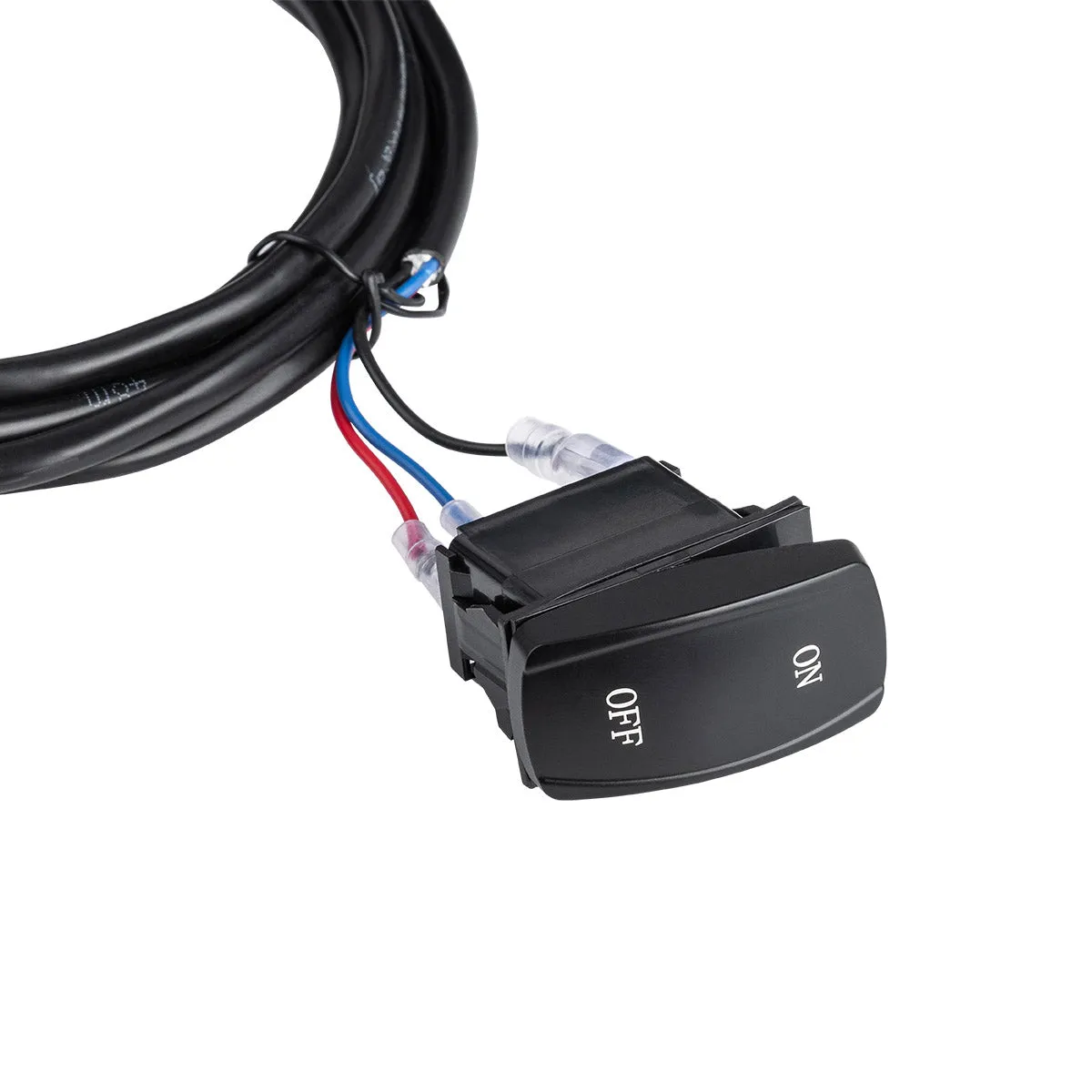

- 1 x Switch

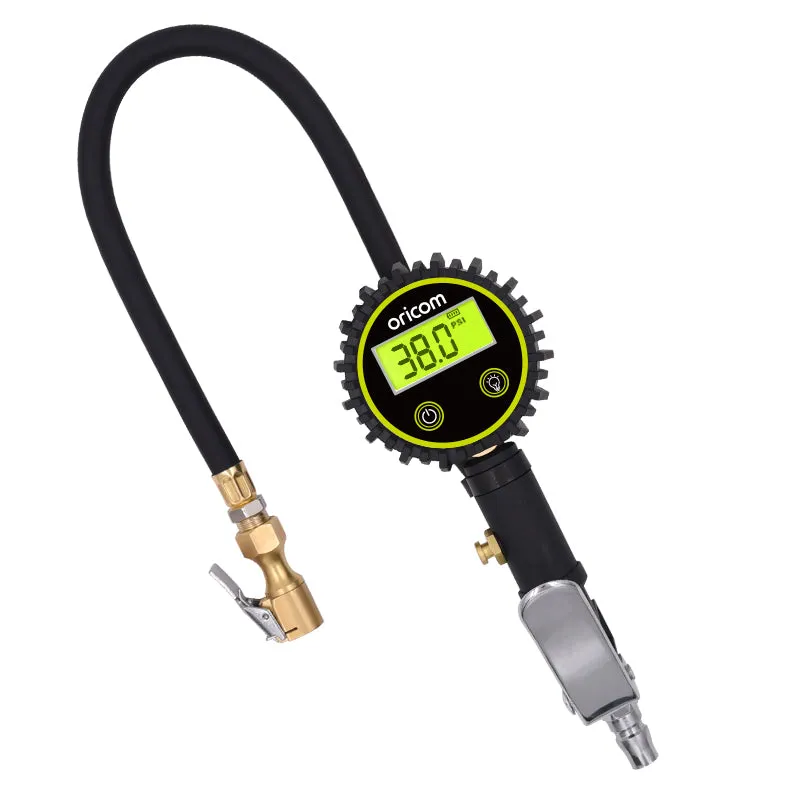

- 1 x Digital Pressure Gauge with Auto Shut-Off
- 1 x 6m Inflation Hose with 1/4" NPT Quick Connect Fitting
- 2 x Wiring Looms
Compatible With / Goes Well With
The AIR40KIT suits 12V vehicles including 4WDs, SUVs, utes, trucks, and caravans. It is compatible with standard passenger, light truck, heavy-duty off-road, and large format tyres within its 300PSI max pressure and 150PSI max working pressure ratings. The kit pairs well with a portable air tank for further extended inflation capacity, a tyre pressure monitoring system for ongoing tyre health management, and recovery gear for a complete off-road preparedness setup.
Frequently Asked Questions
How does the AIR40KIT differ from the AIR20KIT and AIR30KIT?
The AIR40KIT is the most capable compressor in the Oricom portable range. It features a twin cylinder design delivering 300PSI max pressure and 130L/min air flow, compared to the AIR20KIT's 200PSI and 70L/min single cylinder output and the AIR30KIT's 150PSI and 75L/min single cylinder output. The AIR40KIT also includes a 4 Tyre Inflator/Deflator Kit for simultaneous all-four-tyre deflation and has a longer 45-minute duty cycle for extended field use.
What is the duty cycle and why does it matter?
The duty cycle is the ratio of continuous operating time to required rest time. The AIR40KIT runs for 45 minutes continuously before requiring a 20-minute rest, making it well suited to high-demand tasks such as reinflating multiple large tyres or servicing several vehicles in the field. The thermal protection will also automatically shut the unit off at 115 degrees Celsius if the motor temperature exceeds safe limits.
How does the pressure cutout switch work?
The pressure cutout switch automatically stops the compressor when the tyre pressure reaches the 120 to 150PSI range, providing hands-free, accurate inflation management without the need to manually monitor the gauge. This prevents over-inflation and protects both the tyres and the compressor during extended use.
Does the AIR40KIT connect directly to the vehicle battery?
Yes. The AIR40KIT connects directly to the vehicle battery via two included wiring looms, providing the high-current connection needed to support the 62A draw under load. Ensure the vehicle battery and electrical system can support this current draw before operating the compressor.
Can I use the AIR40KIT with a caravan or trailer?
Yes. The AIR40 is suitable for inflating caravan and trailer tyres that fall within its 300PSI max pressure and 150PSI max working pressure ratings. The 6m hose provides good reach for larger rigs without repositioning the compressor or the tow vehicle.
