Oricom AIR30KIT Portable Air Compressor Kit with Heavy Duty Case + Twin Tyre Inflator/Deflator Combo
Oricom AIR30KIT Portable Air Compressor Kit with Heavy Duty Case + Twin Tyre Inflator/Deflator Combo
A high-performance portable air compressor and twin tyre inflator/deflator combo built for 4WDs and off-road vehicles, delivering 150PSI max pressure, 75L/min air flow, a 6m inflation hose, automatic pressure cutout, thermal protection, and a heavy duty carry case for fast, safe, and reliable tyre inflation in the field.
Product Overview

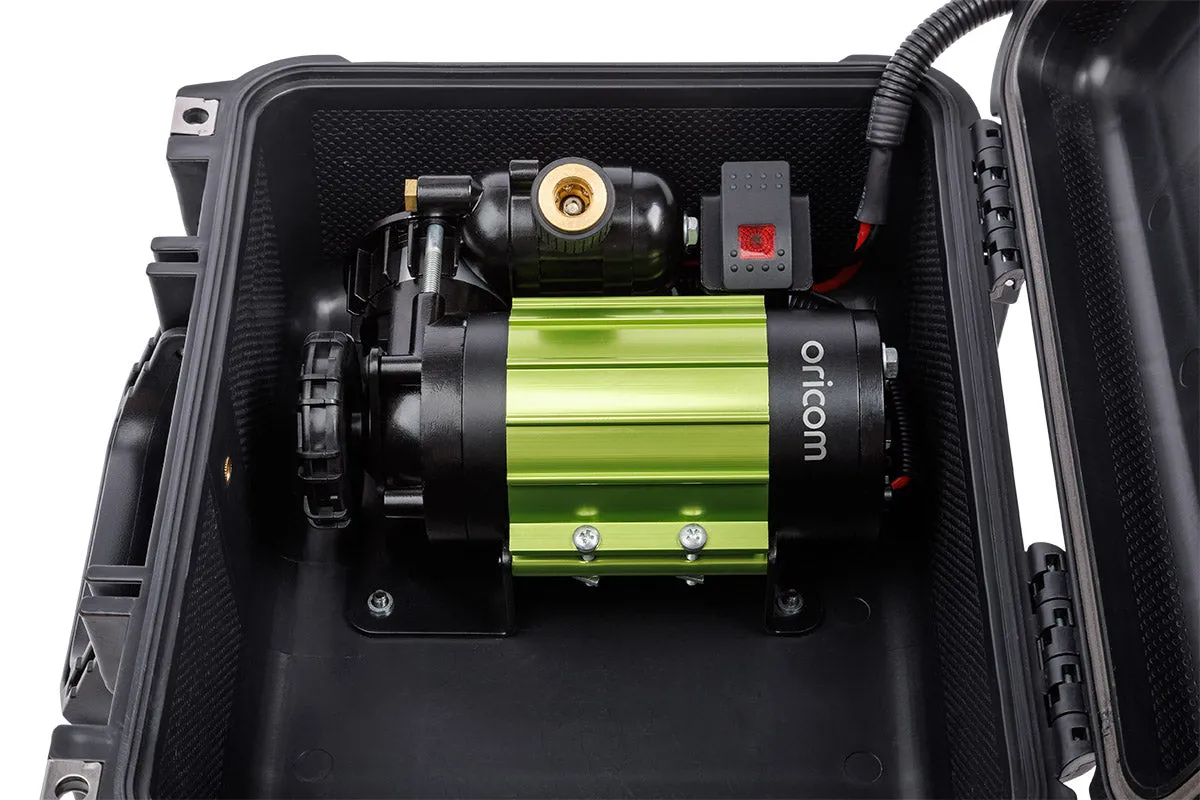

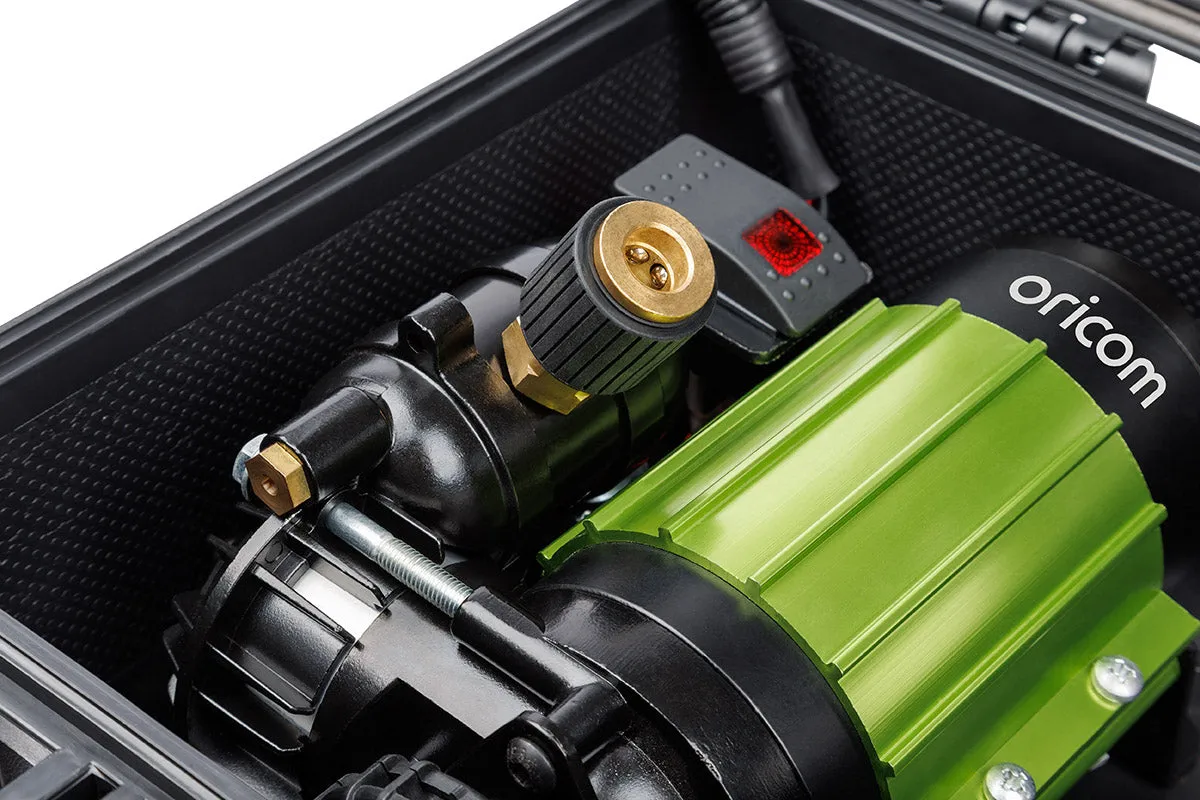

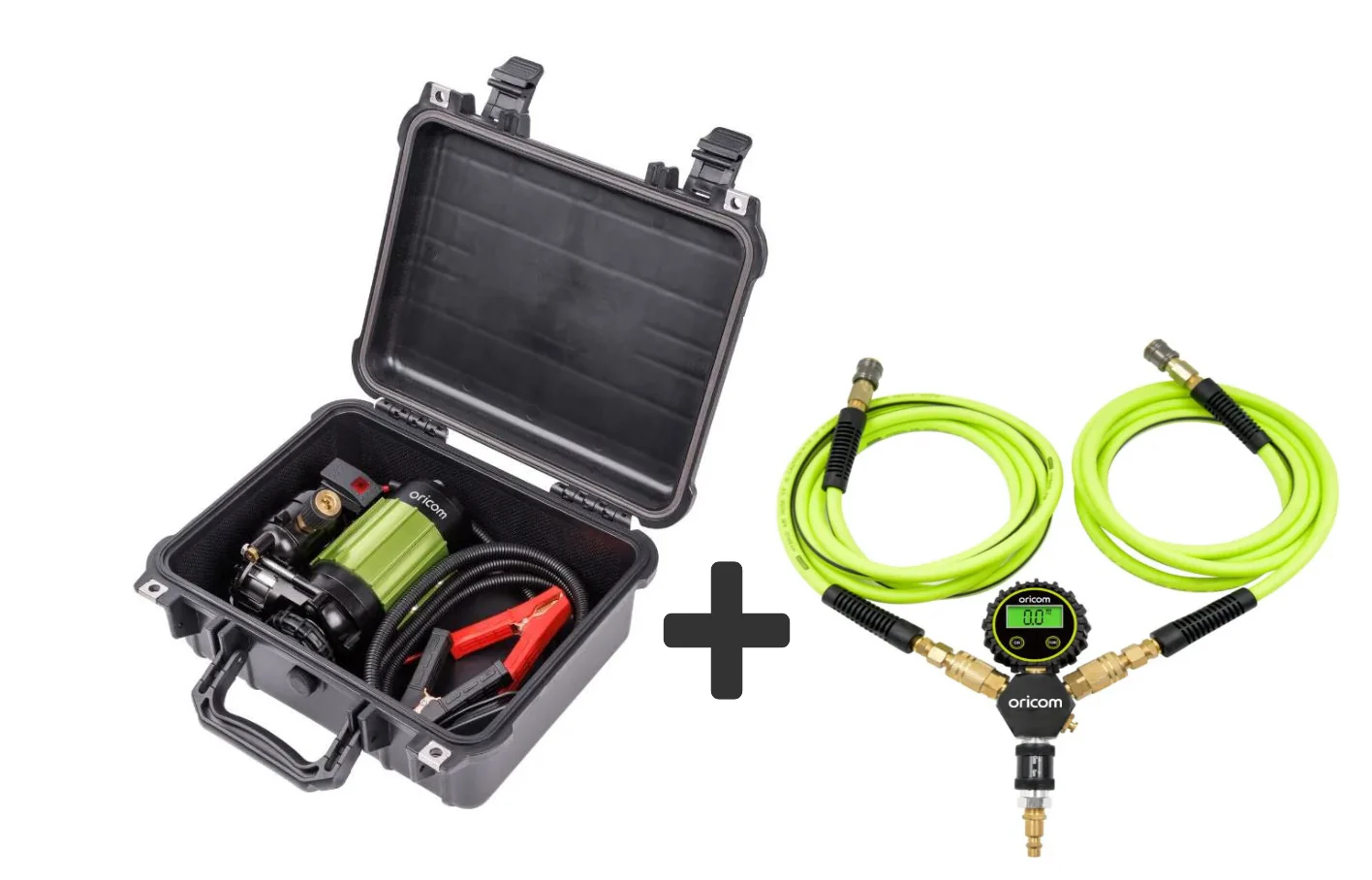

The Oricom AIR30KIT combines the AIR30 Portable Air Compressor with a Twin Tyre Inflator/Deflator Kit and a heavy duty carry case, providing a complete inflate and deflate solution for 4WD and off-road use. With a maximum pressure of 150PSI and a max air flow rate of 75L/min from a fully deflated tyre, the AIR30 delivers fast, efficient inflation for standard passenger, SUV, and heavy-duty off-road tyres.

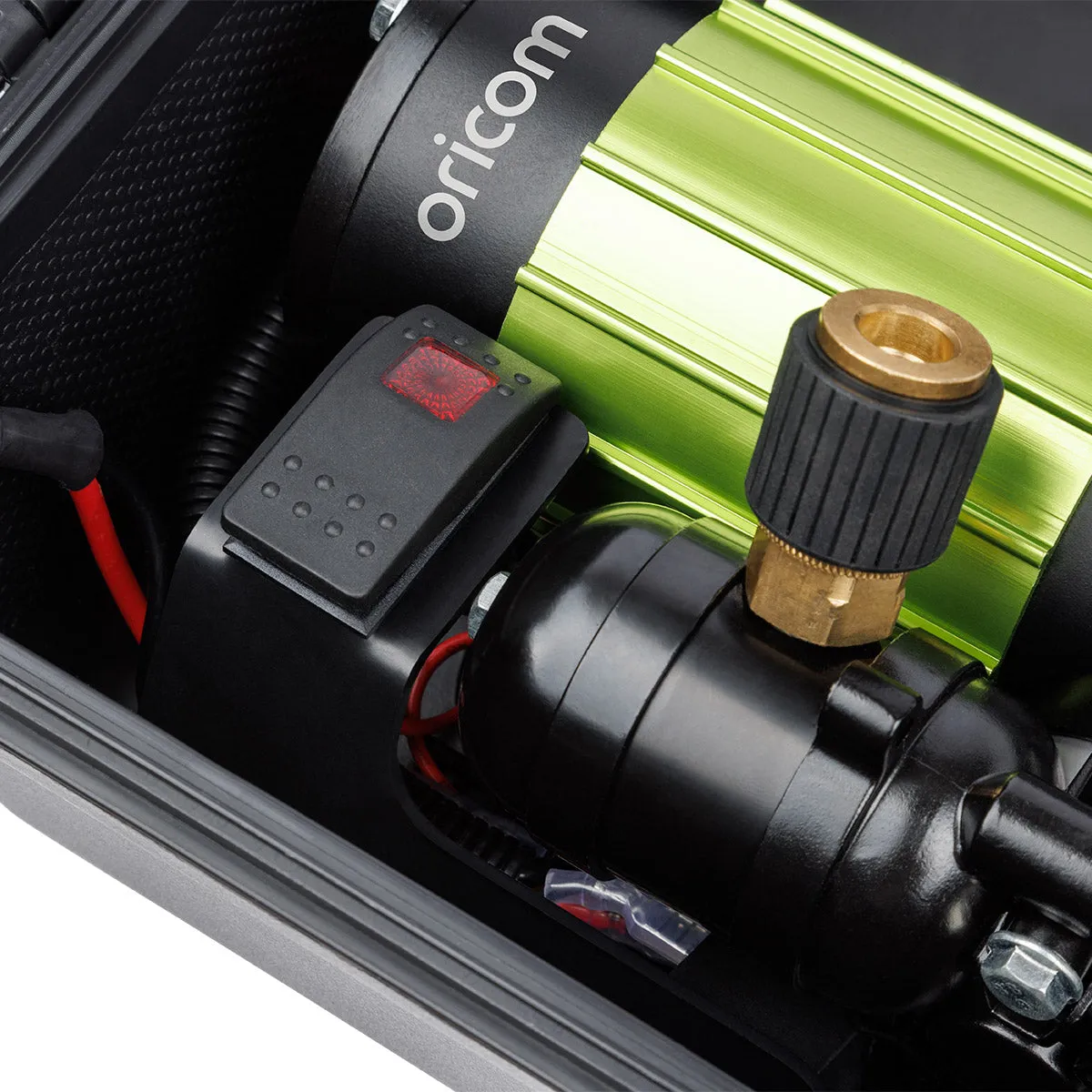

The AIR30 features an integral digital pressure gauge and a pressure cutout switch that automatically turns the compressor off at 120PSI and back on at 90PSI, ensuring precise, hands-free pressure management without over-inflation. A thermally protected motor automatically shuts the unit off at 115 degrees Celsius to safeguard against overheating during sustained use, with a duty cycle of 20 minutes on and 40 minutes rest. The 2.5m battery clamp power cable provides a direct, secure connection to the vehicle battery, while the 6m inflation hose with NPT quarter-inch quick connect fitting gives ample reach around the vehicle without repositioning the compressor.

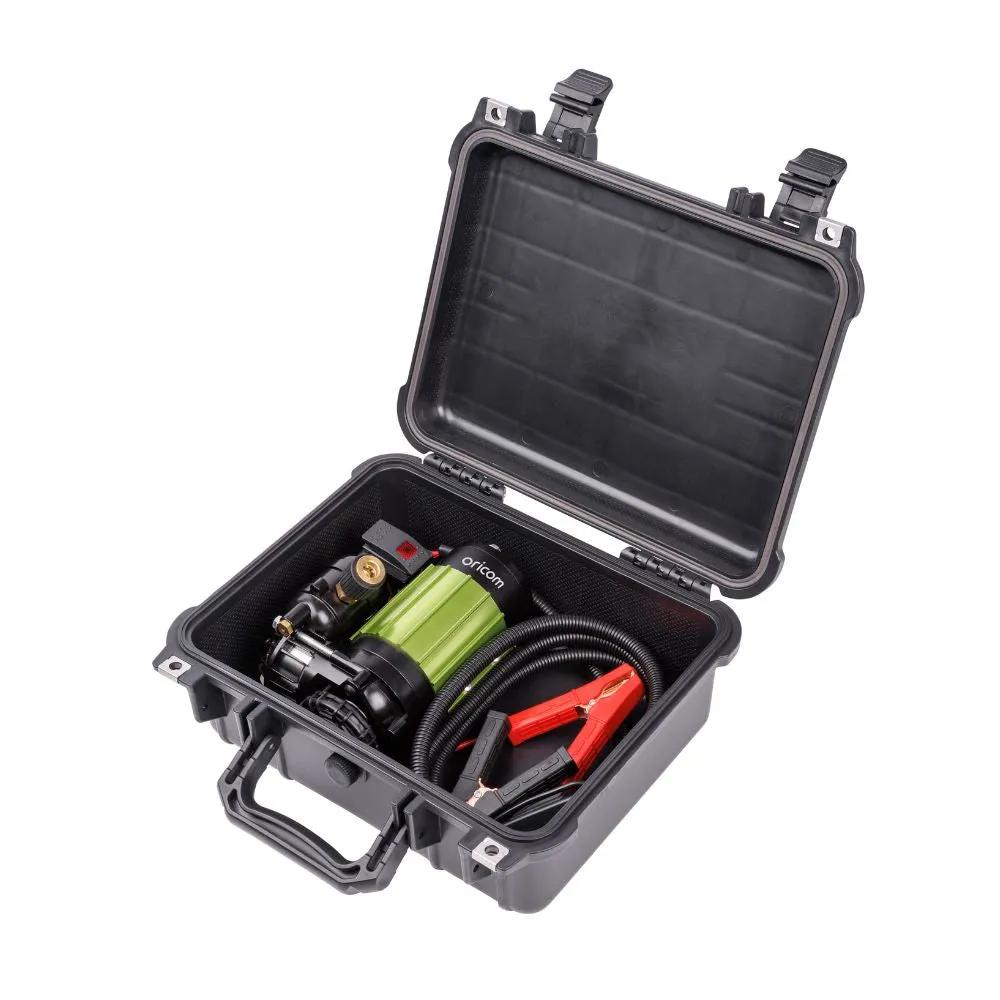

All components are stored in a purpose-built heavy duty carry case for organised, protected transport and storage between trips. The AIR30KIT is tested to meet AS/NZS 60335.1:2020 safety standards and is EMC compliant with EN/IEC 55014-1:2021.
Features & Benefits
150PSI Maximum Pressure Delivers high pressure for inflating a wide variety of vehicle tyres, from standard passenger to heavy-duty 4WD and off-road rubber, with reliable performance under load.
75L/Min Maximum Air Flow Rate Fast air delivery from completely deflated tyres reduces waiting time on the trail and speeds up reinflation after airing down for off-road driving.
Automatic Pressure Cutout Switch The pressure cutout switch turns the compressor off at 120PSI and back on at 90PSI for precise, automatic pressure management and hands-free tyre inflation.
Thermally Protected Motor Automatically shuts off at 115 degrees Celsius to prevent overheating during extended or heavy-duty use, protecting the motor and extending service life.

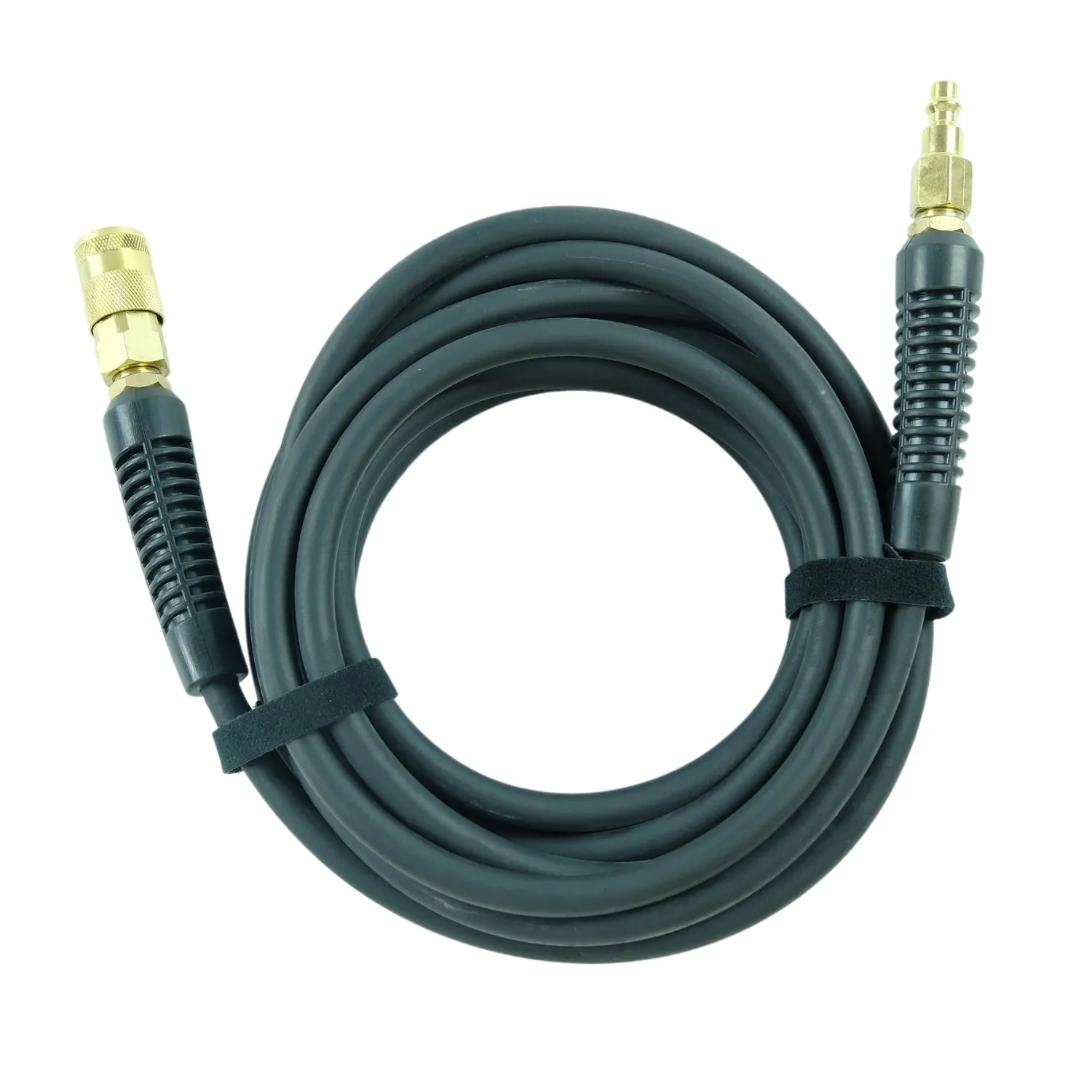

6m Inflation Hose with Quick Connect Fitting The 6m hose with NPT quarter-inch quick connect fitting provides ample reach to all four tyres and compatible accessories without repositioning the compressor.

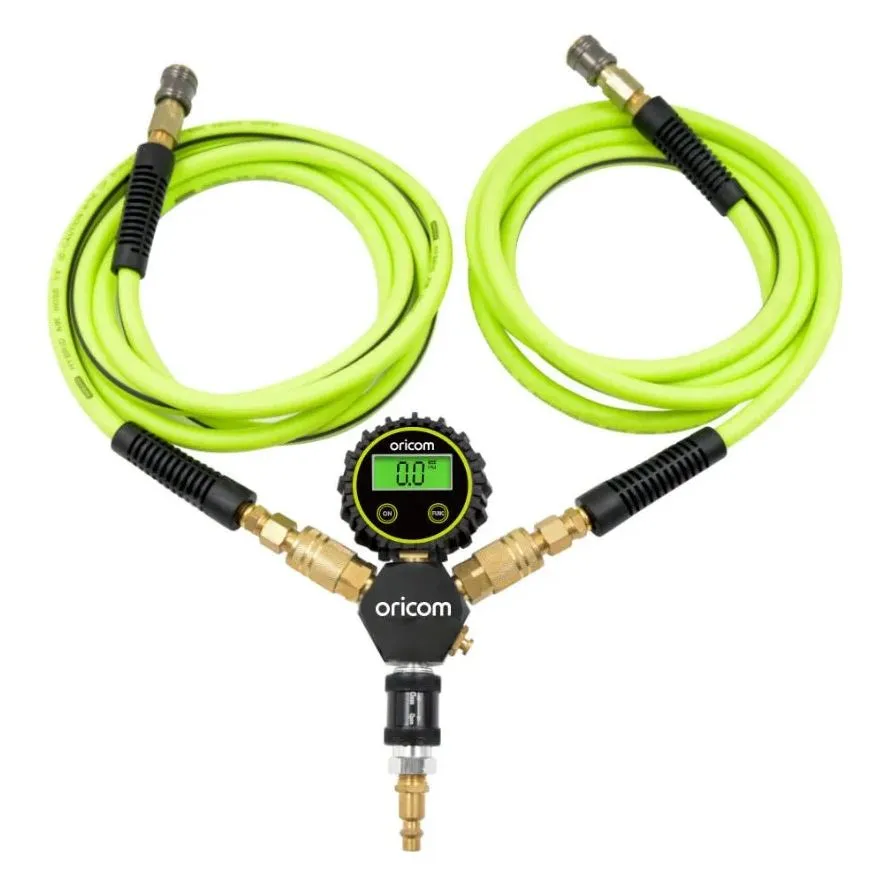

Twin Tyre Inflator/Deflator Kit Included The included Twin Tyre Inflator/Deflator Kit allows fast, controlled simultaneous deflation of two tyres before heading off-road, completing the full inflate and deflate solution in a single combo kit.

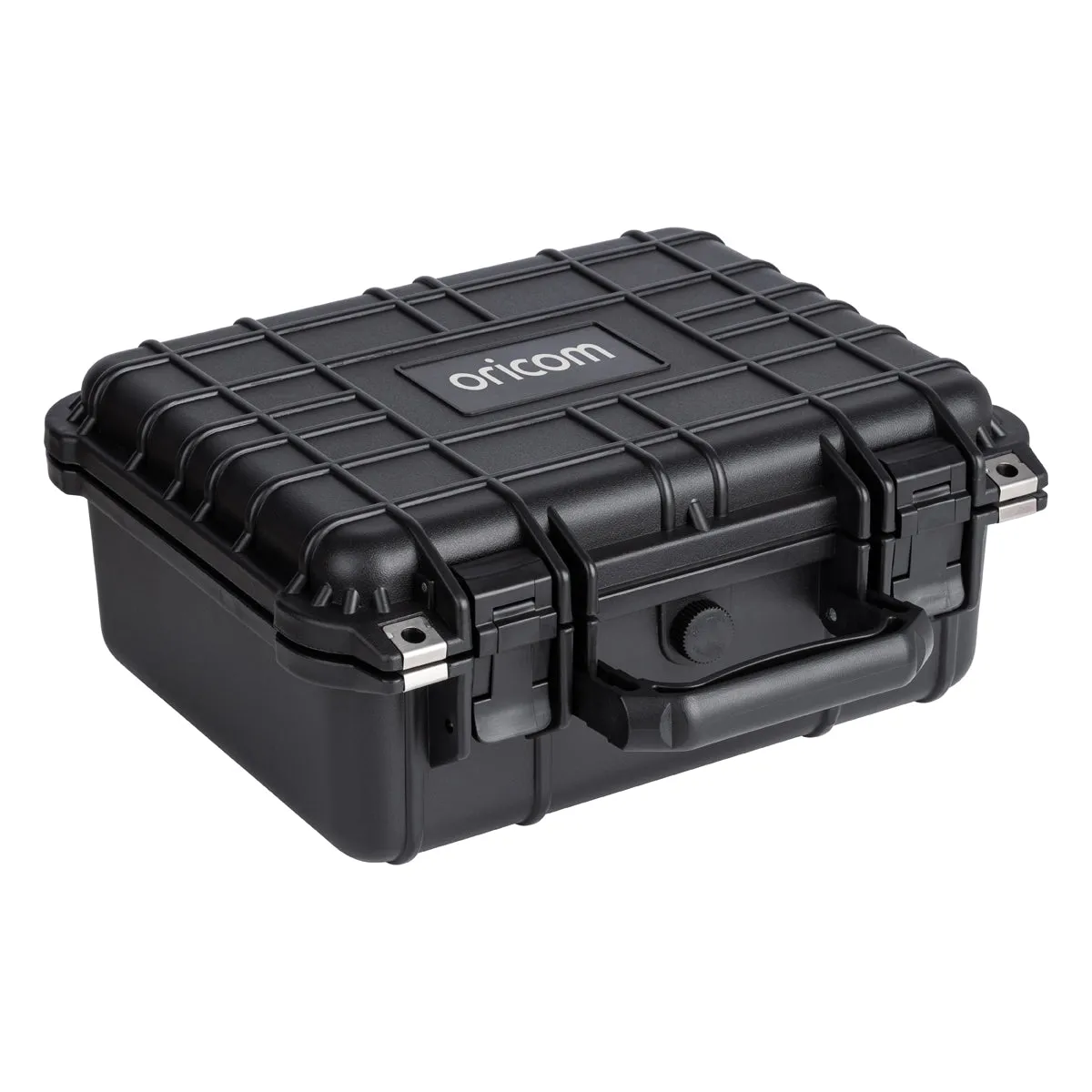

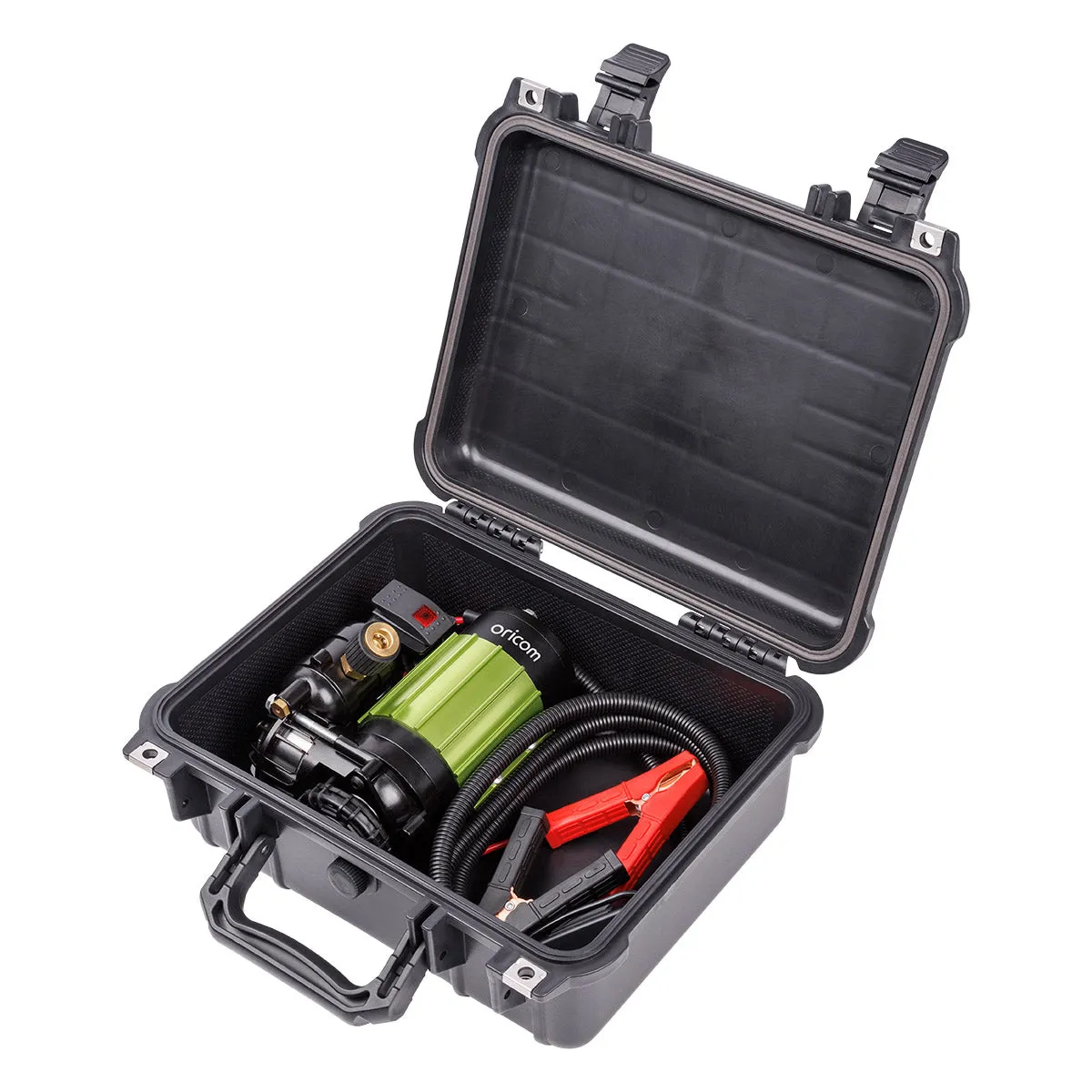

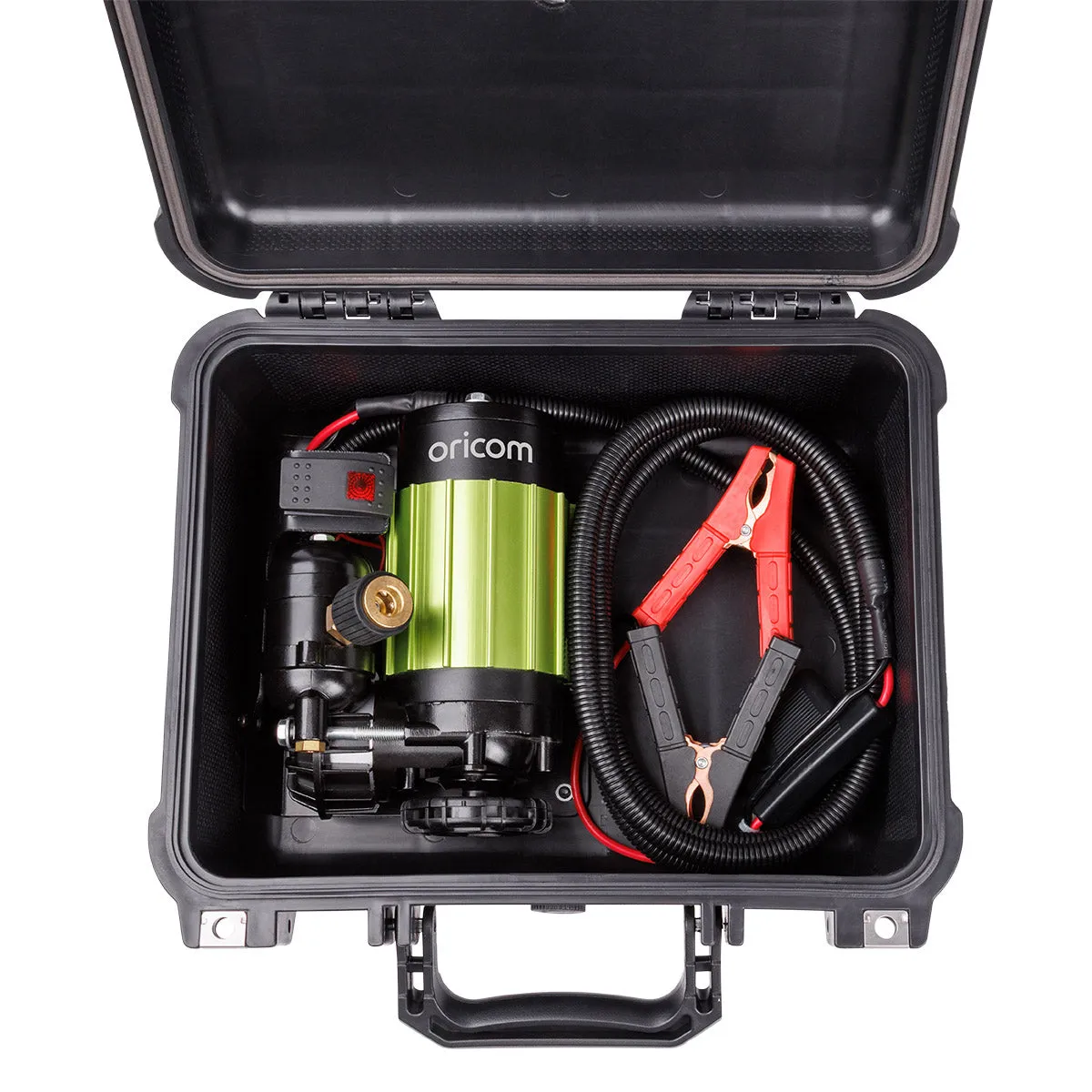

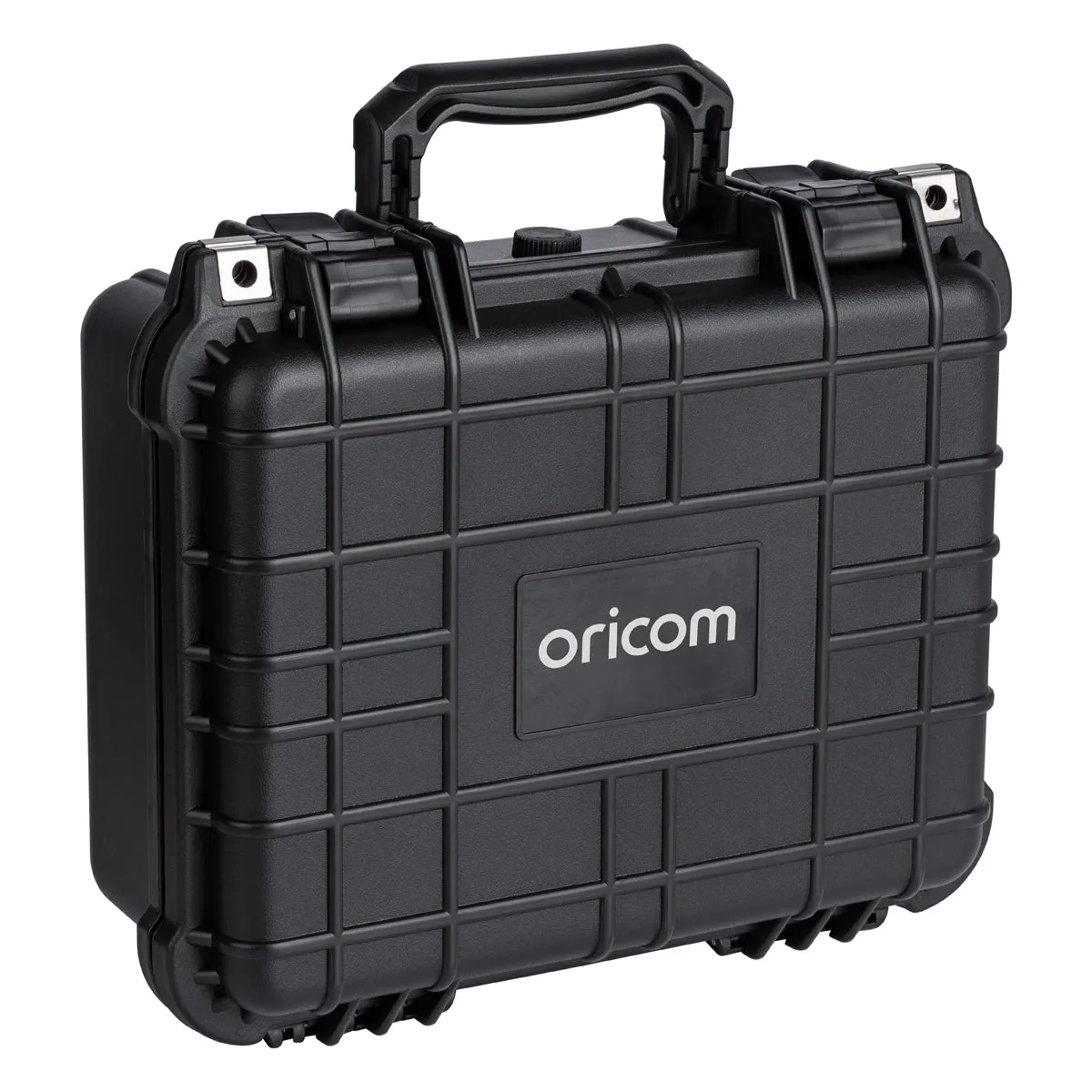

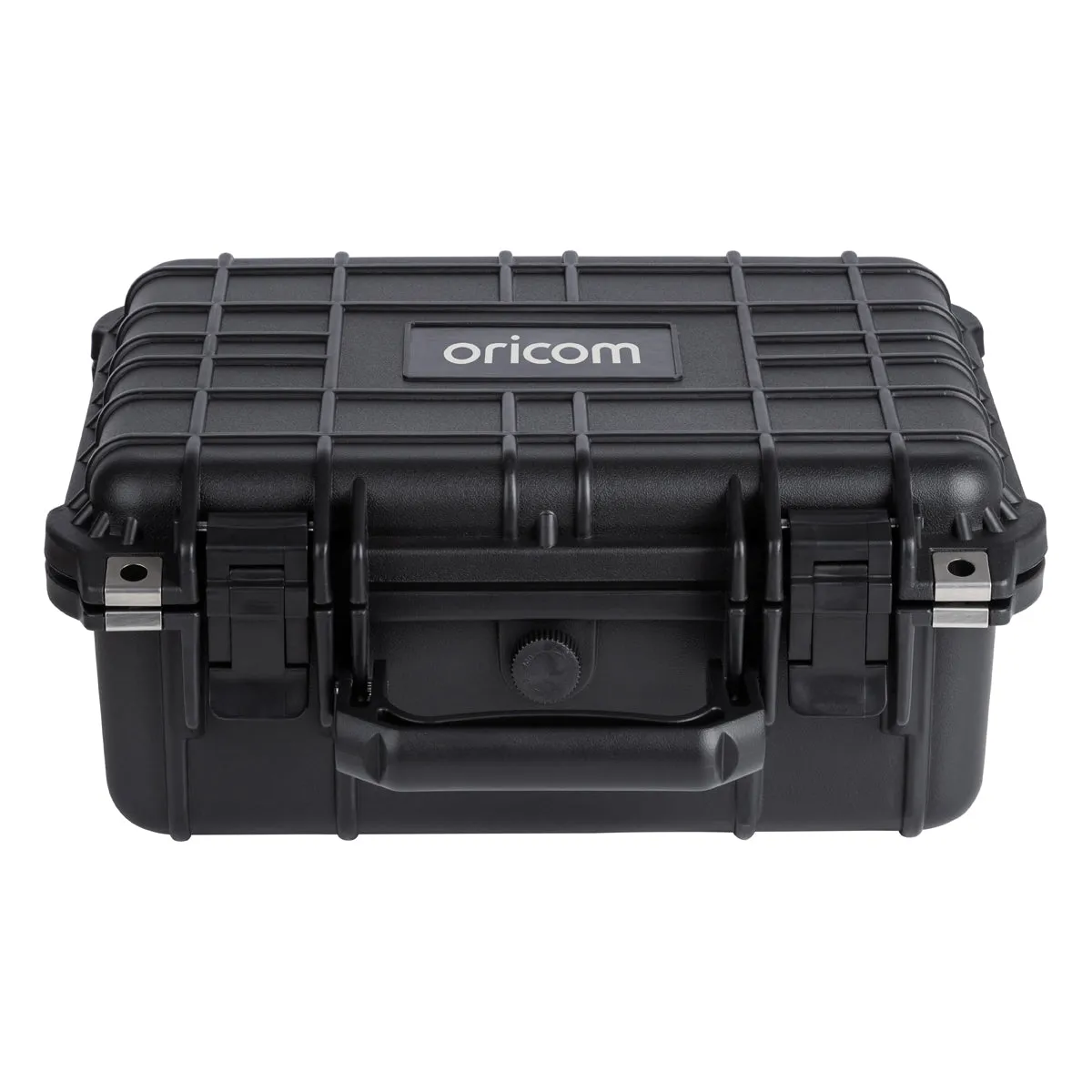

Heavy Duty Carry Case Included All components are housed in a purpose-built heavy duty carry case for organised, protected storage and easy transport between off-road trips.
2.5m Battery Clamp Power Cable Provides a direct, secure connection to the vehicle battery for reliable, high-current power delivery under load.

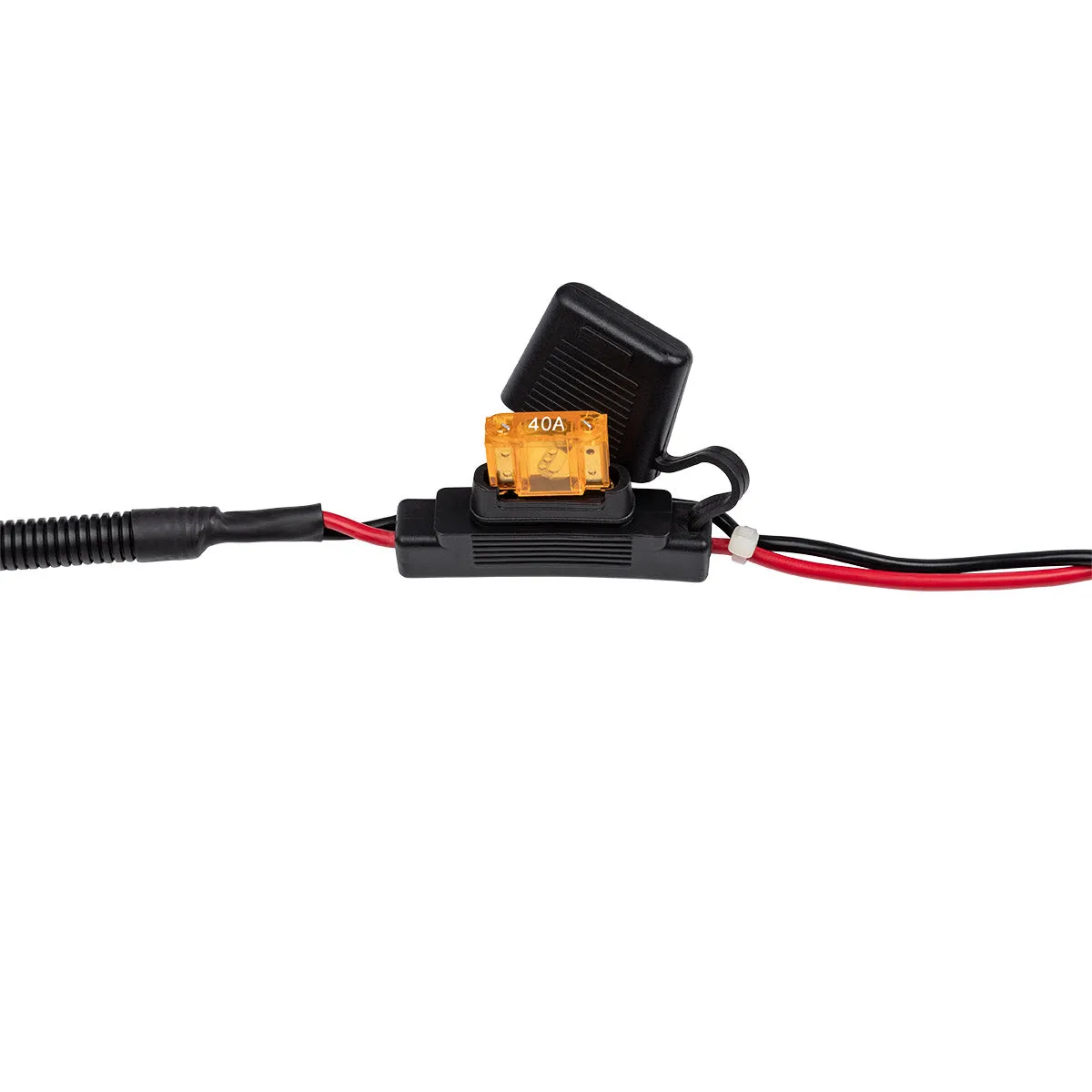

40A Inline Fuse Supplied A 40A inline fuse is supplied for electrical protection of both the unit and the vehicle's electrical system during operation.
Safety Certified Tested to meet AS/NZS 60335.1:2020 safety standards and EMC compliant with EN/IEC 55014-1:2021 for verified, reliable performance.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | AIR30KIT |
| Brand | Oricom |
| Number of Cylinders | 1 |
| Cylinder Bore Diameter | 44mm |
| Voltage | 12 to 13.8V DC |
| Current Draw Under Load | 32A |
| Current Draw No Load | 17A |
| Inline Fuse Supplied | 40A |
| Max Pressure | 150 PSI |
| Max Working Pressure | 120 PSI |
| Pressure Cutout Switch | 90 PSI ON / 120 PSI OFF |
| Air Flow Rate (0 PSI) | 75 L/min |
| Air Flow Rate (29 PSI) | 50 L/min |
| Air Flow Under Load (40 PSI) | 42 L/min |
| Duty Cycle | 20 min on / 40 min rest |
| Thermal Protection | Auto shut-off at 115 degrees Celsius |
| Hose Length | 6m |
| Hose Connector Type | NPT 1/4" Quick Connect |
| Power Cable | 2.5m with Battery Clamps |
| Air Filter | Yes |
| Carry Case | Heavy Duty, Included |
| Product Dimensions | 35 x 29.5 x 16 cm |
| Weight | 7.3 kg |
| Safety Certification | AS/NZS 60335.1:2020, EMC EN/IEC 55014-1:2021 |
| Warranty | 3 Years |

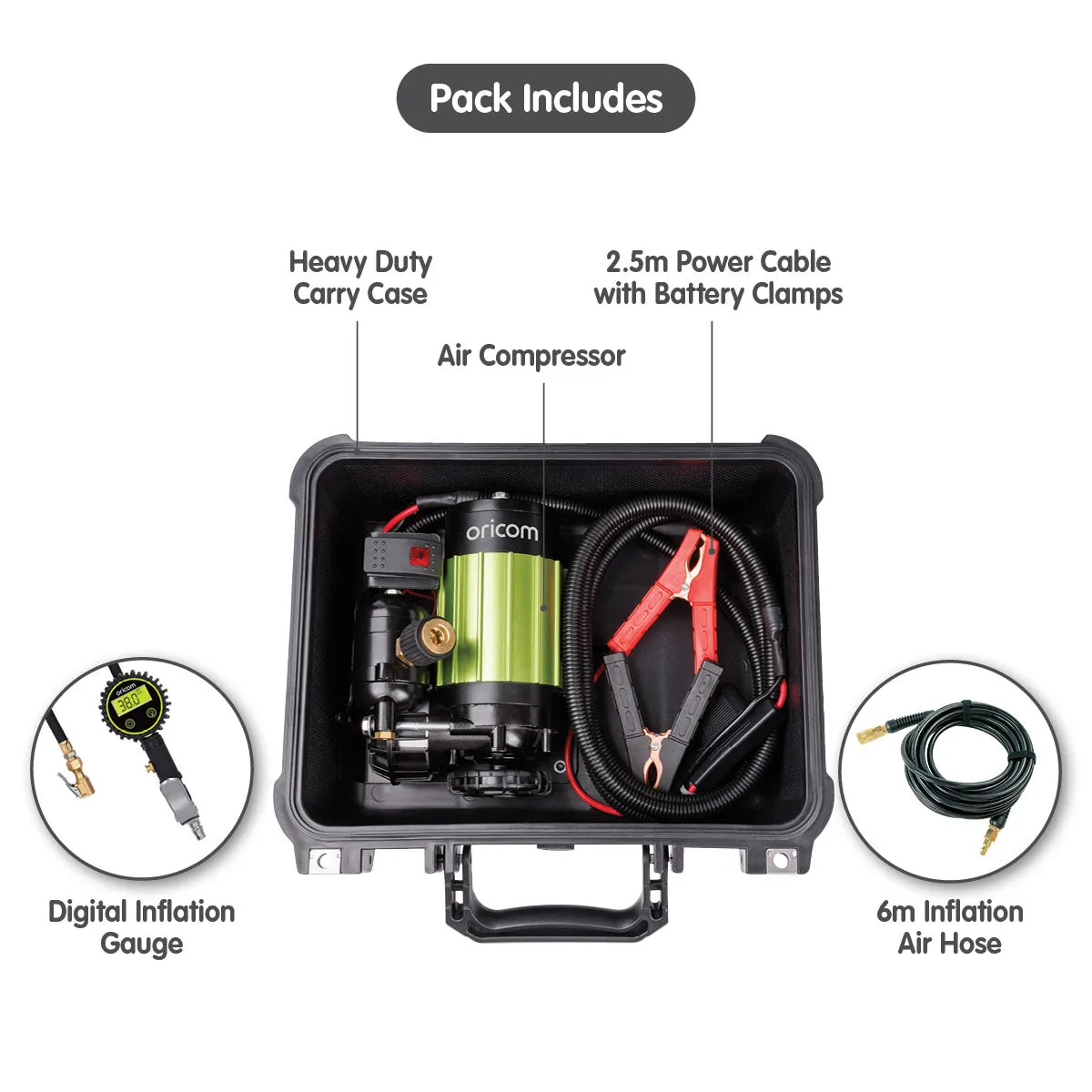

What's Included:
- 1 x Twin Tyre Inflator/Deflator Kit
- 1 x Air Compressor with Heavy Duty Case

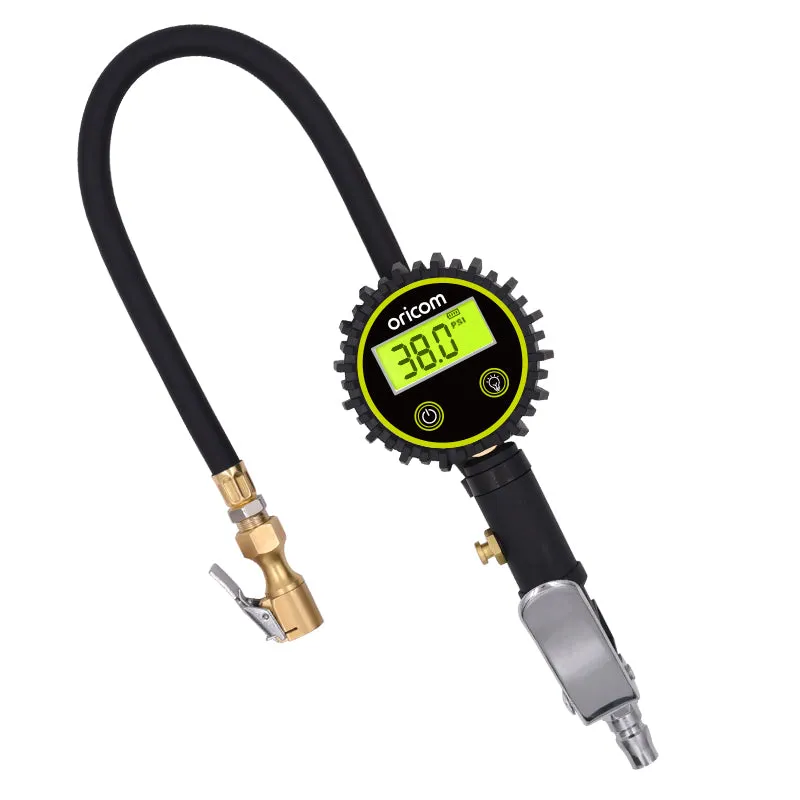

- 1 x Digital Pressure Gauge with Auto Shut-Off
- 1 x 6m Inflation Hose with 1/4" NPT Quick Connect Fitting
- 1 x 2.5m Power Cable with Battery Clamps
Compatible With / Goes Well With
The AIR30KIT suits 12V vehicles including 4WDs, SUVs, utes, and caravans. It is compatible with standard passenger, light truck, and heavy-duty off-road tyres within its 150PSI max pressure rating. The kit pairs well with a portable air tank for extended inflation capacity, recovery gear for full off-road preparedness, and a tyre pressure monitoring system for ongoing tyre health management on the trail.
Frequently Asked Questions
How does the automatic pressure cutout switch work?
The pressure cutout switch automatically turns the compressor off when the tyre reaches 120PSI and turns it back on if pressure drops to 90PSI. This allows for precise, hands-free pressure management during inflation without the risk of over-inflating the tyre.
How long can I run the AIR30 compressor continuously?
The AIR30 has a duty cycle of 20 minutes on and 40 minutes rest. For extended inflation tasks such as reinflating all four tyres after a full airing down, it is recommended to allow the compressor to cool between sessions. The thermal protection will also automatically shut the unit off at 115 degrees Celsius if the motor temperature exceeds safe operating limits.
What is the Twin Tyre Inflator/Deflator Kit used for?
The Twin Tyre Inflator/Deflator Kit allows simultaneous, controlled deflation of two tyres at once before heading off-road, making the airing-down process faster and more efficient. It pairs directly with the AIR30 compressor for a complete inflate and deflate solution in a single kit.
Is the AIR30KIT certified to Australian safety standards?
Yes. The AIR30KIT is tested to meet AS/NZS 60335.1:2020 safety standards and is EMC compliant with EN/IEC 55014-1:2021, providing verified, reliable performance for Australian conditions.
Can I use the AIR30KIT with a caravan or trailer?
Yes. The AIR30 is suitable for inflating caravan and trailer tyres that fall within its 150PSI max pressure rating. The 6m hose provides good reach for larger rigs without repositioning the compressor or the tow vehicle.
