Oricom AIR20KIT Portable Compressor with Backlit Display + Tyre Deflator Combo
Oricom AIR20KIT Portable Compressor with Backlit Display + Tyre Deflator Combo
A high-performance portable air compressor and tyre deflator combo built for 4WDs and off-road vehicles, delivering 200PSI max pressure, 70L/min air flow, a 7.5m inflation hose, auto shut-off, and thermal protection for fast, safe, and reliable tyre inflation in the field.
Product Overview

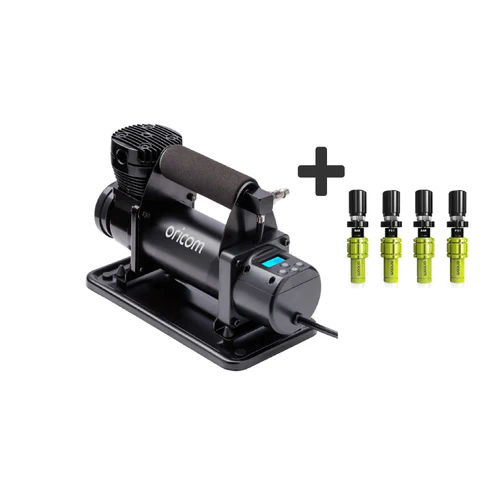

The Oricom AIR20KIT combines the AIR20 Digital Portable Air Compressor with a set of four Oricom Tyre Deflators for a complete inflate and deflate solution purpose-built for 4WD and off-road use. With a maximum pressure of 200PSI and a max air flow rate of 70L/min from a fully deflated tyre, the AIR20 delivers fast, efficient inflation for everything from standard passenger tyres to heavy-duty off-road rubber.

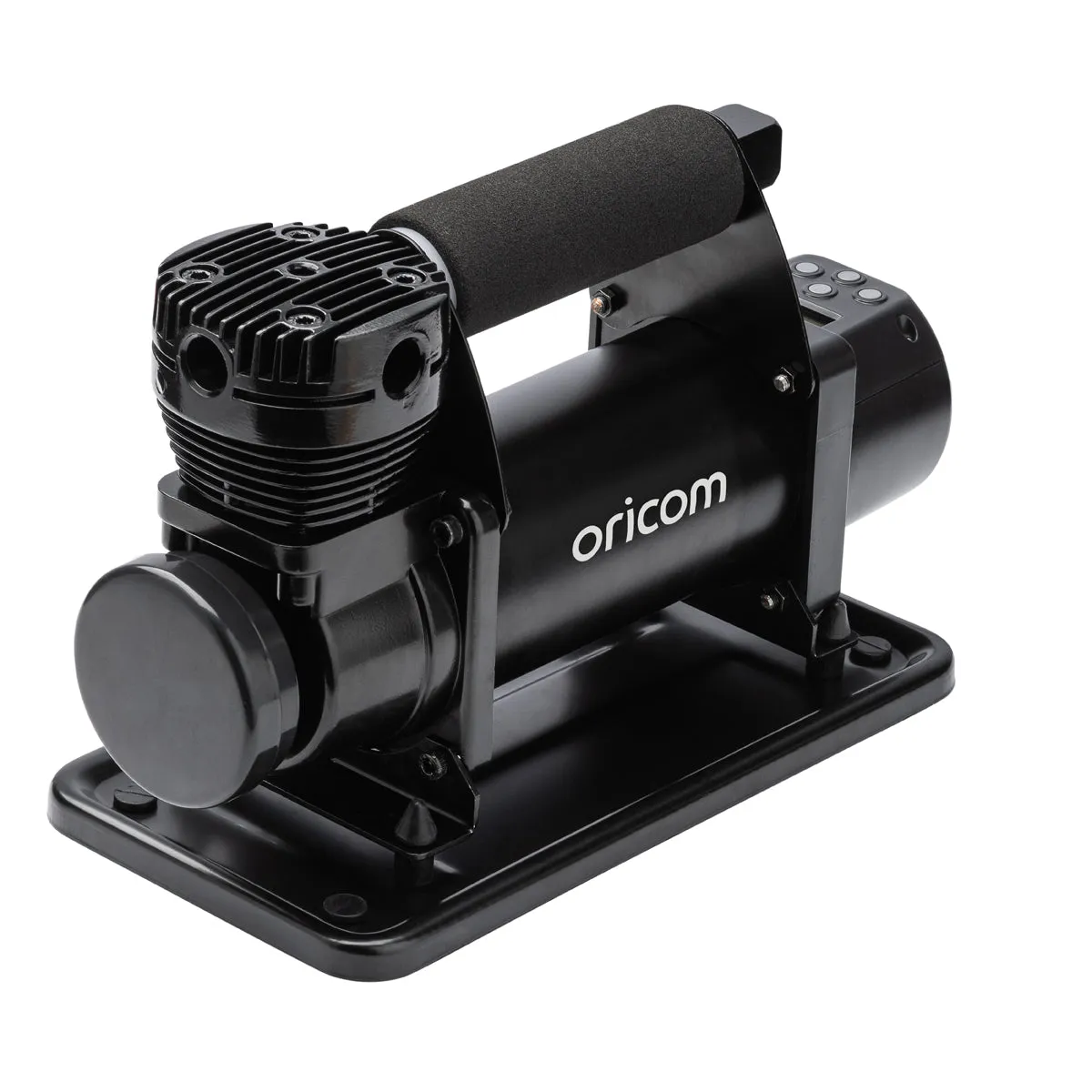

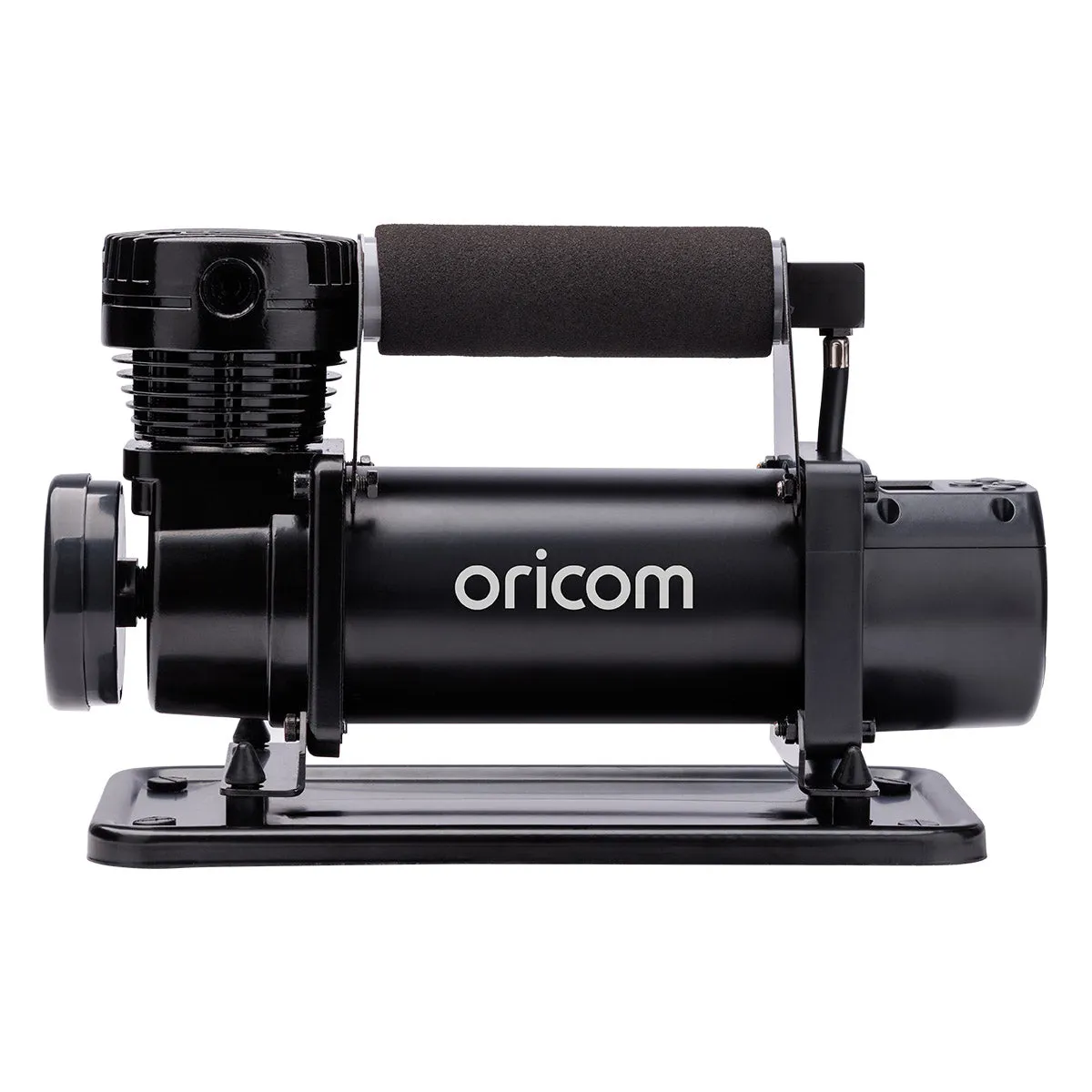

The AIR20 compressor features a backlit integral digital pressure gauge with automatic shut-off, stopping inflation precisely when the target pressure is reached to prevent over-inflation. A thermally protected motor automatically shuts the unit off at 115 degrees Celsius to protect against overheating during extended use, with a duty cycle of 30 minutes on and 30 minutes rest for sustained field reliability. The 3m battery clamp power cable provides a direct, secure connection to the vehicle battery, while the 7.5m inflation hose with NPT quarter-inch quick connect fitting gives ample reach around the vehicle without moving the compressor.
The included washable air filter protects the motor from dust and debris in the harsh environments where this compressor is designed to operate. A carry bag keeps all components organised for easy transport and storage between trips.
Features & Benefits
200PSI Maximum Pressure Delivers ample pressure for inflating a wide variety of vehicle tyres, from standard passenger to high-performance off-road and heavy-duty 4WD tyres.
70L/Min Maximum Air Flow Rate Fast inflation from completely deflated tyres reduces waiting time on the trail and enhances overall efficiency during tyre rotations and pressure checks.

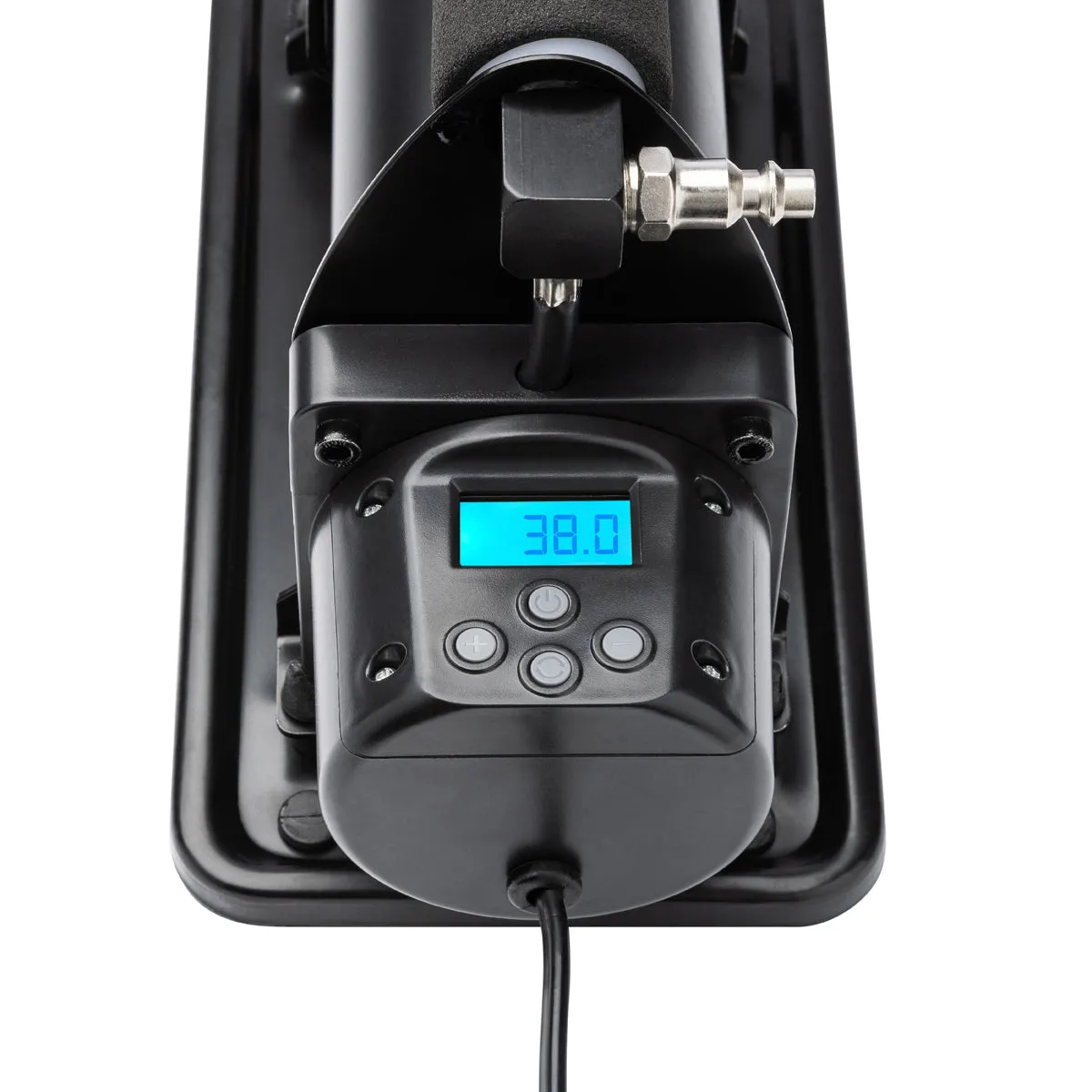

Backlit Integral Digital Pressure Gauge with Auto Shut-Off The backlit digital display allows accurate tyre pressure monitoring in low-light conditions, and the automatic shut-off stops inflation precisely at the target pressure to prevent over-inflation.
Thermally Protected Motor Automatically shuts off at 115 degrees Celsius to prevent overheating during extended or heavy-duty inflation use, protecting the motor and extending the compressor's service life.

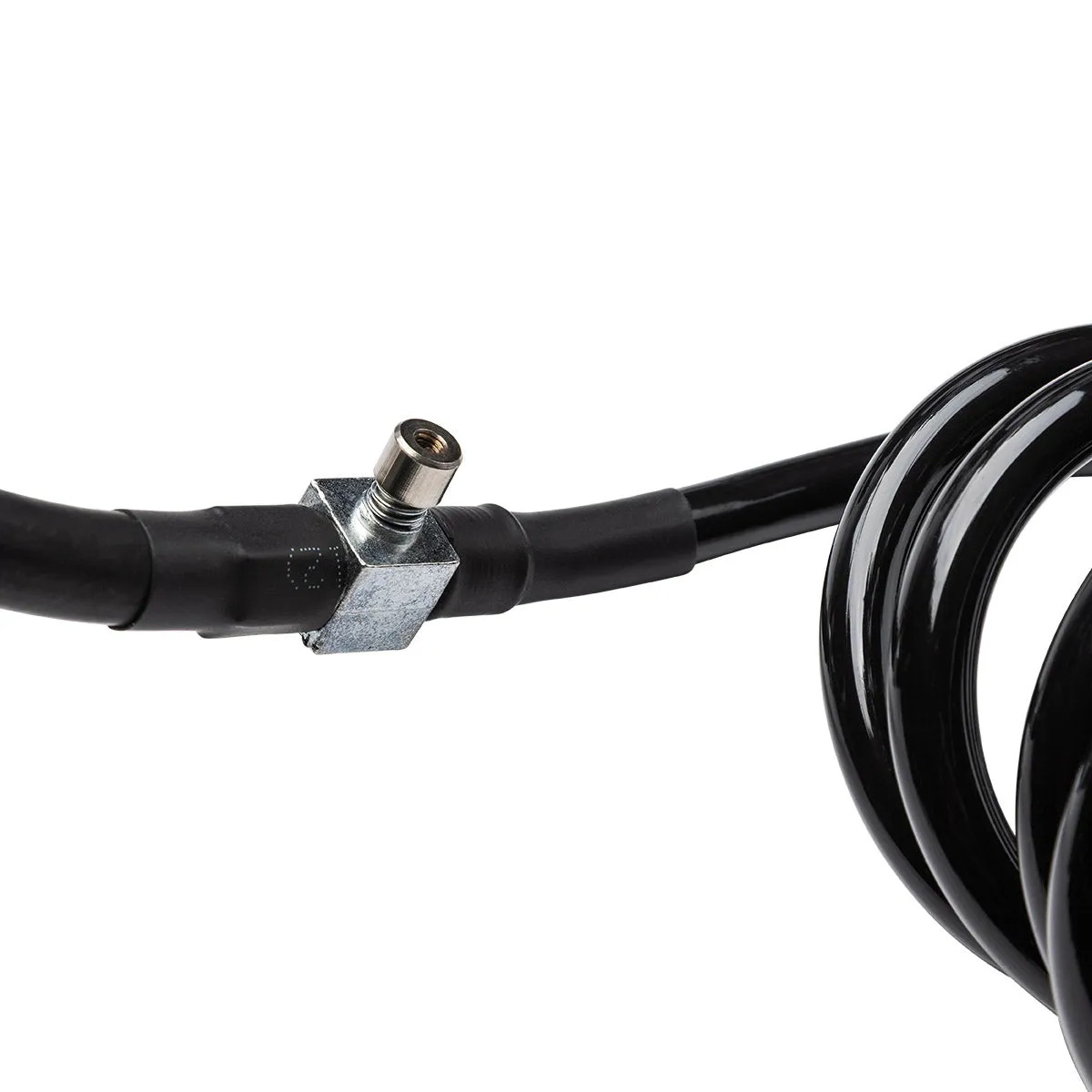

7.5m Inflation Hose with Quick Connect Fitting The generous 7.5m hose with NPT quarter-inch quick connect fitting provides ample reach to all four tyres without repositioning the compressor.

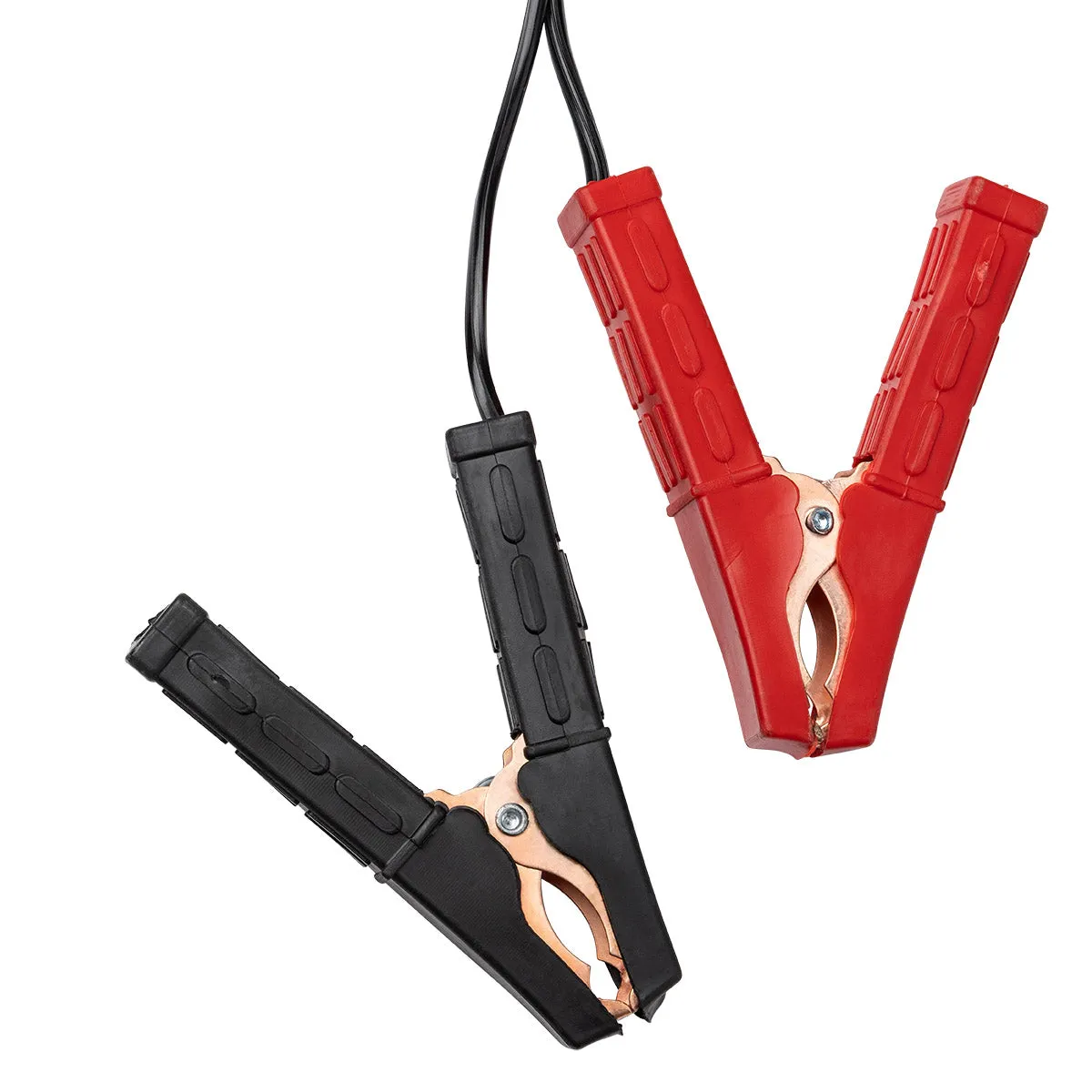

3m Battery Clamp Power Cable Provides a direct, secure connection to the vehicle battery for reliable, high-current power delivery under load.

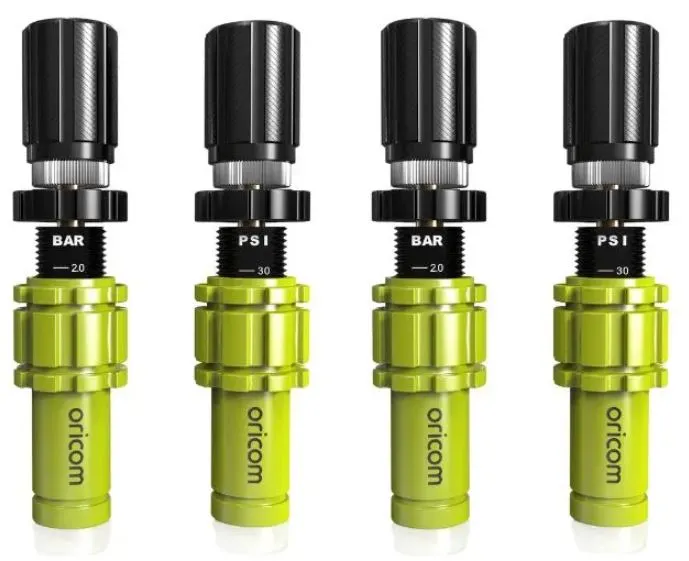

Set of 4 Tyre Deflators Included The four Oricom Tyre Deflators allow fast, controlled tyre deflation before heading off-road, completing a full inflate and deflate solution in a single kit.
Washable Air Filter The integrated washable air filter protects the motor from dust and debris in harsh off-road environments and is reusable for long-term reliability.

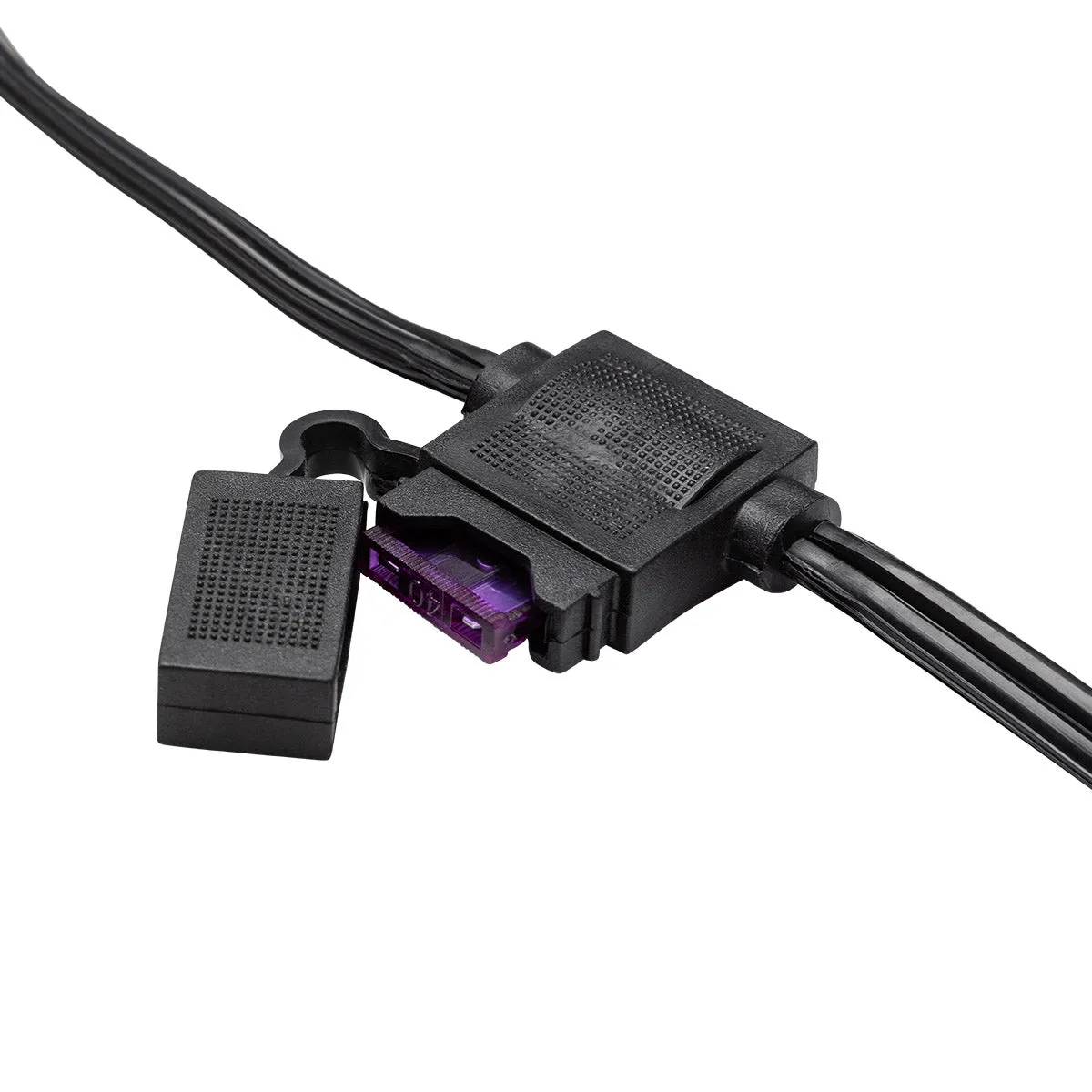

40A Inline Fuse Supplied A 40A inline fuse is supplied with the compressor for electrical protection of both the unit and the vehicle's electrical system.

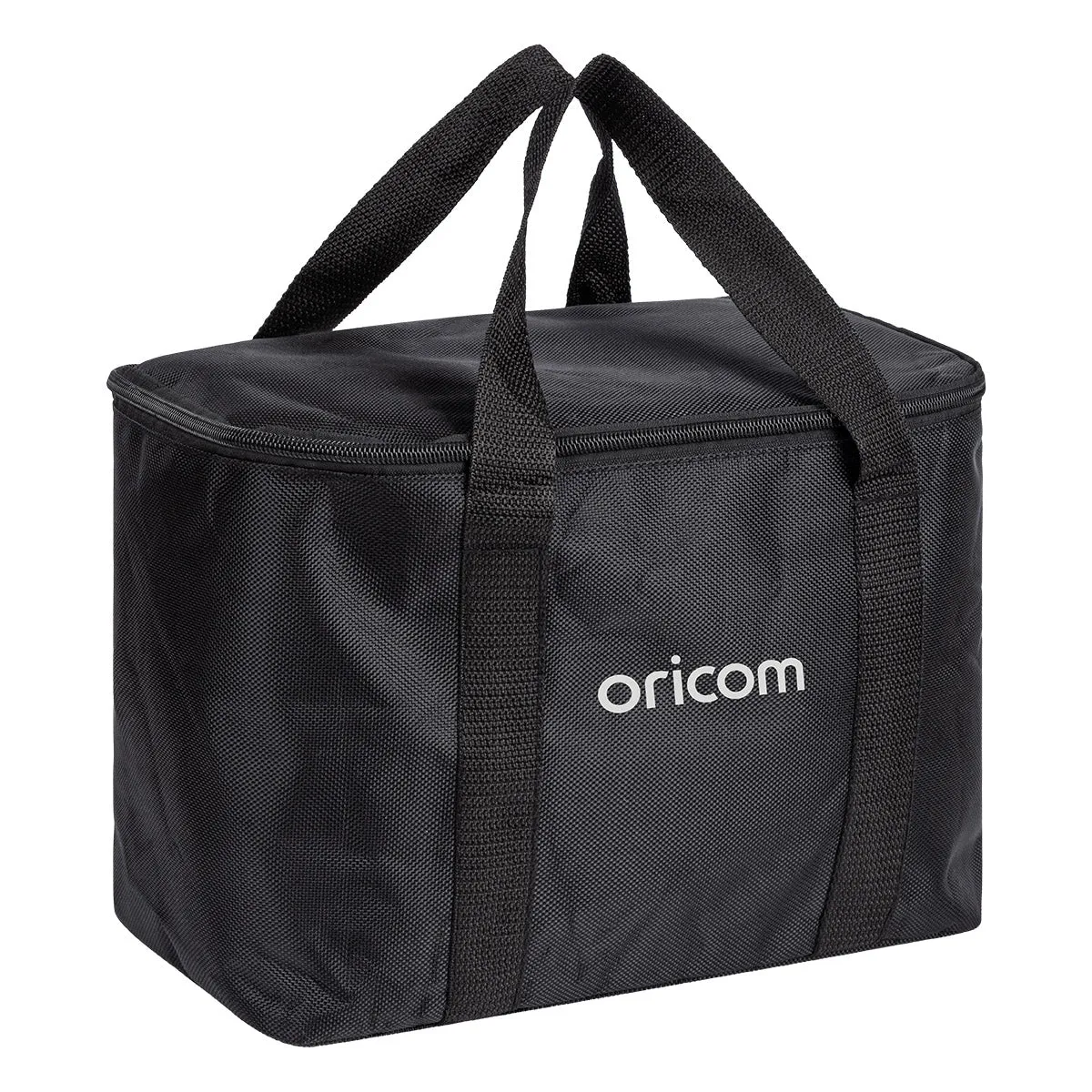

Carry Bag Included All components are housed in a carry bag for organised, protected transport and storage between 4WD trips.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | AIR20KIT |
| Brand | Oricom |
| Voltage | 12 to 13.8V DC |
| Current Draw Under Load | 32A |
| Current Draw No Load | 18A |
| Inline Fuse Supplied | 40A |
| Max Pressure | 200 PSI |
| Max Working Pressure | 150 PSI |
| Automatic Shut-Off | Yes (upon reaching set pressure) |
| Air Flow Rate (0 PSI) | 70 L/min |
| Air Flow Rate (29 PSI) | 50 L/min |
| Air Flow Under Load (40 PSI) | 48 L/min |
| Cylinder Bore Diameter | 40mm |
| Duty Cycle | 30 min on / 30 min rest |
| Thermal Protection | Auto shut-off at 115 degrees Celsius |
| Hose Length | 7.5m |
| Hose Connector Type | NPT 1/4" Quick Connect |
| Power Cable | 3m with Battery Clamps |
| Washable Air Filter | Yes |
| Product Dimensions | 30 x 13.5 x 19 cm |
| Weight | 5.8 kg |
| Warranty | 3 Years |

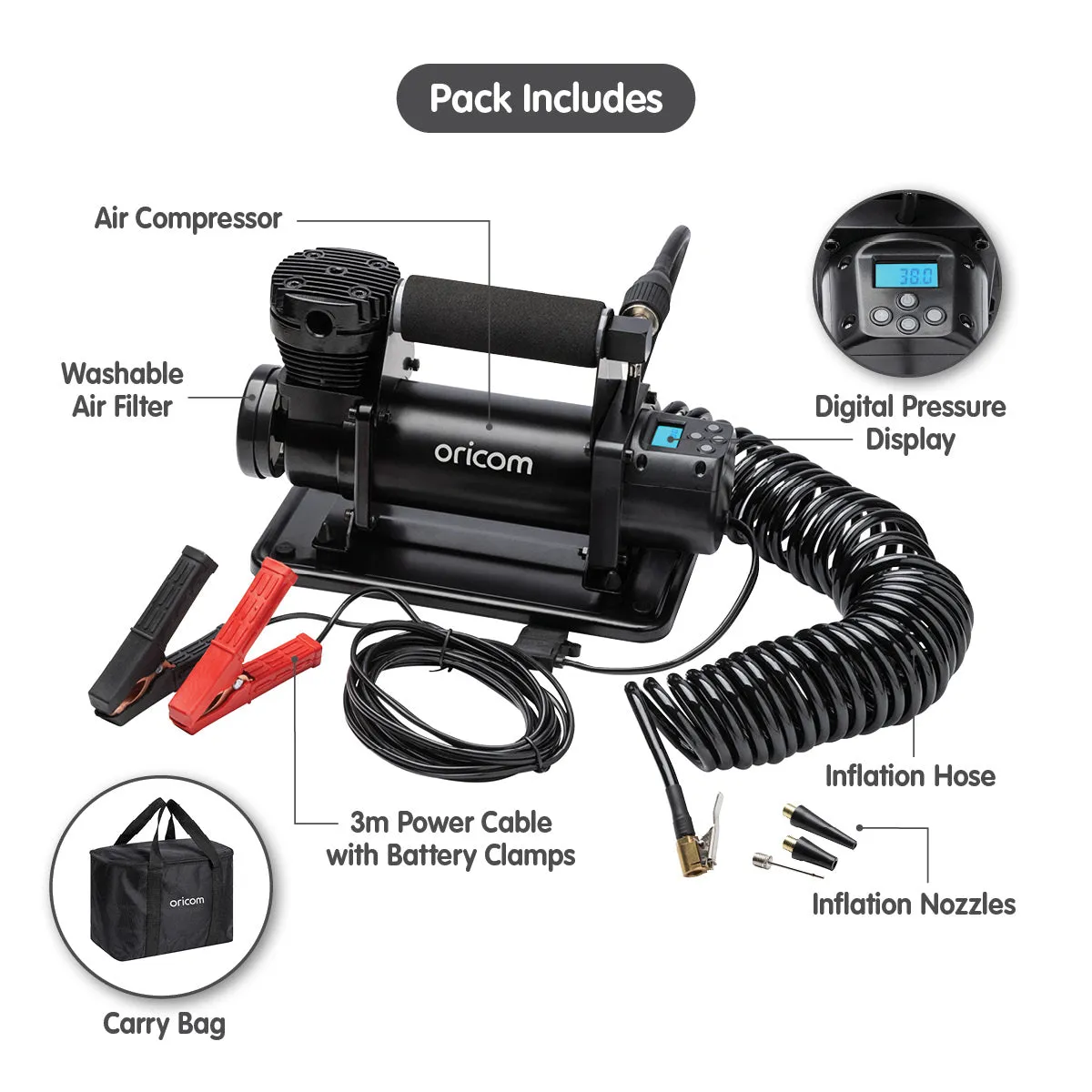

What's Included:
- 1 x Set of 4 Oricom Tyre Deflators
- 1 x Digital Air Compressor
- 1 x Washable Air Filter
- 1 x Integral Digital Pressure Gauge with Auto Shut-Off
- 1 x 7.5m Inflation Hose with 1/4" NPT Quick Connect Fitting
- 1 x 3m Power Cable with Battery Clamps

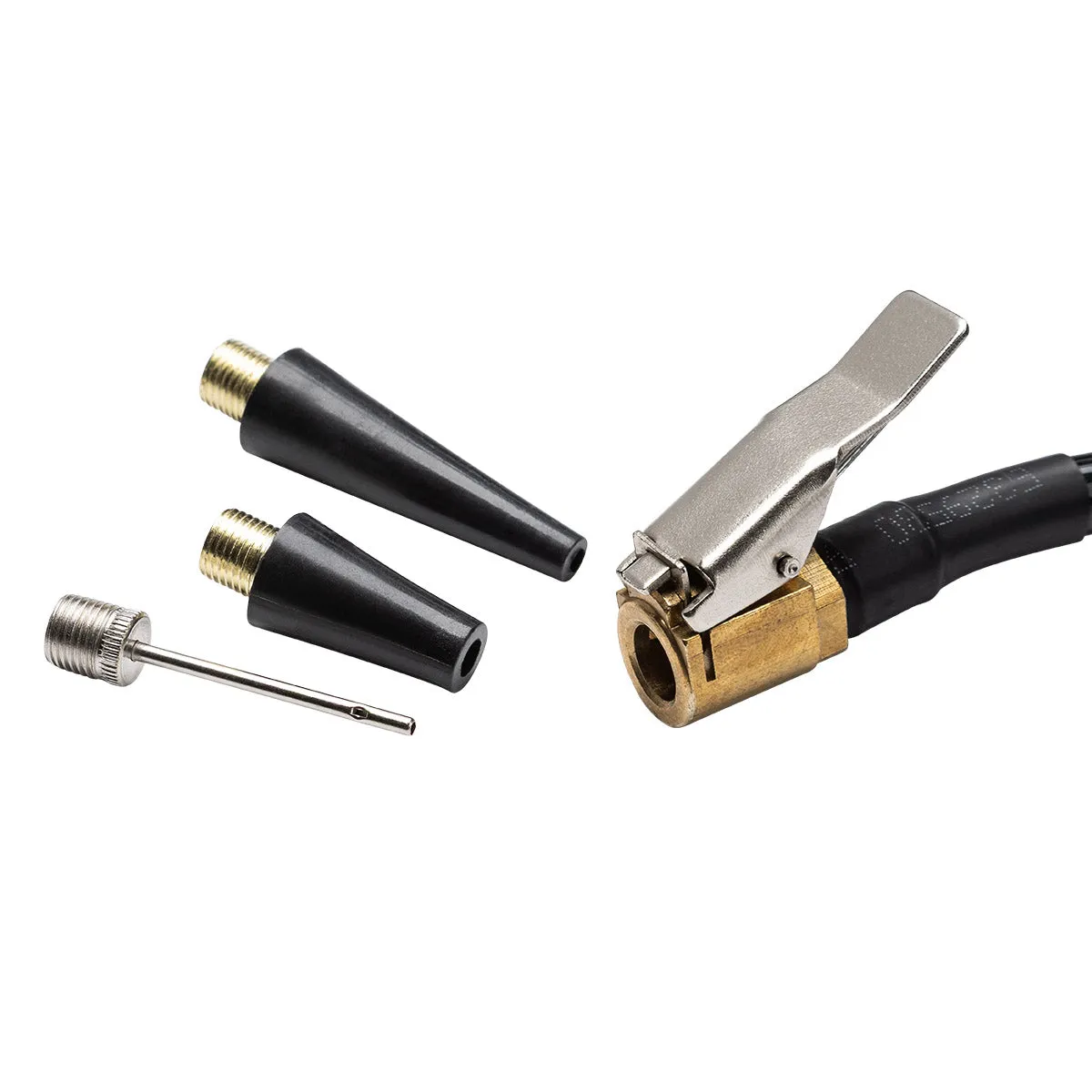

- 3 x Inflation Nozzles
- 1 x Carry Bag
Compatible With / Goes Well With
The AIR20KIT suits 12V vehicles including 4WDs, SUVs, utes, and caravans. It is compatible with standard passenger, light truck, and heavy-duty off-road tyres within its 200PSI max pressure rating. The kit pairs well with a portable air tank for extended inflation capacity, recovery gear for full off-road preparedness, and a tyre pressure monitoring system for ongoing tyre health management on the trail.
Frequently Asked Questions
What is the difference between the 200PSI max pressure and the 150PSI max working pressure?
The 200PSI max pressure is the peak pressure the compressor is capable of generating. The 150PSI max working pressure is the rated sustained operating pressure for reliable, continuous inflation under load. For most 4WD and passenger vehicle tyres, operating well within the 150PSI max working pressure range is standard practice.
How long can I run the AIR20 compressor continuously?
The AIR20 has a duty cycle of 30 minutes on and 30 minutes rest. For extended inflation tasks such as reinflating all four tyres after a full airing down, it is recommended to allow the compressor to cool between sessions. The thermal protection will also automatically shut the unit off at 115 degrees Celsius if the motor temperature exceeds safe operating limits.
Can I use the AIR20KIT with a caravan or trailer tyres?
Yes. The AIR20 is suitable for inflating caravan and trailer tyres that fall within its 200PSI max pressure and 150PSI max working pressure ratings. The 7.5m hose provides ample reach for larger rigs without repositioning the compressor or the tow vehicle.
Does the auto shut-off work accurately at the pressure I set on the display?
Yes. The integral digital pressure gauge with automatic shut-off stops inflation when the target pressure set on the backlit display is reached, preventing over-inflation. This makes it easy to reinflate all four tyres to a consistent, accurate pressure after airing down for off-road driving.
Are the tyre deflators compatible with all valve types?
The four included Oricom Tyre Deflators are designed for use with standard Schrader valves, which are fitted to the vast majority of passenger, 4WD, caravan, and trailer tyres in Australia. Contact F.A.E. if you require clarification on compatibility with specific valve types on your vehicle.
