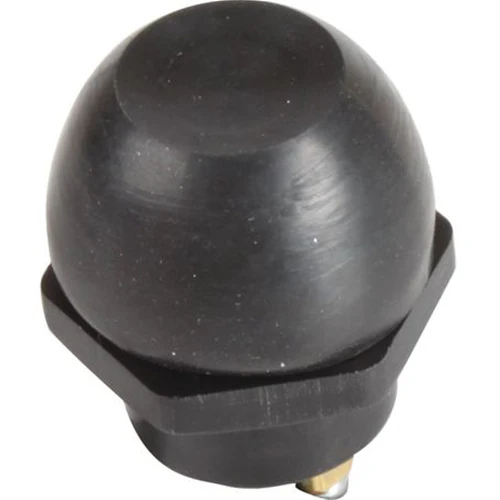

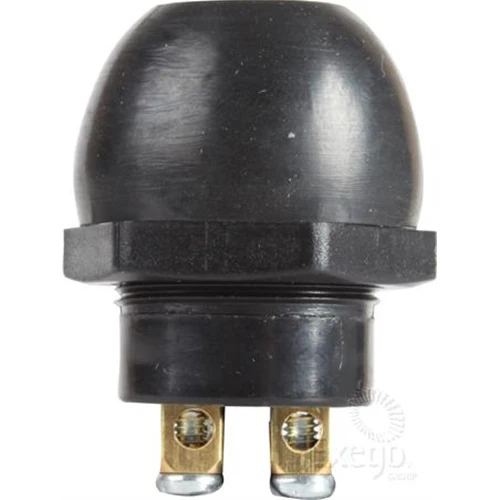

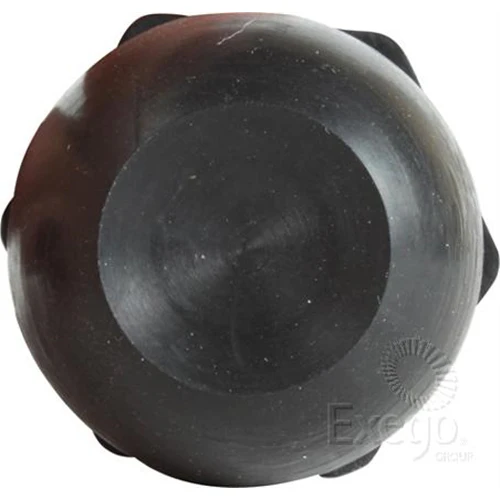

OEX ACX3609BL Push Button Switch Off Momentary On SPST (Contacts Rated 20A @ 12V)

OEX Push Button Switch Off Momentary On SPST (Contacts Rated 20A @ 12V)

OEX ACX3609BL Features:

• Water Resistant
• Off/Momentary On, Normally Off
• On with the button depressed, the spring returns to Off

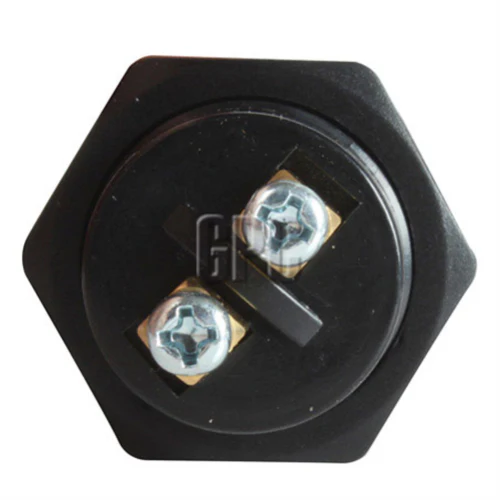

• 2 Screw Terminals
• Bronze Contacts
• Mounting stem: 22.00mm metric thread, 6.95mm long
• 22.00mm diameter and fits panel thickness up to 6.35mm

OEX ACX3609BL Specifications:

• Number of Terminals: 2
• Power Rating: 20A
• Switch Action: Off - Mom On - SPST
• Voltage: 12V
• Mount Diameter: 22mm
• Mount Length: 6mm
• Number of Poles: 1
• Number of Positions: 2
• Switch Type: Push
• Item Type: Switch
• Switch Illumination: Non-Illuminated
• Weight: 0.03kg
