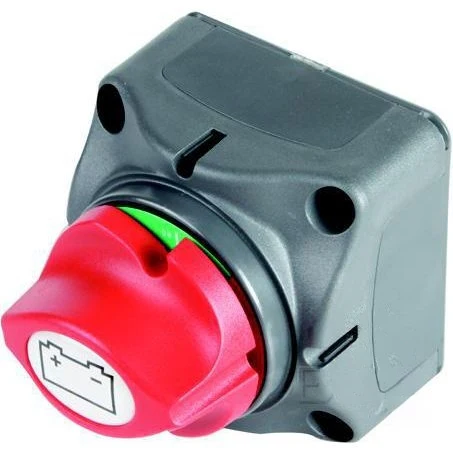

OEX ACX3412 Battery Master Isolation Switch On/Off SPST (Contacts Rated 275A @ 12V)

OEX Battery Master Isolation Switch On/Off SPST (Contacts Rated 275A @ 12V)

OEX ACX3412 Features:

• 12 - 48V
• 275 Amp
• Function: On - Off - SPST
• 2 x 10mm stud terminals
• Corrosion-resistant black plastic housing
• The key is removable by rotating 45° counter-clockwise however it is unable to be removed in either the on or off position
• Built-in self-cleaning sliding contact
• Removable rear cover and side panels
• The switch can be surface mounted or recessed into a panel, recessed mount requires a 52mm hole
• Dimensions: 68mm x 74mm

OEX ACX3412 Specifications:

• Warranty One Year
• Number of Terminals 2
• Power Rating 275
• Switch Action On - Off - SPST
• Voltage 12 - 48V
• Lamp Colour/s Not Applicable
• Number of Poles 1
• Number of Positions 2
• Switch Type Battery Master / Isolation
• Item Type Switch
• Switch Illumination Non Illuminated
• Weight .24kg
