OEX ACX0804L | 4mm 100m Roll Automotive Cable | Twin CoreFigure 8 Red With Black Trace

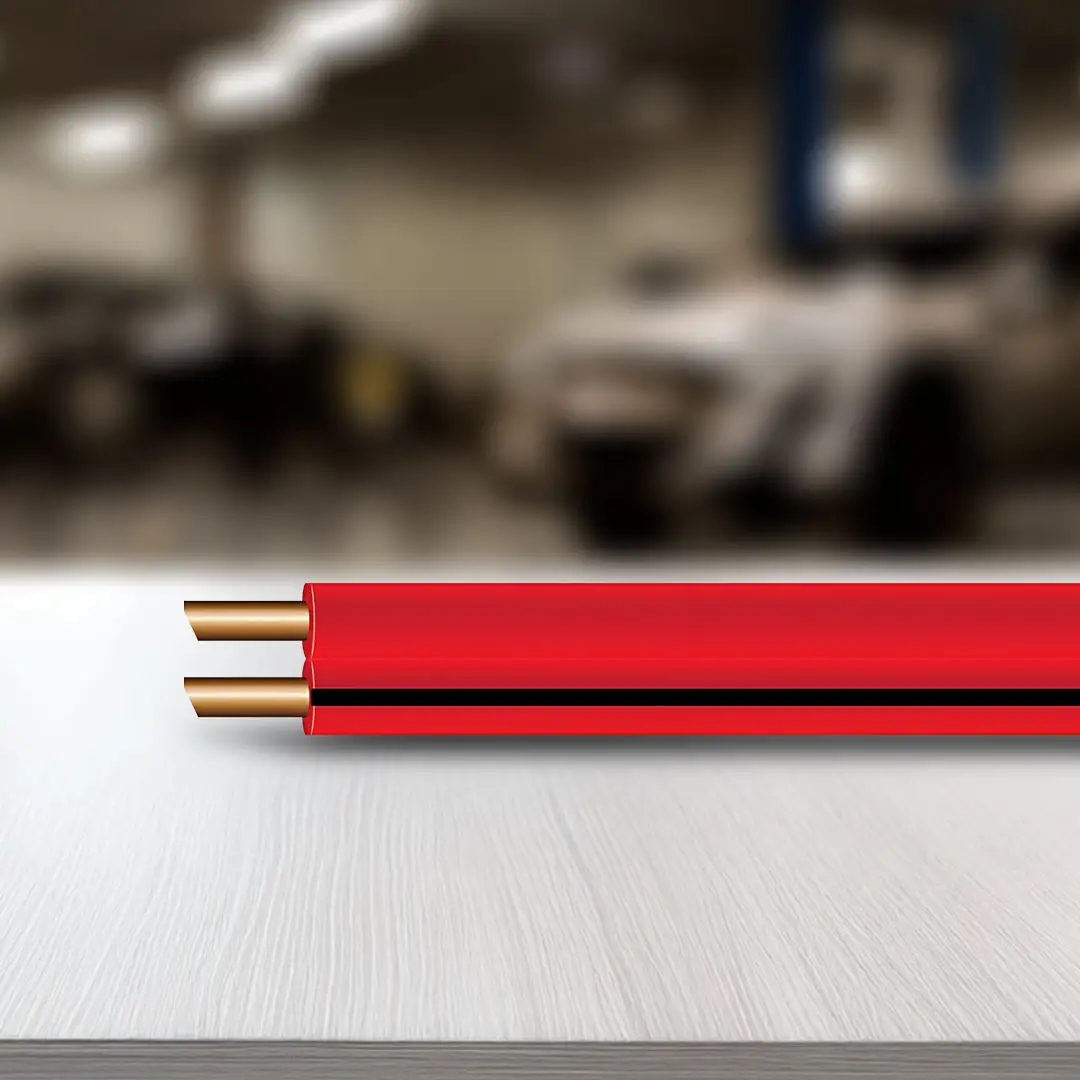

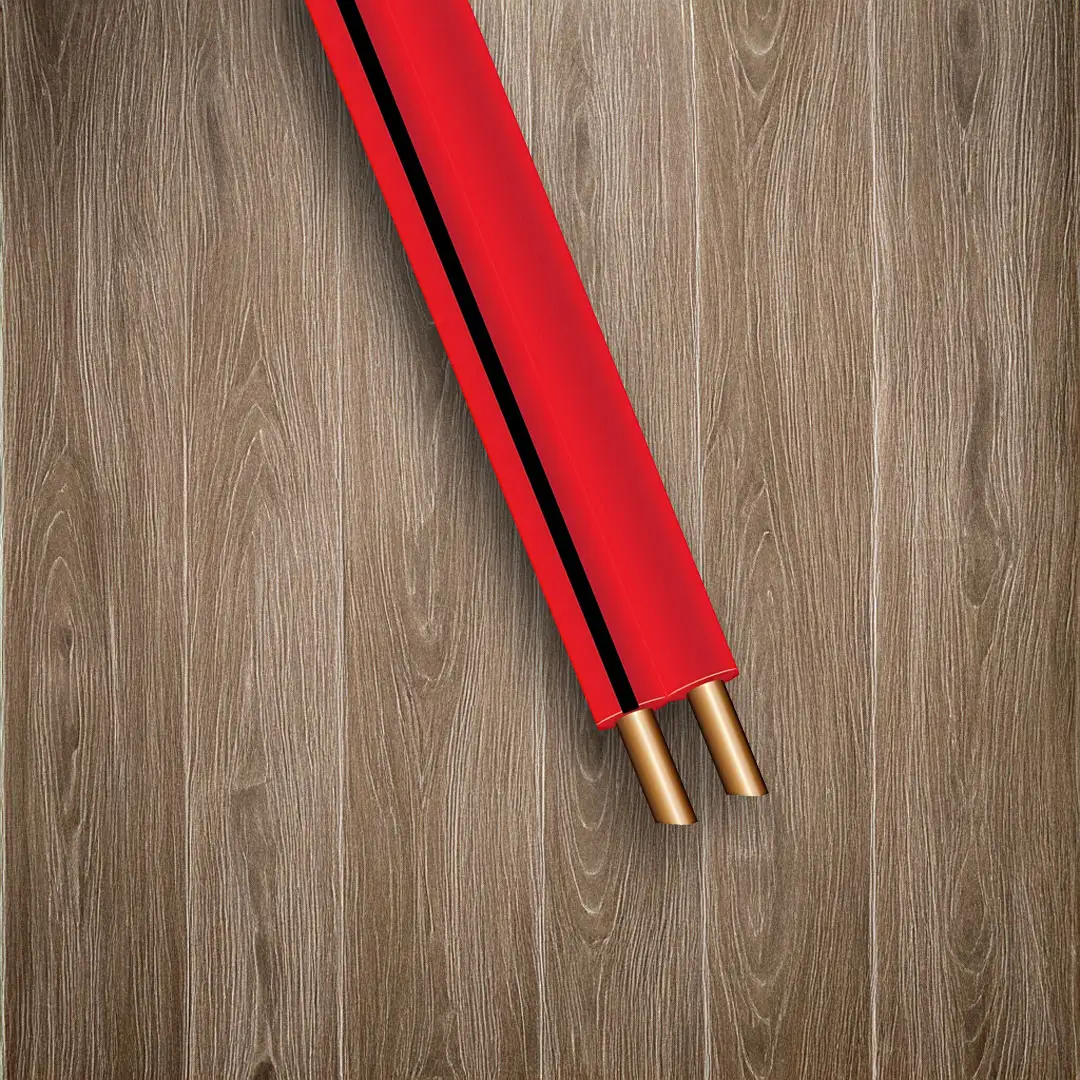

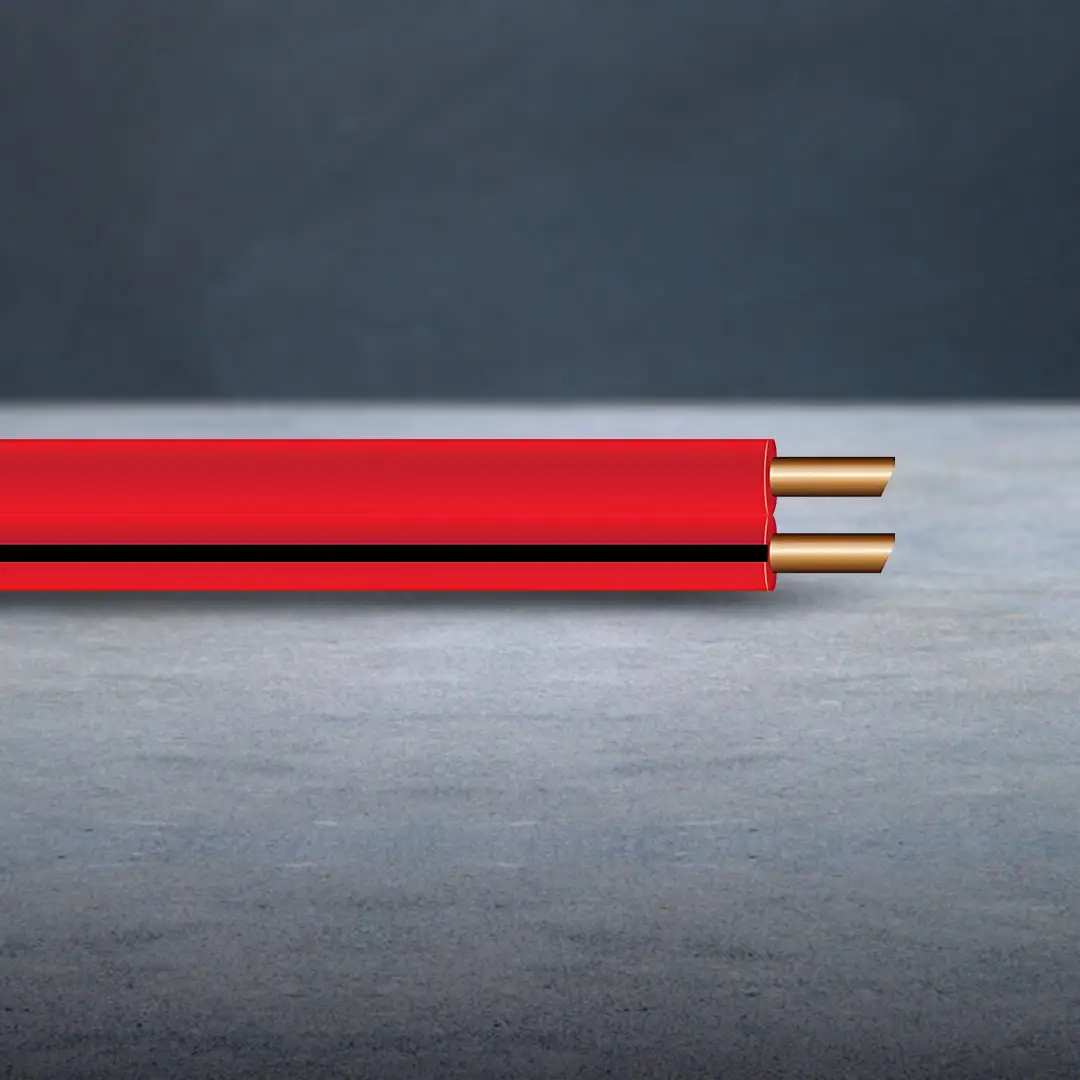

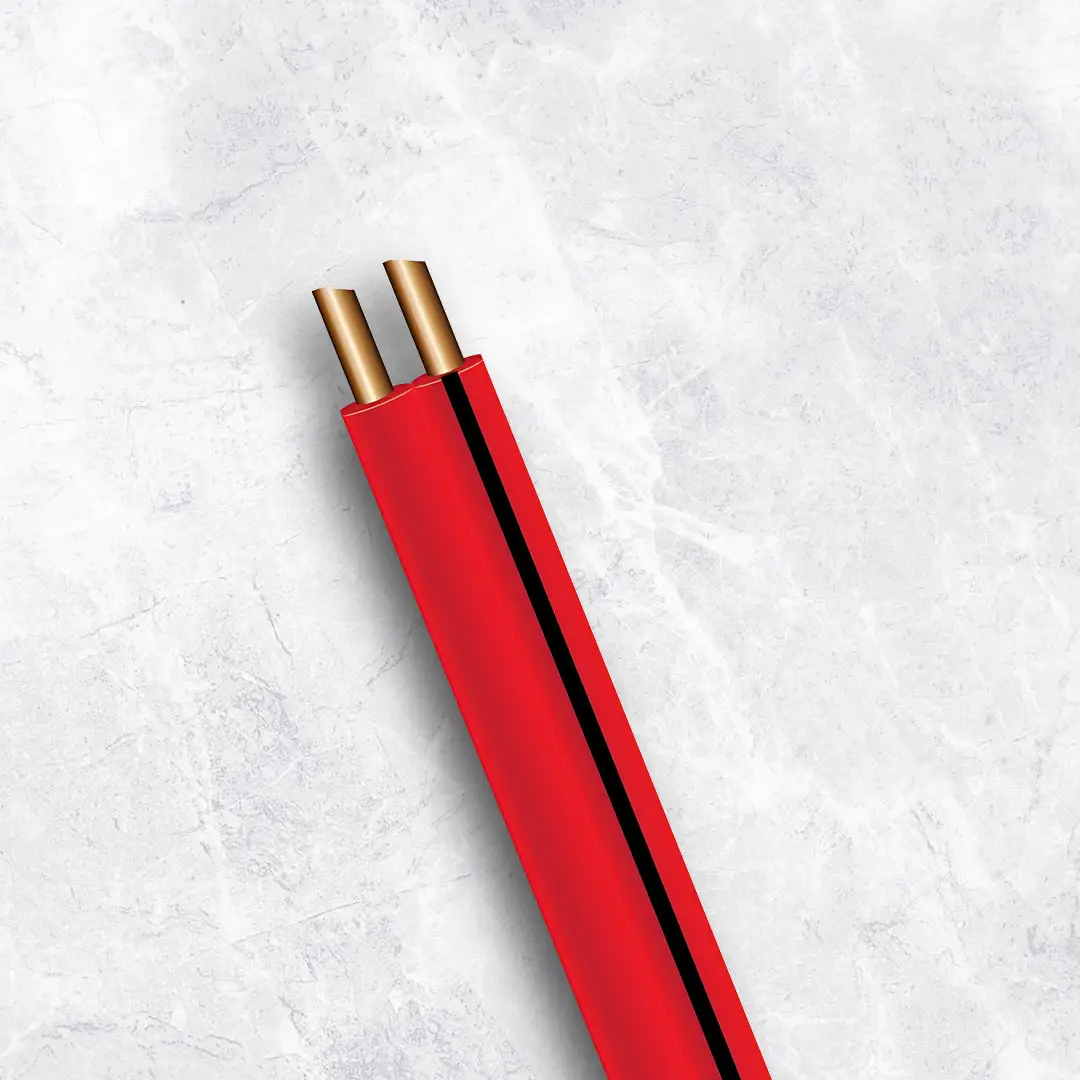

OEX 4mm Twin Core Automotive Cable, Figure 8, Red With Black Trace - 100m Roll

OEX ACX0804L Features:

• OEX 4mm Twin Core Automotive Cable, Figure 8

• Colour: Red, Red with Black Trace

• Cable diameter: 4mm

• Cable Length: 100 metres

• Amp rating: 15A at 30°C

• Oxygen Free High Conductivity Copper

• UV Stabilised and ROHS approved

• Temp rating: V90 (90°C)

OEX ACX0804L Specifications:

• Warranty One Year

• Conductor Strand Diameter.3mm

• Number of Conductor Strands 26

• Trace Colour    Black

• Conductor Cross Section 1.84mm2

• Note Oxygen Free Copper

• Length 100m

• Cable Size 4mm

• Cable Type Figure 8

• Gauge 15

• Item Type Twin Core Cable

• NZ Code 153

• Environmental UV Stabilized

• Cable Colour  Red

• Temp Rating  V90 (90C)

• Voltage Rating  Up to 110V

• Conductor Material Copper

• Compliance  AS/NZ 3808:2000 & RoHS

• Insulation Type PVC

• Weight  4.3kg
