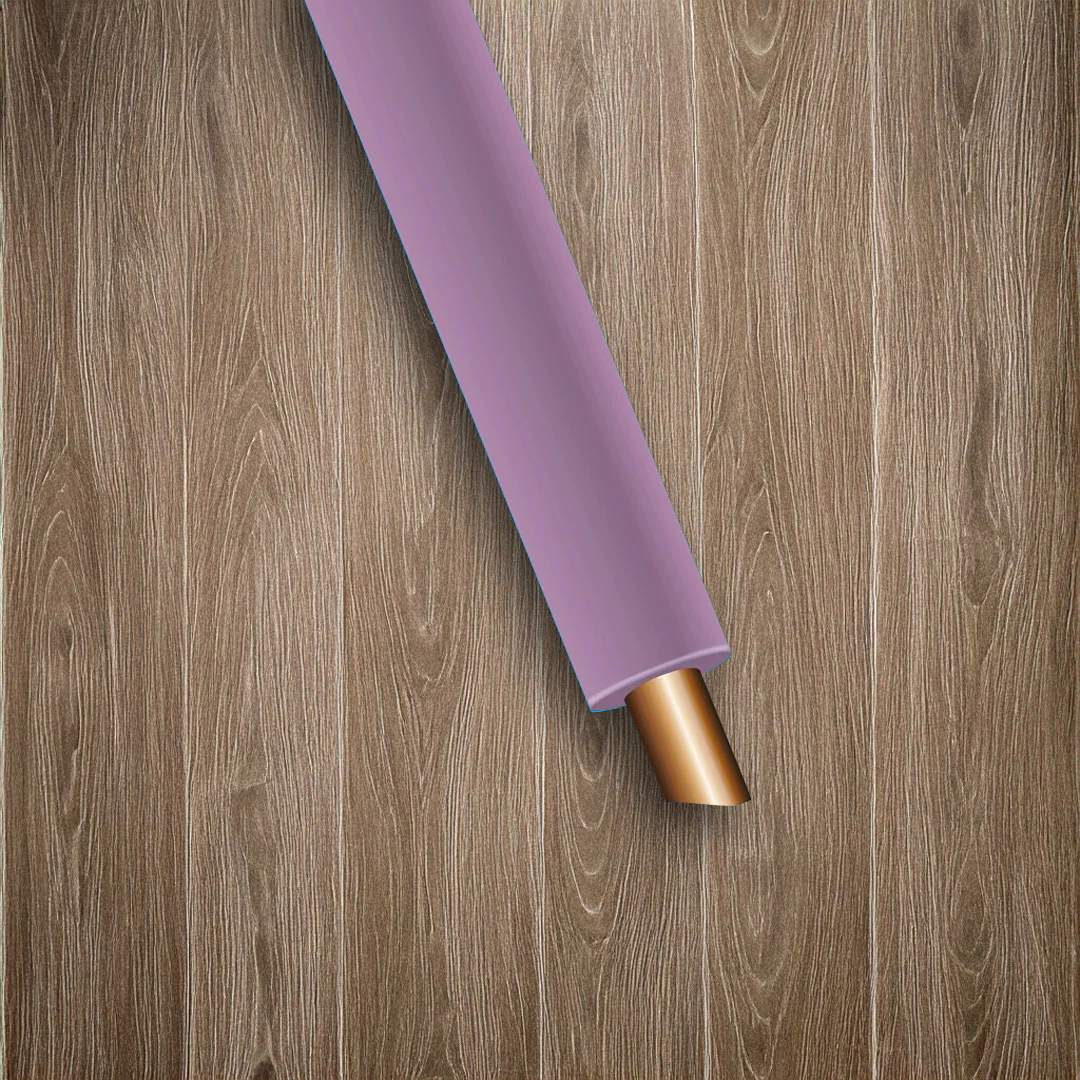

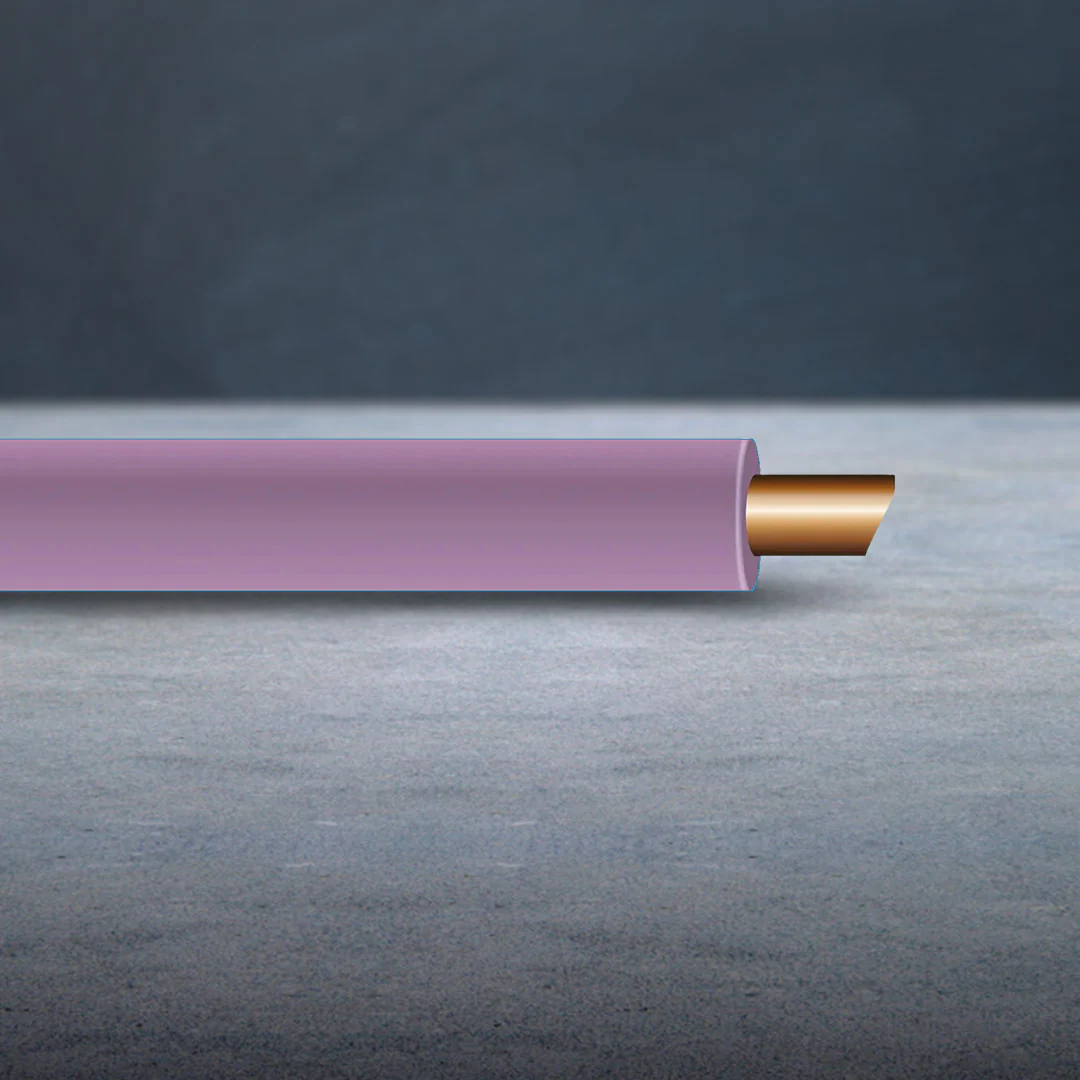

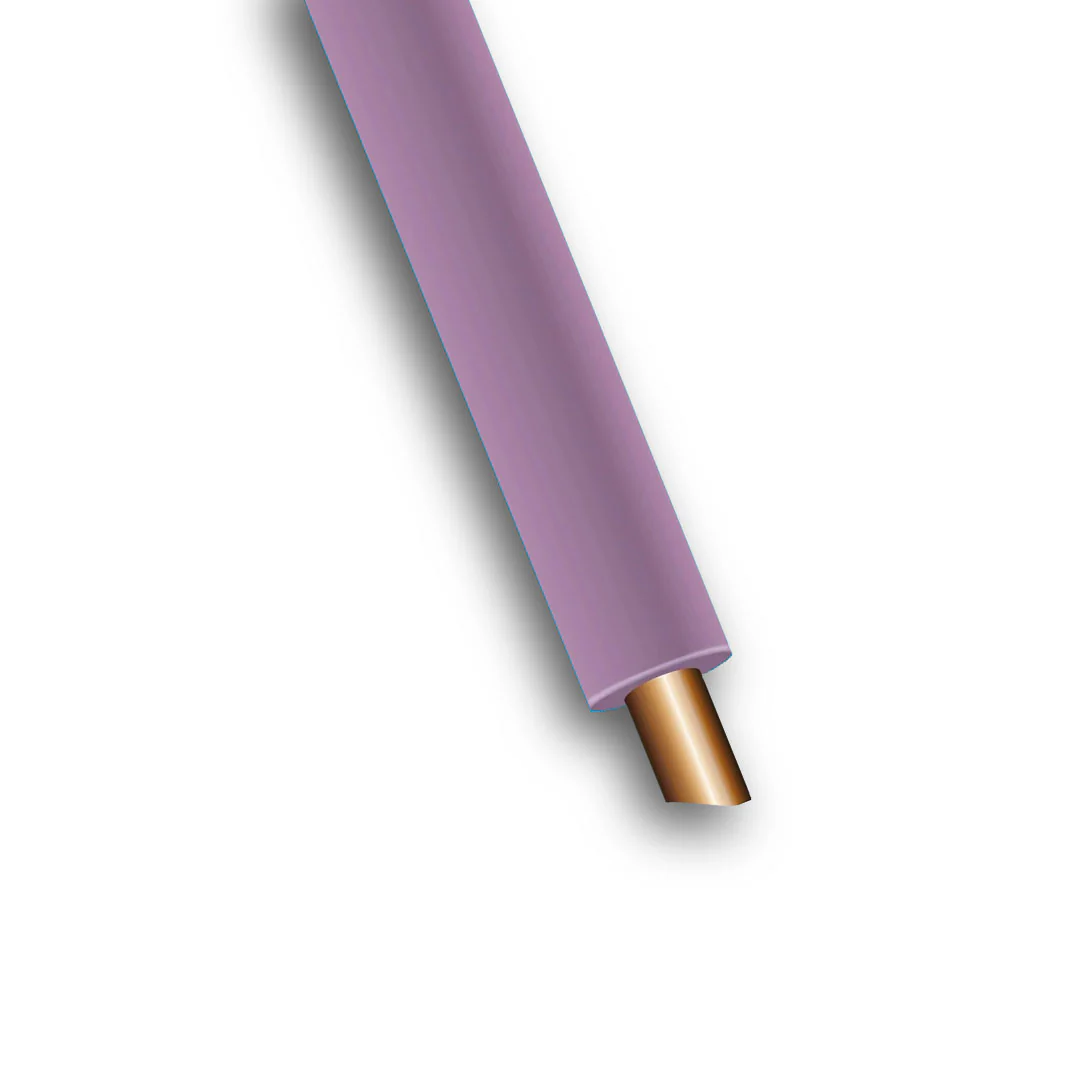

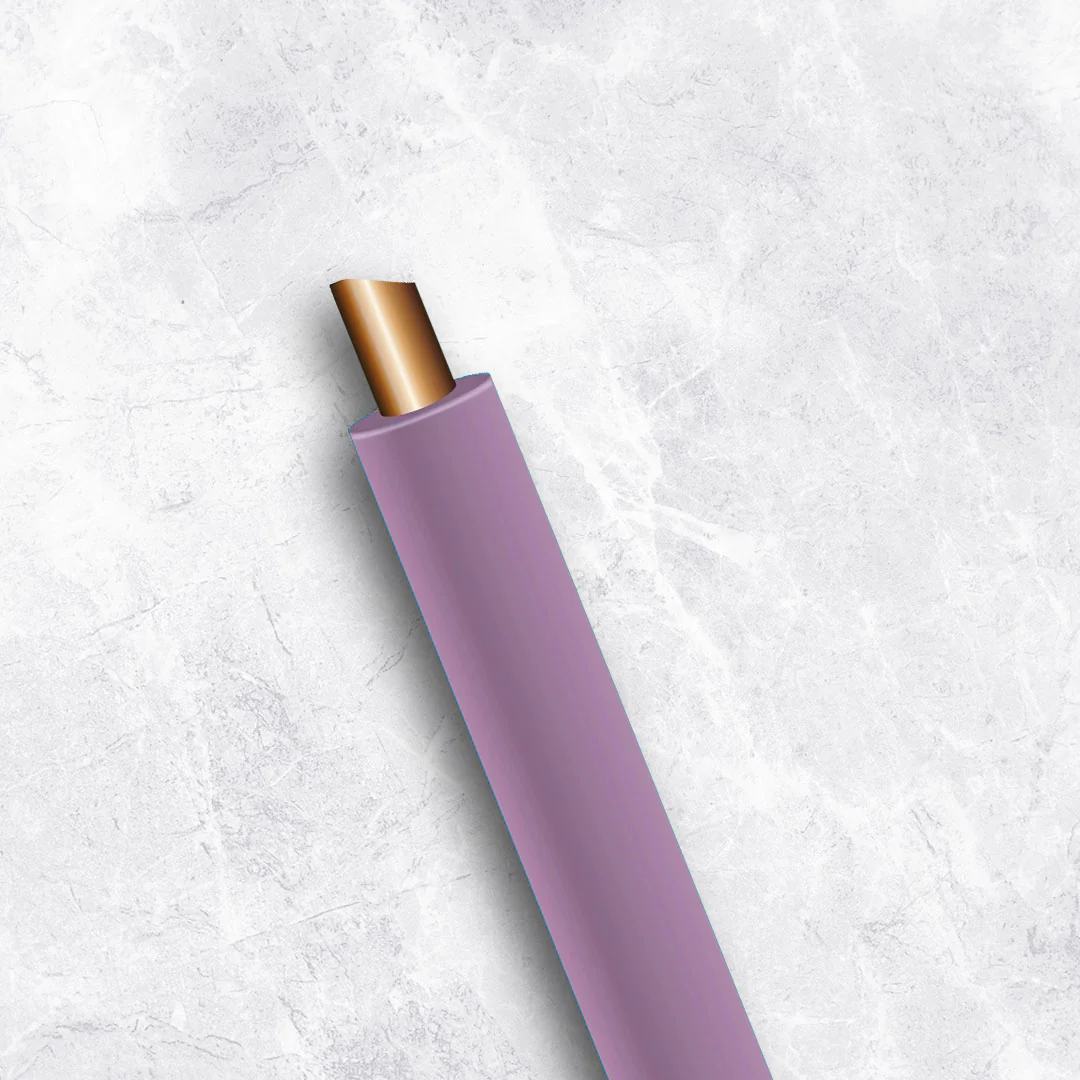

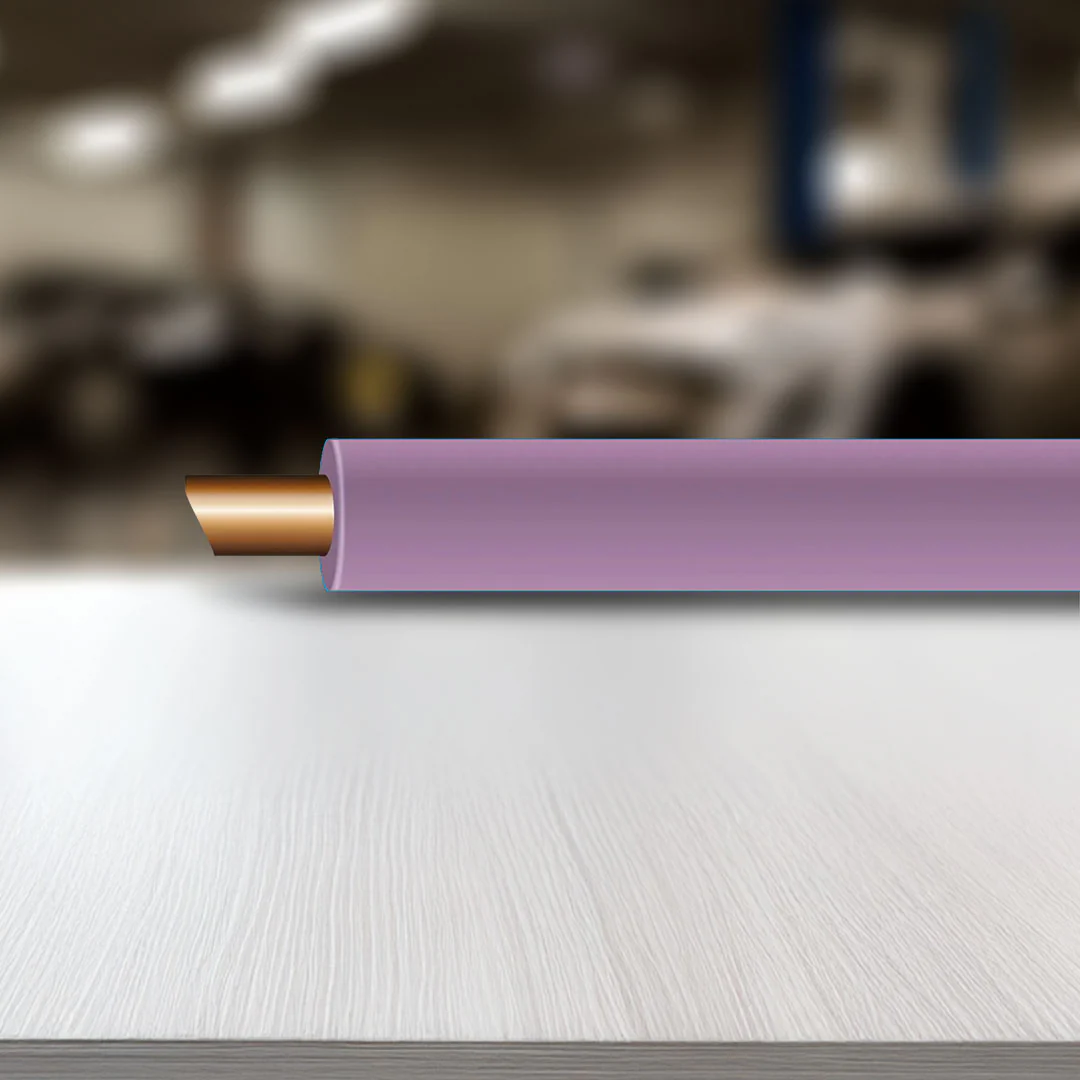

OEX ACX0566 | 2mm Automotive Cable | Single Core Violet 50m Roll

OEX 2mm Single Core Automotive Cable Violet - 50m Roll

OEX ACX0566 Features:

• OEX Single Core Automotive Cable

• Colour: Violet

• Cable diameter: 2mm

• Cable Length: 50 metres

• Amp rating: 5A at 30°C

• 99.99% Oxygen Free High Conductivity Copper

• UV Stabilised and ROHS approved

• Temp rating: V90 (90°C)

OEX ACX0566 Specifications:

• Warranty  One Year

• Conductor Strand Diameter: .18mm

• Number of Conductor Strands    18

• Trace Colour No Trace

• Conductor Cross Section 0.5mm2

• Industry Known Size 2mm

• Note Canbus Cable

• Length 50m

• Cable Size 2mm

• Cable Type Standard

• Gauge 20

• Item Type: Single Core Cable

• NZ Code Not Applicable

• Environmental UV Stabilized

• Cable Colour Violet

• Temp Rating V90 (90 degrees Celsius)

• Voltage Rating Up to 100V

• Conductor Material    Copper

• Compliance RoHS

• Insulation Type PVC

• Weight .5kg
