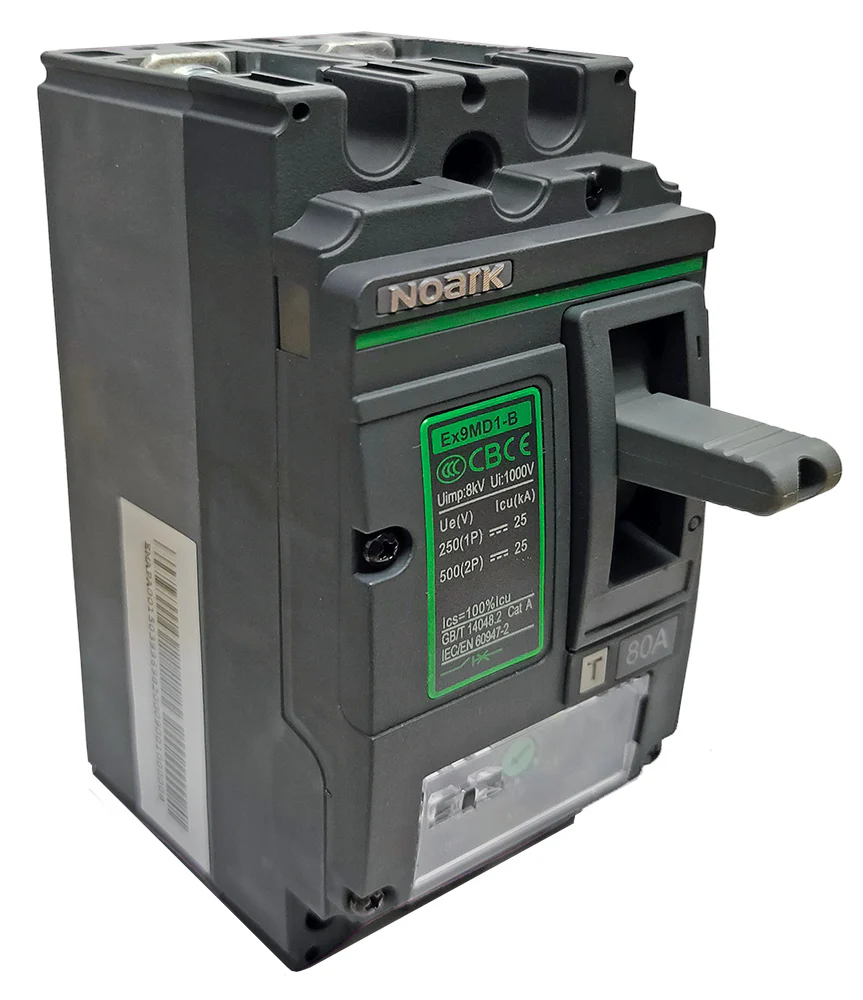

Noark NRK-N28707 MCCB 80A 500VDC 2 Pole

80A 500VDC Moulded Case Circuit Breaker MCCB (2 Pole) Non-Polarised - EX9MD1B TM DC80 2P

Noark NRK-N28707 Features:

• Frame size 1 - 90 x 140 x 109mm
• High-breaking capacity and a new patented arc extinguishing design
• New patented technology reduces the manual operating force
• High-quality compact modular with energy-saving and environmentally friendly design
• Installation flexibility: Bus Bar Connection, Lug Line/Load Side Connection, Plug-In and Rear Connection
• Fixed and adjustable trip-setting units
• Certified to EN 60947

Noark NRK-N28707 Specifications:

• Rated Voltage 500V DC
• Rated Insulation Voltage 1000V
• Frame Size 1 to 125A
• Breaking Capacity 25kA
• Release Technology Thermo-magnetic
• IP Protection IP40 (all sides) | IP20 (Terminal)
• Poles 2
