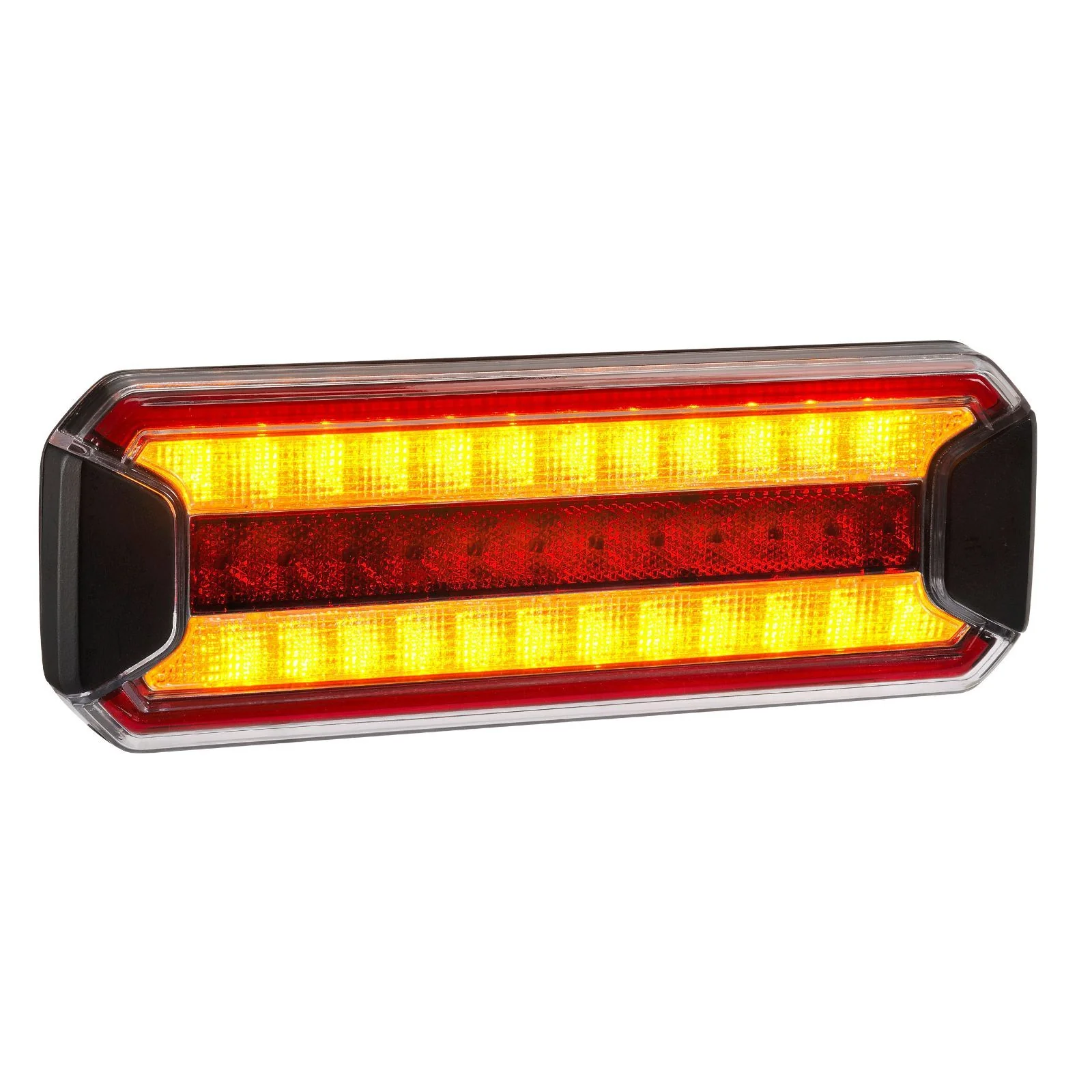

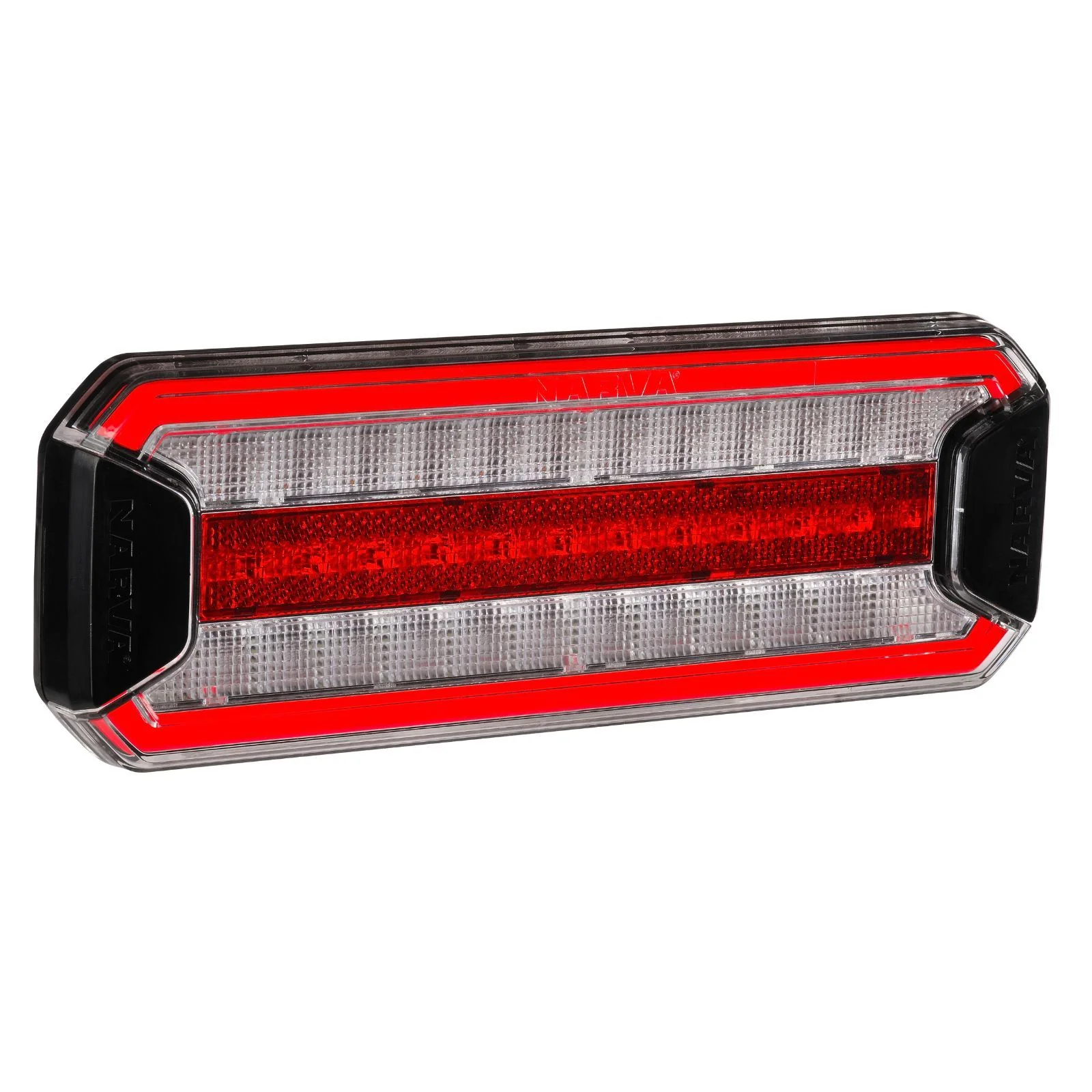

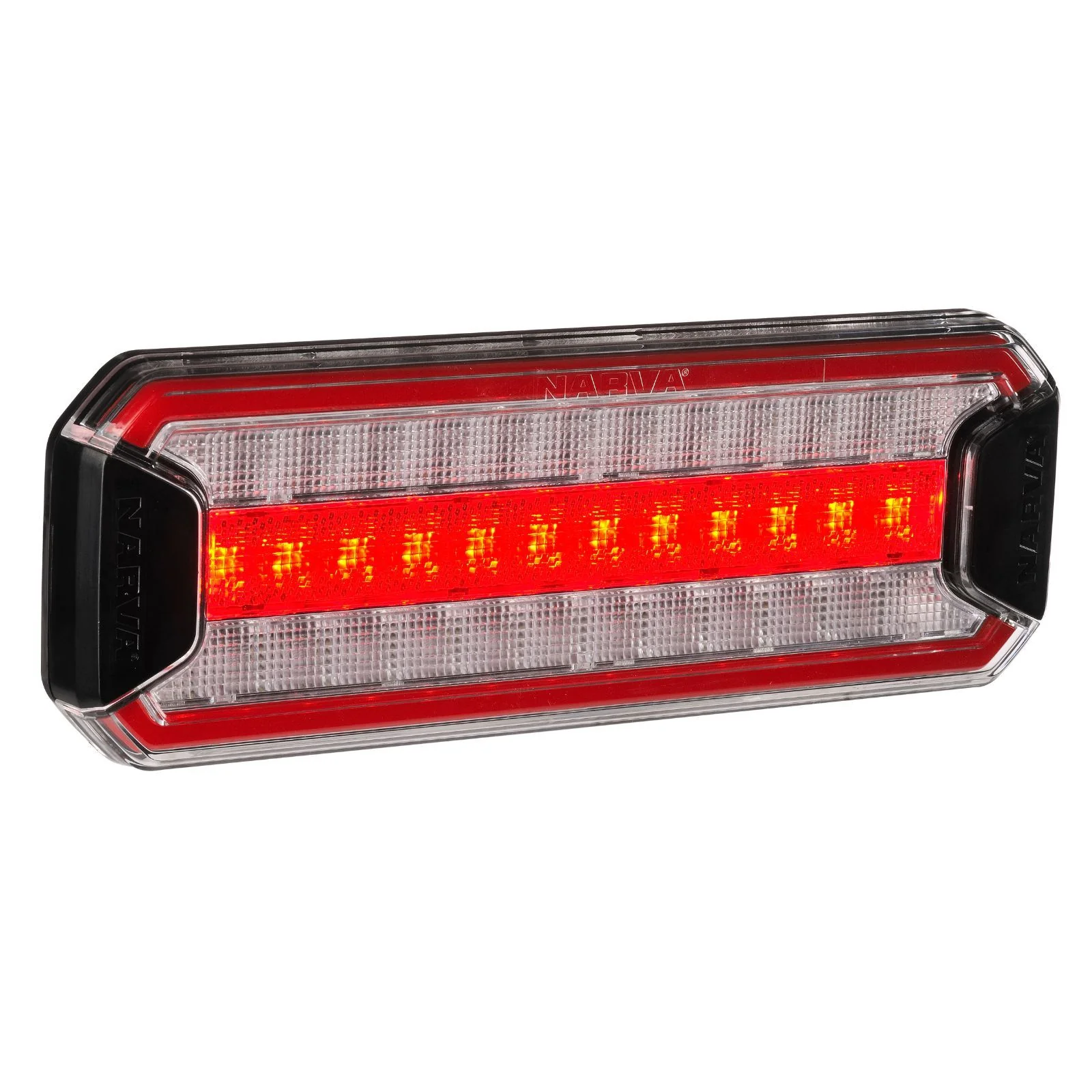

Narva 97202 Model 72 Rear Stop/Tail/Indicator Lamp With In-Built Retro Reflector, With 0.5M Of Cable
Narva 97202 Model 72 Rear Stop/Tail/Indicator Lamp With In-Built Retro Reflector, With 0.5M Of Cable
Equip your truck, trailer, or commercial vehicle with the Narva 97202 Model 72, a fully sealed three-function rear combination lamp featuring an in-built retro reflector, hardened acrylic lens, and a versatile dual bolt pattern footprint — backed by Narva's industry-leading 7-year warranty.
Product Overview
The Narva 97202 is a Model 72 rear combination lamp designed for truck, trailer, and commercial vehicle applications requiring a reliable three-function rear light. Integrating stop, tail, and direction indicator functions into a single compact unit with an in-built retro reflector, the 97202 delivers clean, ADR-compliant rear lighting without the complexity of additional reverse lamp wiring.
The primary mounting footprint of 284 x 100mm suits the common industry standard for truck and trailer lighting locations. Adjustable bolt holes also accommodate the smaller 222 x 96mm footprint for increased installation versatility across a broader range of vehicle and trailer body configurations.

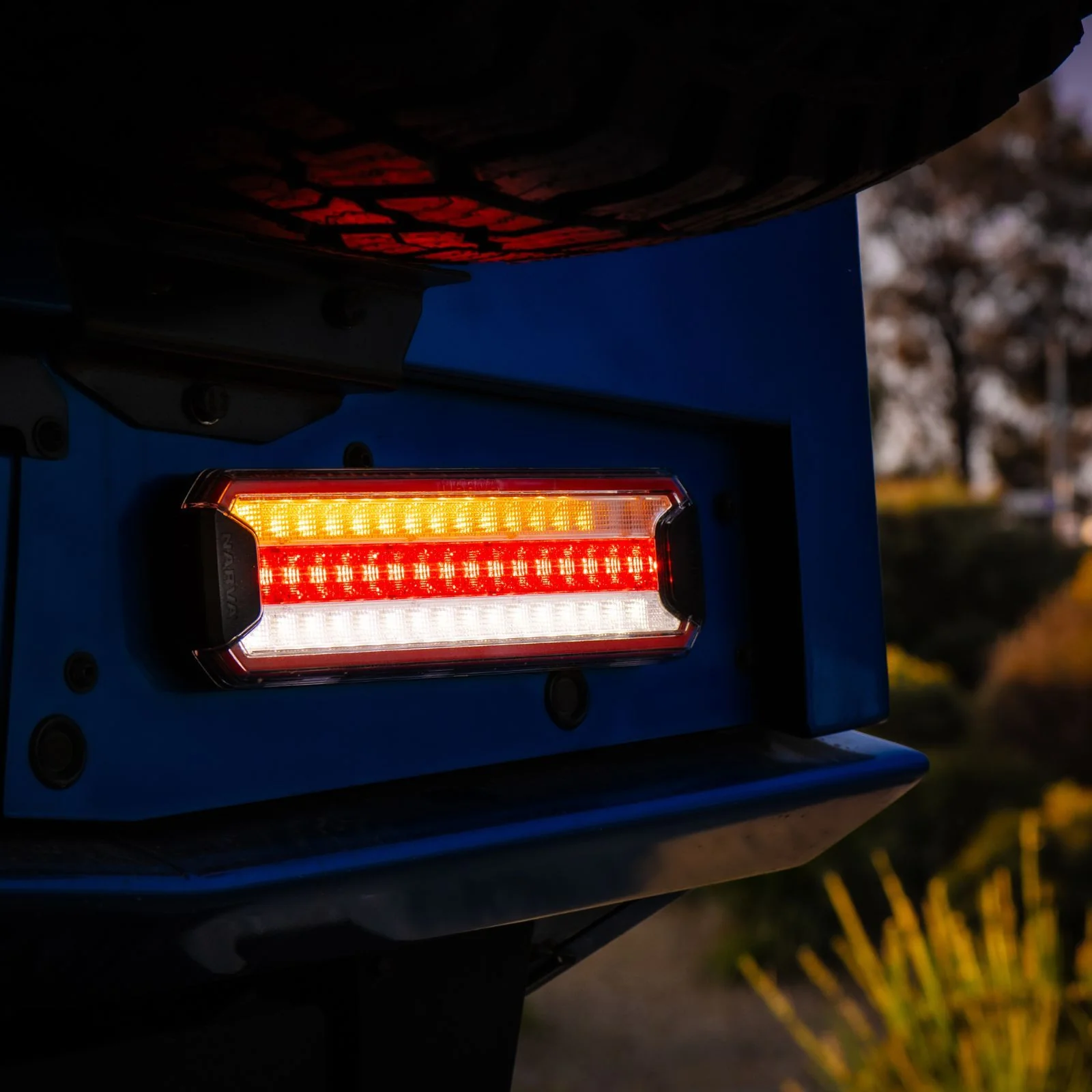

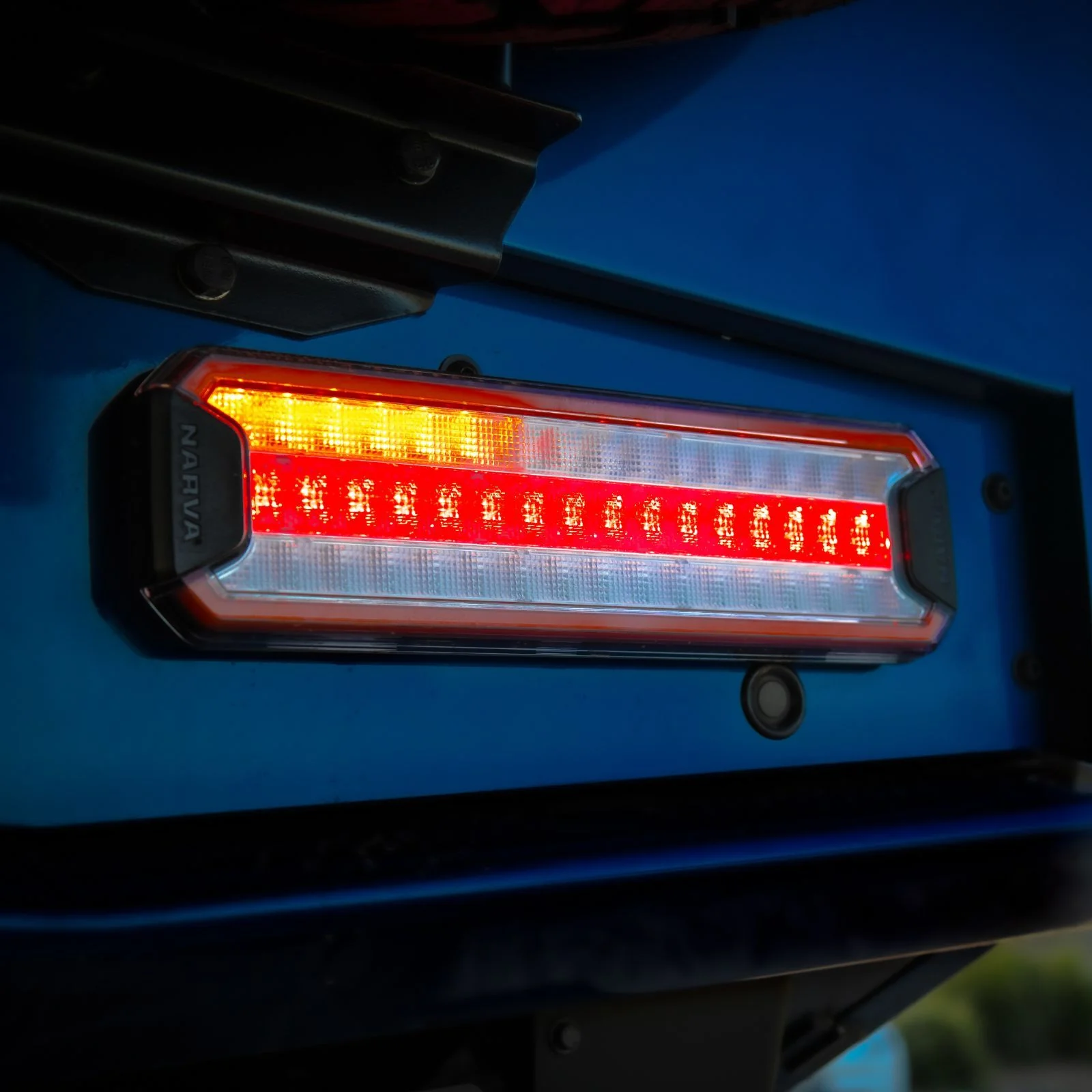

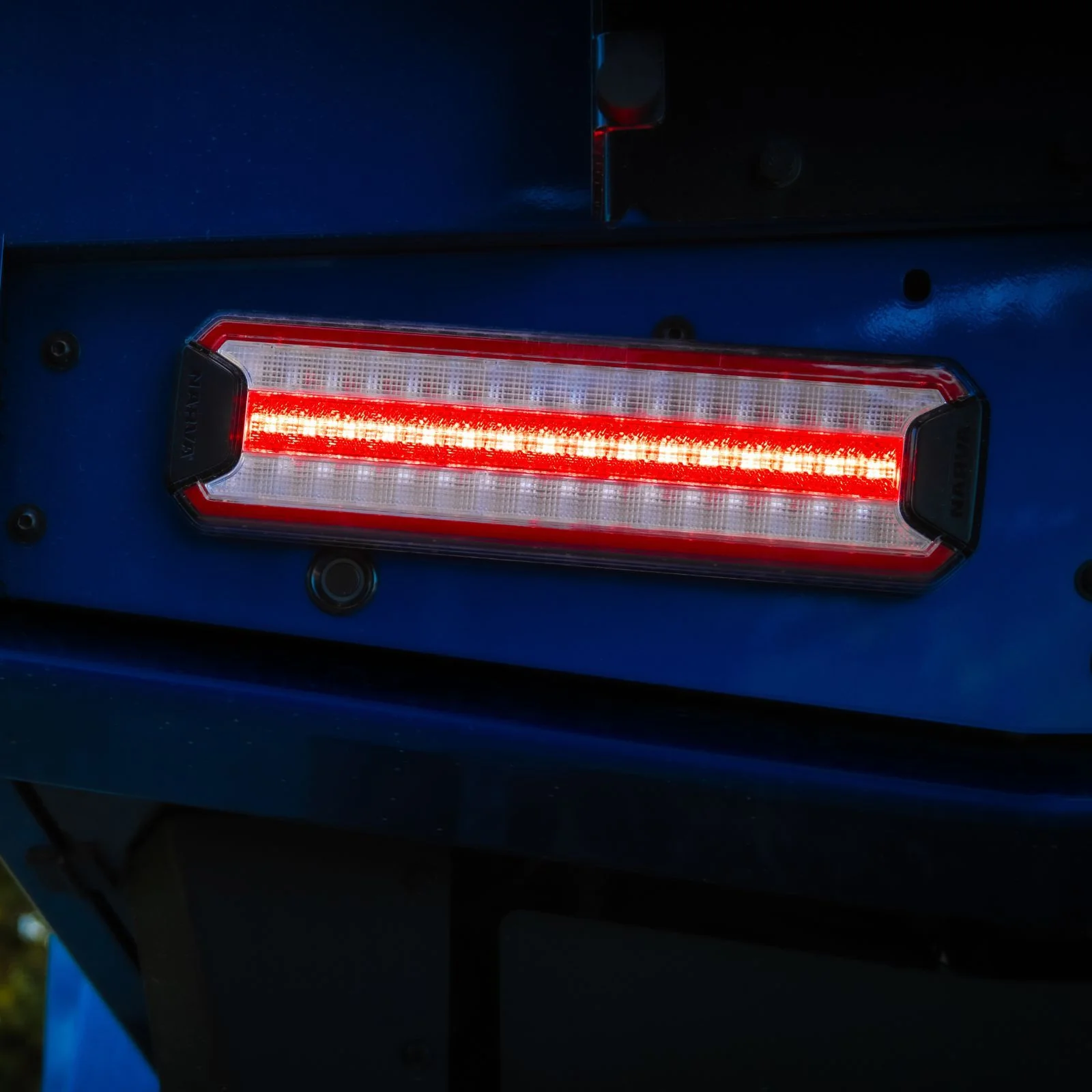

Constructed with a hardened acrylic lens for superior UV and chemical resistance, the Model 72 delivers Narva's signature rear tail light appearance at night with a stylish light pipe design. Full IP68 and IP69K waterproof sealing ensures reliable operation under pressure washing, submersion, and extreme weather conditions. The 9-33V operating range covers both 12V and 24V platforms, and the 0.5m cable provides sufficient length for standard installation without extension cables.
Backed by a 7-year warranty, the Narva 97202 is built for the long-term demands of commercial transport, agricultural, and construction fleet applications where a dedicated reverse lamp is installed separately or not required.
Features & Benefits
- Three-function combination lamp integrating stop, tail, and direction indicator functions in a single unit for clean, straightforward rear lighting installations
- In-built retro reflector providing passive rear visibility without requiring a separate reflector installation
- Hardened acrylic lens with superior UV and chemical resistance preventing yellowing, hazing, and degradation from prolonged exposure
- Signature Narva tail light appearance delivering stylish light pipe illumination at night for a professional, modern finish
- 284 x 100mm primary footprint matching the common industry standard for truck and trailer rear light locations
- Adjustable bolt pattern also suits 222 x 96mm footprint for increased versatility across a wider range of vehicle and trailer body types
- Surface mount from the front with adjustable bolt holes for straightforward installation and slight alignment flexibility
- IP68 and IP69K fully sealed and waterproof protecting against complete submersion and high-pressure water jets
- 9-33V operation compatible with both 12V and 24V vehicle electrical systems
- ADR approved for legal road use compliance on Australian road-registered vehicles
- 0.5m cable included for standard installation routing
- 7-year warranty backed by Narva for long-term commercial confidence
Technical Specs
| Specification | Details |
|---|---|
| Part Number | 97202 |
| Brand | Narva |
| Model | Model 72 |
| Product Type | Rear Combination Lamp |
| Functions | Stop, Tail, Direction Indicator |
| Reverse Function | No |
| Retro Reflector | In-Built |
| Voltage Range | 9-33V |
| IP Rating | IP68 and IP69K |
| Primary Footprint | 284mm x 100mm |
| Secondary Footprint | 222mm x 96mm (Adjustable Bolt Pattern) |
| Mounting Type | Surface Mount (Front) |
| Bolt Holes | Adjustable |
| Lens Material | Hardened Acrylic |
| Cable Length | 0.5 Metres |
| ADR Approved | Yes |
| Warranty | 7 Years |
| Unit of Measure | Each |
| Product Group | Lighting / Truck and Trailer Lighting |
Compatible With / Goes Well With
The Narva 97202 Model 72 is suited for a wide range of truck, trailer, and commercial vehicle applications including:
- Trucks and semi-trailers requiring ADR-compliant rear combination lamps at the standard 284 x 100mm industry footprint where reverse lighting is handled separately
- Box trailers and enclosed trailers requiring a compact three-function rear lamp with integrated reflector
- Ute trays and flat deck trailers where the adjustable bolt pattern provides fitment flexibility and a dedicated reverse lamp is installed separately
- Agricultural machinery and farm trailers requiring durable, waterproof rear lighting rated for harsh field conditions
- Construction and civil equipment including tippers, site trailers, and plant machinery requiring compliant rear lighting
- Caravans and camper trailers requiring a reliable, long-warranty rear combination lamp where a separate reverse light is already fitted
Goes well with:
- Narva Model 72 front and side marker lamps (for a complete matched Narva lighting setup)
- Narva reverse lamps (for separate reverse light installation alongside the 97202)
- Narva trailer wiring harnesses and connectors (for clean, ADR-compliant installations)
- Narva 97210 Model 72 Single Rear Combination Lamp (for applications requiring an integrated reverse function)
Frequently Asked Questions
Q: What is the difference between the Narva 97202 and the 97210?
A: The key difference is reverse lamp functionality. The 97202 provides three functions: stop, tail, and direction indicator only. The 97210 adds an integrated reverse lamp as a fourth function. If your installation requires reverse lighting integrated into the rear combination lamp, choose the 97210. If reverse lighting is handled by a separate lamp or is not required, the 97202 is the correct choice.
Q: Does the 97202 fit both the 284 x 100mm and 222 x 96mm footprints?
A: Yes. The primary footprint is 284 x 100mm to suit the common industry standard for truck and trailer rear light locations. The adjustable bolt holes also accommodate the smaller 222 x 96mm footprint, providing increased installation versatility for vehicles and trailers where only the smaller mounting pattern is available.
Q: Is the Narva 97202 ADR approved for road use in Australia?
A: Yes. The 97202 carries ADR (Australian Design Rules) approval, confirming it meets Australian vehicle lighting standards for road-registered vehicles. It is suitable for use on trucks, trailers, and other commercial vehicles requiring legally compliant rear combination lighting.
Q: Is the 97202 compatible with 24V truck electrical systems?
A: Yes. The 97202 operates across a 9-33V range, making it fully compatible with both standard 12V passenger and light commercial vehicles and 24V heavy vehicles including trucks, buses, and commercial trailers without any modification or voltage conversion.
Q: What warranty does the Narva 97202 carry?
A: The Narva 97202 is backed by a 7-year warranty covering manufacturer defects. This extended warranty reflects Narva's confidence in the Model 72's build quality and makes it a strong choice for commercial fleet operators and owner-operators requiring long-term reliability from their rear lighting equipment.
