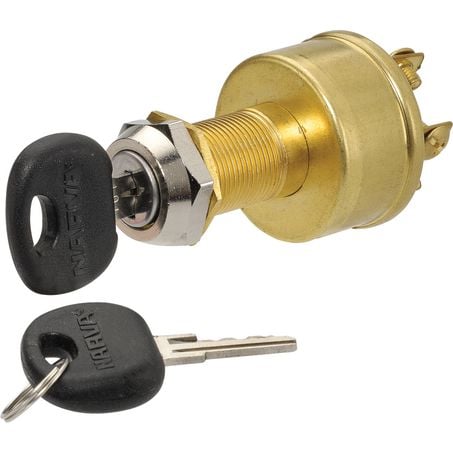

Narva 64012 4 Position Ignition Switch

4 Position Ignition Switch (Marine)

Heavy-duty brass construction with screw terminals, suitable for marine applications. Supplied with two encapsulated keys Spring return action for start Mounting opening 21mm dia. Amperage ratings at 12V, 10A Accessories, 5A Ignition, 5A Start.

Features:

• Mounting opening 21mm diameter
• Amperage ratings at 12V, 10A Accessories, 5A Ignition, 5A Start
• Heavy-duty brass construction with screw terminals, suitable for marine applications
• Supplied with two encapsulated keys
• Spring return action for the start

Specifications:

• Number of Terminals: 4
• Power Rating (Amp): 10
• Switch Action: Acc - Off - ign - Start
• Voltage: 12
• Mount Diameter: 21mm
• Mount Length: 30mm
• Number of Poles: 1
• Number of Positions: 4
• Switch Type: Ignition
• Switch Illumination: Non Illuminated
