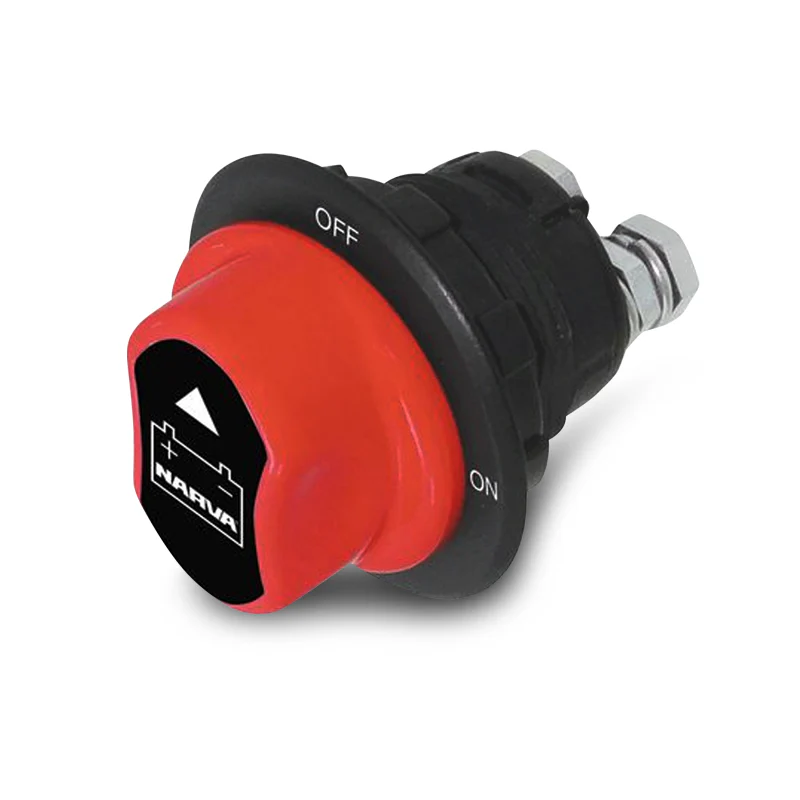

Narva 61036BL 100A 'Rotary' Battery Master Switch With Removable Keyed Knob
Compact Switch With Easy Turn Knob!
'Rotary' Battery Master Switch With Removable Keyed Knob
The Narva 61036BL is a compact switch at just 45mm round, requiring a mounting opening of just 23mm diameter. Features an easy turn knob, ideally suited for use with passenger cars, light trucks, and stationary engines.
Features:
- Removable keyed knob
- 45mm Diameter
- Requires 29mm diameter mounting opening
- Include alternative insert
- Ideal for passenger cars, light trucks, and stationary engines
Specifications:
- Current Draw:
- 1000A @ 12V, 5 Sec.
- 500A @ 24V, 5 Sec.
- 100A @ 12V Continuous Load Maximum
- 50A @ 24V Continuous Load Maximum
- Terminals: 2
- Power Rating (Amp): 100A @ 12V
- Switch Action: Off - On
- Voltage: 12/24V
- Lamp Colour/s: Not Applicable
- Poles: 1
- Positions: 2
- Switch Type: Battery Master / Isolation
- Switch Illumination: Non-Illuminated
- Packaging Type: Blister Pack
- Weight: 0.07kg
