Nakamichi NA9TOYOTAAURIONCAMRY20072011 - 9" Android Wireless CarPlay & GPS Navigation System

Full Android multimedia system with wireless CarPlay, built-in GPS navigation, and 64GB storage for your 2007-2011 Toyota Aurion or Camry.

Product Overview

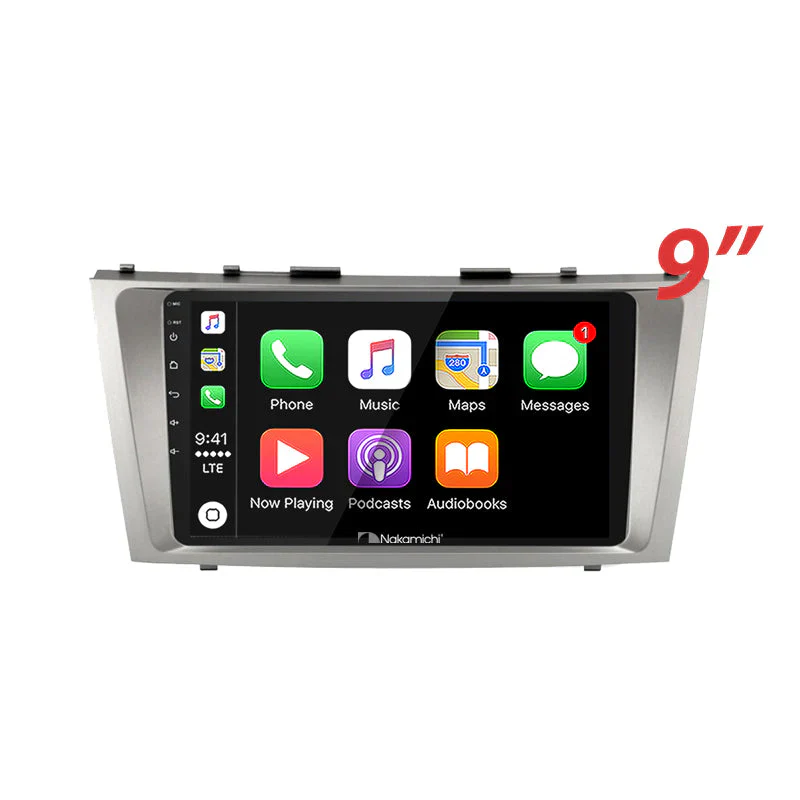

The Nakamichi NA9TOYOTAAURIONCAMRY20072011 transforms your Toyota Aurion or Camry (2007-2011) into a modern connected vehicle with full Android functionality, wireless smartphone integration, and built-in GPS navigation. Unlike basic CarPlay receivers, this unit runs a complete NK 13.0 Android system with 4GB RAM and 64GB storage, allowing you to download apps directly from Google Play Store, run multiple navigation platforms simultaneously, and customize your in-car experience beyond factory limitations.

The 9-inch IPS display delivers 1280×720 resolution with 500-nit brightness for clear visibility in harsh Australian sunlight, while the vehicle-specific design includes colour-matched fascia and pre-configured wiring harness for plug-and-play installation. Factory steering wheel controls integrate via CANBUS, and the system supports both wireless and wired smartphone connectivity depending on your device. The built-in GPS module comes preloaded with navigation data, with the flexibility to update or purchase alternative mapping solutions through the Android platform.

Audio capabilities include 4×50W amplification with dedicated subwoofer output and 4V pre-amp connections for external amplifiers, while dual video inputs accommodate factory reverse cameras (hardwiring required) and auxiliary video sources. The system maintains full AM/FM radio functionality with 30 station presets and includes external GPS antenna, microphone, and all necessary cables for complete installation.

Key Specifications

• Full Android system (NK 13.0) with 4GB RAM and 64GB internal storage
• Wireless Apple CarPlay and Android Auto (some Android devices require wired connection)
• Built-in GPS navigation with preloaded maps and Google Play Store access
• 9-inch IPS touchscreen with 1280×720 resolution and 500-nit brightness
• Vehicle-specific fit for Toyota Aurion (2007-2011) and Camry (2007-2011)
• Bluetooth 5.0 with Enhanced Data Rate (EDR) for wireless connectivity
• Factory steering wheel control compatibility via CANBUS integration
• 4×50W maximum power output with 4V/10KΩ pre-amp outputs
• Dual USB interface: 4-pin for smartphone, 6-pin for media files
• FM (87.5-108.0MHz) and AM (522-1620KHz) radio with 30 total presets
• Multiple video inputs: reverse camera and front auxiliary camera support
• Operating voltage range: 10.5-16V DC (14.4V nominal)

Features & Benefits

Full Android platform gives you access to Google Play Store for downloading Spotify, YouTube Music, Waze, Sygic, offline media players, and thousands of other apps. Unlike locked-down systems, you control what runs on your screen—perfect for drivers who want flexibility beyond basic CarPlay functionality.

Built-in GPS navigation eliminates reliance on phone data connections during remote Australian travel. The system comes with preloaded maps and lets you choose between multiple navigation platforms or purchase premium offline maps through Play Store—ideal for outback touring where mobile coverage is unreliable.

Wireless smartphone integration connects your iPhone or Android device without cables for instant access to navigation, calls, messages, and streaming music. The system intelligently switches between native Android apps and CarPlay/Android Auto based on your preference, giving you best-of-both-worlds flexibility.

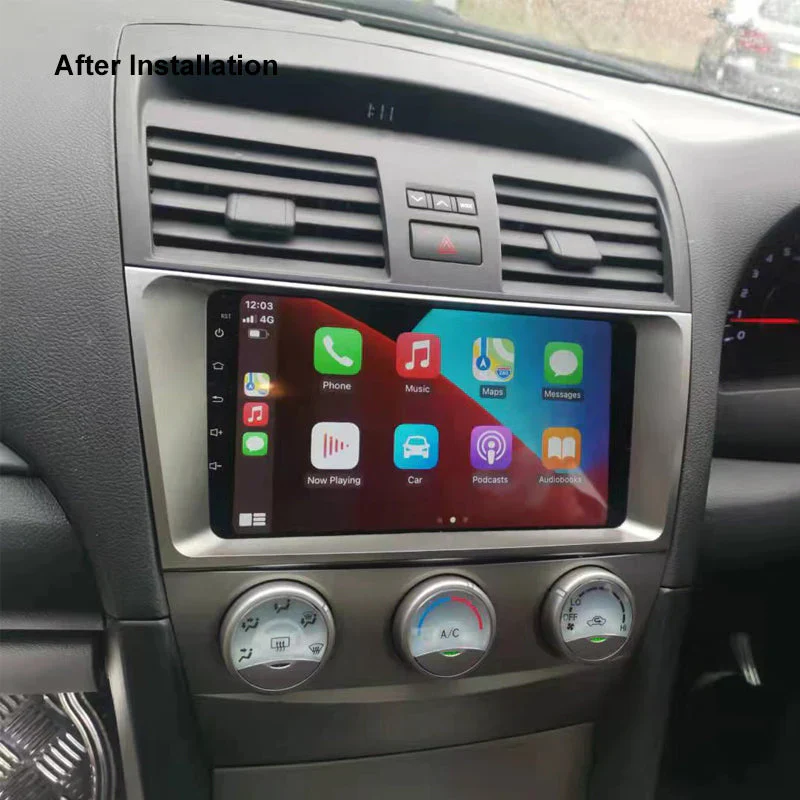

Vehicle-specific engineering ensures the 9-inch IPS display integrates seamlessly into your Aurion or Camry dashboard with included colour-matched fascia and factory-grade wiring harness. CANBUS integration maintains full steering wheel control functionality for volume, track skip, and source selection without aftermarket adapters.

Premium IPS display technology delivers wider viewing angles and better colour accuracy than standard TFT screens, with 500-nit brightness that remains visible even in direct Perth summer sunlight. The 1280×720 resolution provides crisp text rendering for navigation and messaging.

Expandable storage and processing with 4GB RAM and 64GB internal storage means you can store offline music libraries, download high-resolution offline maps for entire states, and run multiple apps simultaneously without performance degradation—crucial for using navigation while streaming music.

Comprehensive audio architecture provides 4×50W amplification for factory speakers plus dedicated subwoofer output and 4V pre-amp connections for adding external amplifiers. Whether you're running stock audio or building a premium sound system, the NA9 scales with your needs.

Dual video input capability supports factory reverse cameras (hardwiring required) and front-facing auxiliary cameras for comprehensive visibility. The front camera input is particularly valuable for bull bar-equipped 4WD Aurions navigating tight urban car parks or off-road obstacles.

Technical Specs

• Screen size: 9 inches diagonal
• Display type: IPS (In-Plane Switching) LCD
• Display resolution: 1280×720 pixels
• Brightness: 500 nit
• Operating system: NK 13.0 (Android-based)
• RAM: 4GB
• Internal storage: 64GB
• Operating voltage: 14.4V nominal (10.5-16V range)
• Maximum power output: 4×50W
• Pre-amp output voltage: 4V/10KΩ
• Pre-amp output impedance: ≤600Ω
• Speaker impedance compatibility: 4-8Ω
• Bluetooth version: 5.0 + EDR
• Bluetooth frequency: 2.4GHz
• Bluetooth range: up to 5m
• GPS: Built-in with external antenna (included)
• FM frequency range: 87.5-108.0MHz
• AM frequency range: 522-1620KHz
• FM presets: 18 stations
• AM presets: 12 stations
• USB charging output: 5V±0.25V/1A
• Video formats supported: H264, MP4, AVI, MKV, FLV
• Audio formats supported: MP3, APE, AAC, FLAC
• CANBUS integration: CAN RX/TX connector
• WiFi: Integrated (for app downloads and updates)
• Video inputs: Reverse camera + front auxiliary camera

Frequently Asked Questions

Does this work with factory steering wheel controls?

Yes, the NA9 includes CANBUS integration (CAN RX/TX interface) that maintains full compatibility with your Aurion or Camry's factory steering wheel controls for volume, track skip, source selection, and voice commands without requiring additional adapters.

Can I use offline navigation without my phone?

Absolutely. The built-in GPS with preloaded maps works independently of your smartphone. You can download additional offline navigation apps like Sygic or HERE WeGo from Google Play Store for phone-free navigation—ideal for remote areas without mobile coverage.

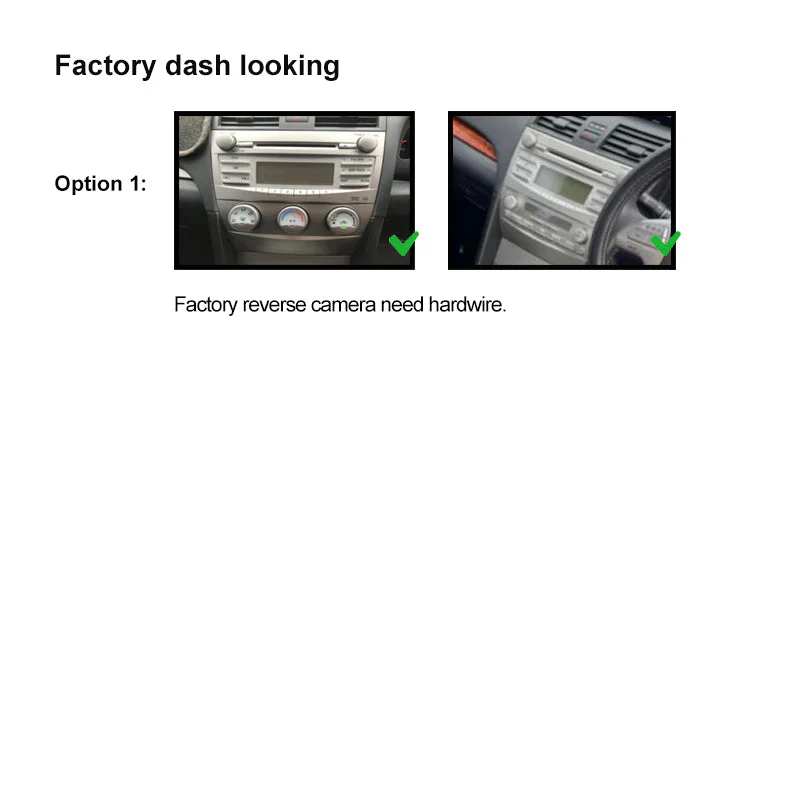

Will my factory reverse camera work?

Factory reverse cameras require hardwiring to the reverse camera video input. The system supports standard composite video signals. Send us your dashboard and camera photos before purchase to confirm compatibility and receive the correct harness for your specific Aurion or Camry variant.

What's the difference between this and the W9 model?

The NA9 runs full Android (NK 13.0) with 4GB RAM, 64GB storage, and built-in GPS, allowing app downloads from Google Play Store. The W9 is CarPlay/Android Auto only without native Android functionality. Choose NA9 for standalone navigation and app flexibility, W9 for simpler phone-mirroring operation.

Do I need professional installation?

While the system includes vehicle-specific fascia and harness for plug-and-play installation, professional installation is recommended for CANBUS configuration, reverse camera hardwiring, and GPS antenna placement. The Android system requires initial setup for WiFi, app downloads, and navigation preferences.

Compatible With / Goes Well With

Confirmed vehicle compatibility:

• Toyota Aurion GSV40 (2006-2011 Australian market)
• Toyota Camry XV40 (2006-2011 Australian market)
• All Aurion variants (AT-X, Sportivo, Presara, Touring)
• All Camry variants within this generation (Altise, Ateva, Touring)

Installation accessories (vehicle-specific harness included):

• Compatible with Nakamichi/Aerpro/CAC Toyota fascia kits
• Works with factory and aftermarket steering wheel control interfaces
• Supports factory amplifier retention harnesses (if equipped with premium audio)

Recommended upgrades:

• Aftermarket front component speakers (6.5" or 6×9" depending on model)
• 4-channel or 5-channel amplifiers for enhanced audio quality
• Reverse cameras with composite video output
• External GPS antenna extension for optimal satellite reception
• USB extension cables for glovebox-mounted smartphone charging

Software compatibility:

• Google Maps (via Android Auto or native Android)
• Waze (via Android Auto or native Android)
• Sygic GPS Navigation (downloadable from Play Store)
• Spotify, YouTube Music, Apple Music (via CarPlay or native apps)
• Torque Pro OBD2 app (with compatible OBD2 adapter)

Note: Factory reverse cameras require hardwiring to the reverse camera input. Before purchase, confirm your vehicle's year and variant, then send dashboard photos to ensure correct harness compatibility. Some Camry/Aurion variants with factory JBL systems may require additional amplifier retention adapters.
