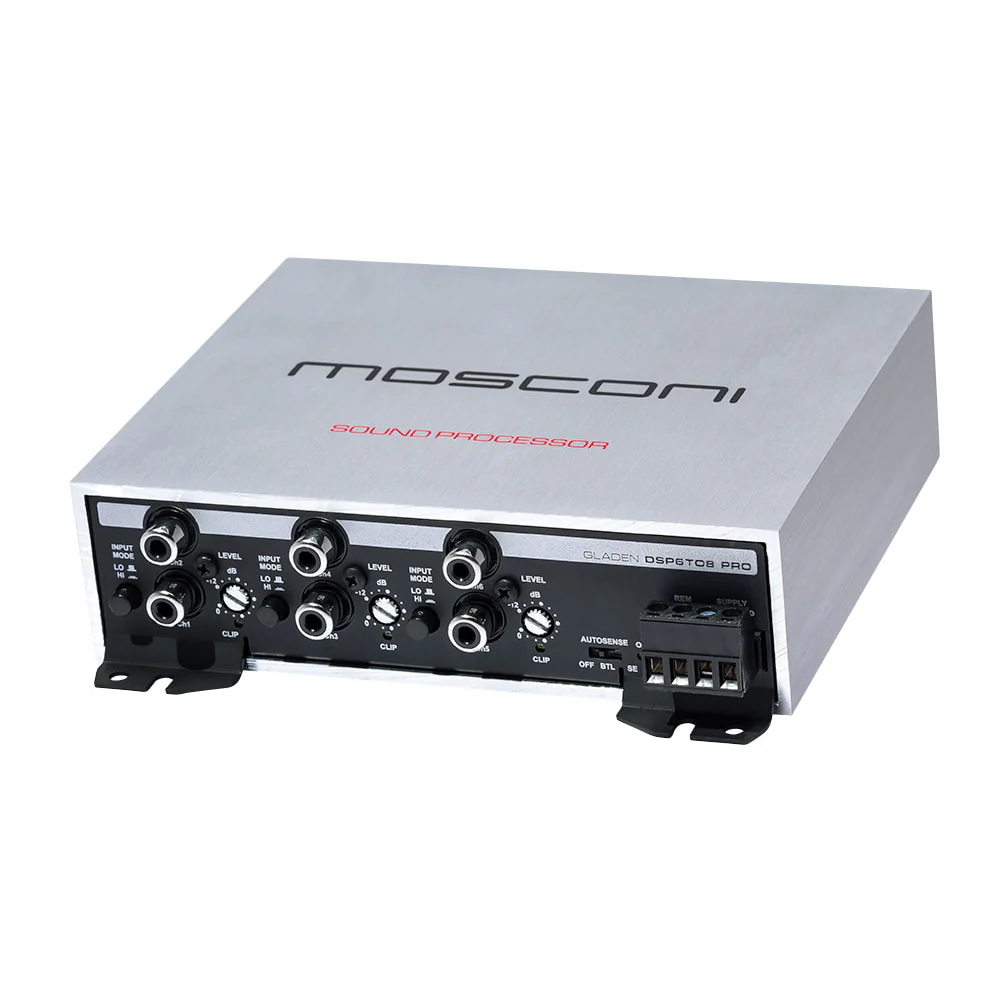

MOSCONI DSP-6-8-PRO DSP 6TO8 PRO Digital Signal Sound Processor

The Digital Signal Processor With 6 Inputs & 8 Outputs!

Features:

• Sample Rate 48KHz / 24bit
• Highest Resolution, e.g. Time Delay in 0,02 Msec/Step
• All Settings in Real-Time
• USB and optional BT adapter (MOS-BTM), for adjusting by PC, Android, and BlackBerry (*) smartphone apps.
• Low-Level or High-Level input with auto-sense (Only by High-Level)
• AUX Input with Auto-Sense for Stereo Signal
• Hands-Free and Mobile Navigation
• 4 Presets
• Mixer matrix to realize all possible mixtures and couple input and output channels as desired
• Intuitive User Interface and video tutorials to avoid an instruction book.
• Operating also without a mouse, only with keys for easy adjusting in the car
• DSP Technology made by cooperation MOSCONI-GLADEN

Specifications:

• Input Mode: Low Level (LL) / High Level (HL)
• Input Impedance: > 10Kohm (LL) / 47ohm (HL)
• Input Sensitivity: 2VRMS ÷ 8VRMS (LL) / 5VRMS ÷ 20VRMS (HL)
• Input Voltage Regulation: -12dB ÷ 0dB
• Max Output Signal: 8VRMS
• Output Impedance: 50 Ohm
• THD Distortion: <0.003% @ 1VRMS
• Frequency Response: 20Hz ÷ 20KHz (Within -0.1dB)
• Channel Separation: >75dB (@ 1KHz)
• Supply Voltage: 11V ÷ 15V
• Current Consumption: 0.5A @ 12V
• Ground Isolation Vs. Car Body: 1Kohm
• Autosense: BTL/SE (HL Only)
• Remote Output: 130mA Max
• Communication Peripherals: On-Board USB, Bluetooth Socket, Remote Controller
• Dimensions: 150mm x 125mm x 40mm (Including Fixing Feet)
• Weight: 2.00kg
