Morel VIRTUS NANO MXR-130 - 3-Way with tweeter attenuation 500/2200Hz HP/BP/LP

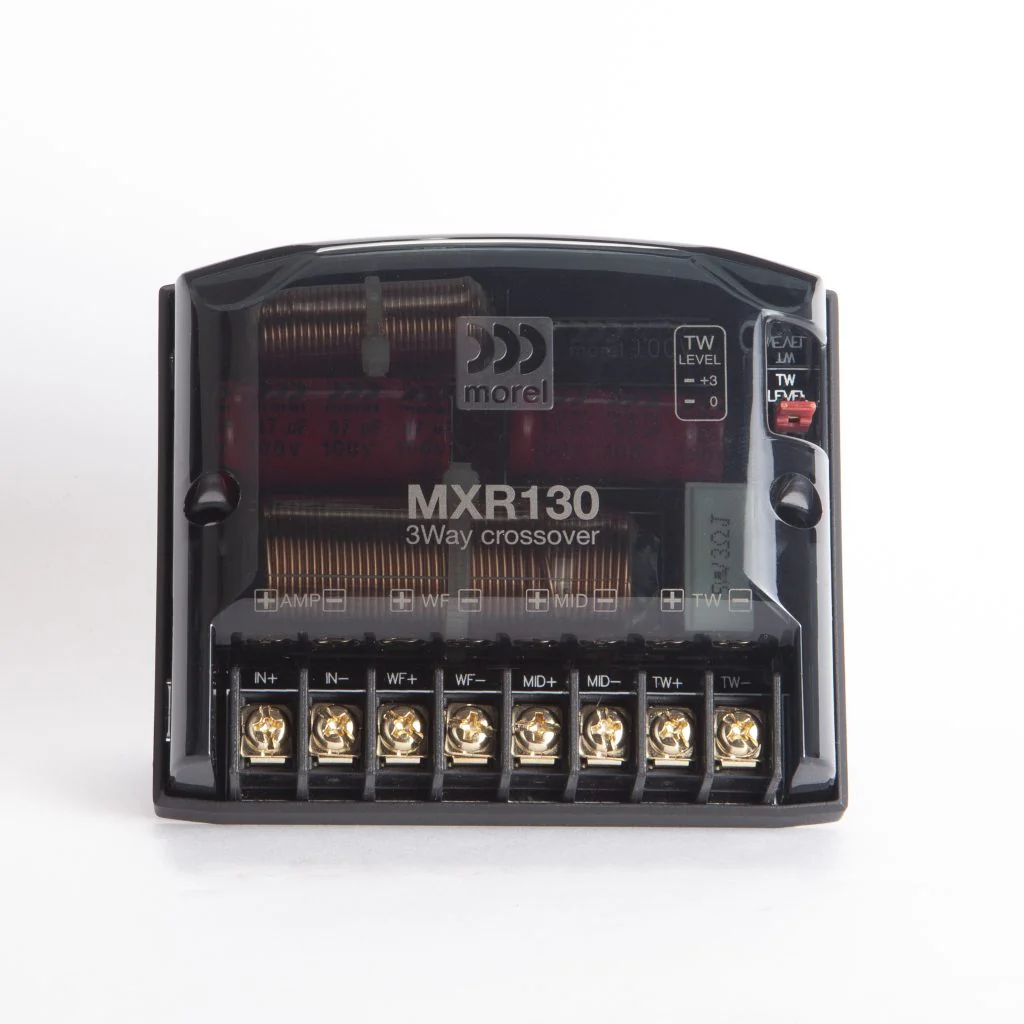

Morel Virtus Nano MXR-130 - Premium 3-Way Passive Crossover Network

Experience precision frequency division with Morel's advanced 3-way crossover system designed specifically for high-performance component installations.

Product Overview

The Morel Virtus Nano MXR-130 represents sophisticated 3-way passive crossover technology engineered for premium component systems, specifically found in Virtus Nano Carbon 63 and Maximo Ultra 603 component systems. This advanced crossover network manages precise frequency division across three drivers with carefully engineered crossover points: woofer at 800Hz with 12dB slope, midrange operating in bandpass mode from 800Hz to 5,000Hz with 6dB slopes, and tweeter handling frequencies above 5,000Hz with 6dB slope. The sophisticated design ensures seamless integration between all three drivers, maintaining phase coherence and optimal frequency response throughout the audio spectrum. The integrated tweeter level control provides 0dB or +2dB adjustment capability, allowing fine-tuning of the system's tonal balance to match vehicle acoustics and personal preferences. The high-quality components and robust construction ensure reliable performance while preserving the integrity of Morel's signature sound quality across all frequency ranges. This crossover network is specifically calibrated to complement the characteristics of Virtus Nano Carbon and Maximo Ultra drivers, providing the precise frequency management necessary to unlock the full potential of 3-way component systems. Ideal for Australian drivers seeking professional-grade 3-way component performance where advanced passive crossover technology is essential for achieving reference-quality sound reproduction.

Specifications
