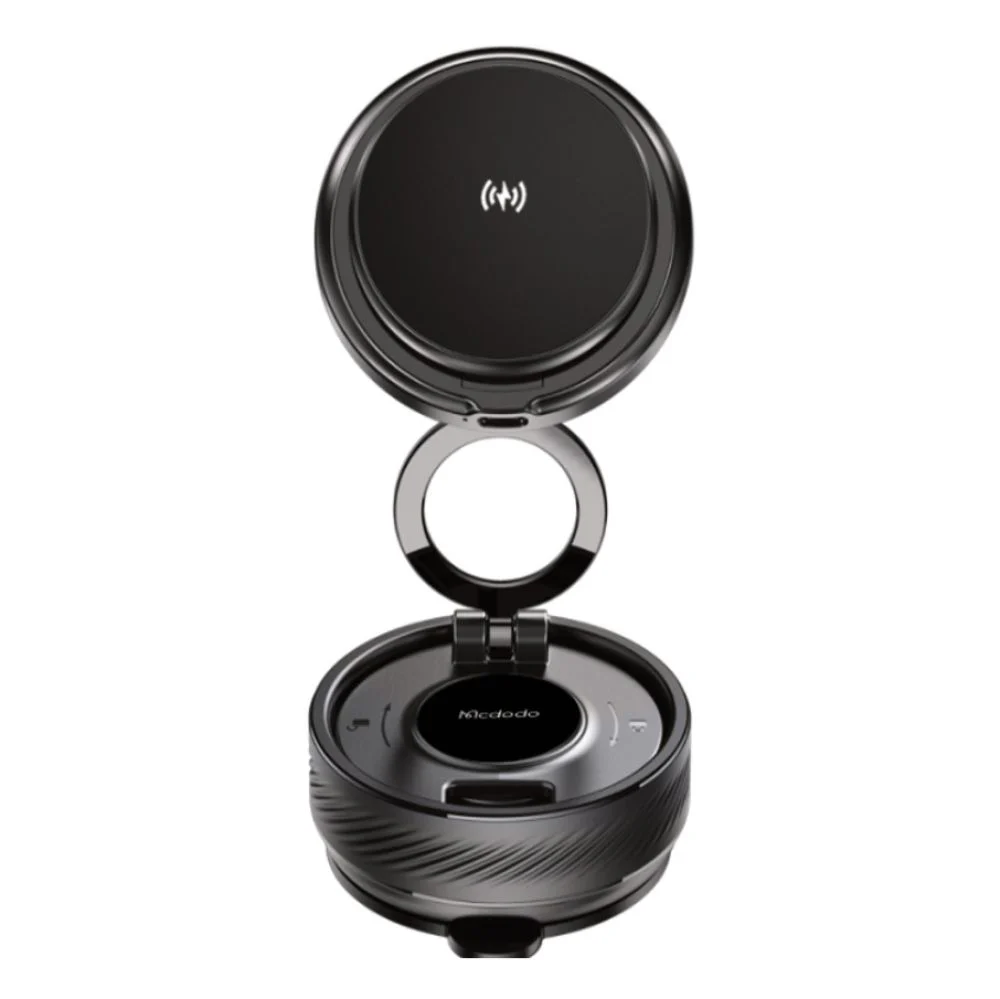

MCDODO MCH-8610 Vacuum Suction Dash-Mount Wireless Phone Charger Grey
MCDODO MCH-8610 Vacuum Suction Dash-Mount Wireless Phone Charger in Dark Grey
A dual-grip magnetic wireless phone charger mount for dashboards and smooth surfaces, delivering up to 15W wireless output via a combined vacuum suction and gel adhesive hold. USB-C input (5V 3A / 9V 3A), compatible with 5W, 7.5W, 10W, and 15W wireless charging standards. Foldable structure for compact storage. Constructed from PC, zinc alloy, and silicone. RoHS certified. Includes 1m USB-C to USB-C cable.
Product Overview
The MCDODO MCH-8610 is a dash-mount wireless phone charger that combines a vacuum suction cup and gel adhesive dual-grip system to secure the mount to dashboards and other smooth interior surfaces. The magnetic attachment system holds the phone in place against the charging pad, while the dual grip prevents the mount from shifting on the surface during driving.
Wireless output is up to 15W and is compatible with 5W standard wireless charging, 7.5W for Apple devices, 10W for compatible Android devices, and 15W for fast wireless charging on supported handsets. USB-C input accepts 5V 3A and 9V 3A (max) power delivery. The foldable structure compacts the holder down for easy storage when not in use. Constructed from high-grade PC, zinc alloy, and silicone for a durable, lightweight build suited to long-term daily use. RoHS certified. Includes a 1m USB-C to USB-C cable, magnetic ring, ring positioning card, protective film, and wet and dry wipes for surface preparation.
Features & Benefits
Dual Grip - Vacuum Suction and Gel Adhesive: The mount uses both a vacuum suction cup and a gel adhesive pad to lock securely onto smooth dashboard and windscreen surfaces, preventing movement and vibration during driving without requiring permanent installation.
Wireless Charging Up to 15W: Supports multiple wireless charging standards including 5W (standard), 7.5W (Apple), 10W (fast Android), and 15W (max fast wireless), automatically negotiating the fastest compatible charge rate for the connected device.
Magnetic Phone Attachment: An included magnetic ring attaches to the back of the phone (or phone case) to align and hold the handset securely against the charging pad, preventing the phone from slipping off the mount during cornering or braking.
Foldable Structure for Compact Storage: The holder folds flat into a compact form when not in use, making it easy to store in a glovebox or centre console without taking up unnecessary space in the vehicle.
USB-C Input with 5V 3A / 9V 3A Support: The USB-C input accepts both 5V 3A and 9V 3A power delivery, compatible with a wide range of USB-C car chargers and power adapters. A 1m USB-C to USB-C cable is included.
High-Grade PC, Zinc Alloy and Silicone Construction: The combination of polycarbonate, zinc alloy, and silicone materials delivers a durable, lightweight structure resistant to daily use, with silicone contact points protecting the vehicle surface from scratches.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | MCH-8610 |
| Brand | MCDODO |
| Colour | Dark Grey |
| Mount Type | Vacuum Suction + Gel Adhesive Dual Grip |
| Attachment Method | Magnetic |
| Wireless Output | 5W / 7.5W / 10W / 15W |
| Input | 5V 3A / 9V 3A (max) |
| Connector Type | USB-C |
| Materials | PC, Zinc Alloy, Silicone |
| Dimensions | 74.4 x 79.2 x 37.3mm |
| Weight | 153g |
| Certifications | RoHS |
Compatible With / Goes Well With
The MCH-8610 is compatible with all Qi wireless charging enabled smartphones, including iPhone 8 and later (7.5W), Samsung Galaxy and other fast wireless charging Android devices (10W-15W), and any Qi-compatible handset (5W). Suitable for mounting on smooth dashboard, windscreen, and centre console surfaces.
Goes Well With:
- USB-C car charger - A compatible USB-C PD car charger (sold separately) is required to power the MCH-8610 via the included USB-C to USB-C cable
- Magnetic phone case - A magnetic compatible phone case allows the magnetic attachment to work without applying the included magnetic ring directly to the phone
Frequently Asked Questions
Does the MCH-8610 work with my phone case on?
Yes, as long as the phone case is thin enough to allow wireless charging to function and is compatible with the magnetic attachment system. The included magnetic ring can be applied to the back of a case rather than the phone itself. Very thick or metal cases may reduce wireless charging efficiency or prevent the magnetic hold from working correctly.
What power adapter is required to use the MCH-8610?
The MCH-8610 requires a USB-C power source capable of delivering 5V 3A or 9V 3A for optimal wireless charging output. A compatible USB-C car charger (sold separately) is recommended. The 1m USB-C to USB-C cable is included in the box.
How do I install the vacuum suction mount on the dashboard?
Clean the mounting surface thoroughly using the included wet and dry wipes to remove dust and oil before installation. Press the mount firmly onto the surface and engage the vacuum lock to create the suction seal. The gel adhesive provides additional grip. For best results, mount on a flat, smooth surface away from textured or patterned dashboard areas.
What is the maximum wireless charging speed the MCH-8610 supports?
The MCH-8610 supports up to 15W wireless output for compatible devices. iPhone models charge at up to 7.5W, Samsung and compatible fast wireless Android devices charge at up to 10W-15W, and standard Qi devices charge at 5W. The charger automatically selects the fastest compatible rate for the connected device.
Is the magnetic ring included and does it need to be permanently attached?
Yes, one magnetic ring and ring positioning card are included to help apply it accurately to the back of the phone or case. The ring is designed to be adhered to the device using the included adhesive and is not intended to be repeatedly removed and reapplied. If you prefer not to attach the ring to your phone directly, applying it to a removable phone case is recommended.
