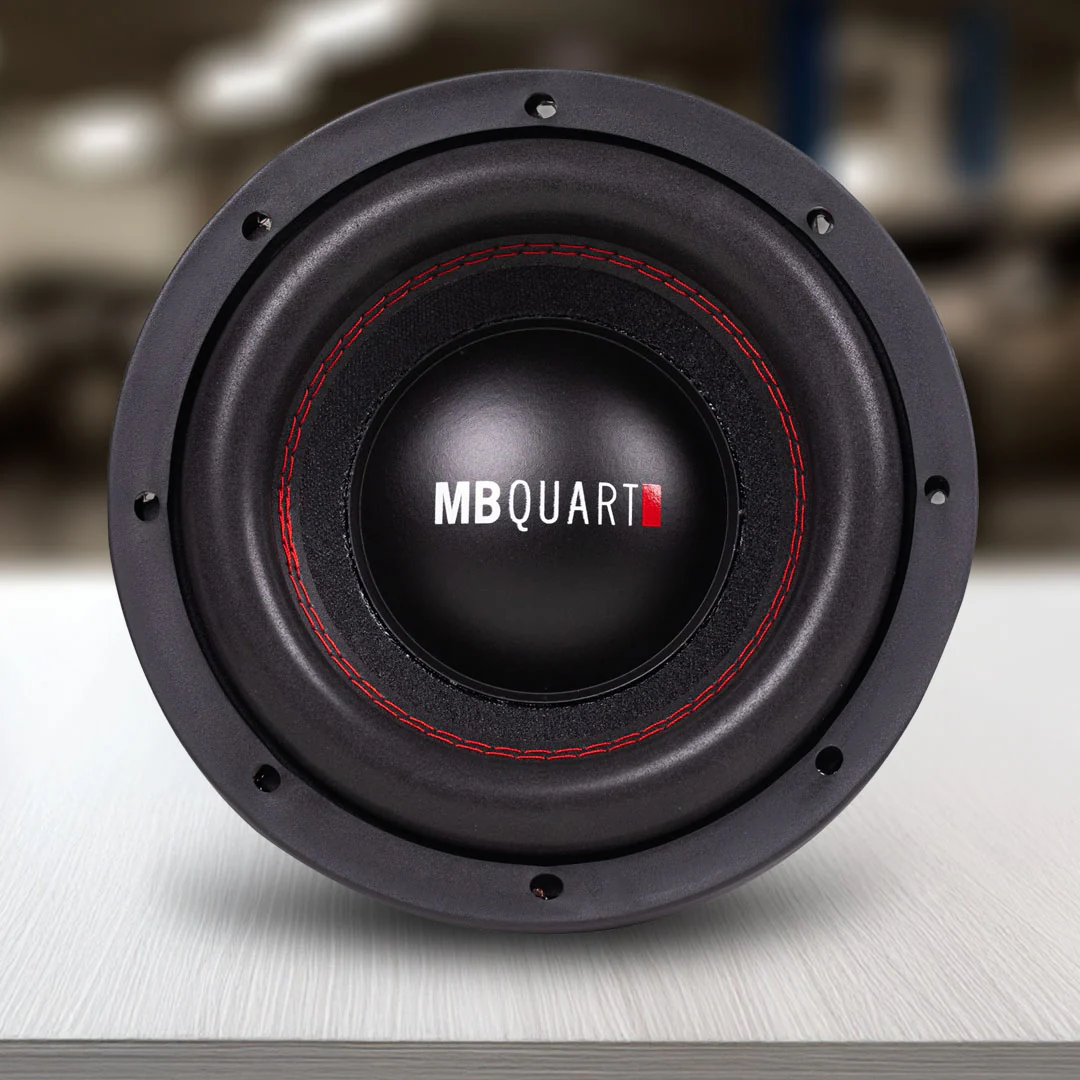

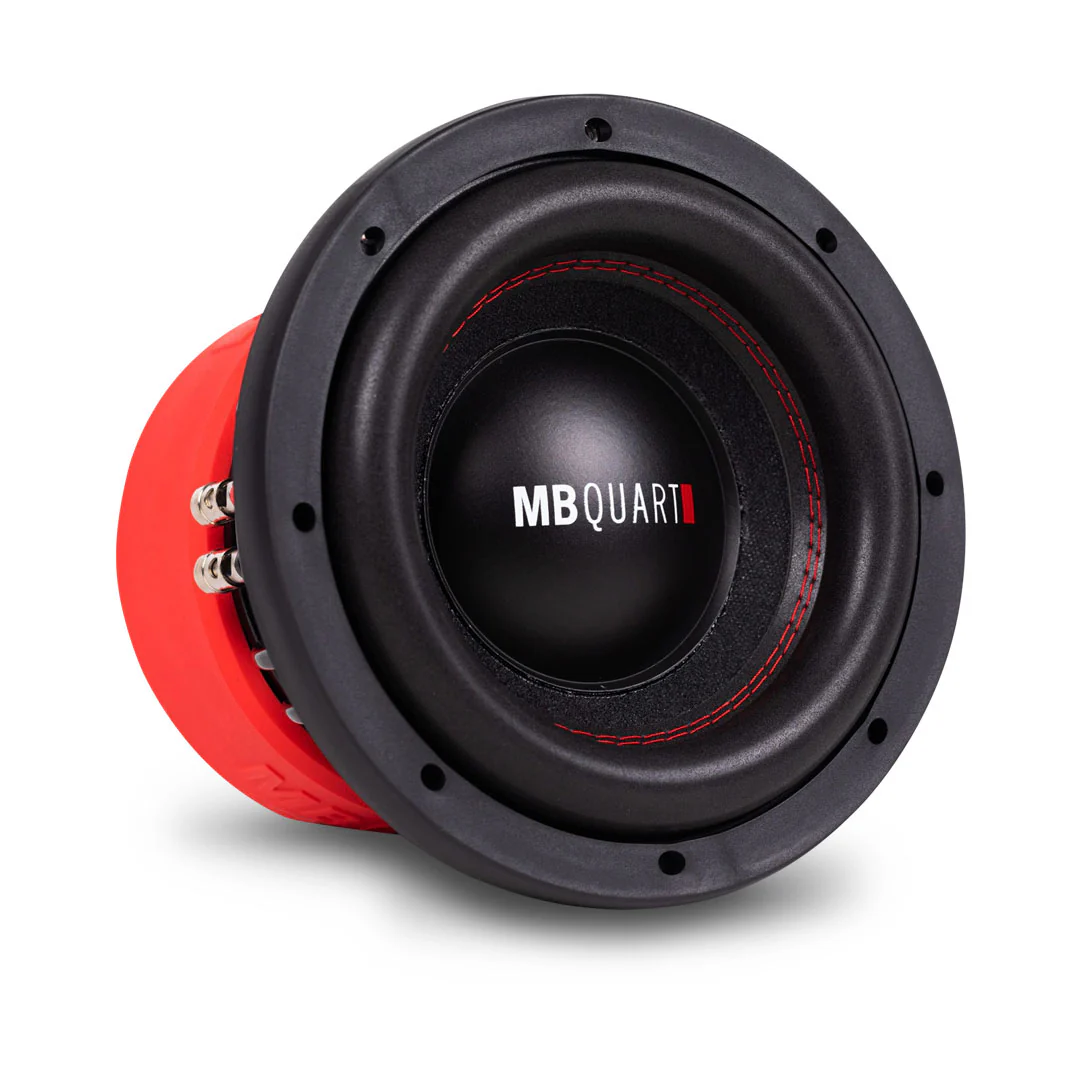

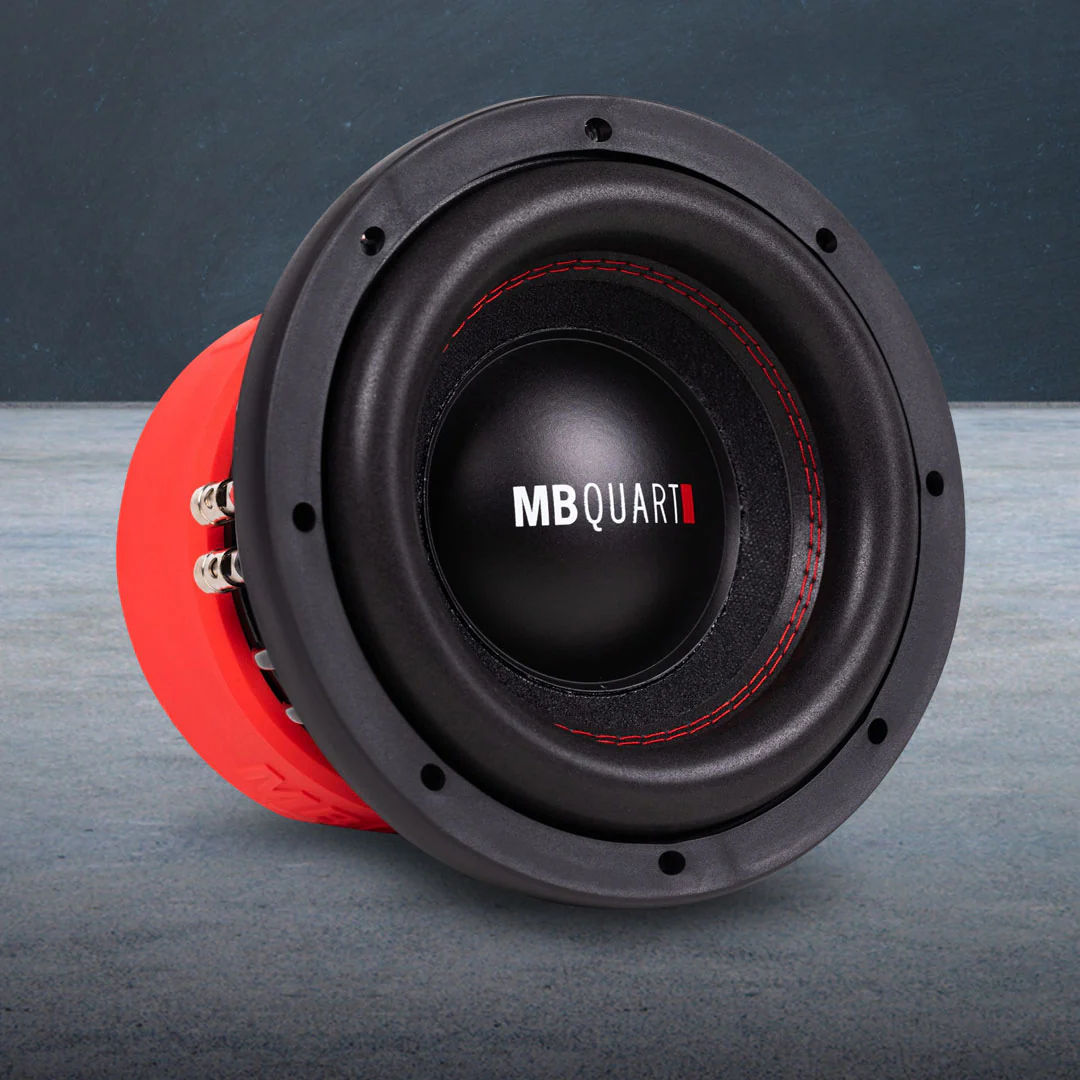

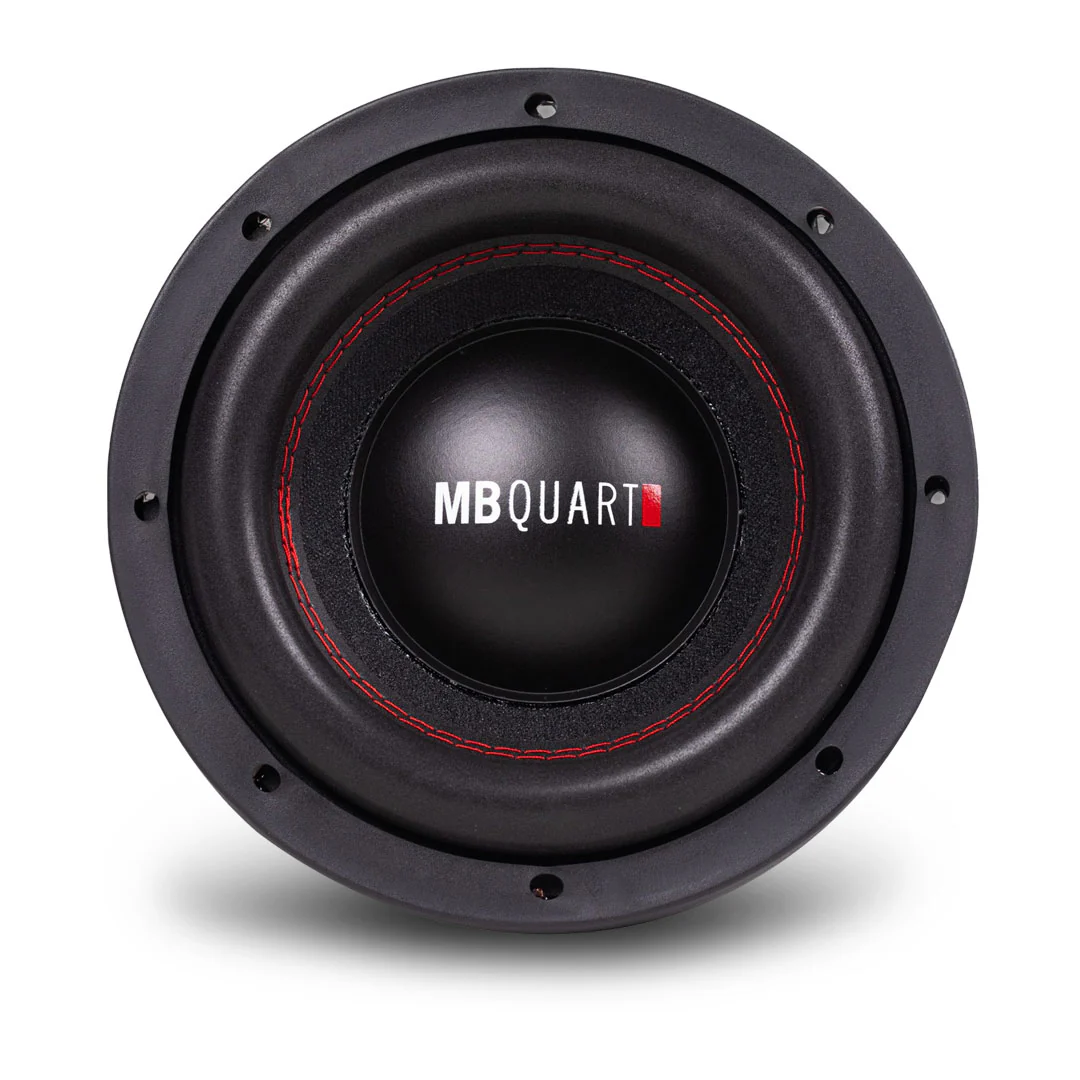

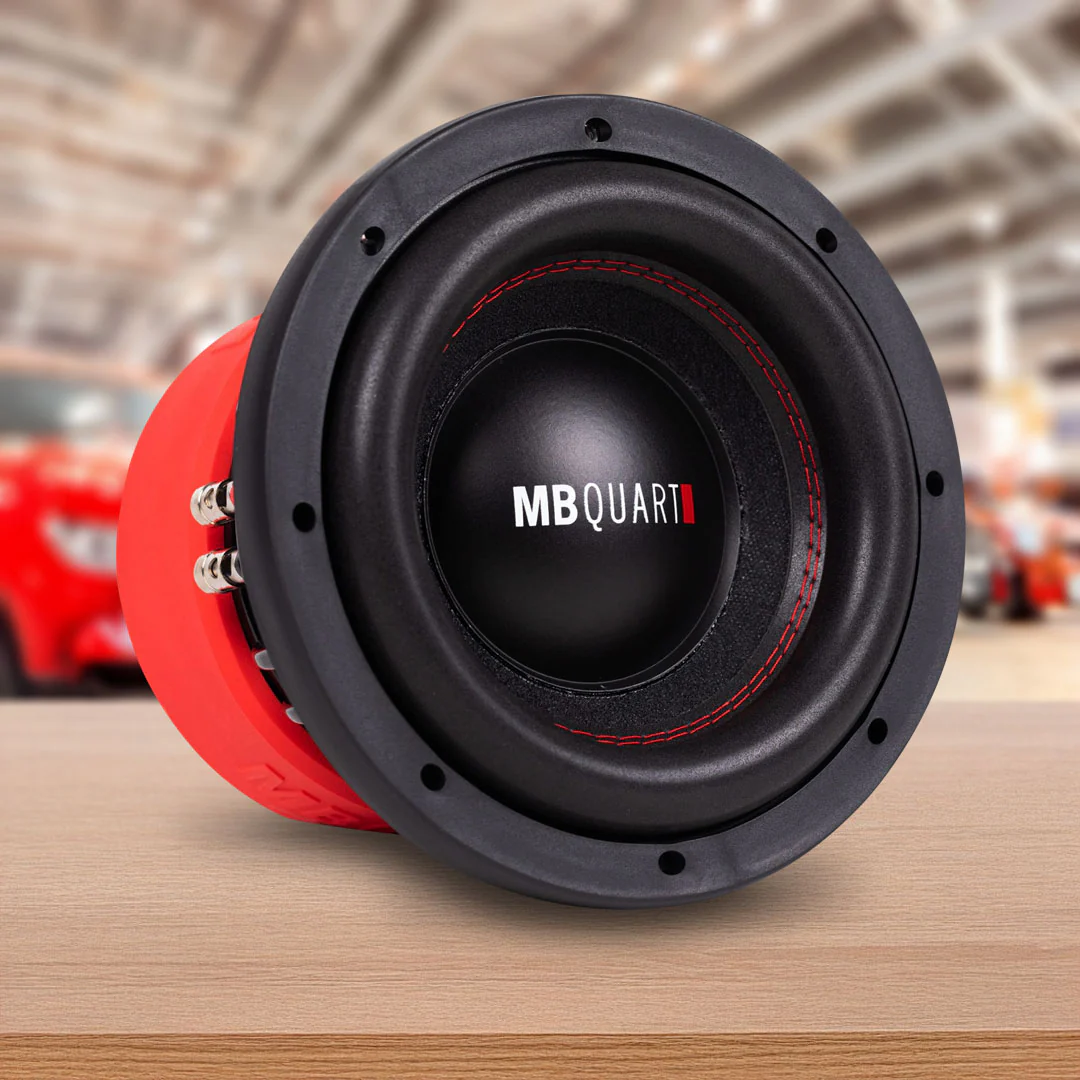

MB Quart MBQ-RW1-204 | 8″ Subwoofer | DVC Reference

Powerful Low-End Impact for Your Audio System

8″ DVC subwoofer 600 watts RMS / 1200 watts max

Specifications:

• Colour: Black
• Warranty: 2 Years
• Subwoofer Configuration: Round
• Subwoofer Voice Coils: 2
• Subwoofer Impedance (ohms): 4
• Subwoofer RMS Power Handling (watts): 600
• Subwoofer Peak Power Handling (watts): 1200
• Subwoofer Cut-Out (in): 7.4
• Subwoofer Mounting Depth (in): 5.66
• Subwoofer Outside Diameter (in): 8.5
• Subwoofer Sensitivity (1 watt/1 meter): 80dB
• Subwoofer Size (in): 8

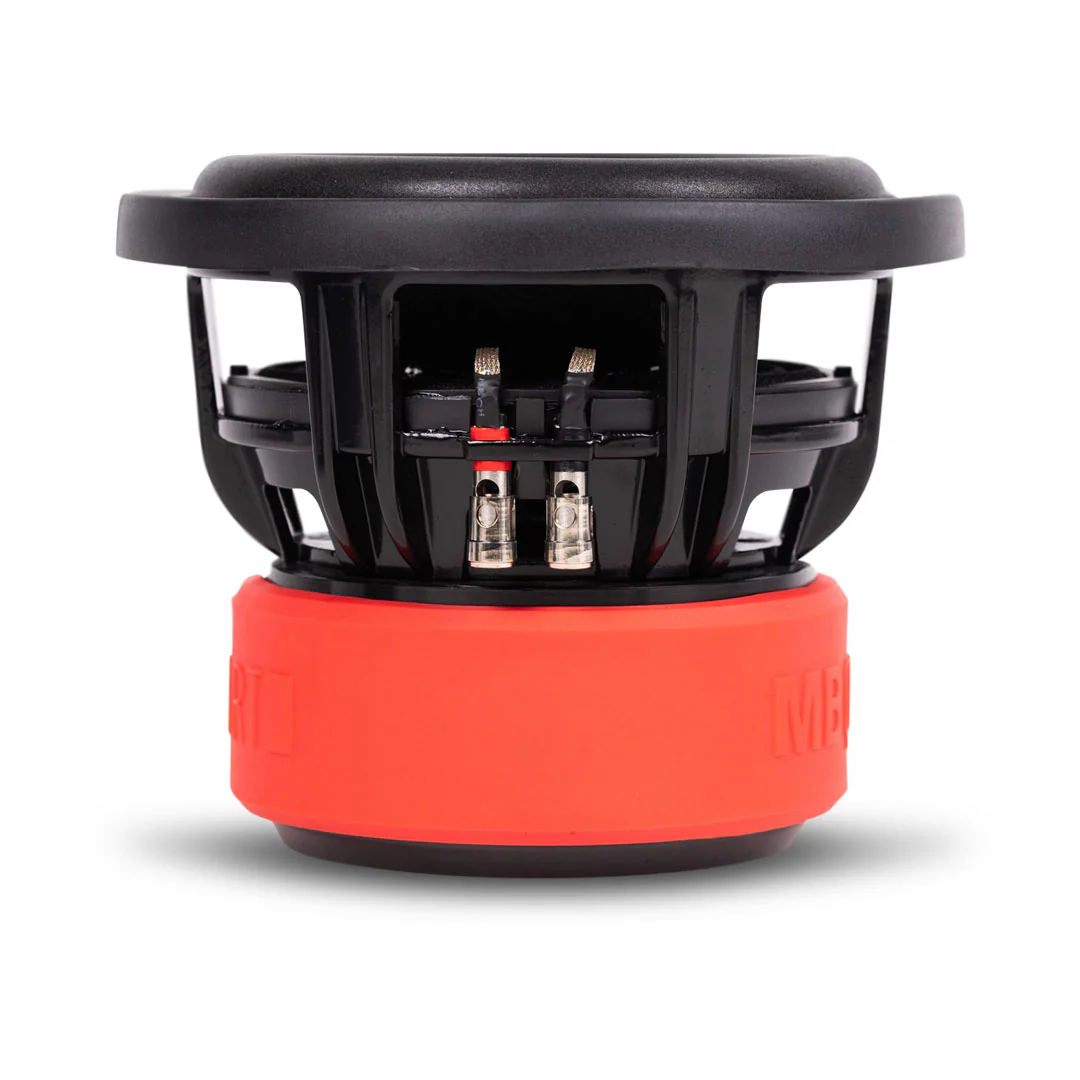

• Terminal Type: Push & insert style terminals for easy installation.
• Configuration: Round
• Surround / Cone Coupling: The pressure treated double stitched foam surround along with the dual poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free.
• Voice Coil / Former Assembly: Vented aluminum former holds a 2.5" voice coil while allowing the heat to be exchanged. (Less heat means less distortion)
• Spider: Specialized MB Quart dual poly cotton spider with double centering allows the woofer to handle more power with minimum distortions.
• Frame / Venting: Heavy duty aluminum die-cast basket allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.

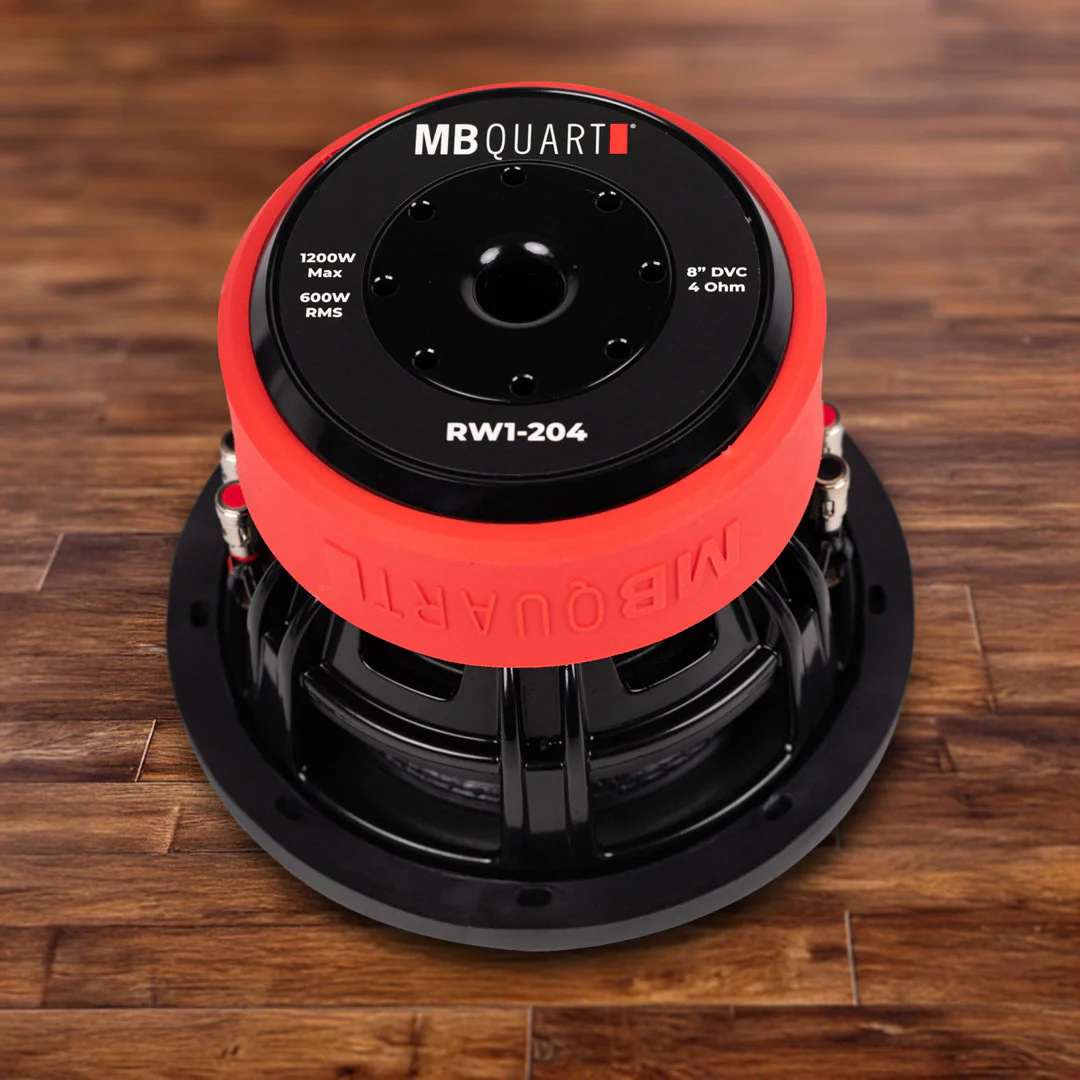

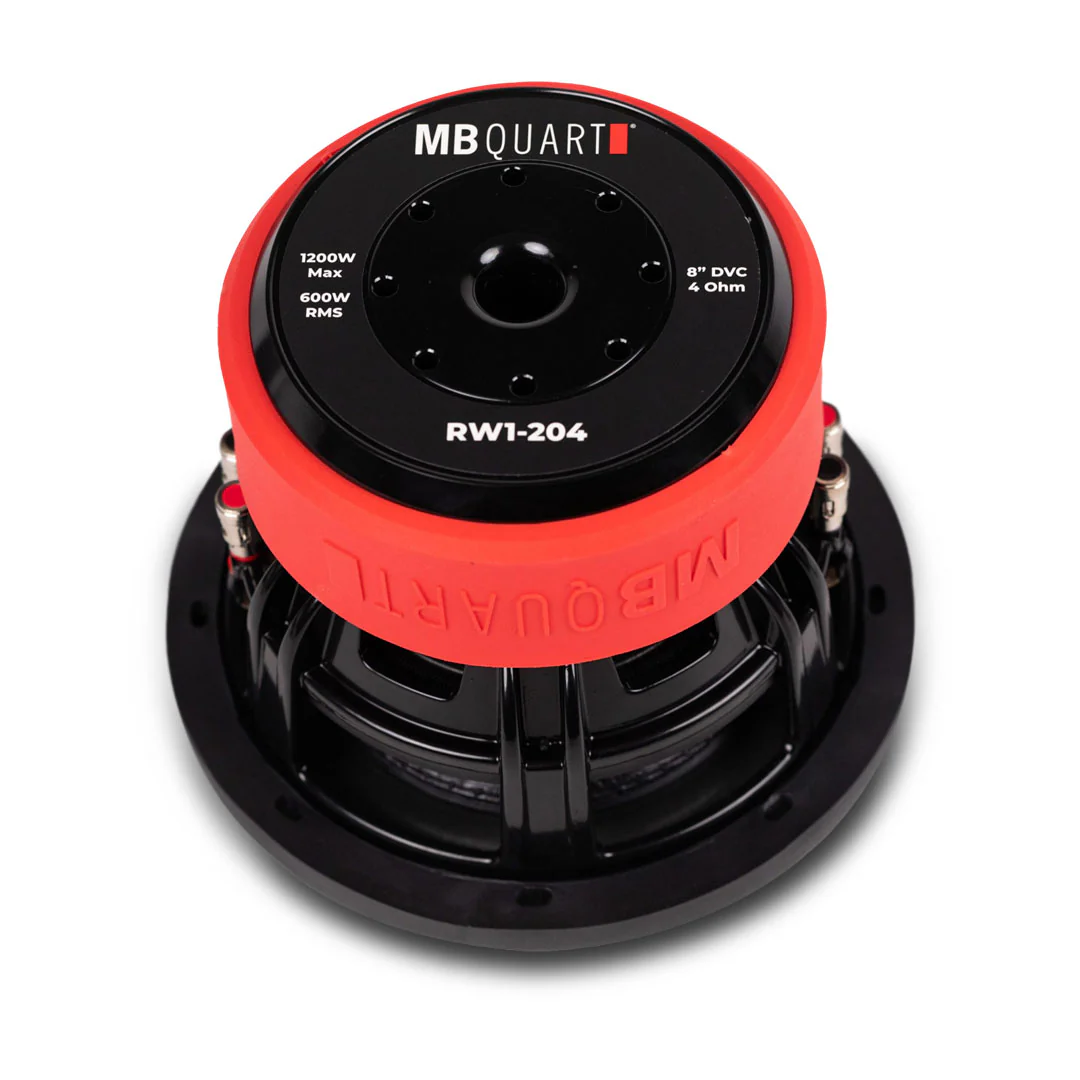

• Motor: Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL.
• Cone: Non-Pressed Paper Cone with Coating
