LED Autolamps 69RM Rear End Outline Marker Red 12/24 Volt - 120 x 69 x 20mm - Blister
ADR and ECE Approved Rear Outline Marker A Direct Globe Replacement for Trucks, Trailers, and Commercial Vehicles.
Product Overview

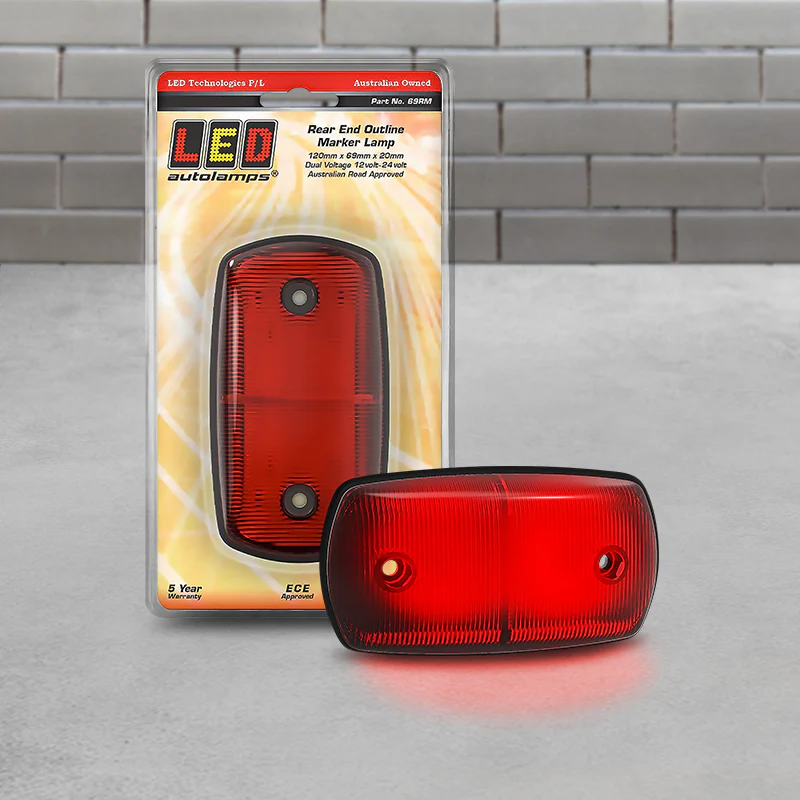

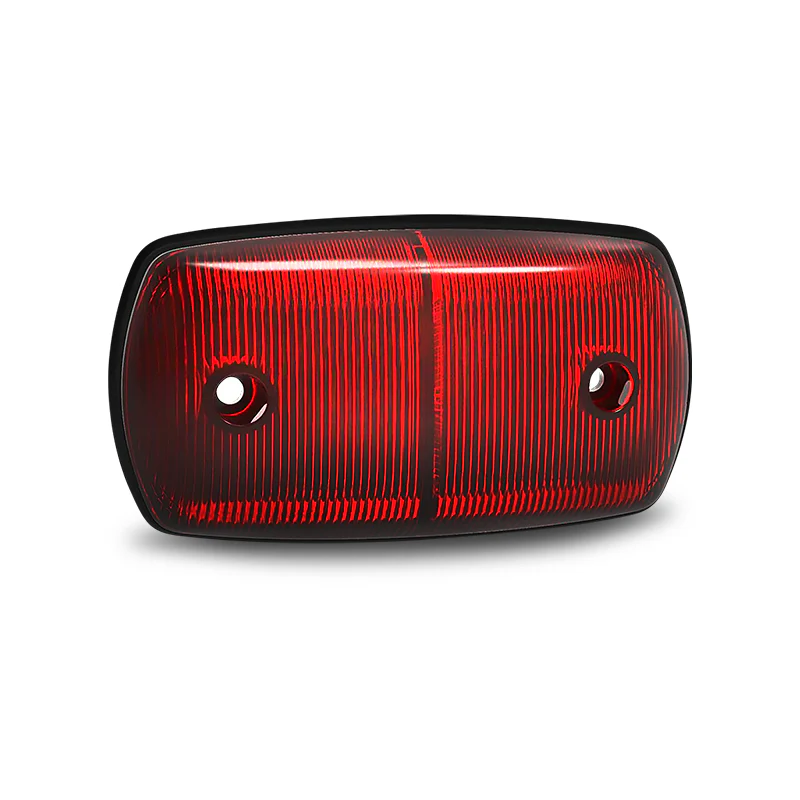

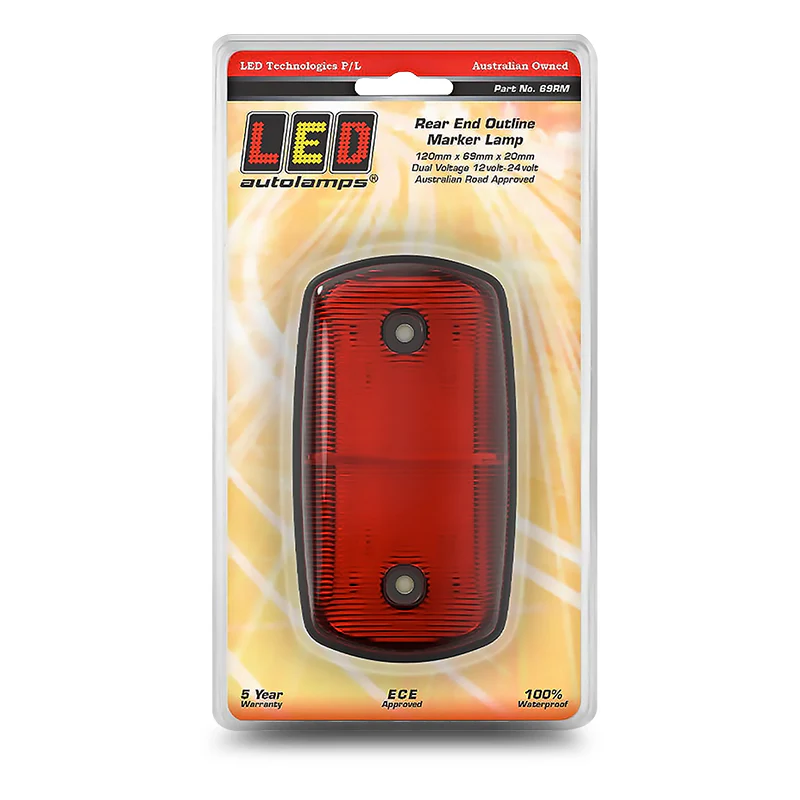

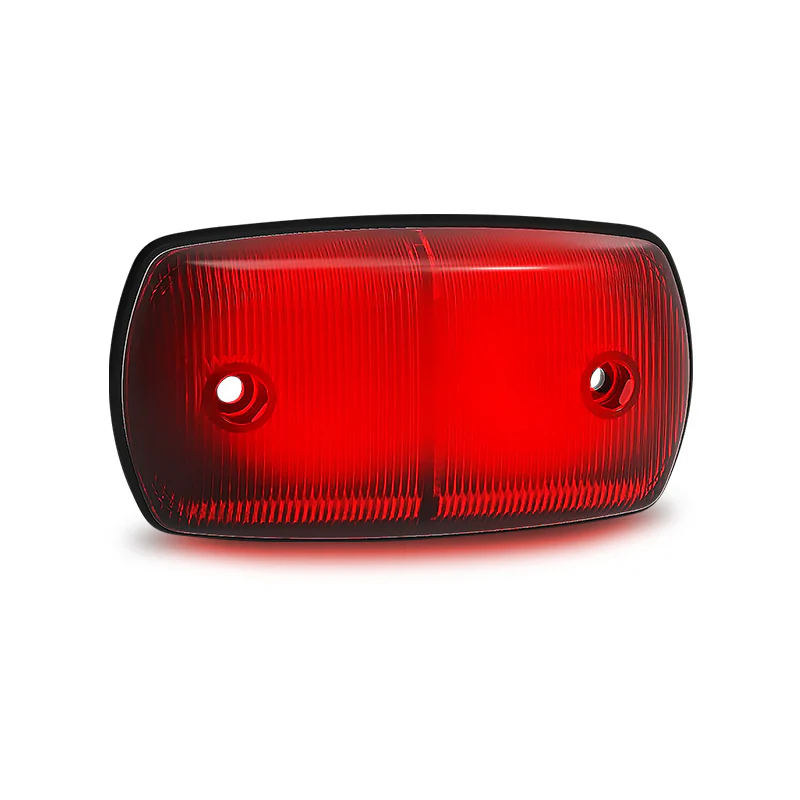

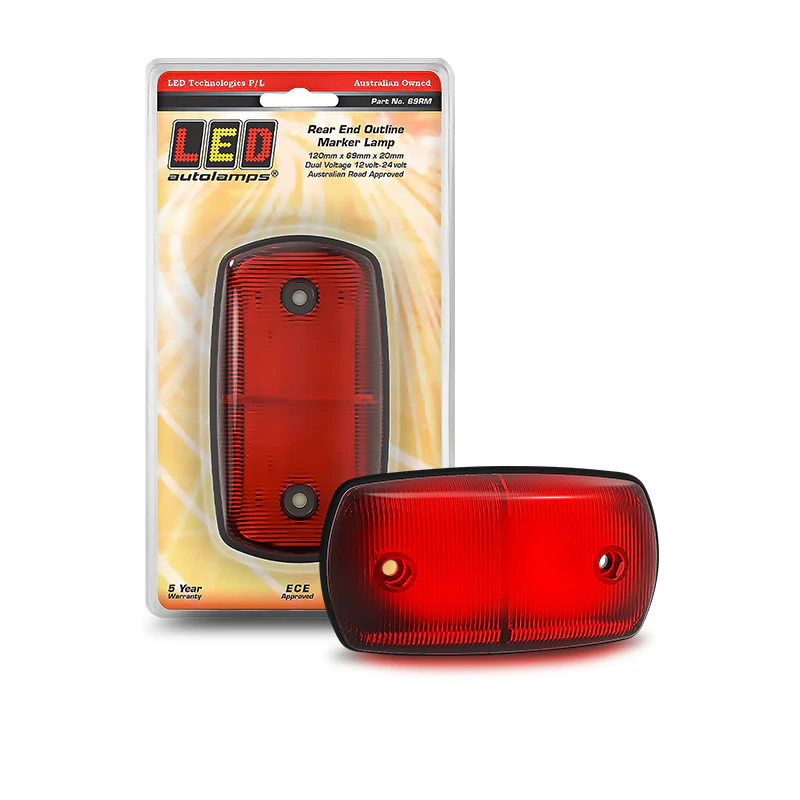

The LED Autolamps 69RM is a red rear end outline marker designed as a retrofit replacement for traditional globe-type marker lamps in trucks, semi-trailers, caravans, and commercial vehicles. Carrying both ADR and ECE road approvals, it meets the lighting compliance requirements for Australian registered vehicles while also satisfying European ECE certification suited to imported vehicles and fleet operators working across multiple compliance frameworks.
Rated at multivolt 12V to 24V and IP67 waterproof, the 69RM is a fit-and-forget upgrade over the globe it replaces. The LED light source eliminates the globe replacement cycle entirely, delivering significant long-term cost savings on fleet vehicles where marker globe failures are a routine maintenance burden. A 5-year warranty adds further confidence for fleet and owner-builder fitments alike.
Key Specifications
- Colour: Red
- Light style: Rear end outline marker (clearance marker)
- Voltage: 12V – 24V (multivolt)
- IP rating: IP67 — fully dust-tight; immersion-resistant to 1m depth for 30 minutes
- Compliance: ADR and ECE road approved
- Design: Retrofit — replaces globe type
- Dimensions: Not specified
- Packaging: Blister pack
- Sold as: Each
- Warranty: 5 years
- Current draw: Not specified — confirm with LED Autolamps
- Mount type: Not specified — confirm with LED Autolamps
- Connector type: Not specified — confirm with LED Autolamps
Features & Benefits
- Retrofit Globe Replacement Design — Engineered to fit directly into existing globe-type marker lamp housings without modification, making it a straightforward like-for-like upgrade for trucks, trailers, and caravans currently running incandescent globe markers.
- ADR and ECE Road Approved — Dual compliance covering both Australian Design Rules and European ECE regulations — suited to Australian-registered vehicles and imported commercial vehicles requiring multi-standard certification.
- IP67 Waterproof Rating — Completely sealed against dust and capable of withstanding water immersion to 1 metre for 30 minutes — fully protected against the wash-downs, rain, and road spray common to Australian transport environments.
- 12V – 24V Multivolt — Works natively on both 12V and 24V systems without modification, covering passenger vehicles, caravans, and 24V commercial trucks in a single SKU.
- No Globe Replacement Required — LED technology eliminates the routine globe replacement cycle. For fleet operators running dozens of markers, this represents a meaningful reduction in ongoing maintenance cost and vehicle downtime.
- 5-Year Warranty — A 5-year manufacturer's warranty provides long-term confidence well beyond the service life of the globe-type lamp it replaces.
Technical Specs
| Specification | Detail |
|---|---|
| Brand | LED Autolamps |
| Part Number | 69RM |
| Colour | Red |
| Light Style | Rear End Outline Marker |
| Light Type | LED |
| Voltage | 12V – 24V (Multivolt) |
| IP Rating | IP67 |
| Compliance | ADR Road Approved / ECE Approved |
| Design | Retrofit — Replaces Globe Type |
| Dimensions | Not specified |
| Packaging | Blister Pack |
| Sold As | Each |
| Current Draw | Not specified |
| Mount Type | Not specified |
| Connector Type | Not specified |
| Warranty | 5 Years |
Compatible With / Goes Well With
Suitable vehicle and trailer types:
- Trucks and semi-trailers (12V and 24V systems) with existing globe-type outline marker housings
- B-doubles and road trains
- Caravans and camper trailers
- Box trailers and flatbed trailers
- Buses and coaches
- Imported commercial vehicles requiring ECE compliance
- Any vehicle currently running globe-type rear end outline markers
Pairs well with:
- LED Autolamps amber front and side position markers for a full-vehicle LED marker upgrade
- LED Autolamps combination stop/tail/indicator lamp assemblies
- LED Autolamps 58RM rear position markers for smaller marker positions
Frequently Asked Questions
Does the 69RM require a new lamp housing or does it fit an existing globe-type fitting?
The 69RM is designed as a retrofit replacement for existing globe-type rear marker lamp housings. It is intended to fit directly without modification — however, confirm dimensional compatibility with your specific housing before purchasing, as housing profiles vary across vehicle makes and models.
What is ECE approval and why does it matter?
ECE (Economic Commission for Europe) approval is an internationally recognised lighting standard used across European and many imported commercial vehicles. Dual ADR/ECE approval means the 69RM meets compliance requirements for both Australian-registered vehicles and imported commercial equipment requiring European certification.
Will the 69RM work on both 12V and 24V vehicles?
Yes. The multivolt 12V to 24V operating range covers both light passenger and recreational vehicles and 24V heavy commercial trucks without any modification or voltage-specific variants.
What does IP67 mean for an outdoor marker lamp?
IP67 means the lamp is completely sealed against dust and can withstand water immersion to 1 metre for 30 minutes — protecting it against rain, road spray, wash-downs, and wet crossings encountered in Australian transport and touring conditions.
How does replacing globe-type markers with the 69RM reduce maintenance costs?
LED technology has no consumable filament, so there is no recurring globe replacement cost. For fleet operators managing large numbers of marker positions, the elimination of globe procurement, labour, and vehicle downtime for routine marker replacements adds up to a meaningful long-term saving.
