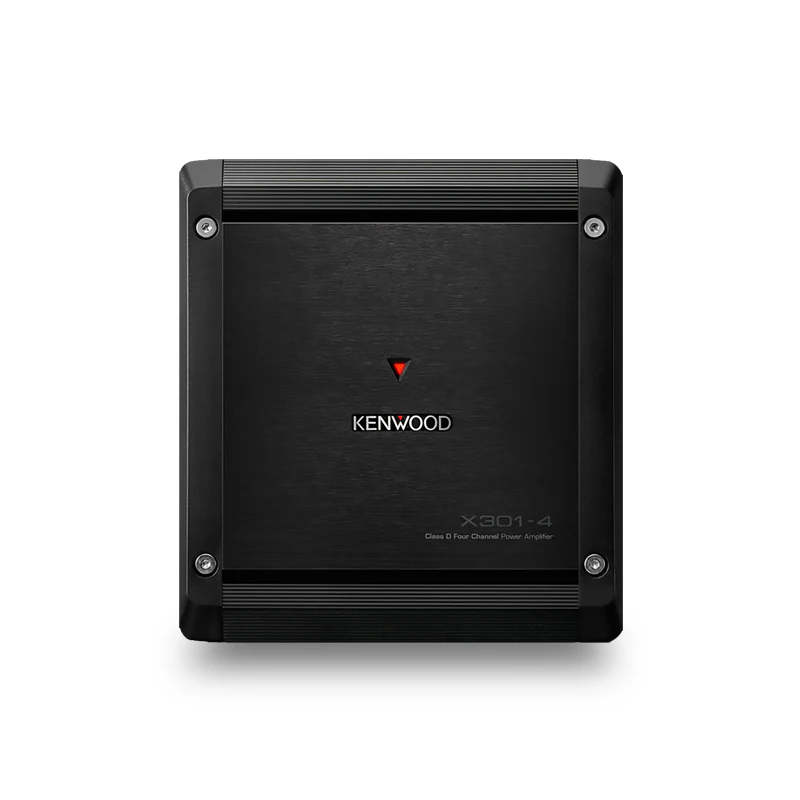

Kenwood X301-4 600W X Series Class-D 4-Channel Power Amplifier
Class D Technology Ensures that This Compact Amp Will Run Cool & Perform Reliably
X-Series, Class D 4-Channel Power Amplifier
The Kenwood X301-4 Amplifier can dish out 50W RMS each to four speakers, yet still fit almost anywhere in your vehicle! For applications that require more power, you can bridge the amp to 2-channel mode to drive a pair of speakers or components with 150 watts RMS each. In 3-channel mode, you can use the amp's front channels to drive a pair of speakers with 50 watts each, and bridge the rear channels to send 150 watts to a sub.
Features:
- 4-Channel Digital Power Amplifier
- D-Class Amplifier
- Compact Chassis
- Built-In High & Low Pass Filter
- Speaker Level Input
- Signal Sensing Turn-On
- Extruded Aluminum Heat Sink Design
- 2 Ohms Load Capability
- Screw-Type Terminals
Specifications:
- Class D Amplifier: Yes
- Full Range Digital Amplifier: Yes
- Load Capability: 2Ω Stable
- Rated Power Output (4Ω): 50W x 4 (4Ω)
- Rated power Output: 75W x 4 (2Ω)
- Bridged Power Output (4Ω): 150W x 2
- CEA-2006 Compliant: Yes
- Low-Pass Filter: Yes
- High-Pass Filter: Yes
- Switched Mode Power Supply: Yes, with Power MOS-FET
- Single Side Terminals: Yes
- Chassis: Extruded Aluminum Heat Sink Design
- Rated Power Output (4Ω, 14,4V): 50W x 4 (20Hz ~ 20000Hz, 1%THD)
- Rated Power Output (2Ω, 14,4V): 75W x 4 (1000Hz, 1%THD)
- Rated Power Output (CEA-2006): 50Watts RMS x 4 at 4 ohms & 1% THD
- Low-Pass Filter: 50~200Hz (-24dB/oct)
- High-Pass Filter: 50~200Hz (12dB/oct)
- Bass Boost Circuit: 40Hz, 18dB (B-Channel)
- RCA Input Sensitivity: 0.2 ~ 5V
- Input Impedance: 10kΩ
- Signal To Noise Ratio: 100dB
- Signal To Noise Ratio (CEA-2006): 80dBa (Reference: 1 Watt Into 4 Ohms)
- Frequency Response (+0dB, -1dB): 20Hz ~ 50000Hz
- Freq. Resp. (+0dB, -3dB) (SUB): 20Hz ~ 200Hz
- Operating Voltage: 14.4V (11V ～ 16V Allowable)
- Maximum Current Consumption: 25A
- Dimensions (W x H x D): 170 x 55 x 187(mm)
- Installation Size (W x H x D): 170 x 55 x 187 (mm)
- Weight: 1.3kg
