Kenwood KAC-M1814 400W Compact 4-Channel Digital Amplifier

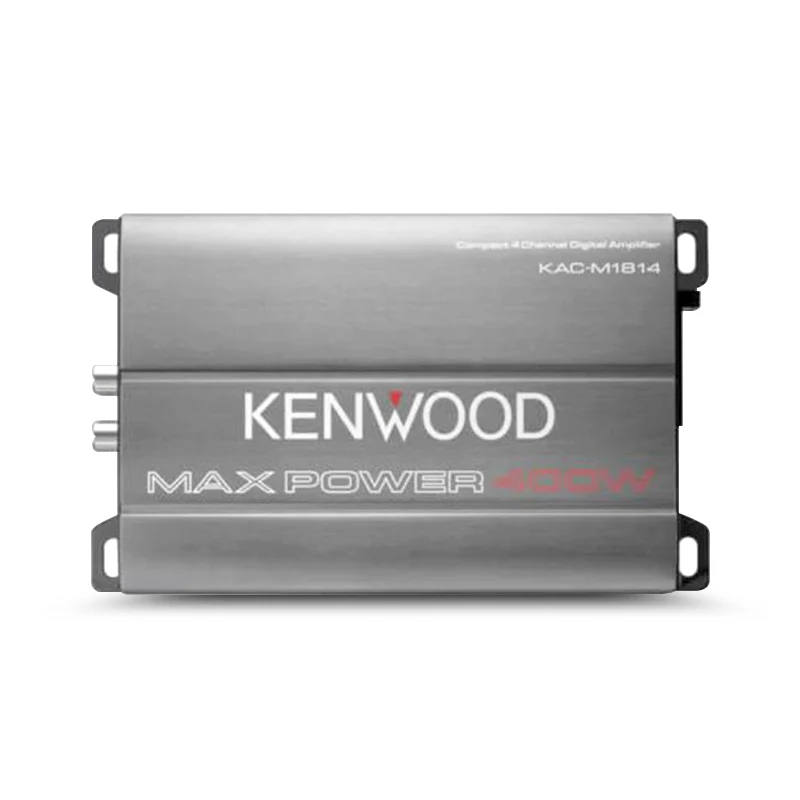

Product image 1

Kenwood KAC-M1814 400W Compact 4-Channel Digital Amplifier

Empower Your Speakers on Land or Sea with the Kenwood KAC-M1814!

Compact 4-Channel Digital Amplifier
The Multi-Application KAC-M1814 Compact 4-Channel Class-D Amplifier with 400 peak power supports louder volume for Car, Marine and Motorsports users with low-noise. Plastic covered connector helps to keep out water and dust and the Conformal Coating provides vibration resistance and helps prevent the PCB from rusting.

RCA Line-In terminal or Speaker Level Input, with Signal Sensing Turn-on, to connect any type of receiver. A.ch and/or B.ch Filter Frequency Control and Filter Switch to apply HPF / OFF / LPF. Bridgeable Connection. Pre-amp and Power-amp sections are separated to reduce radiation noise.

Controllable Interface
Compact design with a controllable interface to adjust the sound from a receiver:
  1. Filter Frequency Control (A.Ch/B.Ch)
  2. Filter Switch to Apply HPF / OFF / LPF (A.Ch/B.Ch)
  3. Line In Terminal
  4. Input Sensitivity Control (A.Ch/B.Ch)

Features:

  • Supports louder volume for Car, Marine and Motorsports users with low-noise
  • Plastic covered connector helps to keep out water and dust
  • Conformal Coating provides vibration resistance and helps prevent the PCB from rusting
  • Pre-amp and Power-amp sections are separated to reduce radiation noise
  • Conformal Coating for Marine and Other use
  • Bridgeable Connection

Specifications:

  • Class-D Amplifier: Yes
  • Full Range Digital Amplifier: Yes
  • Load Capability: 4Ω Stable
  • Maximum Power Output: 400W
  • Rated Power Output: 45W x 4 (4Ω)
  • CEA-2006 Compliant: Yes
  • Low-Pass Filter: Yes
  • High-Pass Filter: Yes
  • Switched Mode Power Supply: Yes, Power MOS-FET
  • Signal Sensing Turn-On: Yes
  • Line-In: 4 RCA / Speaker Level
  • Speaker Level Input: Yes
  • Die-Cast Aluminium Heat Sink: Yes
  • DC Cable Supplied: Yes
  • Rated Power Output (CEA-2006): 45W RMS x 4 @ 4Ω & 1% THD
  • Low-Pass Filter: 50 ~ 200Hz (-12dB/Oct.)
  • High-Pass Filter: 50 ~ 200Hz (12dB/Oct.)
  • Input Impedance: 10kΩ
  • Signal-To-Noise-Ratio: 98dB
  • Signal-To-Noise-Ratio (CEA-2006): 82dBa (Reference: 1W Into 4Ω)
  • Frequency Response: 20Hz ~ 20Hz (+0dB, -3dB)
  • Operating Voltage: 14.4V (11V ～ 16V Allowable)
  • Maximum Current Consumption: 15A
  • Dimensions (W x H x D): 145mm x 45mm x 99mm
  • Weight: 0.70kg
$52.88

Original: $151.09

-65%
Kenwood KAC-M1814 400W Compact 4-Channel Digital Amplifier—

$151.09

$52.88
